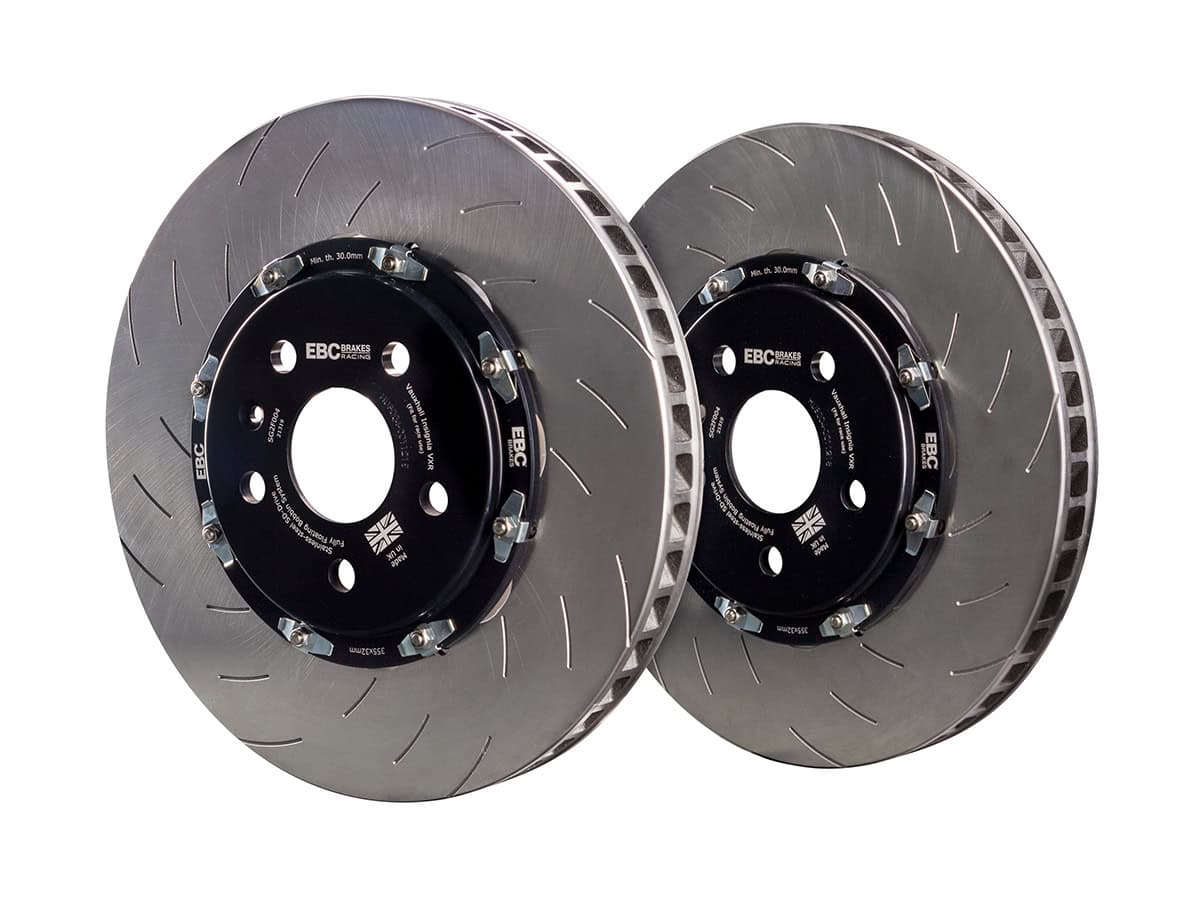

SG2F004 – EBC SG2F 2-Piece Slotted Brake Discs; Front
€1,118.34 Incl. VAT
- EBC 2-Piece Brake Rotors
- Material: Cast Iron
- Package Contents: 2x Brake Discs
Does this part fit your car?
Check your carOpel
Insignia (G09 / 68) 68 Hatchback 2008 - 2017
Ways to pay
- and more
EBC
EBC's range here is braking and nothing else, but it reaches most of the brake system. Pads, one-piece and two-piece discs, braided stainless brake lines, drum brake shoes, pad wear sensor wires, Apollo calipers and brake fluid are all listed. The company was founded in the United Kingdom in 1978.
The pads run from like-for-like replacements to race compounds. Ultimax is listed as an OE-type organic pad, and Greenstuff 2000 and 6000 as organic street pads. Redstuff is a ceramic street pad, Yellowstuff and Bluestuff NDX are para-aramid sport pads, and Orangestuff, RP-X and RP-1 are the race compounds. Discs come plain (Premium), slotted (USR and BSD), dimpled and slotted (GD), or as SG2F two-piece floating discs.
EBC parts are listed for a very wide spread of cars, led by BMW, Ford, Audi, Volkswagen, Toyota and Mercedes-Benz, with Honda, Mazda, Nissan and Porsche among many others.
The other pad brands here lean towards sport and race compounds. EBC is the place to find a road or OE-type pad as well as a track pad, together with the lines, shoes and wear sensors for the same car.
Talk to a real motorsport specialist.
EU-based, motorsport-experienced. We'll walk through your application before you buy.
Description
SG2F004 – EBC SG2F 2-Piece Slotted Brake Discs; Front EBC’s 2-piece fully floating rotors have been tested to withstand hundreds of hours the harshest track driving. EBC’s 2-piece rotors offer a significant weight saving compared to similar sized brake rotors leads to improvements in acceleration, ‘dive’ under braking, and tyre road holding.
All cast iron rings feature 48 curved vanes and are handed left and right, ensuring the vanes always rotate in the correct direction, giving maximum cooling efficiency. All outer friction rings are cast from a high-copper, high-carbon G3500 disc alloy giving them a high resistance to wear and cracking, even when used on track or for racing.
The cast iron outer ring ‘floats’ on EBC’s patented SD-Drive technology bobbins, allowing the friction ring to expand and contract freely by up to 3mm when subjected to the extreme heat generated from hard braking. The bells are precision machined from aerospace grade aluminum then hard anodised for great looks and excellent durability.
All bobbins are machined from a single piece of stainless steel, preventing unsightly corrosion and ensuring the outer ring continues to float freely, even after years of exposure to road elements. EBC Racing’s 2-piece floating discs offer a low maintenance solution that are at home on both the public roads and the race track.
Each bobbin location also features an anti-rattle spring clip, meaning these discs are totally silent in operation.
Additional information
| Manufacturer | EBC |
|---|---|
| Bolt Hole Quantity | 00, 5 |
| Disc Diameter (mm) | 355 |
| Disc Finish | Curved Slotted |
| Disc Construction | 2-Piece Floating |
| Disc Side | Left/Right |
| Max Thickness | 32 |
| Min Thickness | 30 |
| Disc Type | Vented |
| Disc Quality | Premium |
| Material | Cast Iron |
| Package Contents | 2x Brake Discs |
| Brake Location | Front |
