Universal Filters

Universal air filters are sized to fit an intake rather than made for one car’s airbox. They clamp onto an intake pipe, throttle body or carburettor, or replace the element in a round housing. This group brings together clamp-on filters, round and conical filters and assemblies, and chrome-finished filters for building an intake around your own layout.

Every air filter does two jobs that pull against each other. It must stop the abrasive dust that wears cylinder bores, piston rings and turbo compressor wheels, yet add as little restriction as possible ahead of the throttle. Media area settles much of that conflict. A larger element passes the same airflow more slowly through each part of its surface, so it restricts less and holds more dirt between cleanings.

Where the filter breathes matters as much as the filter itself. Air density falls by roughly 1% for every 3 °C rise in intake temperature, and air beside an exhaust manifold or behind a radiator runs far above ambient. An open filter therefore belongs behind a heat shield, inside an airbox or at the end of a duct that brings in cool air.

The subcategories differ in how the filter mounts:

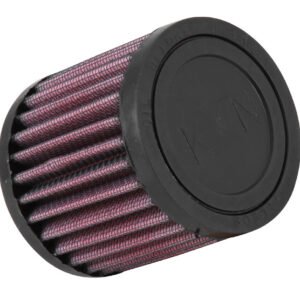

• Clamp-on filters have a rubber neck that a hose clip tightens over a pipe, throttle body or sensor housing. Choose by neck diameter, then by length and shape.

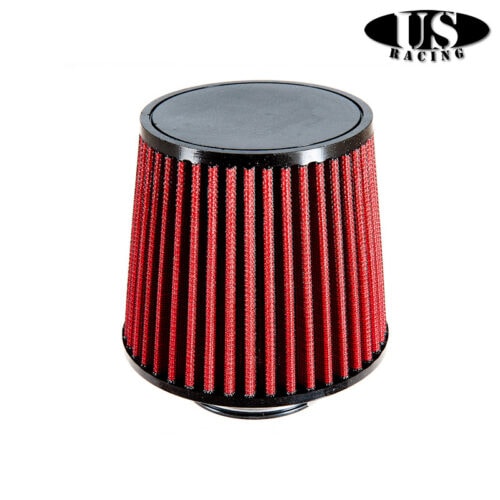

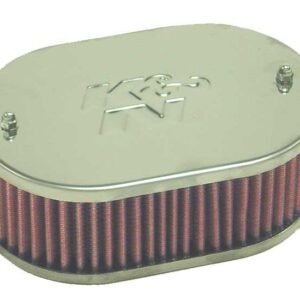

• Round and conical filters include replacement elements for round air cleaner housings, complete assemblies with their own base and lid, and custom racing assemblies, some for sidedraught carburettors.

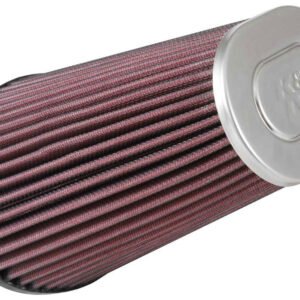

• Chrome filters are universal filters with a chrome finish, for an installation that is on show.
• Dimensions: where a listing records them, sizes are in millimetres, such as lengths from 100 to 250 mm and heights of 125 or 155 mm. Measure the space up to the bonnet before choosing.
• Vehicle notes: some listings name vehicles, often classic carburettor cars and motorcycles. Treat them as a lead and confirm the neck size and dimensions.

Washable media come in two main kinds: oiled, with a tacky film that holds fine dust, and dry synthetic, which is washed and refitted without oil. Check which type you have before cleaning.

Fit a clamp-on filter to a clean, dry pipe and support a long one so engine movement cannot tear the neck. Keep every filter clear of the bonnet, exhaust and fan. On engines with an air mass sensor, keep the straight pipe ahead of it, because a changed flow pattern can shift its reading.
