Fuel System
Blind Plugs, Block-Offs & Clamps
- 138 products
- Ships from EU stock
- Blind Plugs, Block-Offs & Clamps guide
Top brands in Blind Plugs, Block-Offs & Clamps
Blind Plugs, Block-Offs & Clamps guide
Blind plugs, caps and block-offs close ports and lines that are not in use, and the clamps here hold hoses and finish hose ends. They are needed when a sensor or line is deleted, when a component has spare ports, or while a system is apart. Alongside aluminium caps and plugs, the range covers plastic protective plugs, inline shut-off valves, hose clamp finishers and stainless hose clamps.
A blanking part must seal the same way as the fitting it replaces. An AN cap seals on the male 37° cone, an NPT plug wedges into its taper with sealant, and a metric plug relies on a sealing washer or O-ring. Plastic plugs keep dirt out during storage and assembly but will not hold pressure.
Work out which end you are closing, then the thread:
- Caps: aluminium blind caps fit over male AN ends from AN3 to AN16.

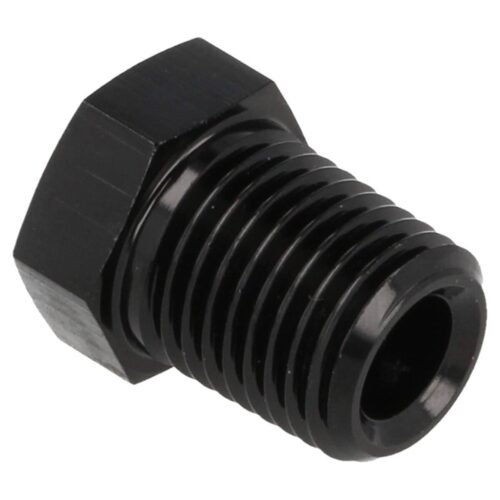

- Plugs: aluminium plugs close female AN ports and fittings, NPT ports from 1/8 to 1/2 NPT, and metric ports, including a low-profile M14×1.5 that sits nearly flush. Blind plugs sized in millimetres, such as 28 mm, are also listed.
- Thread check: AN plugs use the UNF thread of their dash size, NPT plugs a taper and metric plugs a fine pitch such as M18×1.5. Check how the port seals before choosing.
- Protective plugs: plastic male and female AN plugs, such as AN3, AN4, AN6 and AN10, keep dirt out of open lines and ports.
- Shut-off valves: aluminium inline valves in AN8, AN10, AN12 and AN16, and in 3/8 NPT, to isolate a filter, cooler or tank for service.
- Clamps and finishers: hose clamp finishers from AN4 to AN20 clamp a hose onto its fitting neatly, and stainless clamps are listed for AN hose, including PTFE line.
Black, blue, red and silver finishes allow blanked ports to be colour-coded. Before blanking a port, confirm the component does not need it open, such as a regulator’s vacuum reference, a tank vent or a turbo oil drain. Clean the port, use sealant only on NPT threads, and tighten an AN cap only until the cone seats firmly.
Shut-off valves must be fully open before the engine runs, as a closed feed valve starves the engine and can damage the pump. Fit them where they can be seen and reached, with the open position marked. Treat every plug in a working system as a joint, and include it in the pressure and leak test.
