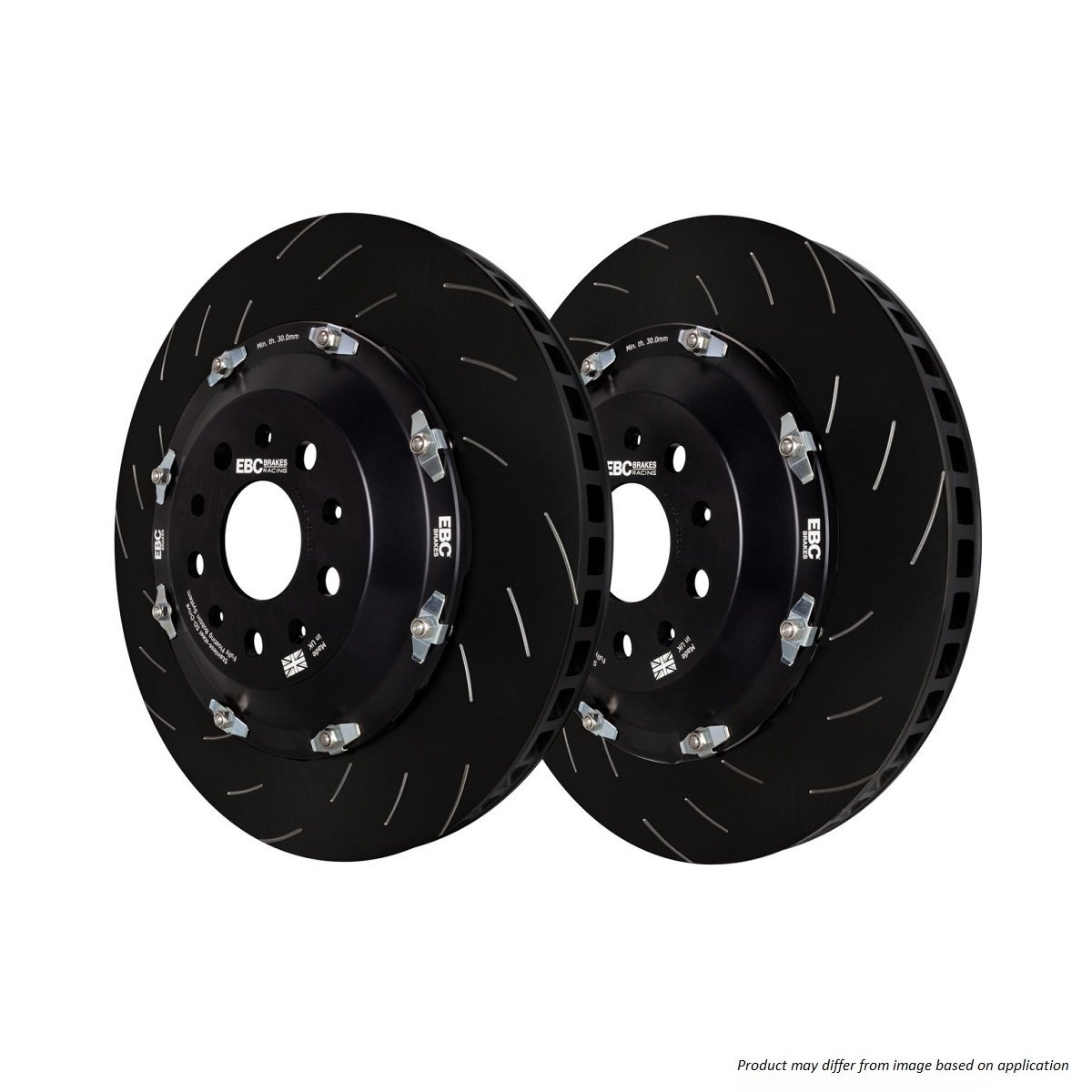

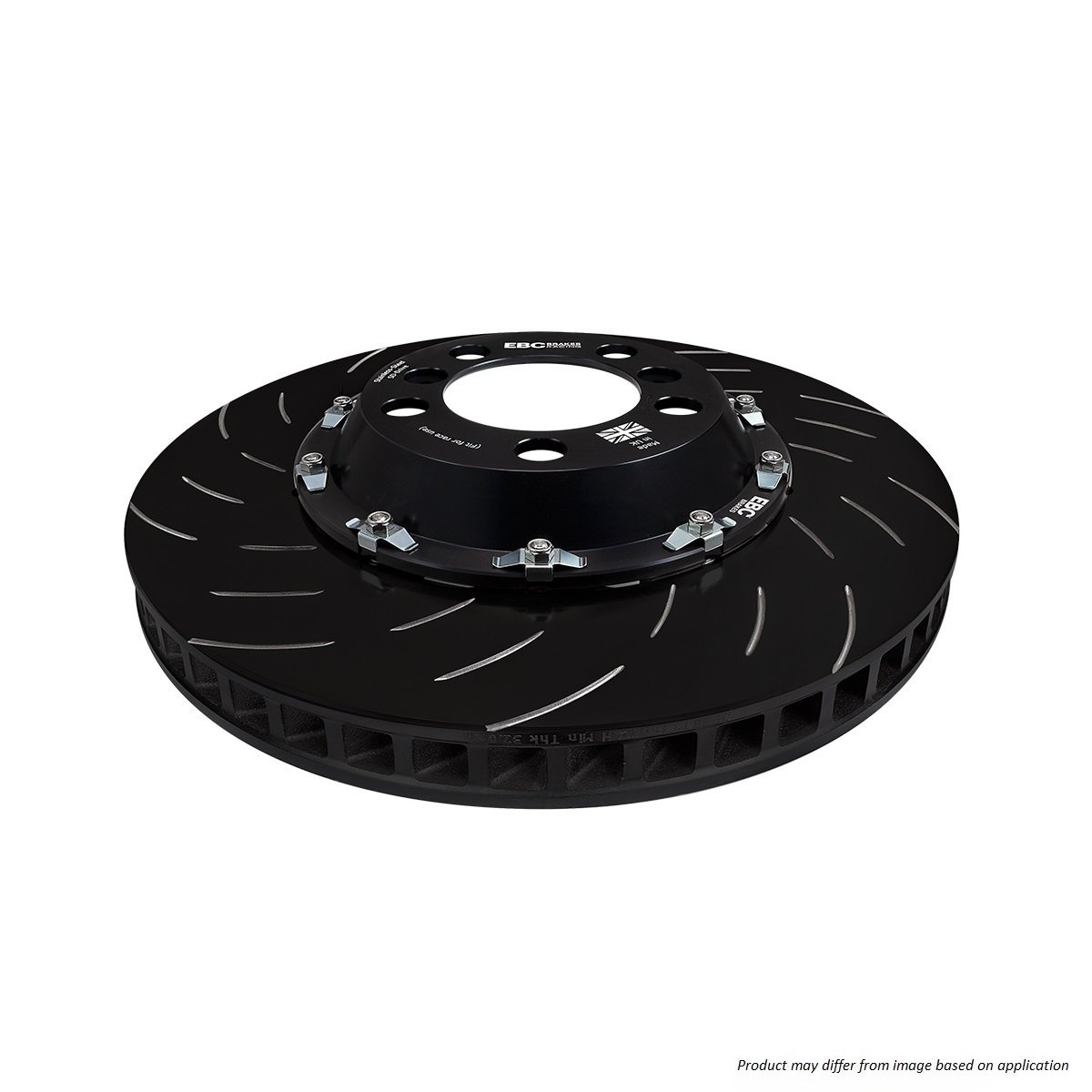

SG2FC2344- EBC SG2FC 2-Piece Slotted Brake Discs; Rear
€923.93 Incl. VAT
- EBC 2-Piece Brake Rotors
- Package: 2x Brake Discs
- Disc Diameter: 330,00mm
- Disc Type: Vented
- Material: Cast Iron
- Fits: Aston Martin DB9 2004-2016
Does this part fit your car?
Check your carAston Martin
DB9 Convertible 2004 - 2016 2004 - 2016
DB9 Coupe 2004 - 2016 2004 - 2016
Vantage 2005-Present Coupe 2005-Present
Vantage Roadster 2007 - Present 2005 - Present
Ways to pay
- and more
EBC
EBC's range here is braking and nothing else, but it reaches most of the brake system. Pads, one-piece and two-piece discs, braided stainless brake lines, drum brake shoes, pad wear sensor wires, Apollo calipers and brake fluid are all listed. The company was founded in the United Kingdom in 1978.
The pads run from like-for-like replacements to race compounds. Ultimax is listed as an OE-type organic pad, and Greenstuff 2000 and 6000 as organic street pads. Redstuff is a ceramic street pad, Yellowstuff and Bluestuff NDX are para-aramid sport pads, and Orangestuff, RP-X and RP-1 are the race compounds. Discs come plain (Premium), slotted (USR and BSD), dimpled and slotted (GD), or as SG2F two-piece floating discs.
EBC parts are listed for a very wide spread of cars, led by BMW, Ford, Audi, Volkswagen, Toyota and Mercedes-Benz, with Honda, Mazda, Nissan and Porsche among many others.
The other pad brands here lean towards sport and race compounds. EBC is the place to find a road or OE-type pad as well as a track pad, together with the lines, shoes and wear sensors for the same car.
Talk to a real motorsport specialist.
EU-based, motorsport-experienced. We'll walk through your application before you buy.
Description
EBC’s 2-piece fully floating rotors have been tested to withstand
hundreds of hours the harshest track driving. EBC’s 2-piece rotors offer
a significant weight saving compared to similar sized brake rotors
leads to improvements in acceleration, ‘dive’ under braking, and tyre
road holding. All cast iron rings feature 48 curved vanes and are handed
left and right, ensuring the vanes always rotate in the correct
direction, giving maximum cooling efficiency.
All outer friction rings are cast from a high-copper, high-carbon G3500
disc alloy giving them a high resistance to wear and cracking, even when
used on track or for racing. The cast iron outer ring ‘floats’ on EBC’s
patented SD-Drive technology bobbins, allowing the friction ring to
expand and contract freely by up to 3mm when subjected to the extreme
heat generated from hard braking. The bells are precision machined from
aerospace grade aluminum then hard anodised for great looks and
excellent durability. All bobbins are machined from a single piece of
stainless steel, preventing unsightly corrosion and ensuring the outer
ring continues to float freely, even after years of exposure to road
elements. EBC Racing’s 2-piece floating discs offer a low maintenance
solution that are at home on both the public roads and the race track.
Each bobbin location also features an anti-rattle spring clip, meaning
these discs are totally silent in operation.
Specifications
| Part number | SG2FC2344 |
|---|---|
| Manufacturer | EBC |
| Bolt Hole Quantity | 5,00 |
| Disc Diameter (mm) | 330,00 |
| Disc Finish | Curved Slotted |
| Disc Height (mm) | 47,00 |
| Disc Construction | 2-Piece Floating |
| Disc Side | Left/Right |
| Max Thickness | 28,00 |
| Min Thickness | 26,00 |
| Disc Vane Style | Curved Vane |
| Disc Type | Vented |
| Disc Quality | Premium |
| Material | Cast Iron |
| Package Contents | 2x Brake Discs |
| Weight | 18 kg |
