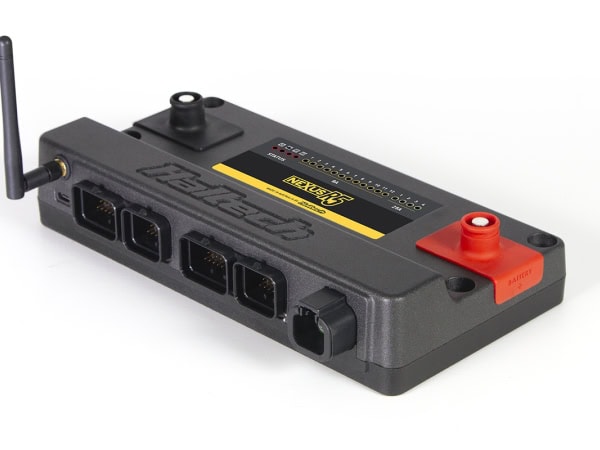

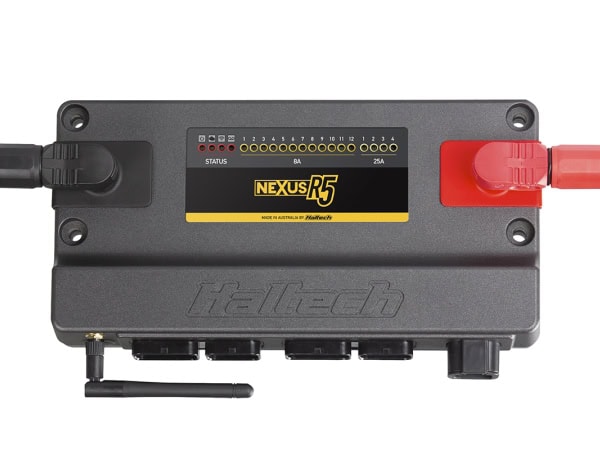

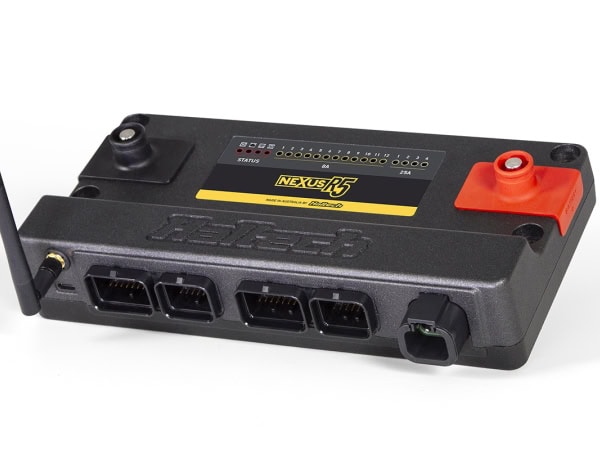

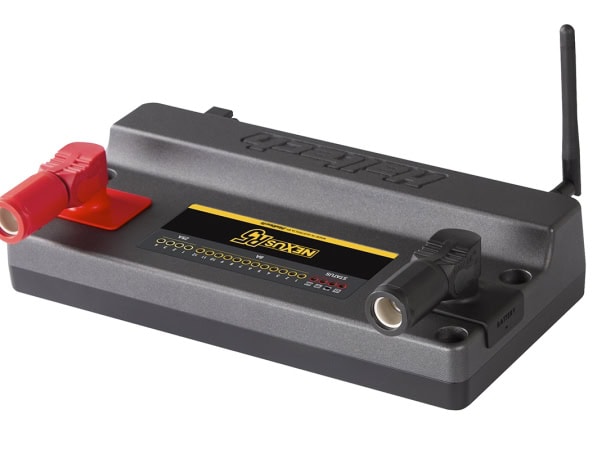

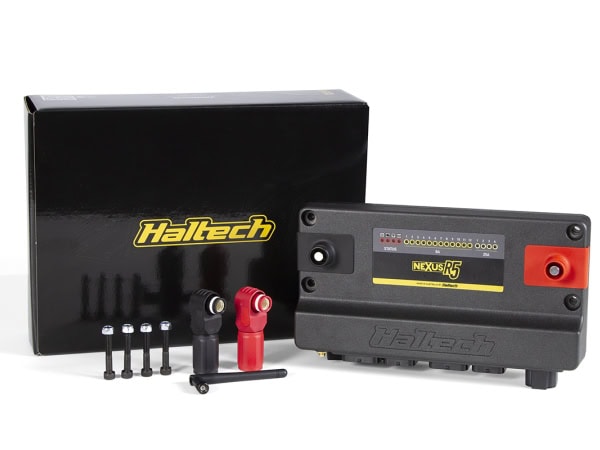

Haltech Nexus R5 – VCU
€3,556.07 Incl. VAT
- Brand: Haltech
- Category: ECUs
Ways to pay
- and more
Haltech
Haltech was founded in Sydney in 1986 and makes standalone engine management. Its range here is built around two ECU families. Elite runs from the 550 to the 2500, and Nexus includes the S2, S3, R3 and R5 and the Rebel LS and JZ versions. The Nexus R5 combines the ECU with power distribution and CAN keypad control.
Around the ECUs sits everything needed to install and wire one: plug-and-play adapter harnesses, universal and terminated main harnesses, and sensors for pressure, temperature, oxygen and position. The list continues with CAN cables and modules, thermocouple amplifiers, fuse boxes, ignition coils, injectors, and plugs and pins for the common connector types.
Most parts are chosen by ECU model and connector type. Where a Haltech part is tied to a car, it is usually a Nissan Silvia or Skyline, a Subaru Impreza, or a Honda S2000, CRX or Civic.
Elsewhere in Engine Management you will find wideband controllers and gauges. Haltech is the range that covers the full installation, from the ECU and harness down to individual connector pins.
Talk to a real motorsport specialist.
EU-based, motorsport-experienced. We'll walk through your application before you buy.
Description
Nexus R5
4 x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump)
12 x 8A (continuous) high side outputs (low speed PWM, 200 Hz) outputs (power to sensors, NOS solenoids, etc)
18 x peak/hold injector drivers (can be used as low side drive outputs)
12 x low current ignition outputs (can be used as low side drive outputs)
8 x low side drive outputs, PWM capable (DPOs)
4 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle
23 x 0-5V analog inputs with redunancy for electronic throttle and switchable 5V pullup
Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
10 x synchronous pulsed inputs, zero crossing or adjustable thresholds – cam sensor inputs, frequency inputs or 0-5V analog inputs
2 x onboard wideband controllers, supporting NTK and LSU4.9
3 x CAN ports with switchable termination
Haltech Nexus R5 – VCU
Additional information
| EAN | 09356450007573 |
|---|---|
| Series | Nexus R5 |
