Haltech Nexus R3 VCU + Plug and Pin Set

Authorised EU Dealer Haltech
SKU: HT-193100
Ships within 1-2 business days

Original price was: €2,401.77.Current price is: €2,161.60. Incl. VAT

  • Brand: Haltech
  • Category: ECUs
Genuine parts
14-day returns
Ships to all EU Countries
Have a Question? Ask a Specialist

(+31) 85 303 7168 Start Live Chat

Ships within 1-2 business days
Original price was: €2,401.77.Current price is: €2,161.60. Incl. VAT + Shipping

Ways to pay

  • Visa
  • Mastercard
  • American Express
  • iDEAL
  • PayPal
  • Klarna
  • Apple Pay
  • Google Pay

Also Bancontact (BE), Przelewy24 (PL), EPS (AT) and Multibanco (PT)

Have a Question? Ask a Specialist

(+31) 85 303 7168 Start Live Chat

Ships to all EU Countries
Authorised Dealer

Genuine parts. 70+ brands.

Secure Payment

iDEAL, Klarna, PayPal & cards.

In-House Experts

Real specialist advice.

14-Day Returns

Change your mind within 14 days.

Category:
Brand:
About the brand

Haltech

Haltech is an Australian maker of standalone engine management, founded in Sydney. Its range here is built around two ECU families: Elite, which runs from compact units to large ones for eight-cylinder and rotary engines, and Nexus, which adds ECUs with power distribution and CAN keypad control built in and complete packages for GM LS and Toyota JZ engines.

Around the ECUs sits everything needed to install and wire one: plug-and-play adapter harnesses, engine-specific and universal harnesses, sensors for pressure, temperature, oxygen and position and the fittings that mount them, wideband controllers, electronic throttle bodies, CAN cables and devices, expanders and a power distribution module, digital dashes, and plugs and pins for the common connector types. Outside Engine Management, Haltech's gauges are listed under Gauges & Sensors, its igniters, ignition coils, relays, fuse boxes, keypads and switch panels under Electrical, its injectors under Fuel System and its crimping tools under Tools.

Most parts are chosen by ECU model and connector type. Where a Haltech part is tied to a car, it is usually a Nissan, a Subaru, a Mitsubishi, a Mazda or a Honda, and the harnesses for engine swaps are listed by engine.

Haltech is the range that covers the full installation, from the ECU and harness down to individual connector pins.

See all Haltech products →
Not sure this fits your car?

Talk to a real motorsport specialist.

EU-based, motorsport-experienced. We'll walk through your application before you buy.

Description

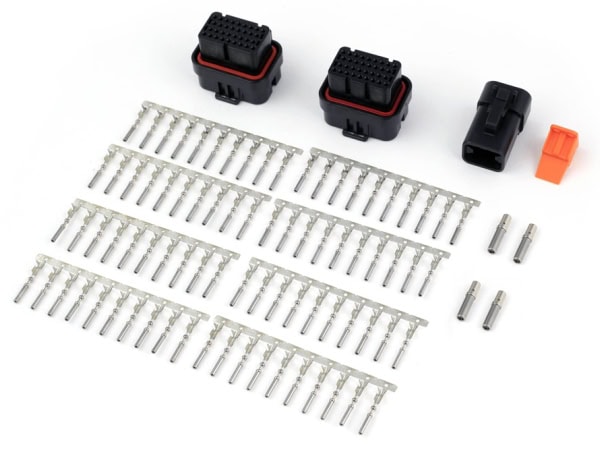

Plug and Pins Only AMP 34 Pin 4 Row 3 Key Superseal

Plug and pins only AMP 34 pin 4 Row 4 Key Superseal

Plug and pins only – Male Deutsch DTP-06-4S – Black connector (25Amp)

VCU OVERVIEW

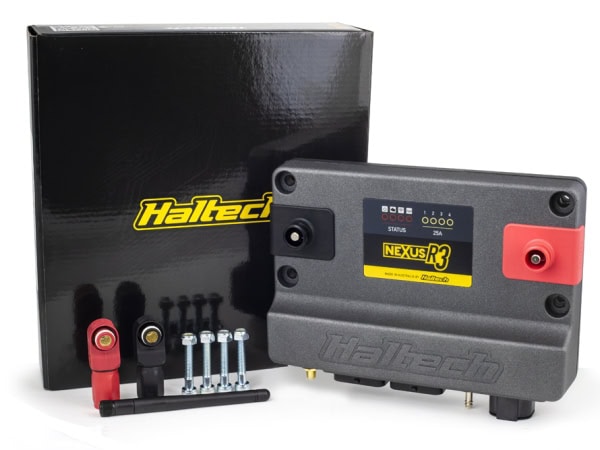

Nexus R3 combines the functionality of a power distribution module, a data logger, a wideband controller and a state-of-the art engine management system in one powerful device we call a VCU (Vehicle Control Unit).

  • 4 x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump)
  • 8 x peak/hold injector drivers (can be used as low side drive outputs)
  • 8 x low current ignition outputs (can be used as low side drive outputs)
  • 6 x low side drive outputs, PWM capable (DPOs)
  • 6 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle
  • 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
  • Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
  • 6 x synchronous pulsed inputs, zero crossing or adjustable thresholds – cam sensor inputs, frequency inputs or 0-5V analog inputs
  • 1 x on-board wideband controller, supporting NTK and LSU4.9
  • 1 x on-board 4 bar MAP sensor
  • 2 x CAN ports with switchable termination

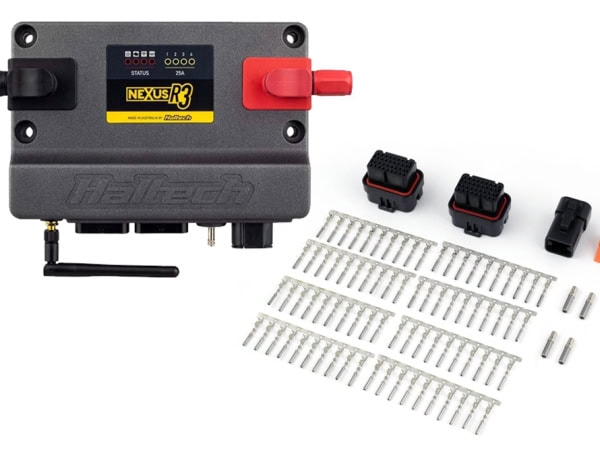

Haltech Nexus R3 VCU + Plug and Pin Set

Specifications

Part numberHT-193100
Series

Nexus R3

Supplied with

Plug and pin set

Suits ECU

Nexus R3
