DBA52841WSLVXD – 5000 Series XD Brake Rotor; Rear
€668.93 Incl. VAT
- DBA 1-Piece Brake Rotors
- Package: 1x Brake Disc
- Disc Diameter: 330mm
- Disc Type: Vented
- Material: Cast Iron
- Fits: Audi A5 (1st Gen) 2007-2016
Does this part fit your car?
Check your carAudi
A5 (8F) Convertible 2007 - 2016
Ways to pay
- and more
DBA
DBA, Disc Brakes Australia, was founded in Sydney in 1976. Its range here is mostly brake discs, with pads to match and a few Street Series calipers.
The discs are grouped by series and slot pattern. Street Series T2 and 4000 Series T3 discs make up most of the range, and 5000 Series two-piece discs are listed along with their replacement rings. Most DBA discs here have a bi-slotted face, some also cross-drilled and a few plain. Many use the Kangaroo Paw internal vane design, and a large share are listed as ECE R90 approved. The pads step up from Street Series (an OE-type ceramic) and Street Performance to Xtreme Performance (a semi-metallic carbon fibre sport pad) and Racing Performance.
Toyota has the most listings, followed by Audi, Volkswagen, Subaru, Nissan, Ford, BMW and Lexus. The Subaru Impreza, Audi TT and A3, Volkswagen Golf and Seat Leon feature most often.
Next to the other disc ranges here, DBA is the one built around slot patterns and internal vane design rather than plain, drilled or dimpled faces.
Talk to a real motorsport specialist.
EU-based, motorsport-experienced. We'll walk through your application before you buy.
Description

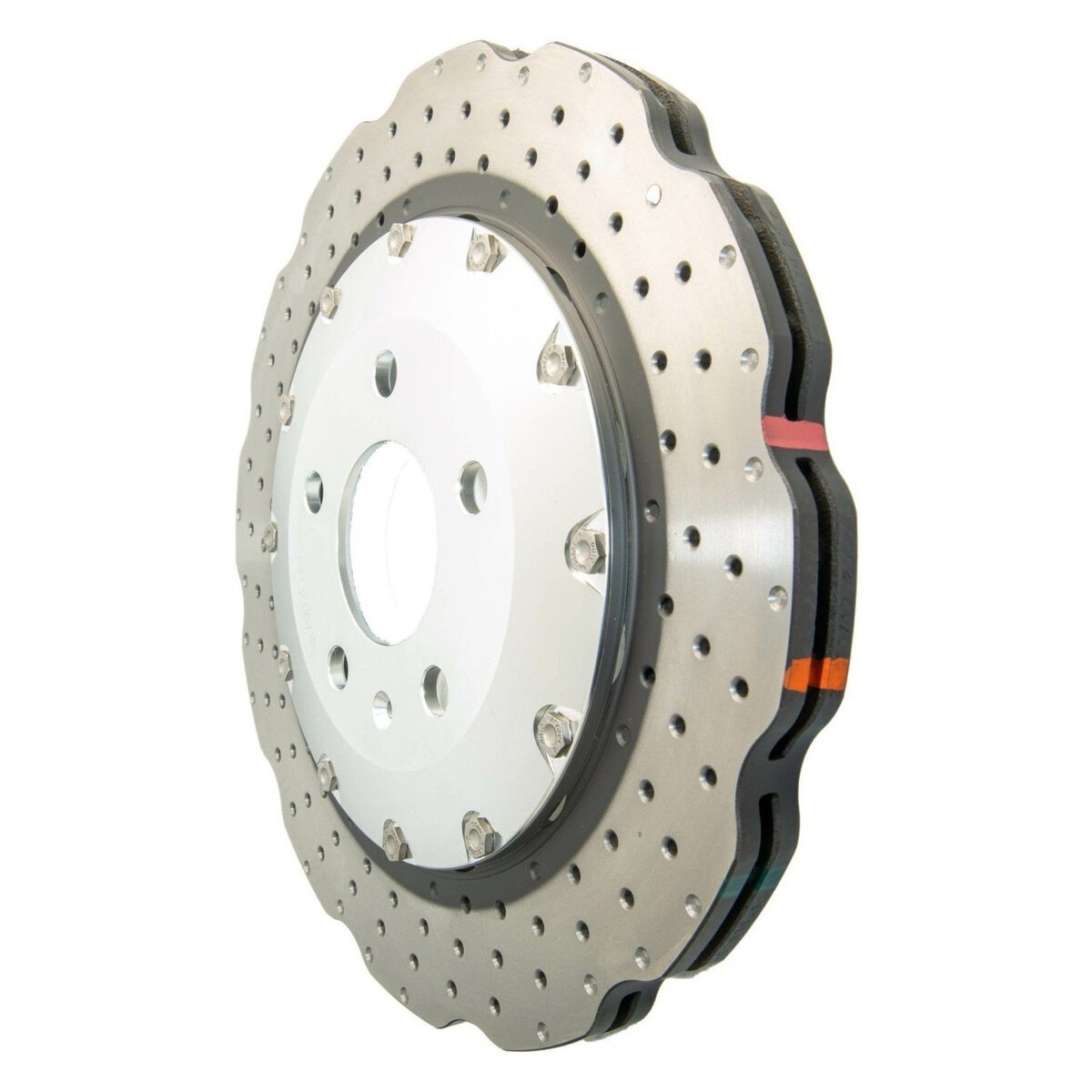

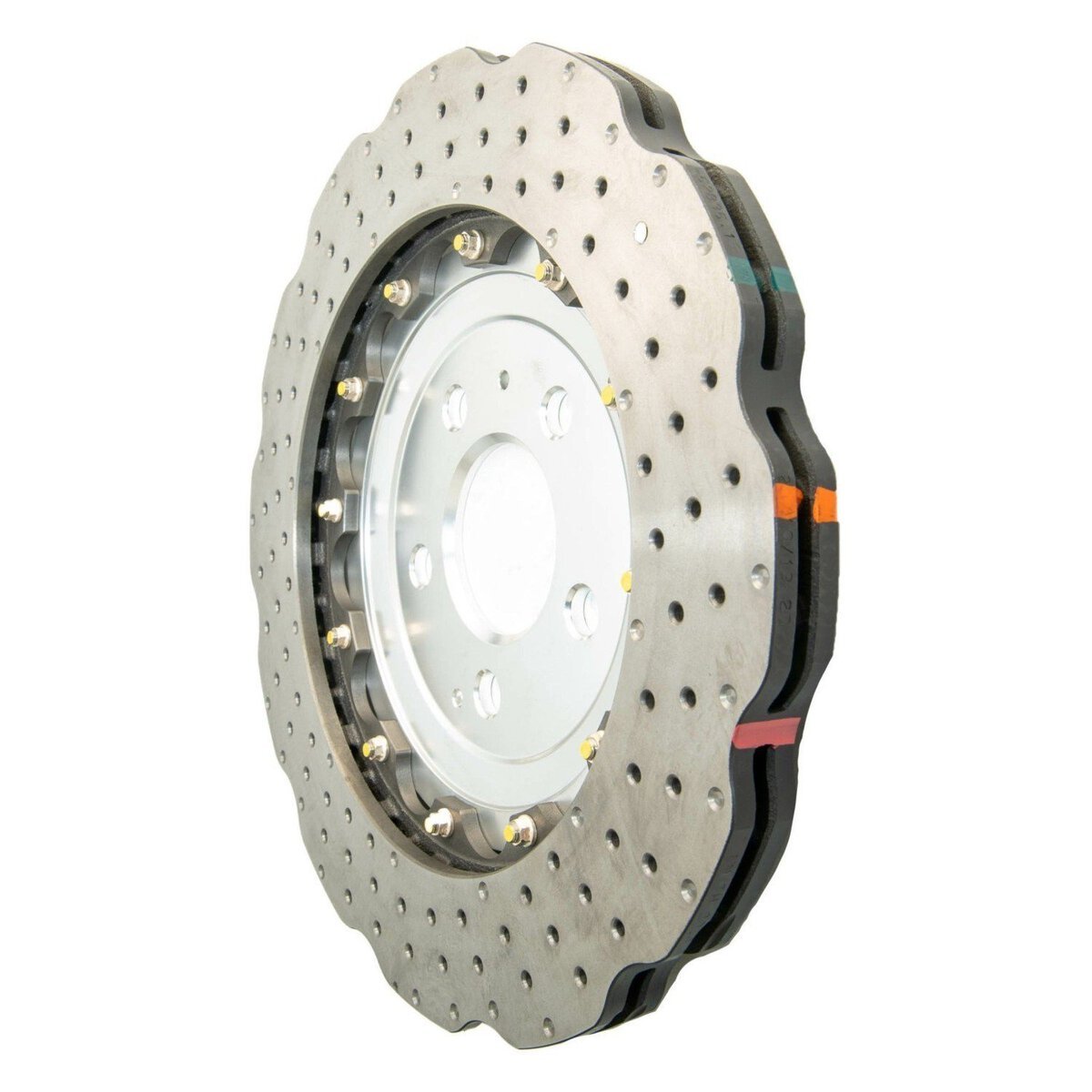

Presenting the DBA 5000 Series XD Brake Rotors, showcasing a non-directional cross-drilled and dimpled design. The XD finish not only enhances cooling benefits beyond the HD finish but also elevates the sports aesthetics. This advanced design incorporates a mix of dimples and drilled holes, providing enhanced structural support compared to traditional cross-drilled techniques, underscoring DBA’s commitment to cutting-edge technology. The rotors feature two-piece direct replacement construction with CBN machine-turned finishes and a high carbon alloy composition.

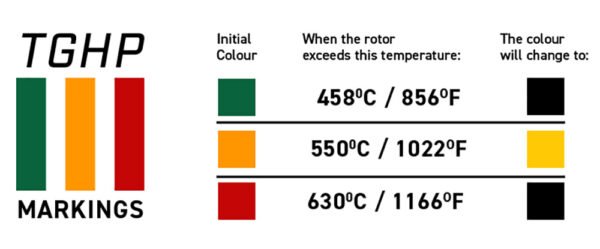

Taking performance to new heights, DBA’s Kangaroo Paw ventilation system delivers a remarkable 30% increase in surface area and a 20% improvement in cooling efficiency compared to conventional straight vane designs. Moreover, these rotors are equipped with Thermographic heat paint markings, transitioning in color at specific temperature thresholds. This visual cue allows for monitoring braking temperatures and assessing rotor fatigue, ensuring precision performance.
The integration of aerospace-grade aluminum not only reduces unsprung weight but also facilitates uniform radial disc expansion within the cast iron rings. Additionally, it acts as a heat barrier, preventing heat transfer from the disc to the hub through the aluminum hats. The high carbon cast iron rings seamlessly integrate with Aluma-lite center hats/bells, securely fastened together using National Aerospace Standards (NAS) bolts and crimp nuts. Choose from complete assemblies for initial replacements or opt for replacement hats and flat disc rotors, providing flexibility and cost-effectiveness.
While the DBA 5000 Series XD represents an overall improvement over the 5000 Series HD rotors, it is worth noting that XD drilled rotor configurations are not typically recommended for heavy street or track use.
Additional information
| Weight | 6.74 kg |
|---|---|
| Manufacturer | DBA |
| Bolt Circle Diameter mm | 112 |
| Bolt Hole Quantity | 5,00 |
| Disc Diameter (mm) | 330 |
| Disc Finish | Cross Drilled |
| Disc Height (mm) | 36,20 |
| Hub Hole Diameter (mm) | 68,04 |
| Disc Construction | 2-Piece Fixed |
| Disc Side | Left/Right |
| Max Thickness | 22 |
| Min Thickness | 20,40 |
| Disc Vane Style | Kangaroo Paw |
| Disc Type | Vented |
| Spare Parts | DBA-DBA52835.1WXD |
| Disc Quality | Premium |
| Material | Cast Iron |
| Package Contents | 1x Brake Disc |
