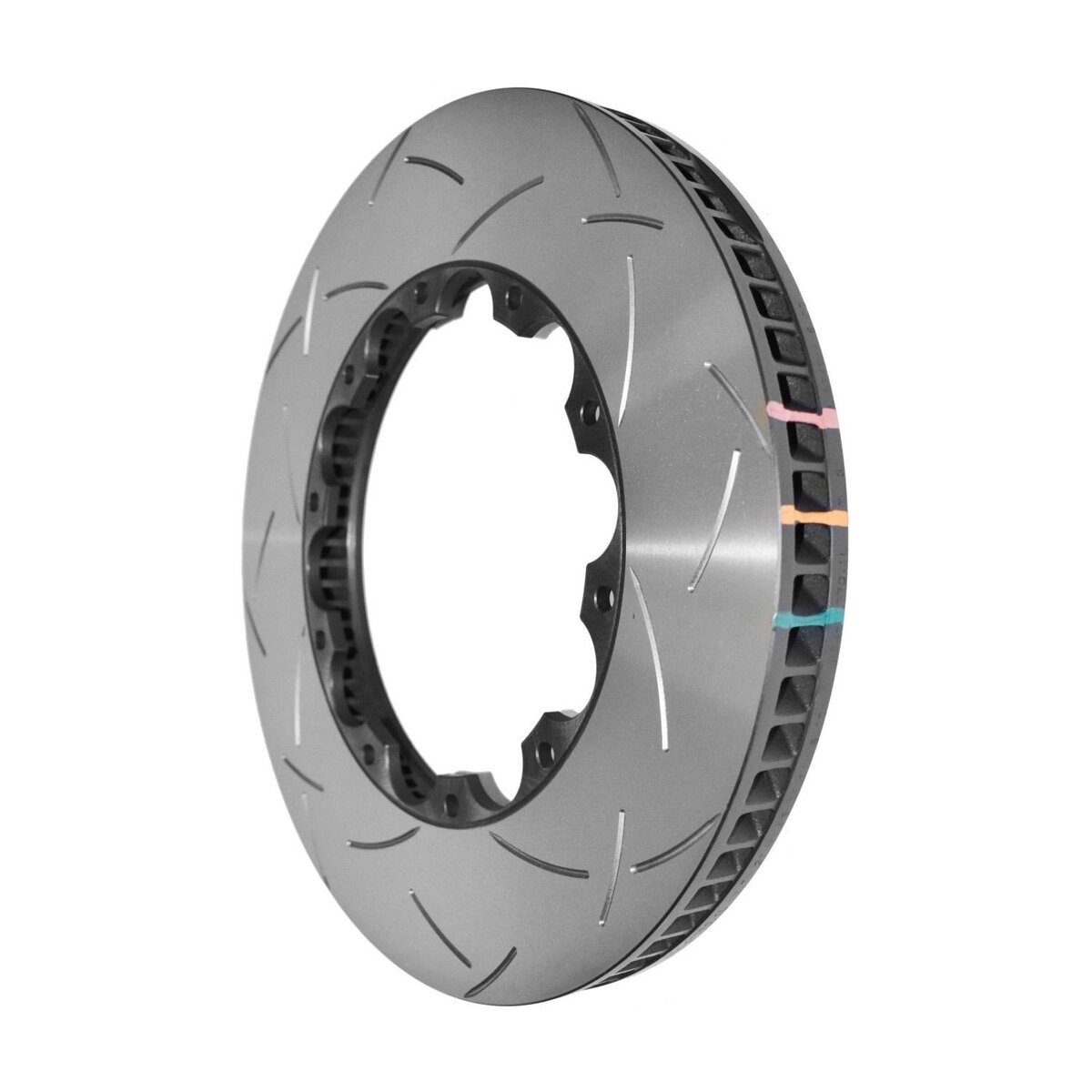

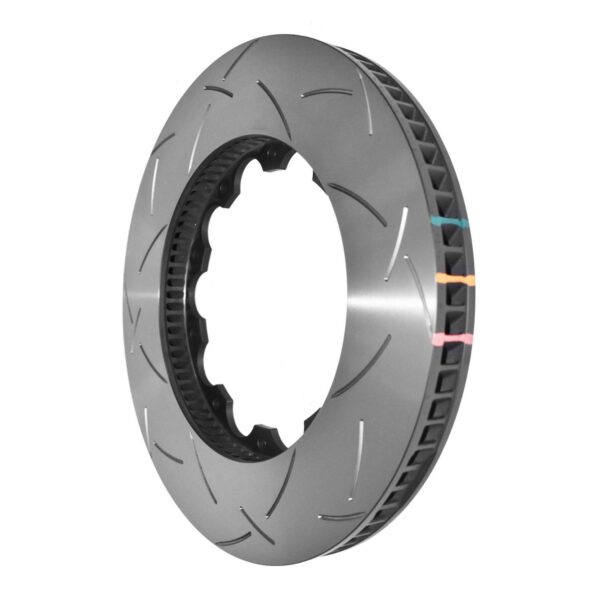

DBA52770.1LS – 5000 Series T3 Replacement Rotor; Front
€370.67 Incl. VAT
- DBA 1-Piece Brake Rotors
- Material: Cast Iron
- Package Contents: 1x Brake Disc
Does this part fit your car?
Check your carChevrolet
Camaro Coupe 2015 - Present 2015 - Present
Corvette (C7) Convertible 2013 - 2020
Corvette (C7) Coupe 2013 - 2020
Ways to pay
- and more
DBA
DBA, Disc Brakes Australia, was founded in Sydney in 1976. Its range here is mostly brake discs, with pads to match and a few Street Series calipers.
The discs are grouped by series and slot pattern. Street Series T2 and 4000 Series T3 discs make up most of the range, and 5000 Series two-piece discs are listed along with their replacement rings. Most DBA discs here have a bi-slotted face, some also cross-drilled and a few plain. Many use the Kangaroo Paw internal vane design, and a large share are listed as ECE R90 approved. The pads step up from Street Series (an OE-type ceramic) and Street Performance to Xtreme Performance (a semi-metallic carbon fibre sport pad) and Racing Performance.
Toyota has the most listings, followed by Audi, Volkswagen, Subaru, Nissan, Ford, BMW and Lexus. The Subaru Impreza, Audi TT and A3, Volkswagen Golf and Seat Leon feature most often.
Next to the other disc ranges here, DBA is the one built around slot patterns and internal vane design rather than plain, drilled or dimpled faces.
Talk to a real motorsport specialist.
EU-based, motorsport-experienced. We'll walk through your application before you buy.
Description
DBA52770.1LS – 5000 Series T3 Replacement Ring; Front The 5000 Series T3 Replacement Rings feature a robust heat-treated cast iron construction, delivering unparalleled strength for a braking solution that stands up to intense use. The advanced metallurgy employed further enhances thermal stability, providing a reliable defense against brake fade, even in the most challenging driving conditions.
With a precision-engineered bi-slotted design, these replacement rings not only exemplify visual sophistication but also ensure efficient heat dissipation. The slots play a crucial role in expelling debris and gases, promoting consistent braking performance and extending the lifespan of your brake pads.
The result is a braking system that remains cool under pressure, offering a level of reliability that goes beyond the ordinary. DBA’s 5000 Series direct replacement rotors are offered in two options: complete assemblies, where the hat and rings are bolted together for straightforward replacement, or as individual replacement parts, allowing for the replacement of hats or rings as needed.
The option to replace only the cast iron rotor rings, while keeping their previously used aluminium hats is not only cost effective for those that are hard on brakes, but it allows for easy replacement of DBA hats or rings. We recommend that aluminium hats should always be thoroughly inspected for damage and wear when only replacing the 5000 Series rings, along with the use of DBA spec bolts and nuts.
When tightening the NAS nut and bolt assembly a 13 Nm or 9.6 ft lb of torque is recommended.
Additional information
| Manufacturer | DBA |
|---|---|
| Bolt Circle Diameter mm | 215 |
| Bolt Hole Quantity | 00, 10 |
| Disc Diameter (mm) | 370 |
| Disc Finish | Bi-Slotted |
| Disc Height (mm) | 34 |
| Hub Hole Diameter (mm) | 191 |
| Disc Side | Left |
| Disc Size | 370x34mm |
| Max Thickness | 34 |
| Min Thickness | 32 |
| Disc Type | Vented |
| Disc Quality | Premium |
| Material | Cast Iron |
| Package Contents | 1x Brake Disc |
| Brake Location | Front |
