03-04 Ford 6.0L Powerstroke Turbo Billet Compressor Wheel+Rebuild Kit 13.2mm Vanes
03-04 Ford 6.0L Powerstroke Turbo Billet Compressor Wheel+Rebuild Kit 13.2mm Vanes - Image 2
03-04 Ford 6.0L Powerstroke Turbo Billet Compressor Wheel+Rebuild Kit 13.2mm Vanes - Image 3
03-04 Ford 6.0L Powerstroke Turbo Billet Compressor Wheel+Rebuild Kit 13.2mm Vanes - Image 4
03-04 Ford 6.0L Powerstroke Turbo Billet Compressor Wheel+Rebuild Kit 13.2mm Vanes - Image 5
03-04 Ford 6.0L Powerstroke Turbo Billet Compressor Wheel+Rebuild Kit 13.2mm Vanes - Image 6
Part numberPSR-154137108
Manufacturer

Pulsar Turbo Systems

Weight1 kg

03-04 Ford 6.0L Powerstroke Turbo Billet Compressor Wheel+Rebuild Kit 13.2mm Vanes

Authorised EU Dealer Pulsar Turbo
All Pulsar Turbo → All Pulsar Turbo CHRA & Bearing Kits →
SKU: PSR-154137108
Ships in 2-3 weeks

€304.30 Incl. VAT

  • Manufacturer: Pulsar Turbo
  • Billet Compressor Wheel+Unison Ring+Vanes+Rebuild Repair Kit for 03-04 Ford 6.0L Powerstroke Diesel Stock Turbo Onlyn-Application:n Stock turbo parts Fitment – No modifications…
Genuine parts
14-day returns
Ships to all EU Countries
Have a Question? Ask a Specialist

(+31) 85 303 7168 Start Live Chat

Ships in 2-3 weeks
€304.30 Incl. VAT + Shipping

Ways to pay

  • Visa
  • Mastercard
  • American Express
  • iDEAL
  • PayPal
  • Klarna
  • Apple Pay
  • Google Pay

Also Bancontact (BE), Przelewy24 (PL), EPS (AT) and Multibanco (PT)

Have a Question? Ask a Specialist

(+31) 85 303 7168 Start Live Chat

Ships to all EU Countries
Authorised Dealer

Genuine parts. 70+ brands.

Secure Payment

iDEAL, Klarna, PayPal & cards.

In-House Experts

Real specialist advice.

14-Day Returns

Change your mind within 14 days.

Category:
Brand:
About the brand

Pulsar Turbo

Pulsar Turbo Systems is based in California, and its range here is turbochargers and the parts to build, rebuild or re-specify them. Most of the turbos use dual ball bearings, with journal-bearing and ceramic ball-bearing versions also listed. Models follow the PSR numbering (PSR2860, PSR3071, PSR3584 and so on). Many are offered with a choice of turbine housing, flange and A/R, in forward or reverse rotation, or without a turbine housing at all.

Beyond complete turbos there are separate turbine and compressor housings, billet and cast compressor wheels, and CHRA and bearing kits. There are also external wastegates and wastegate heat blankets, oil feed and drain parts, gaskets and V-band clamps.

The range is not listed by car. Choose by frame size, bearing type, housing flange (T3, T4, T6 or V-band) and A/R, and use the flange details in each title to match your manifold and downpipe.

Most of the rest of the Turbo section is boost control hardware; Pulsar supplies the turbocharger itself and the parts that make it up.

See all Pulsar Turbo products →
Not sure this fits your car?

Talk to a real motorsport specialist.

EU-based, motorsport-experienced. We'll walk through your application before you buy.

WhatsApp Us Email Specialist +31 85 303 7168

Description

Billet Compressor Wheel+Unison Ring+Vanes+Rebuild Repair Kit for 03-04 Ford 6.0L Powerstroke Diesel Stock Turbo Only\n

-Application:

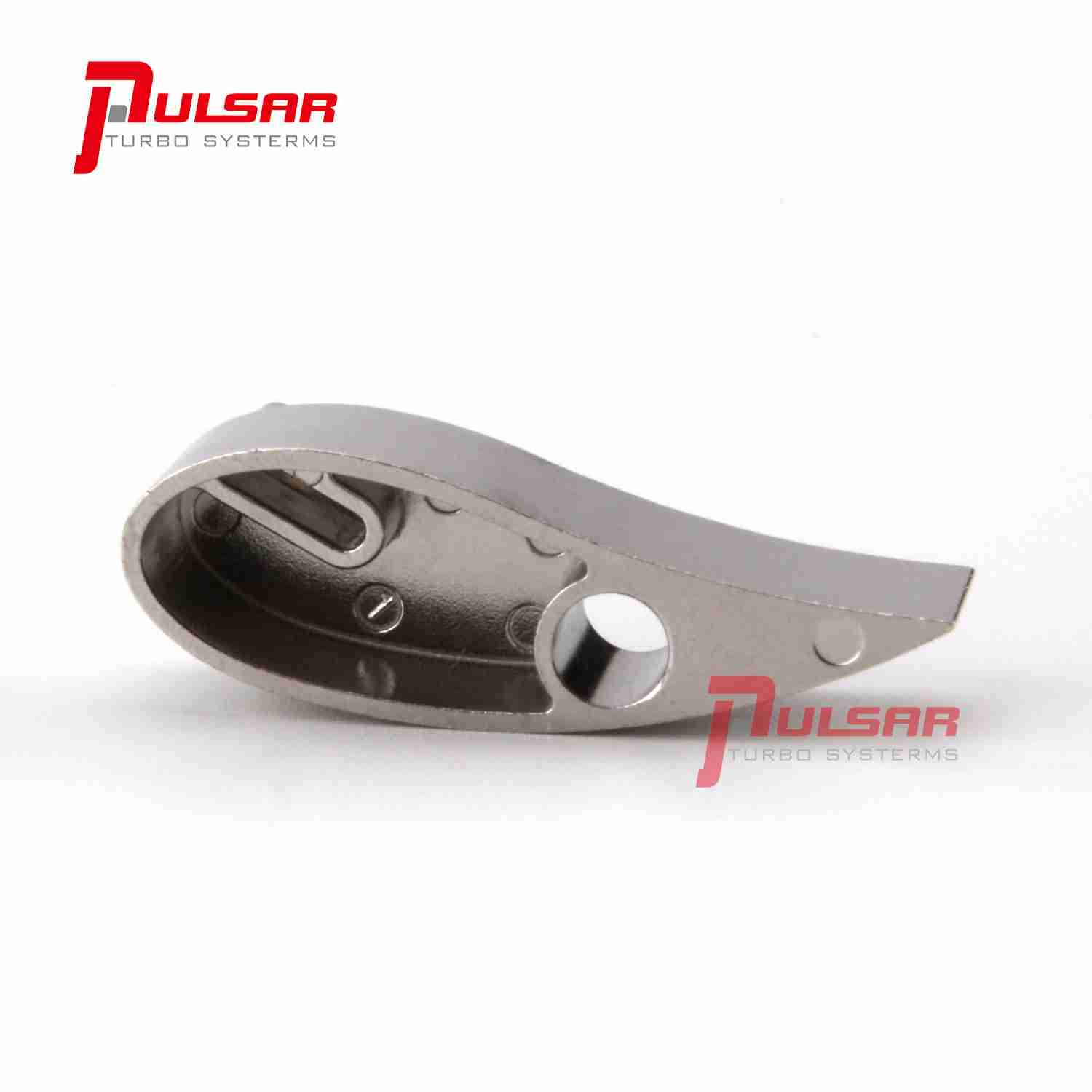

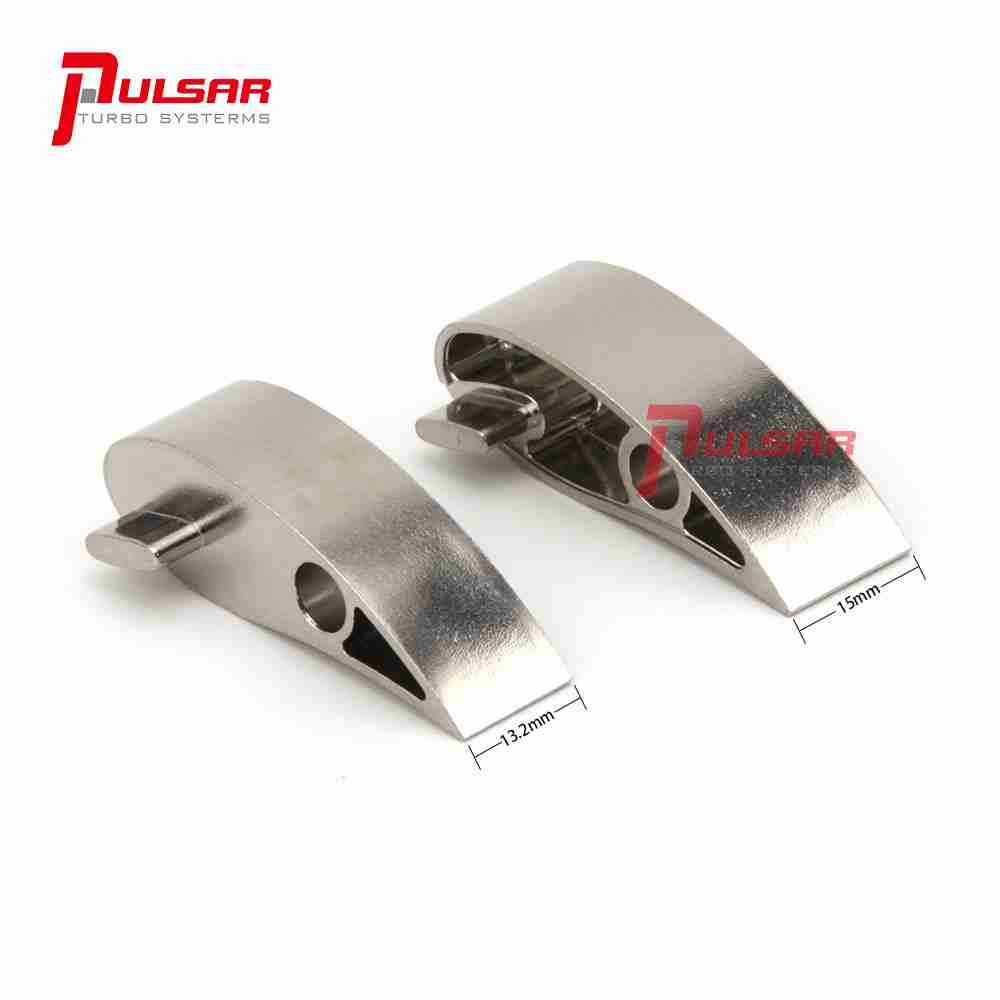

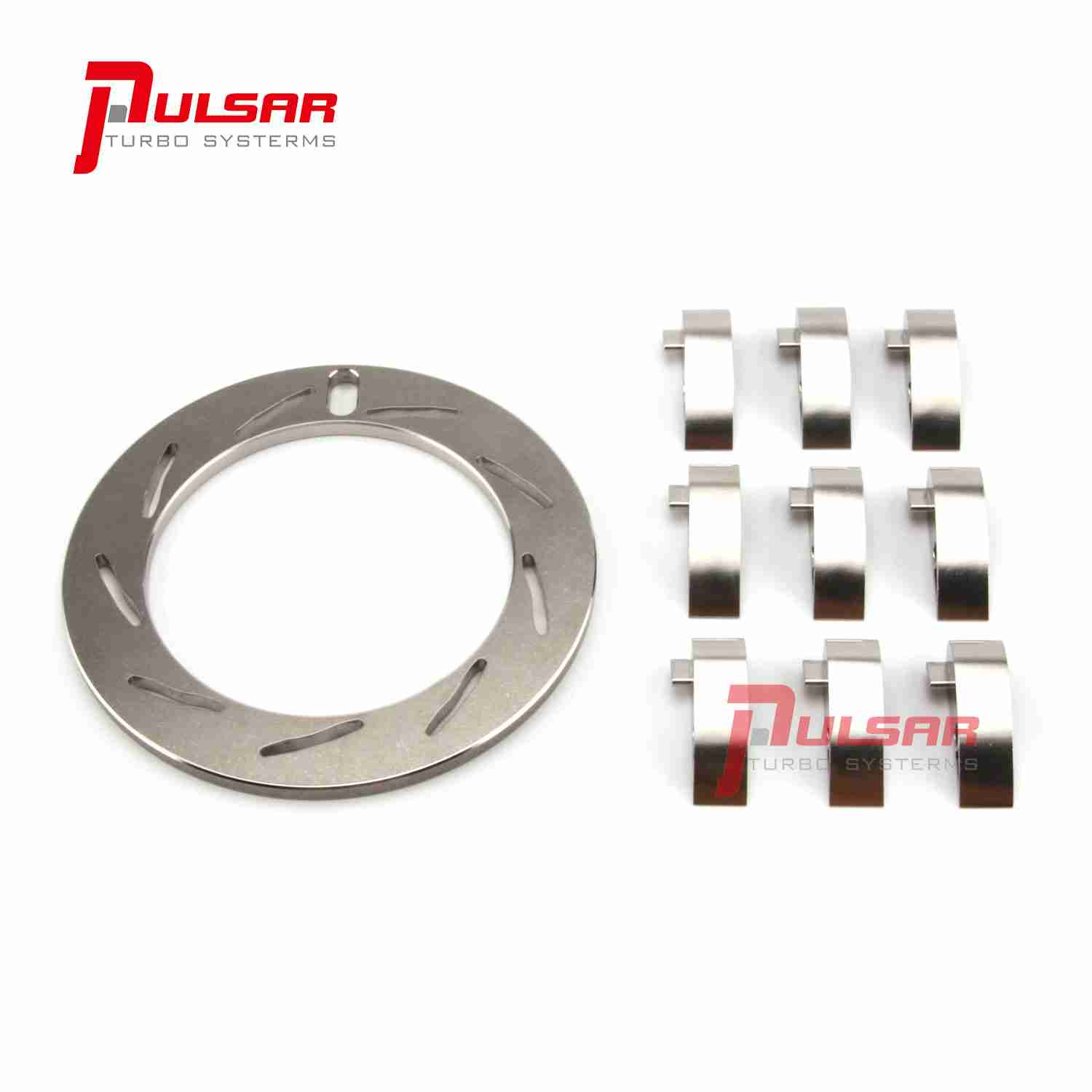

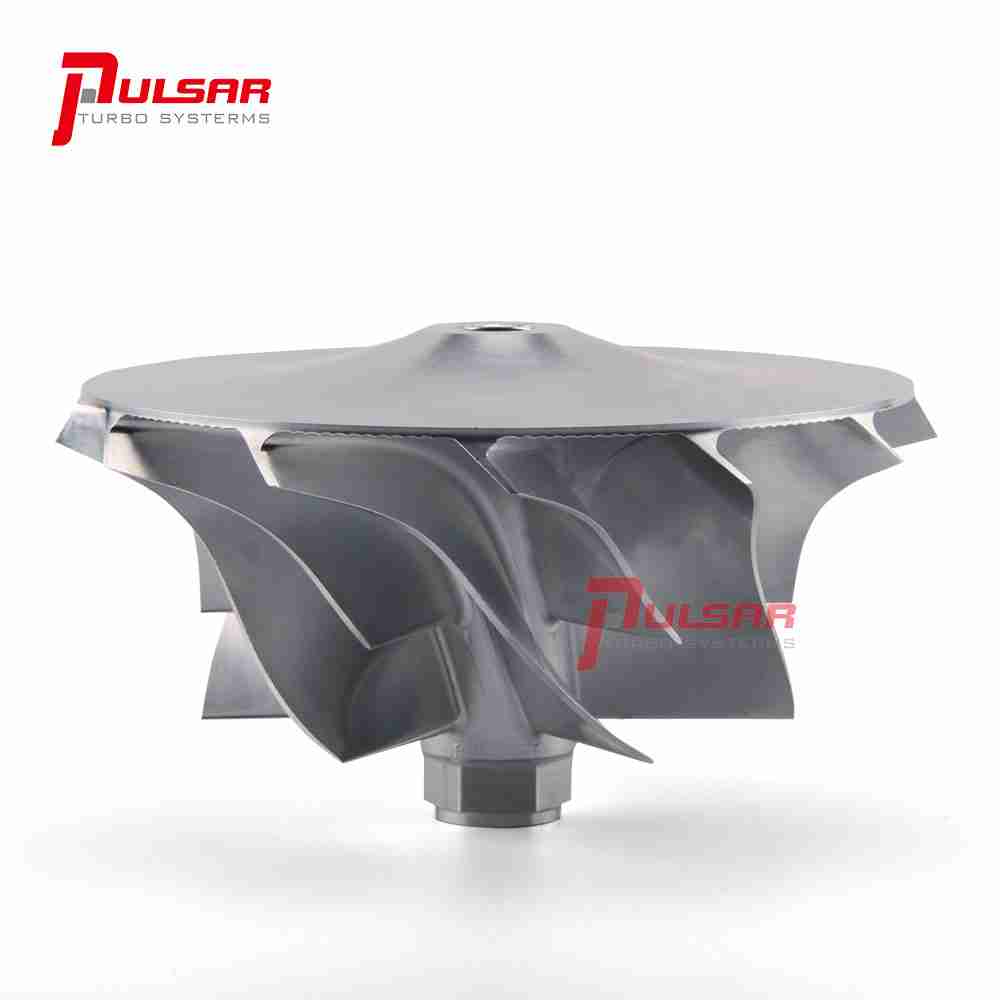

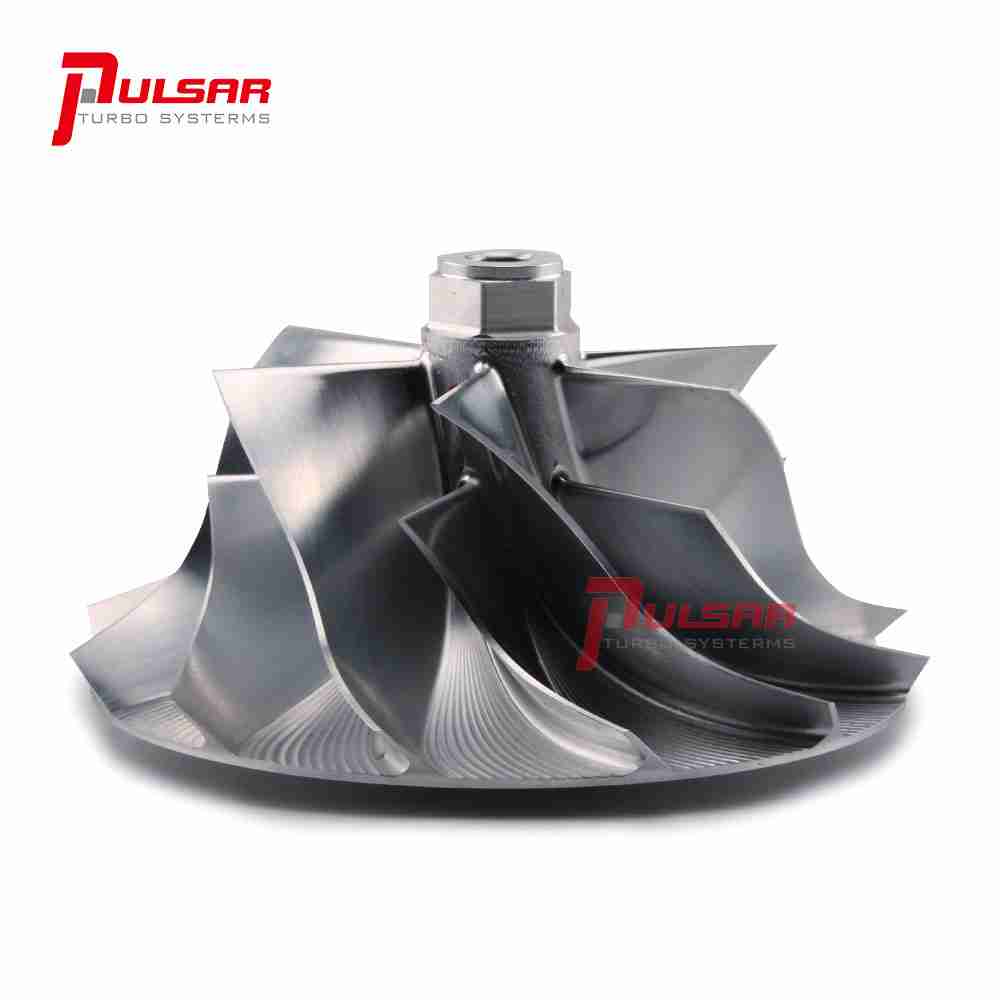

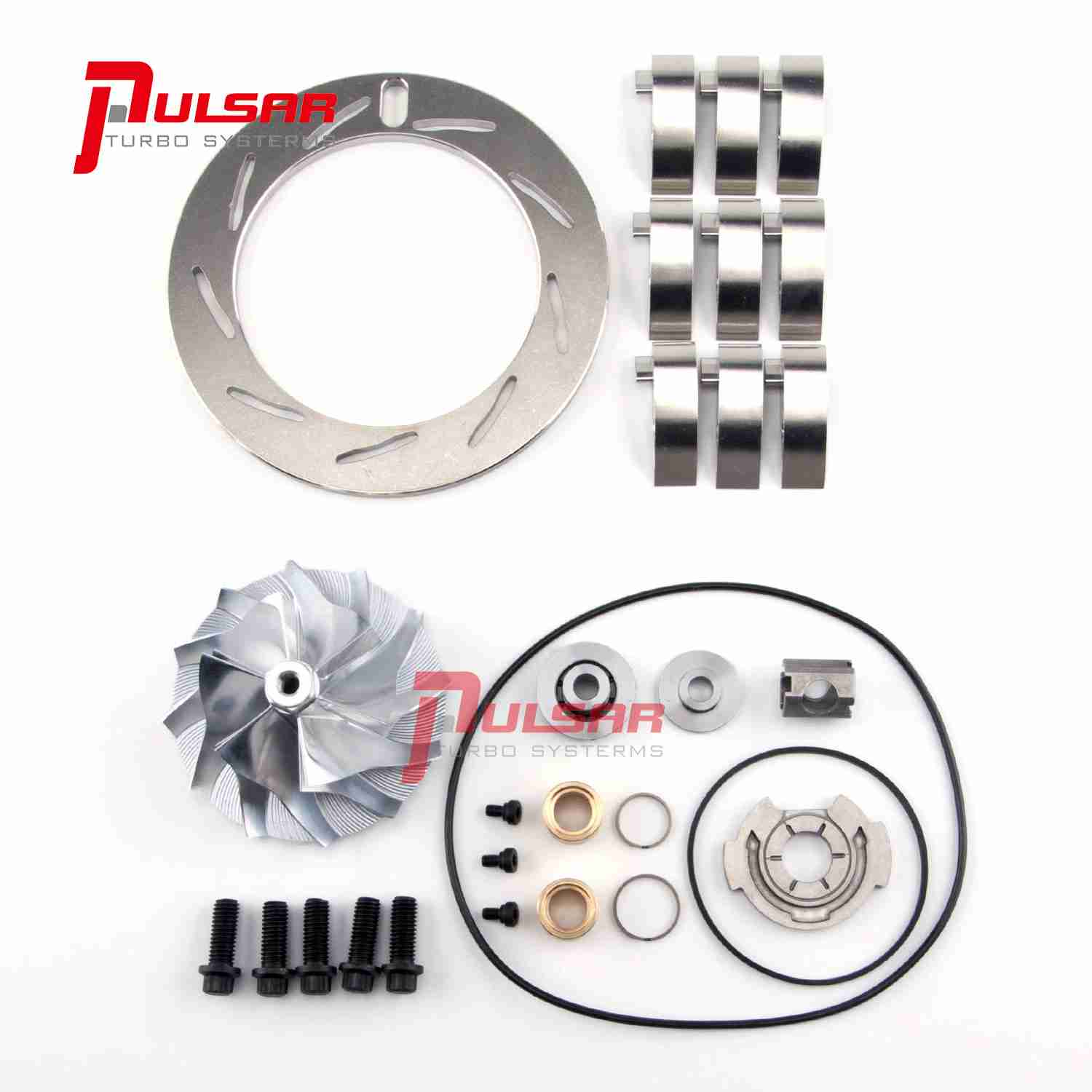

\nStock turbo parts Fitment – No modifications required.\n\n2003-2004 Ford 6.0L Powerstroke Stock Turbo ONLY\n\n-Item Details:\n\nBillet Compressor Wheel Inducer: 59.10mm\n\nBillet Compressor Wheel Exducer/Tapered Tip Exducer: 82.04mm/87.50mm\n\nBillet compressor Wheel Blade Height: 33.81mm\n\nBillet compressor Wheel Bore: Threaded-M7x1.0LHT\n\nBillet compressor Wheel Blades: 6+6\n\nHigh-Quality Stainless Steel unison/nozzle ring\n\nHigh Nickle content Alloy 13.2mm vanes\n\nReference OE Part #: 3C3Z-6C885-A\n\nStepped gap seal ring on the turbine end\n\nStepped gap seal ring on the compressor end\n\nTwin hydrodynamic journal bearings\n\n360-degree thrust bearing system\n\nThis rebuild kit contains:\n\n1*BILLET COMPRESSOR WHEEL\n\n1*High-Quality Stainless Steel unison/nozzle ring\n\n9*High Nickle content Alloy 13.2mm vanes\n\n1*SEAL O-RING\n\n1*360 DEGREE THRUST BEARING\n\n1*THRUST COLLAR\n\n1*THRUST SPACER\n\n3*SEAL PLATE BOLT\n\n2*JOURNAL BEARING\n\n1*BEARING SPACER\n\n1*SMALL SEAL O-RING\n\n5*HOUSING BOLT\n\n1*COMPRESSOR END SEAL RING(STEPPED GAP)\n\n1*TURBINE END SEAL RING(STEPPED GAP)\n\n-Special Note:\n\n

  • This billet compressor wheel is not compatible with 05-07 56.8mm Inducer. Please check DOUBLE your sizing prior to purchase.

    • \n

  • Professional install is highly recommended! Please ask all questions prior to purchase!

    • \n

  • Highly recommended to get the CHRA VSR balanced after rebuild (is required for warranty purposes)!

    • \n

    Specifications

    Part numberPSR-154137108
    Manufacturer

    Pulsar Turbo Systems

    Weight1 kg
