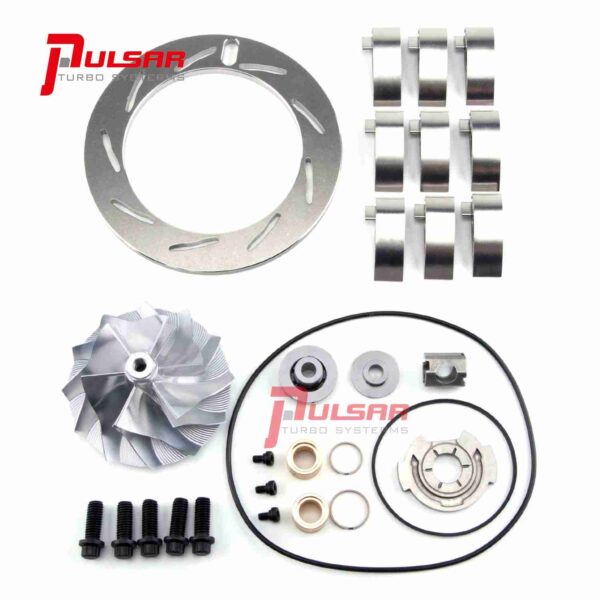

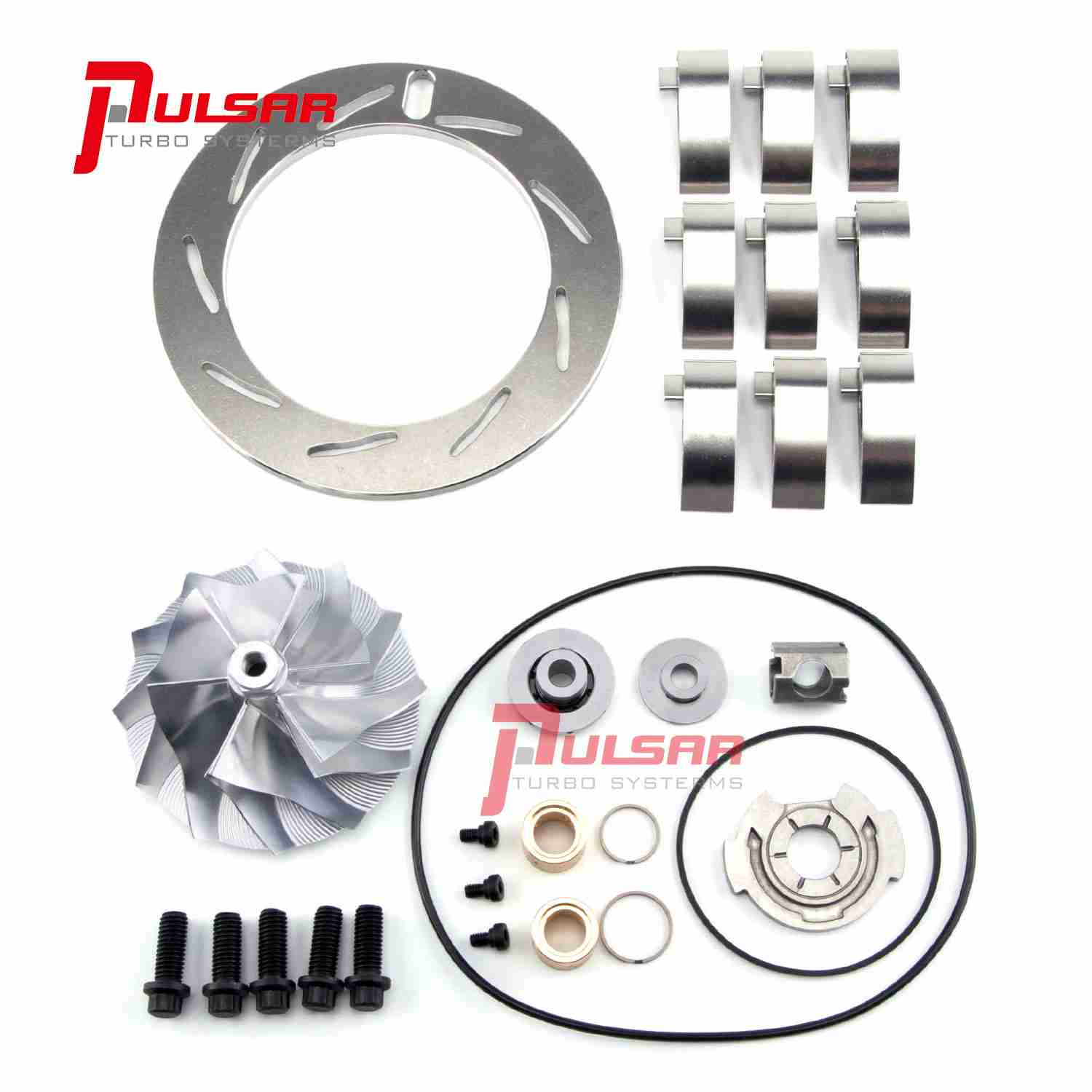

Early 03 Ford 6.0L Powerstroke Billet Turbo Compressor Wheel+Rebuild Kit

Description

Billet Compressor Wheel+Unison Ring+15mm Vane+Rebuild Kit for Early 2003 Ford 6.0L Powerstroke Diesel Stock Turbo Only\n\n \n\n-Application:\n

Stock turbo parts Fitment – No modifications required.

\n

Early 2003 Ford 6.0L Powerstroke Stock Turbo ONLY

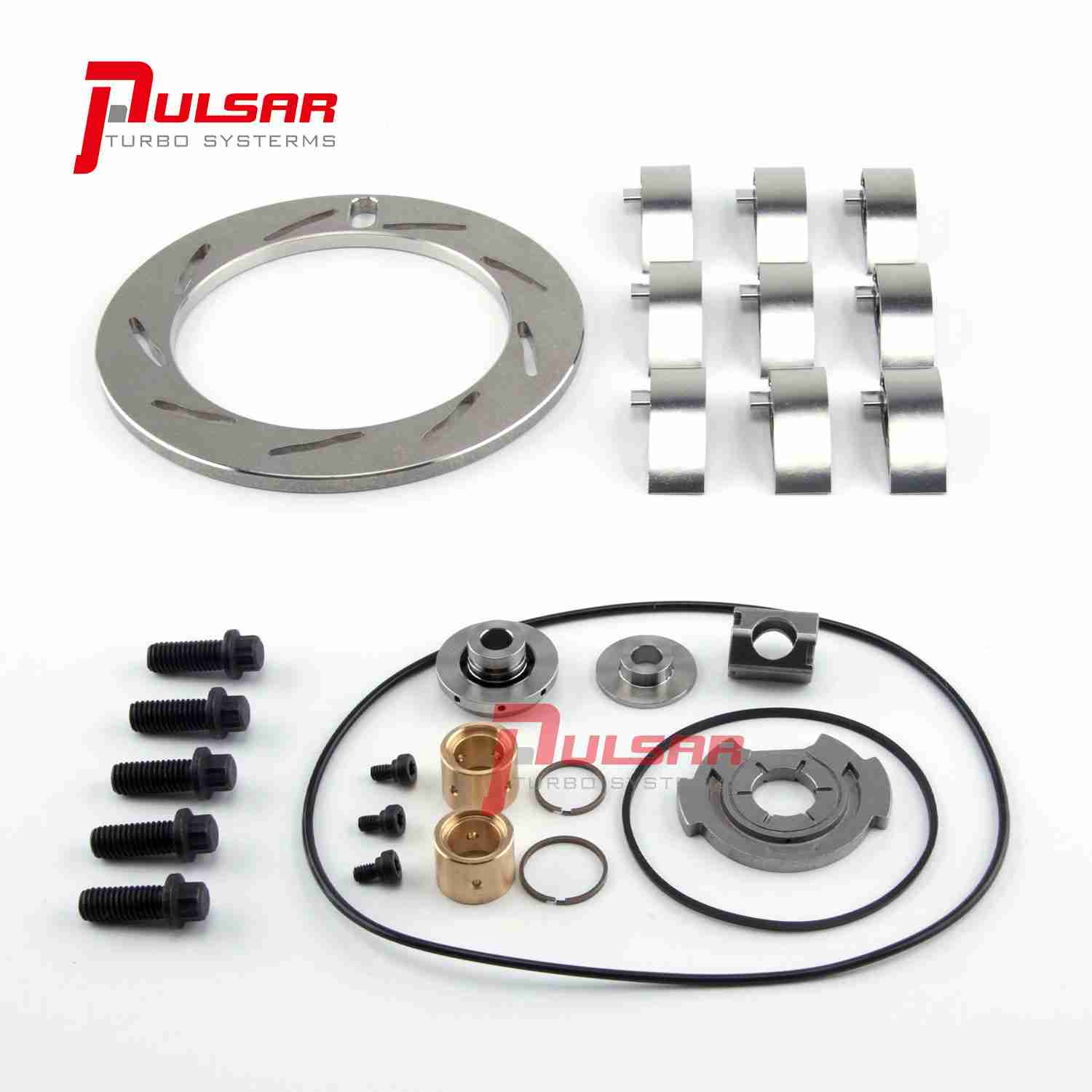

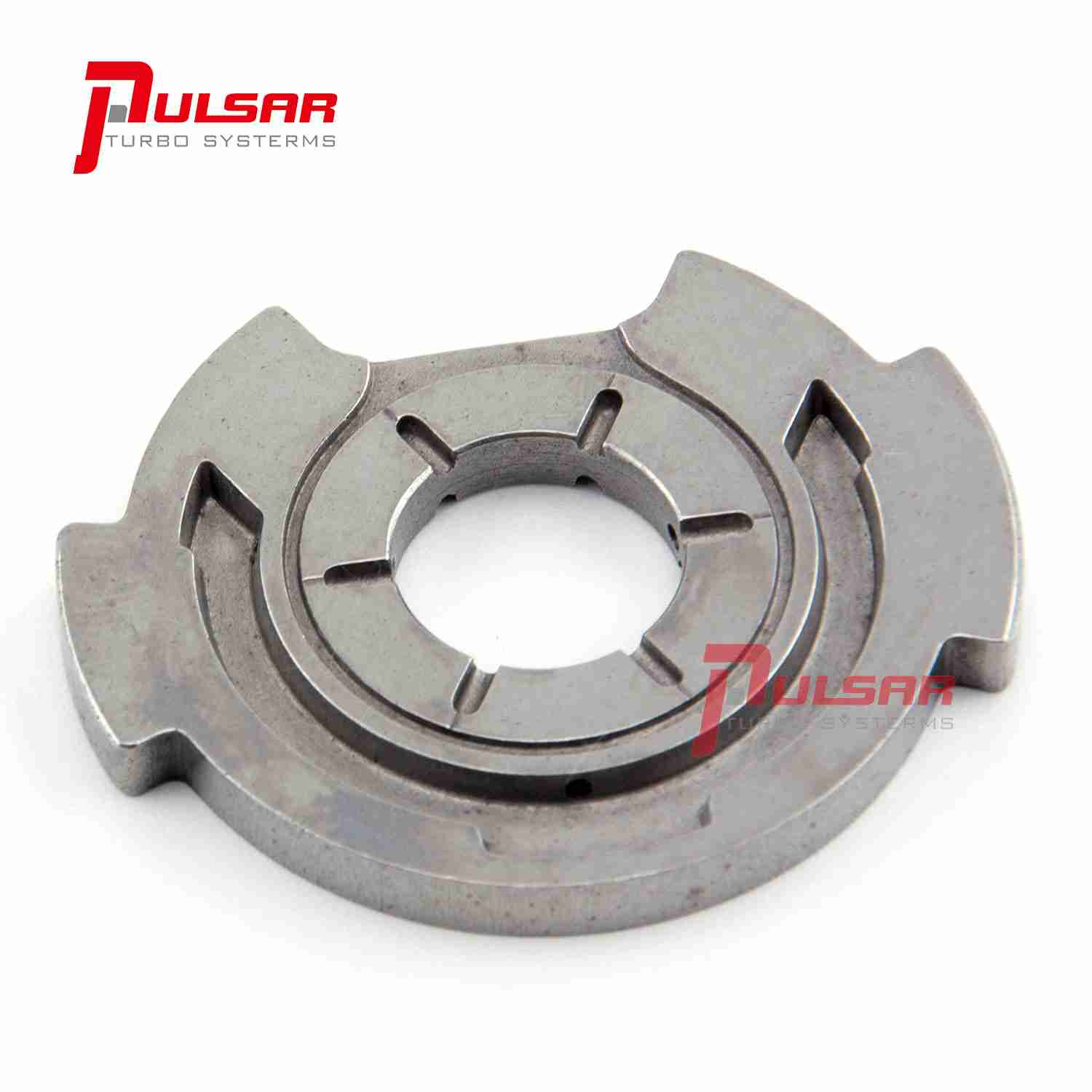

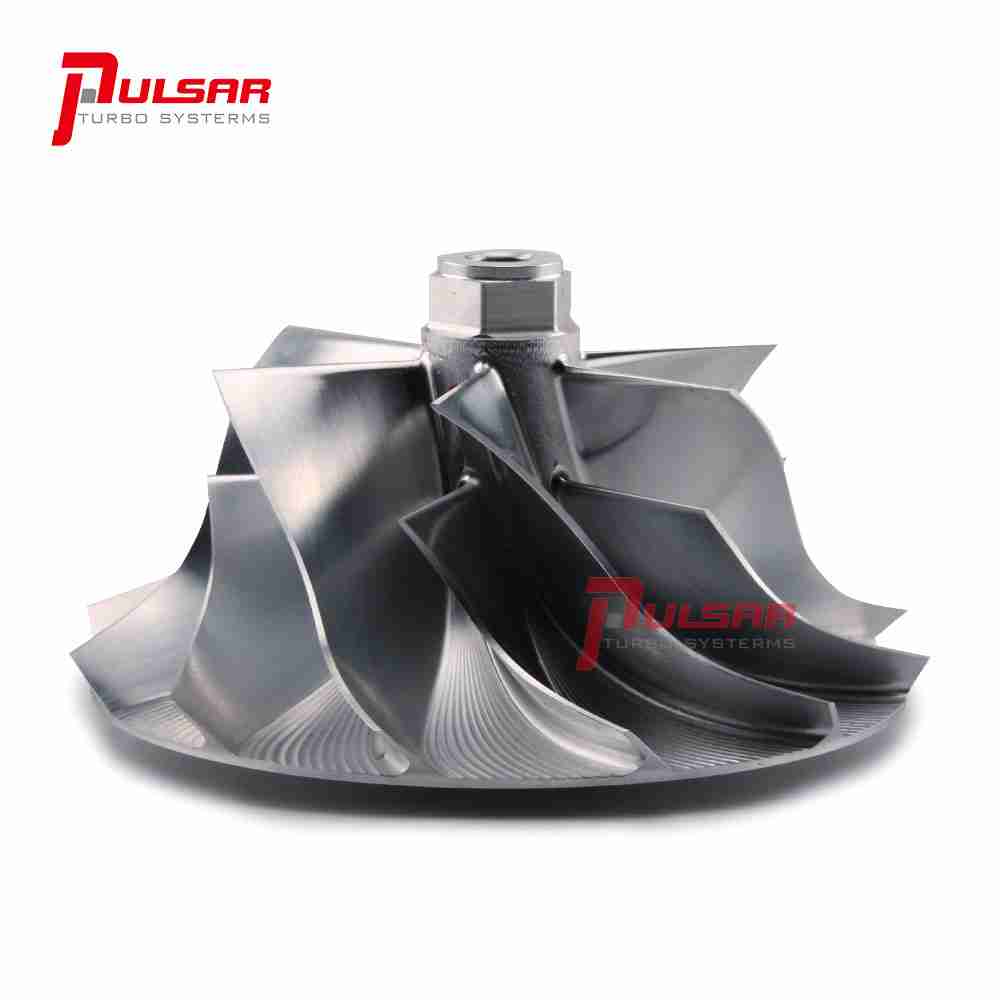

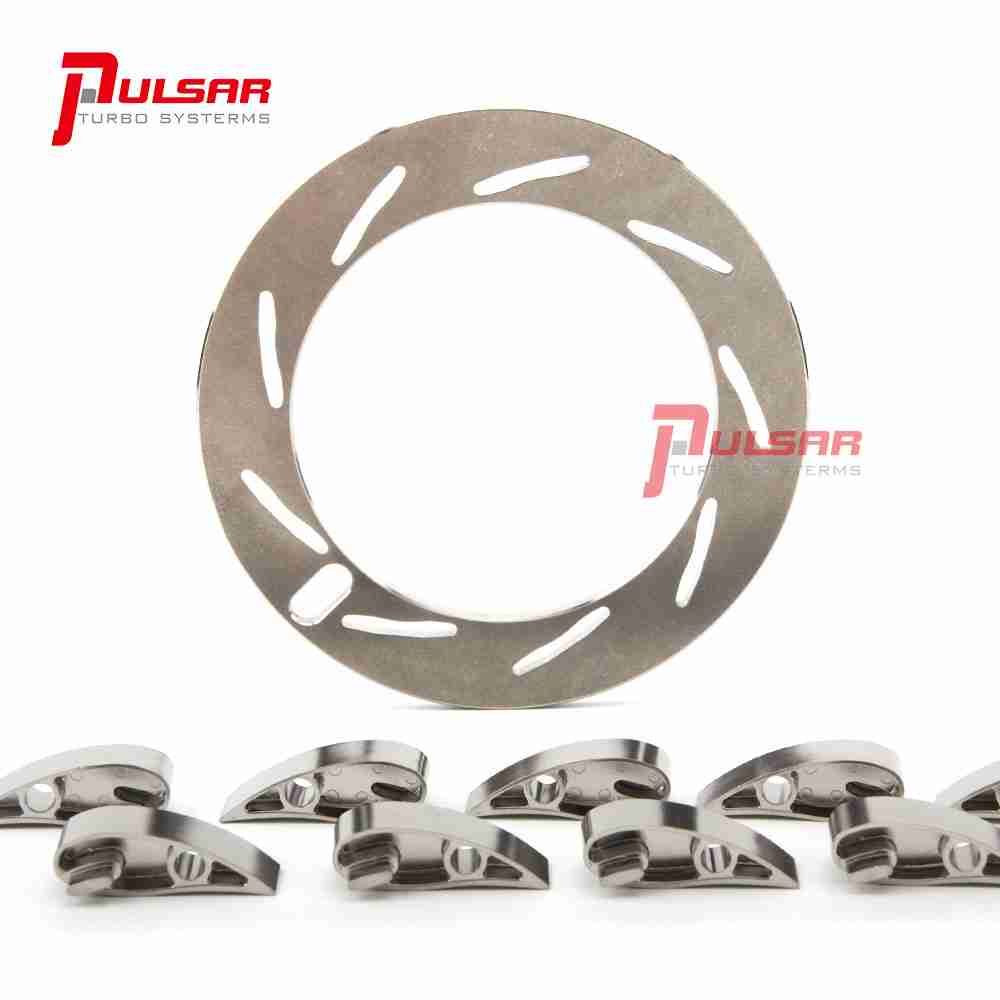

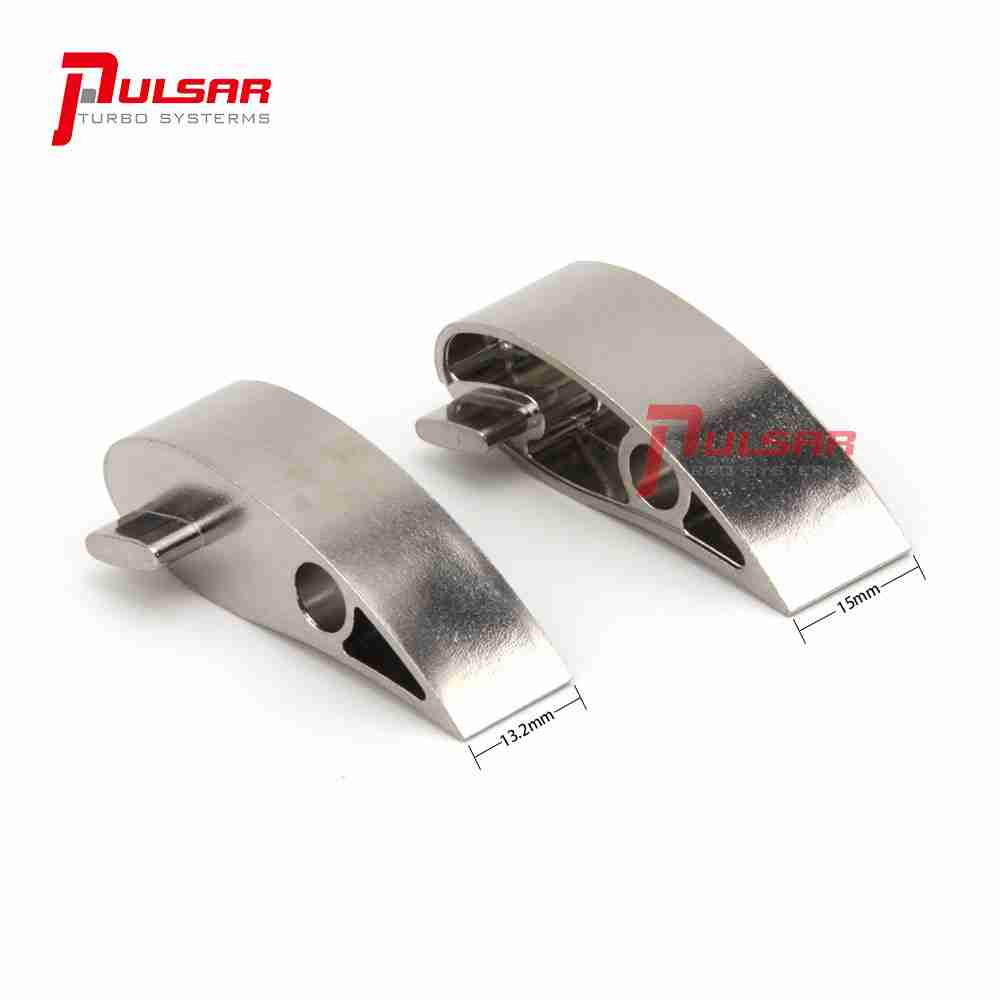

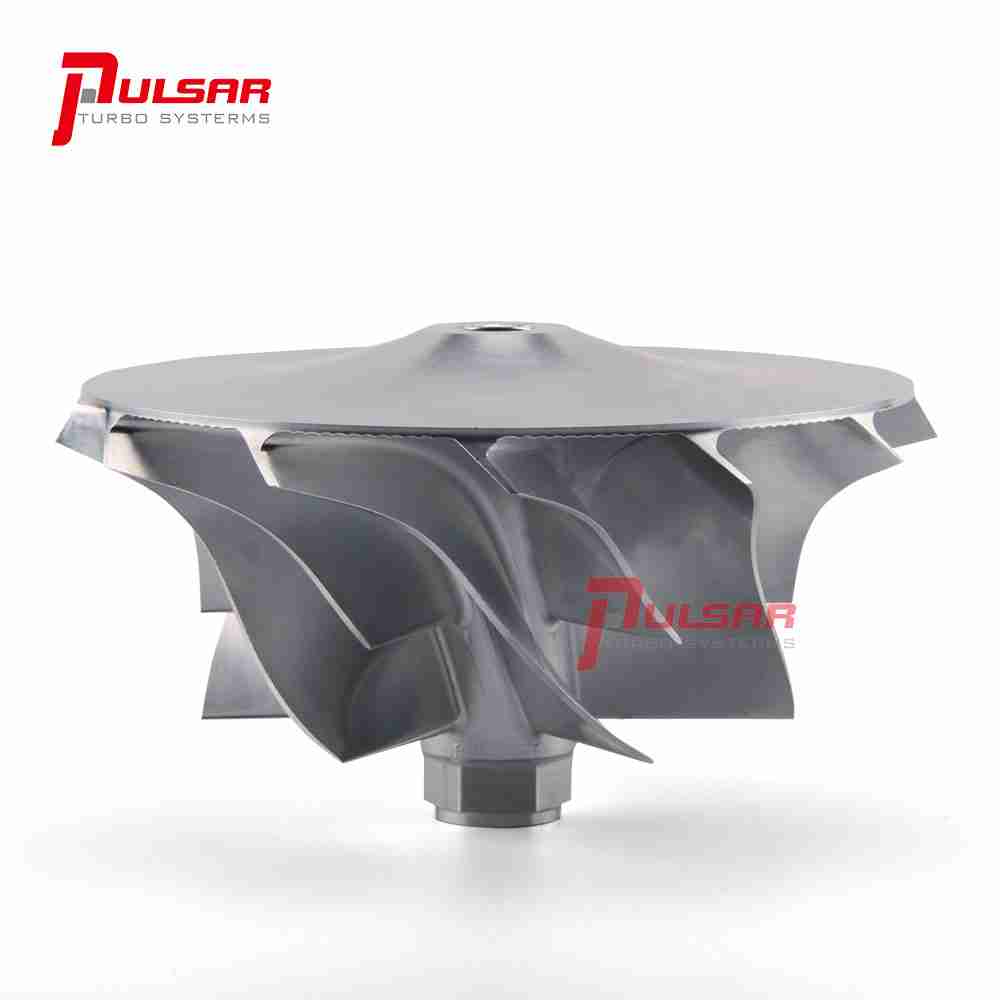

\n-Item Details:\n\nBillet compressor Wheel Inducer: 59.10mm\n\nBillet compressor Wheel Exducer/Tapered Tip Exducer: 82.04mm/87.50mm\n\nBillet compressor Wheel Blade Height: 33.81mm\n\nBillet compressor Wheel Bore: Threaded-M7x1.0LHT\n\nBillet compressor Wheel Blades: 6+6\n\nHigh-Quality Stainless Steel unison/nozzle ring\n\nHigh Nickle content Alloy 15mm vanes\n\nReference OE Part #: 3C3Z-6C885-A\n\nStepped gap seal ring on the turbine end\n\nStepped gap seal ring on the compressor end\n\nTwin hydrodynamic journal bearings\n\n360-degree thrust bearing system\n\nThis rebuild kit contains:\n\n1*BILLET COMPRESSOR WHEEL\n\n1*High-Quality Stainless Steel unison/nozzle ring\n\n9*High Nickle content Alloy 15mm vanes\n\n1*SEAL O-RING\n\n1*360 DEGREE THRUST BEARING\n\n1*THRUST COLLAR\n\n1*THRUST SPACER\n\n3*SEAL PLATE BOLT\n\n2*JOURNAL BEARING\n\n1*BEARING SPACER\n\n1*SMALL SEAL O-RING\n\n5*HOUSING BOLT\n\n1*COMPRESSOR END SEAL RING(STEPPED GAP)\n\n1*TURBINE END SEAL RING(STEPPED GAP)\n\n-Special Note:\n\n
