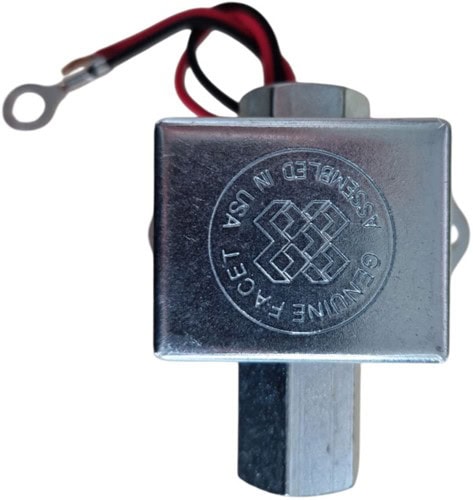

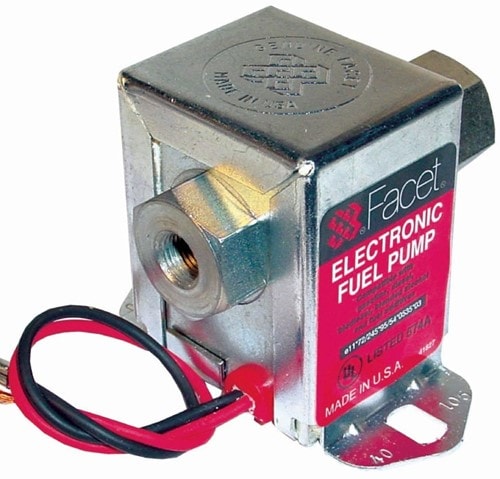

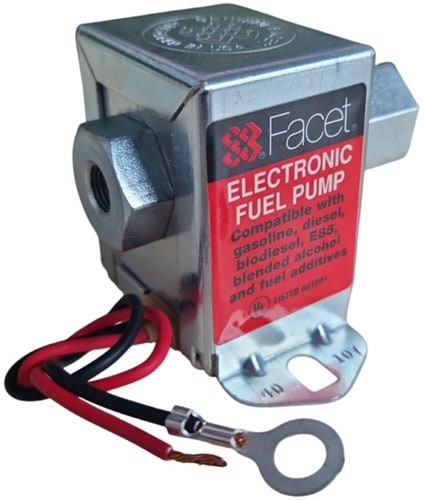

Facet 40107 Cube Solid State Competition Fuel Pump 12V Facet 40107 Cube Solid State Competition Fuel Pump 12V

Description

Electric fuel pump for high-performance carbureted engines up to approx. 180 PK

The Facet CUBE 40107 COMPETITION is a powerful and highly reliable electric fuel pump, specifically designed for demanding applications such as motorsport, custom builds, and classic vehicles. Its solid-state, maintenance-free design—without bearings, open electrical contacts, or aging diaphragms—ensures consistent performance under tough conditions.

Applications:

Suitable for virtually all carbureted engines in cars, classics, vans, generators, agricultural machinery, boats, and construction equipment. Compatible with gasoline, diesel, biodiesel, alcohol blends, E85, and fuel additives.

Please note: Not suitable for use with methanol or in the aviation industry.

Technical Specifications:

– Type: Facet Cube Solid State COMPETITION (40107).

– Voltage: 12 Volt.

– Ground: Negative.

– Operating pressure: 0.48 – 0.68 bar (7 – 10 psi).

– Flow rate: 128 liters per hour.

– Dry lift: 0.3 meters.

– Thread size: 1/8″ NPTF.

– Average lifespan (MTBF): 6000 hours.

– Dimensions (L x H): 75 x 60 mm.

– Weight: 0.5 kg.

– Operating temperature: -4.4 °C to +82 °C.

– Check valve / positive shut-off: No.

– Certification: Complies with EEC 95/54 standards.

Installation Tips:

– We recommend you install a 3A fuse to every installation.

– Mount the pump as close to the fuel tank as possible, ideally lower than the lowest fluid level in the tank for optimal performance.

– Use Loctite 243 on fuel fittings to ensure a leak-free seal.

– Easy to install with only two bolts thanks to its compact design.

– Depending on your vehicle and carburetor setup, a pressure regulator may be required. Always check the specifications for your fuel system.

This is the Facet 40107 pump only. Mounting hardware and fittings are sold separately.
