04.5-05 GMC Chevy Duramax 6.6L LLY Billet Compressor Wheel Rebuild Repair Kit

Description

Billet Compressor Wheel Rebuild Repair for 04.5-05 GMC&Chevy Duramax 6.6L Stock Turbo Only\n

-Application:

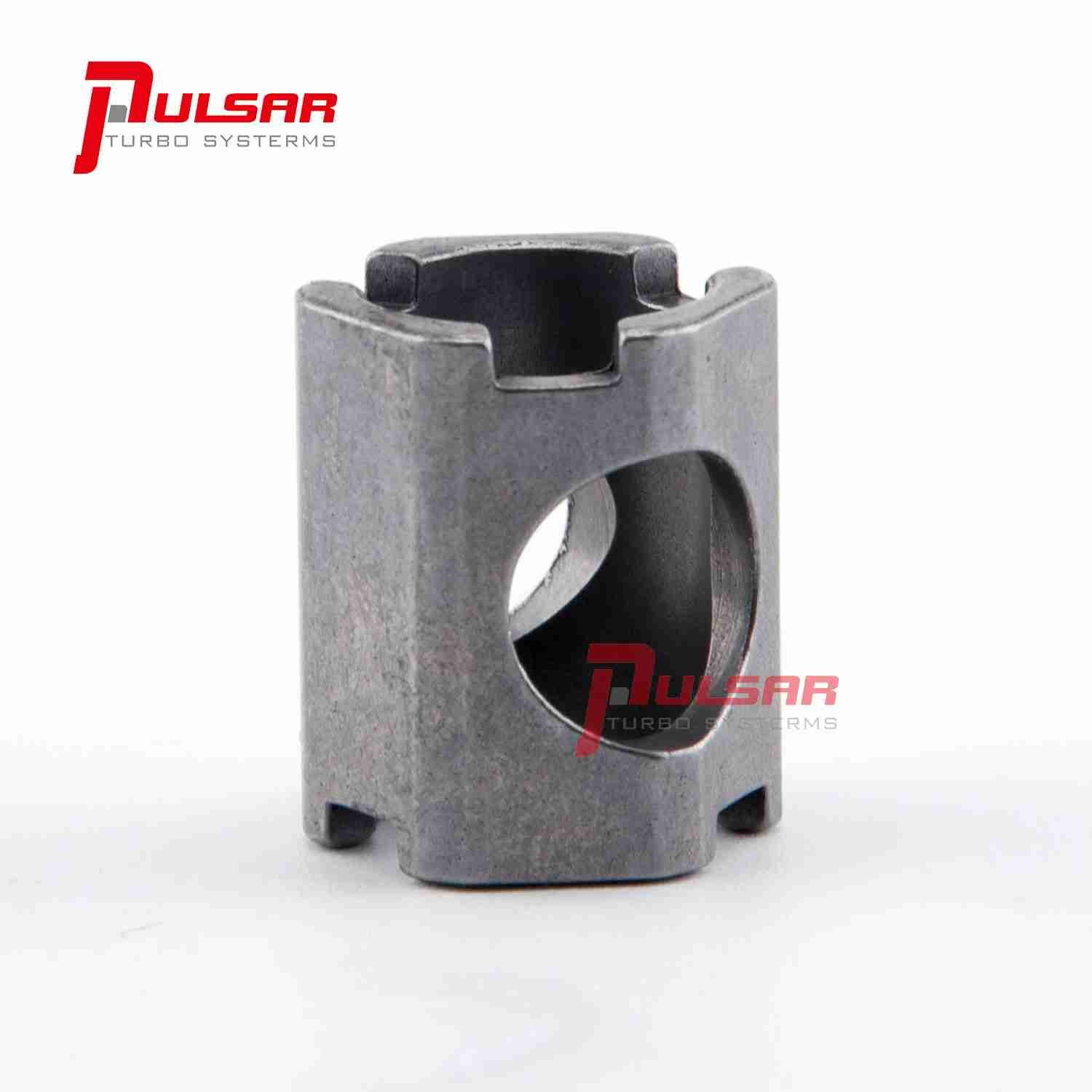

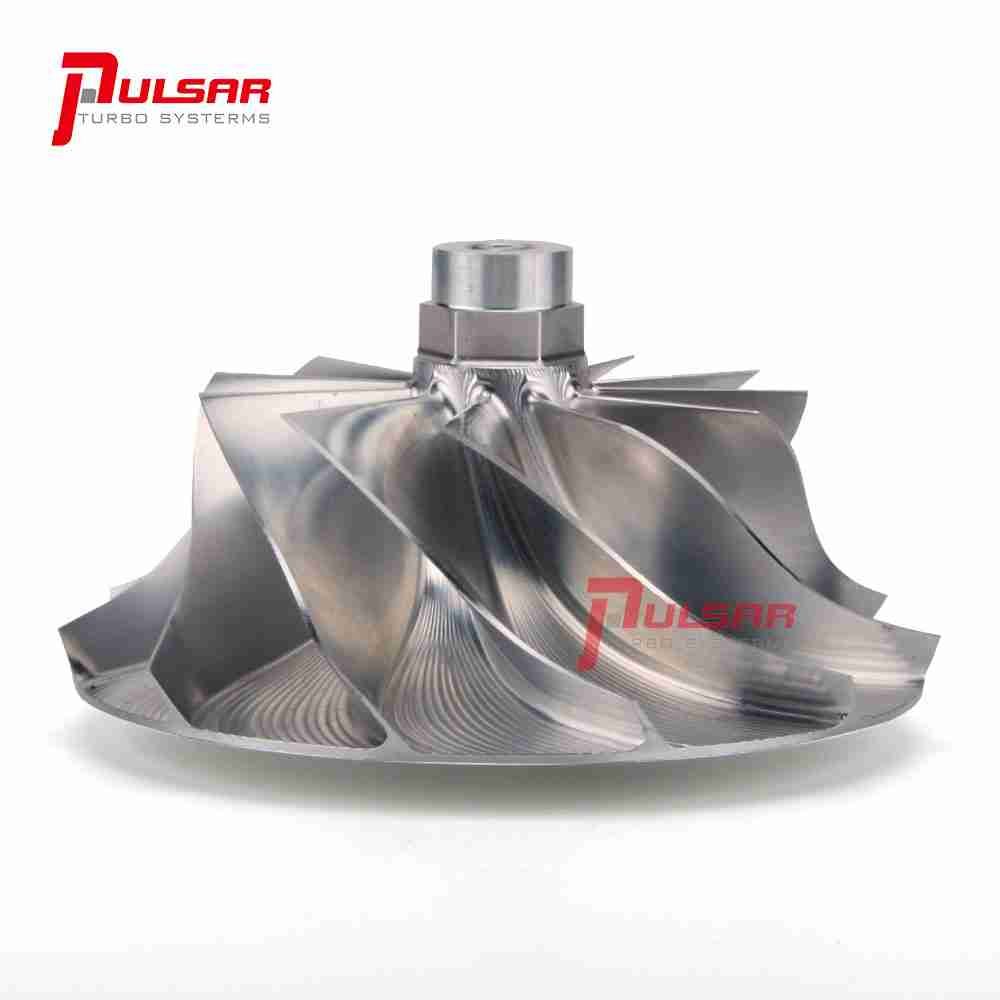

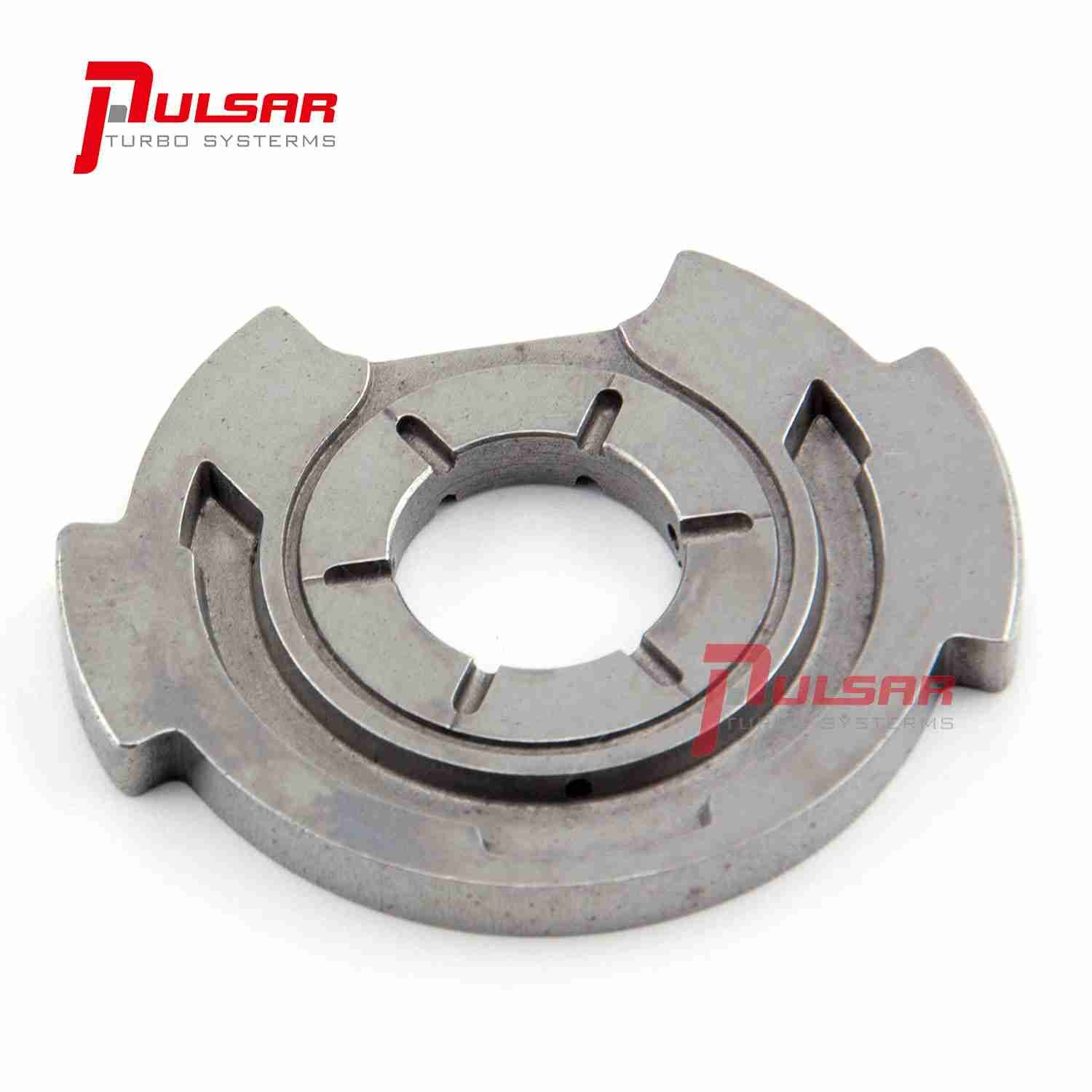

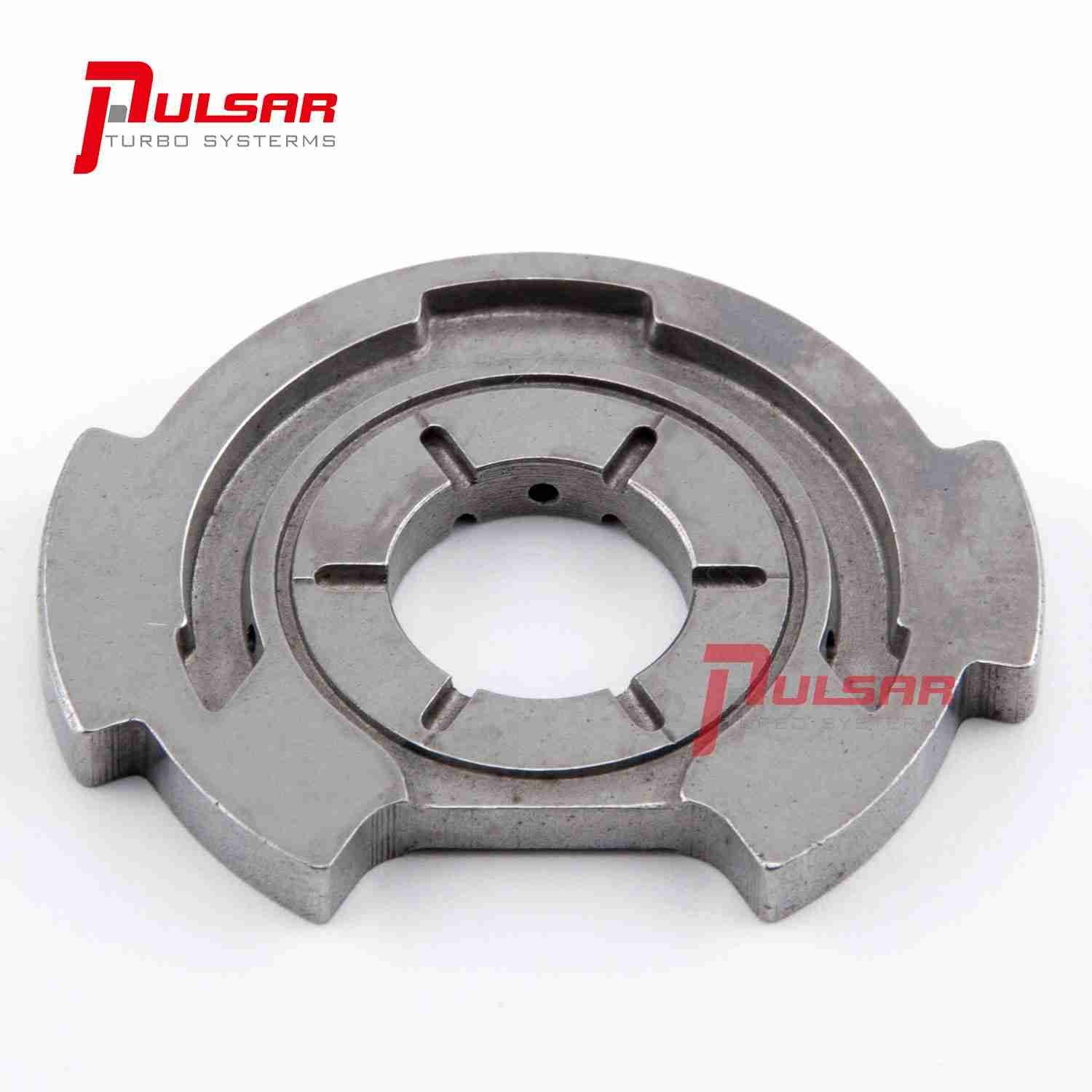

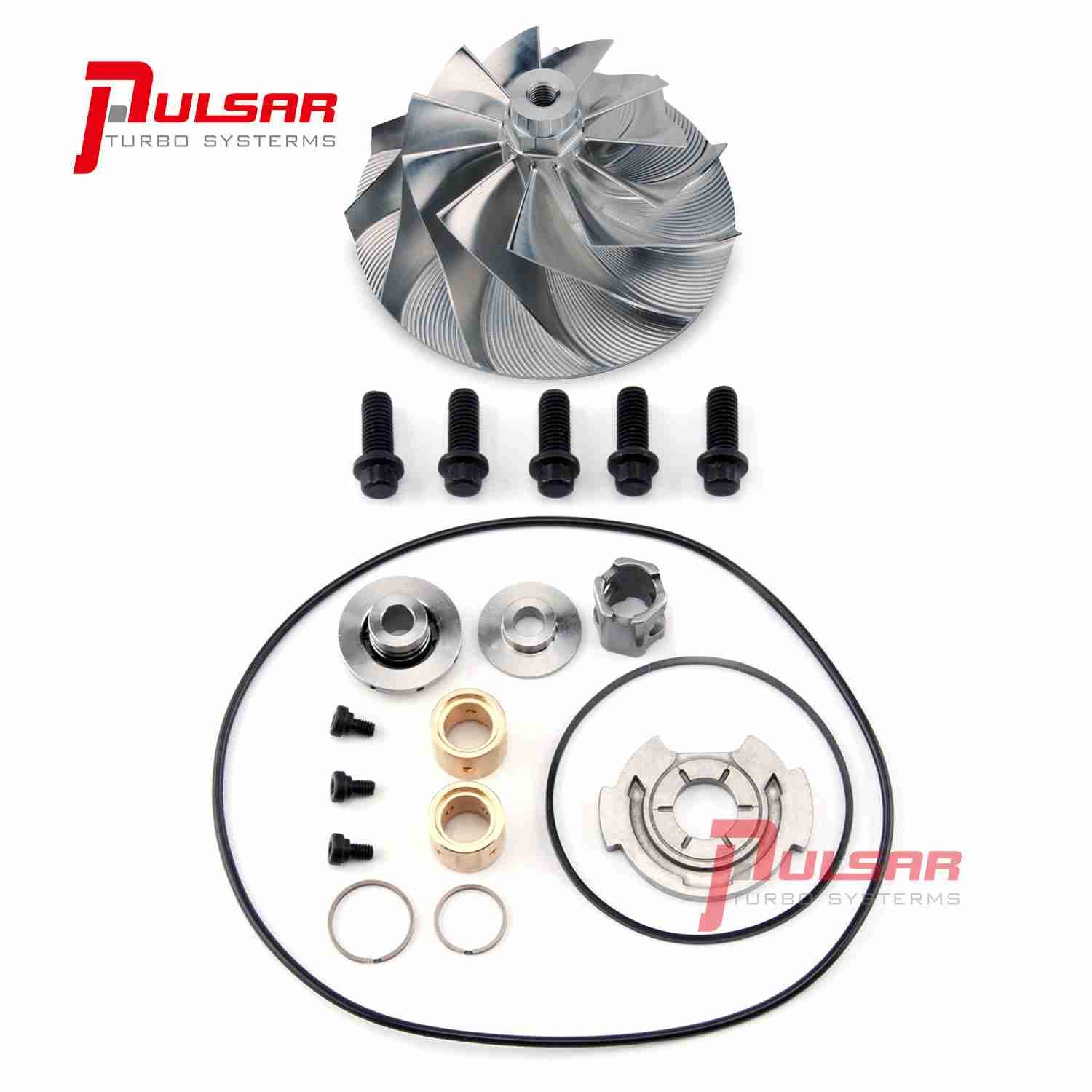

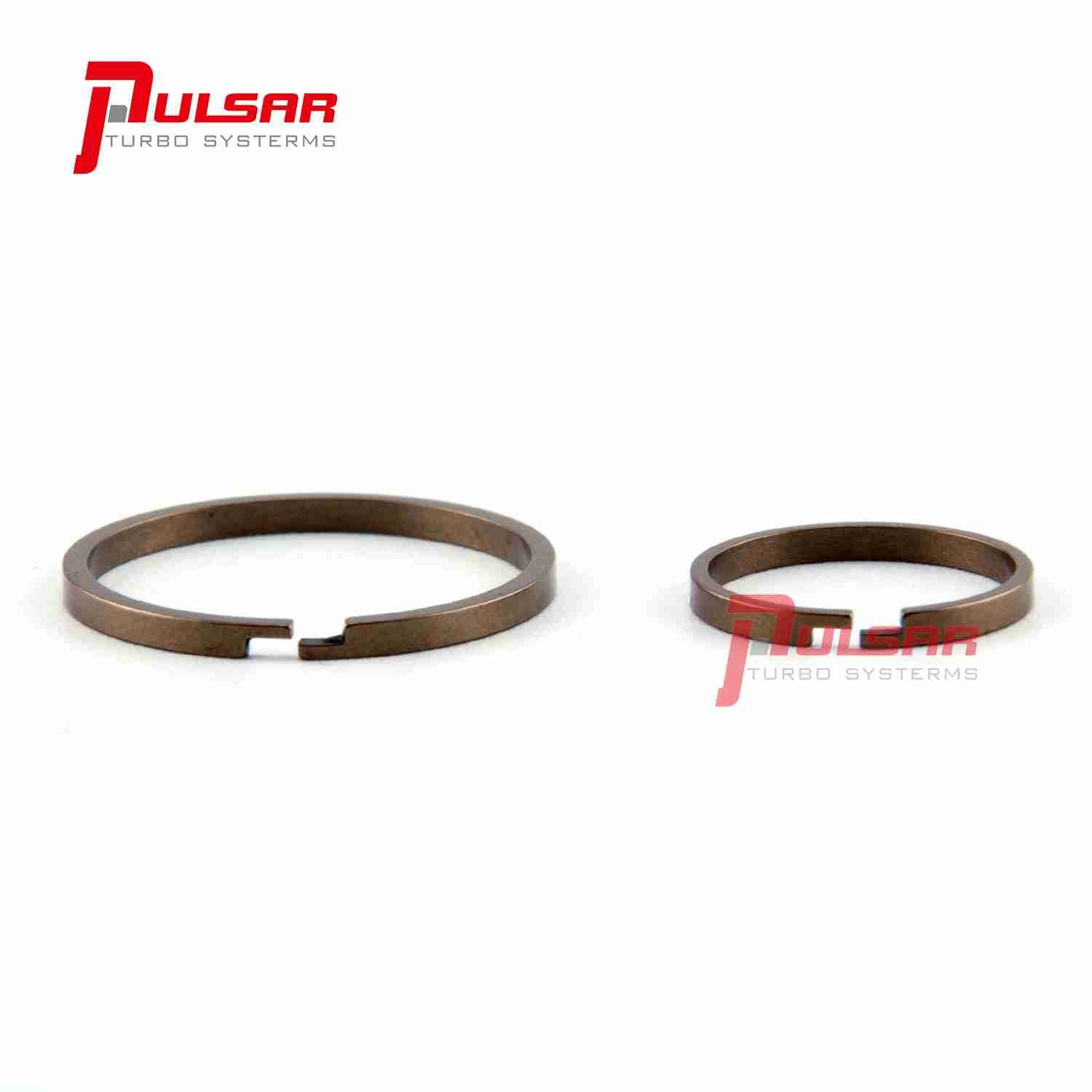

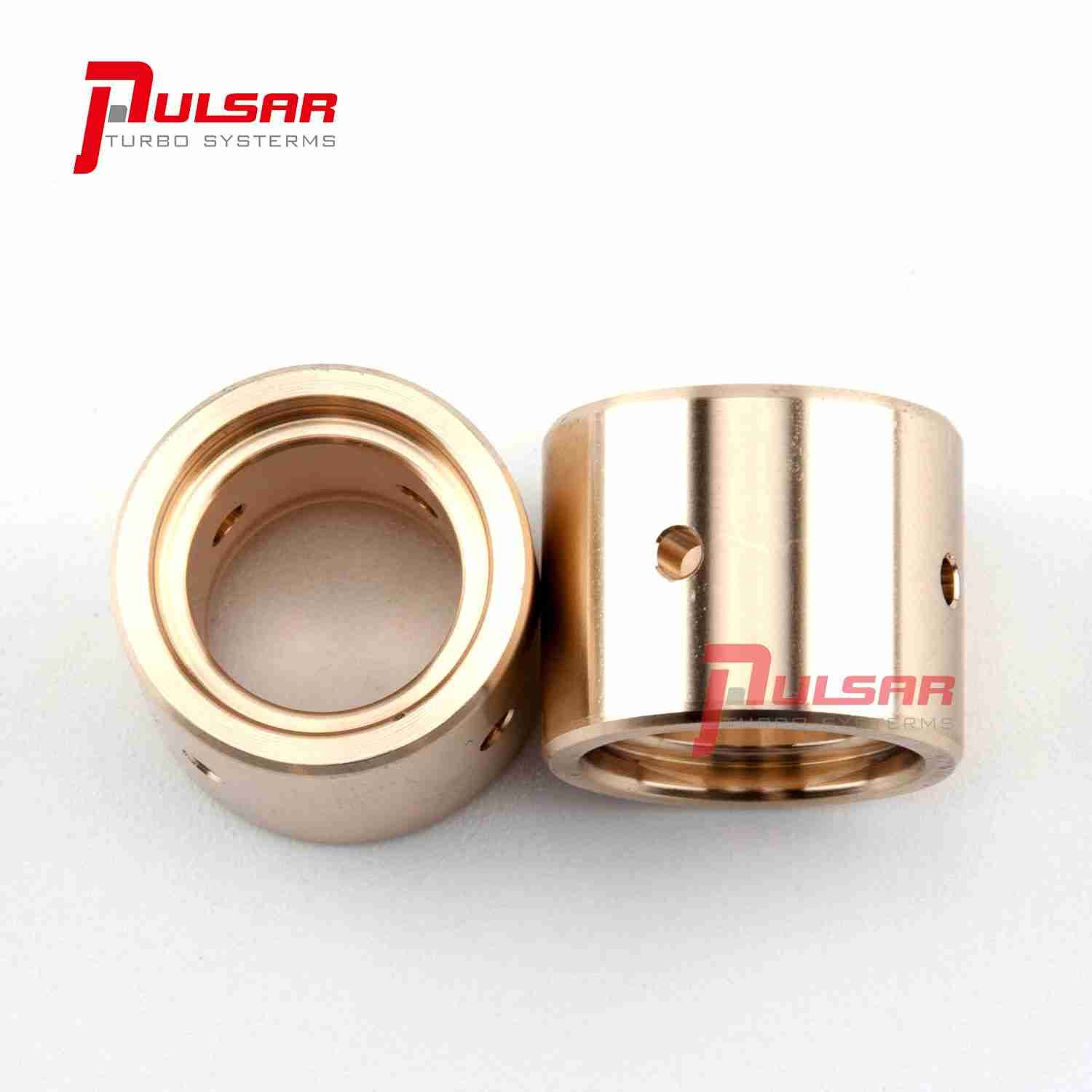

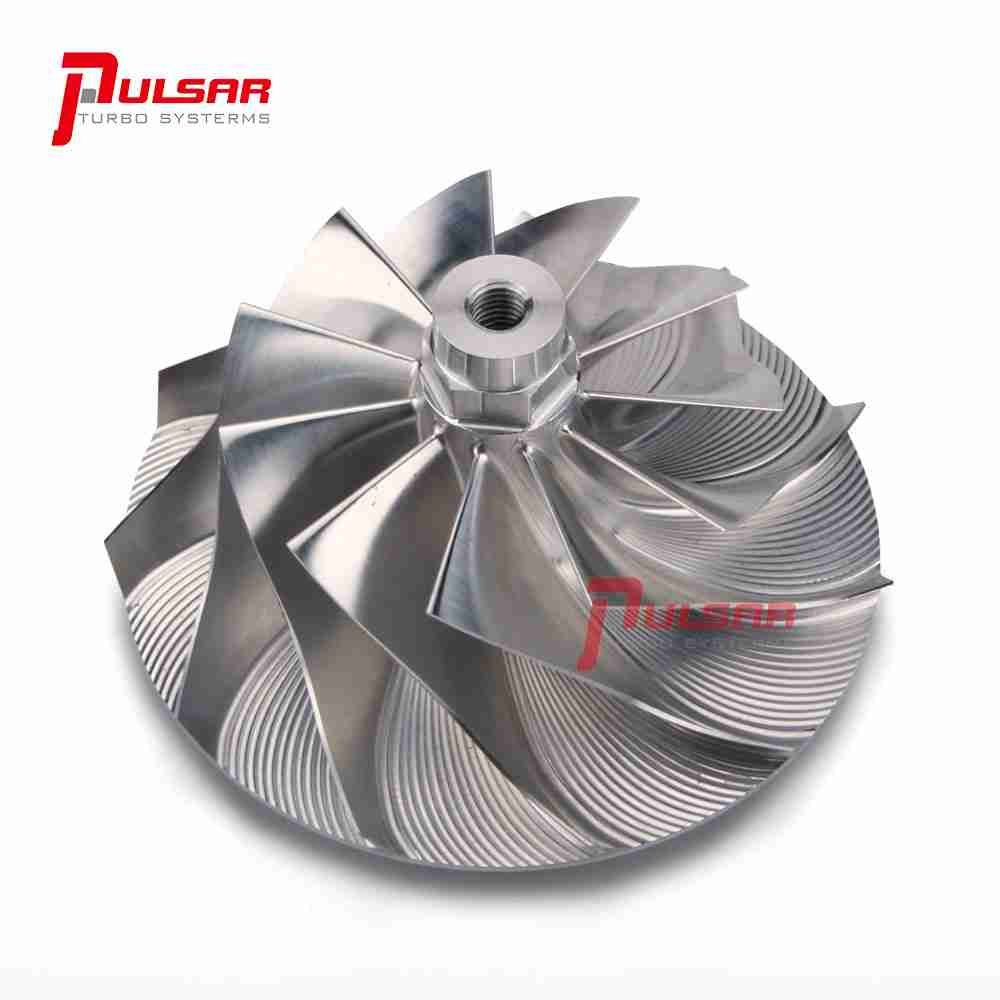

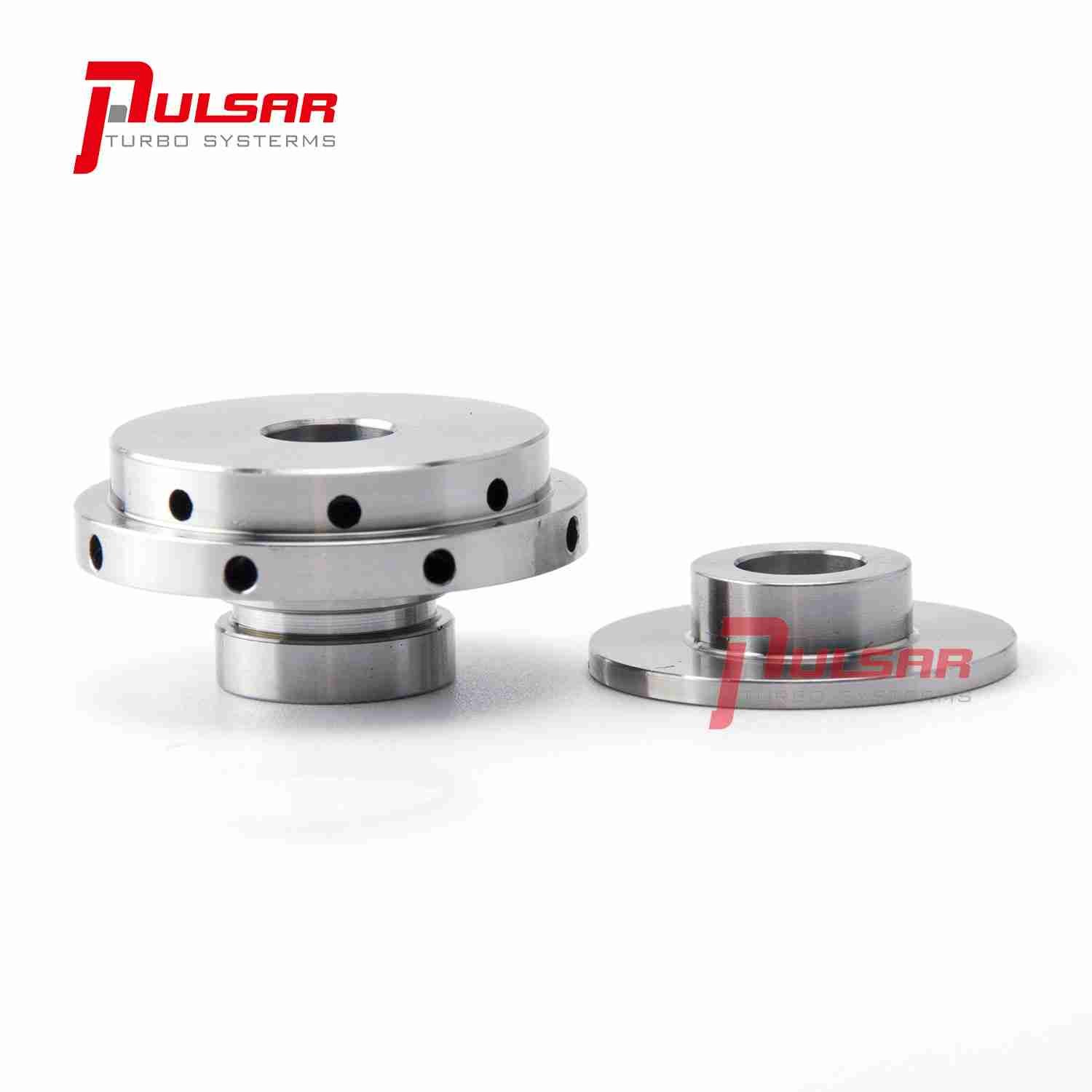

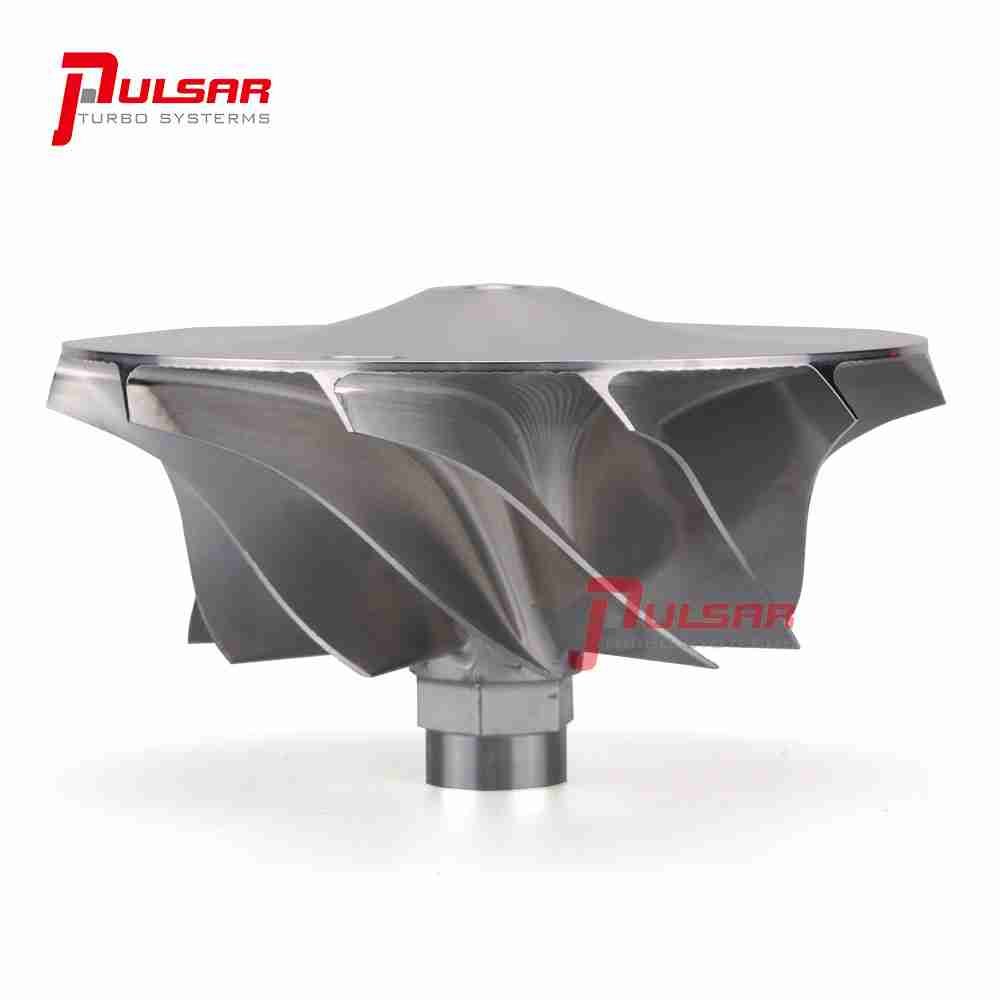

\nStock turbo parts Fitment – No modifications required.\n\n2004.5-2005 GMC / Chevy Duramax LLY 6.6L Stock Size Turbo ONLY\n\n-Item Details:\n\nBillet compressor Wheel Inducer: 63.40mm\n\nBillet compressor Wheel Exducer/Tapered Tip Exducer: 88.1mm/91.8mm\n\nBillet compressor Wheel Blade Height: 31.31mm\n\nBillet compressor Wheel Bore: Threaded-M7x1.0LHT\n\nBillet compressor Wheel Blades: 11+0\n\nStepped gap seal ring on the turbine end\n\nStepped gap seal ring on the compressor end\n\nTwin hydrodynamic journal bearings\n\n360-degree thrust bearing system\n\nThis rebuild kit contains:\n\n1*BILLET COMPRESSOR WHEEL\n\n1*SEAL O-RING\n\n1*360 DEGREE THRUST BEARING\n\n1*THRUST COLLAR\n\n1*THRUST SPACER\n\n3*SEAL PLATE BOLT\n\n2*JOURNAL BEARING\n\n1*BEARING SPACER\n\n1*SMALL SEAL O-RING\n\n5*HOUSING BOLT\n\n1*COMPRESSOR END SEAL RING(STEPPED GAP)\n\n1*TURBINE END SEAL RING(STEPPED GAP)\n\n-Special Note:\n\n
