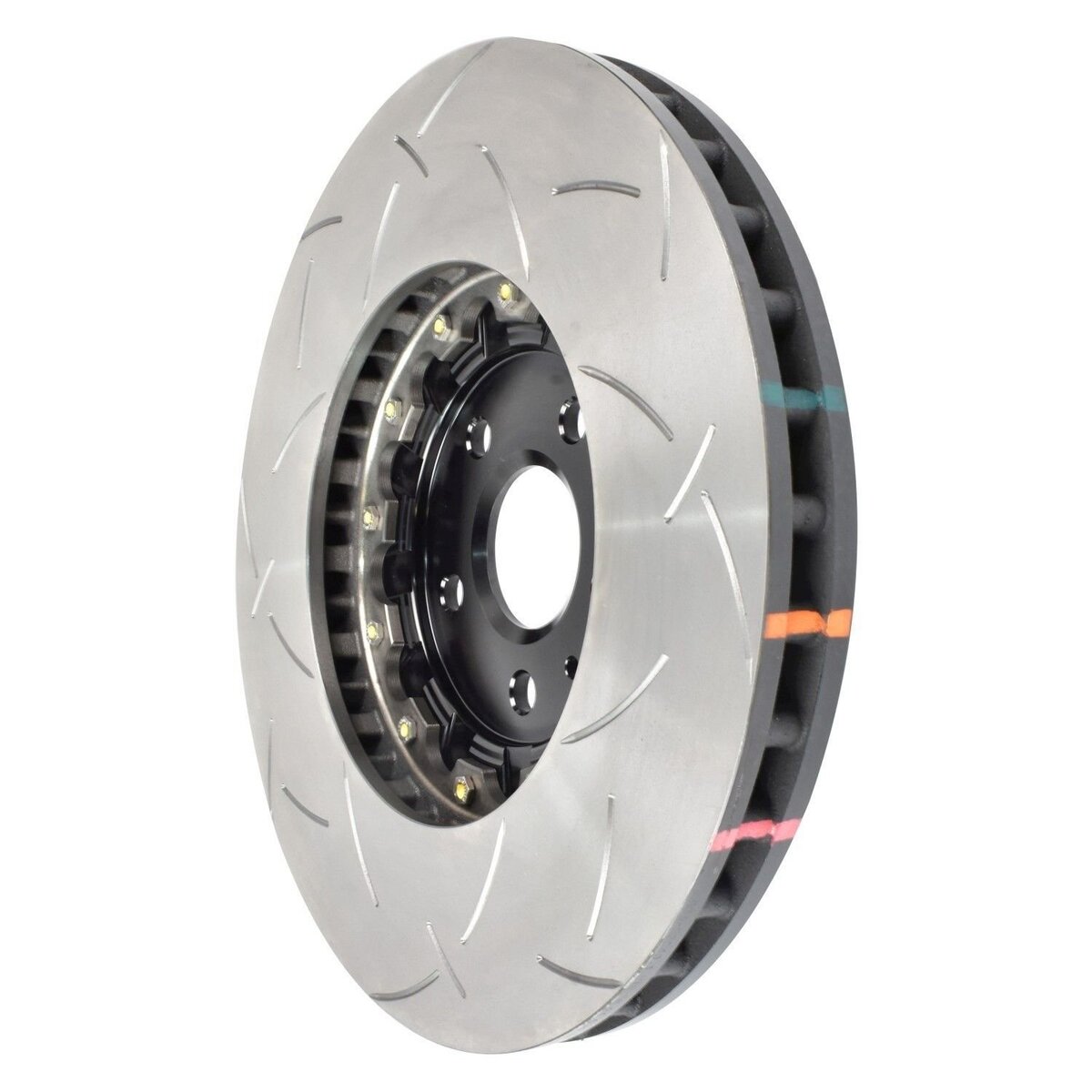

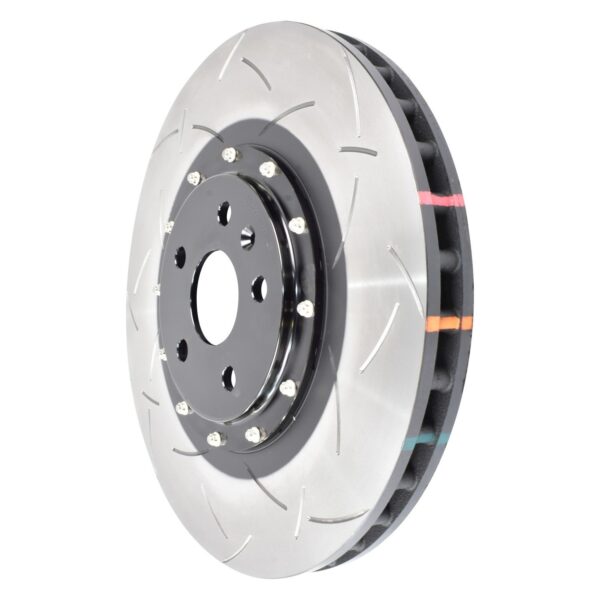

DBA53940BLKS – 5000 Series T3 Brake Rotor; Front
€701.34 Incl. VAT
- DBA 1-Piece Brake Rotors
- Material: Cast Iron
- Package Contents: 1x Brake Disc
Does this part fit your car?
Check your carCadillac
CTS Sedan 2013 - 2019 2013 - 2019
Chevrolet
Camaro Coupe 2015 - Present 2015 - Present
Ways to pay
- and more
DBA
DBA, Disc Brakes Australia, was founded in Sydney in 1976. Its range here is mostly brake discs, with pads to match and a few Street Series calipers.
The discs are grouped by series and slot pattern. Street Series T2 and 4000 Series T3 discs make up most of the range, and 5000 Series two-piece discs are listed along with their replacement rings. Most DBA discs here have a bi-slotted face, some also cross-drilled and a few plain. Many use the Kangaroo Paw internal vane design, and a large share are listed as ECE R90 approved. The pads step up from Street Series (an OE-type ceramic) and Street Performance to Xtreme Performance (a semi-metallic carbon fibre sport pad) and Racing Performance.
Toyota has the most listings, followed by Audi, Volkswagen, Subaru, Nissan, Ford, BMW and Lexus. The Subaru Impreza, Audi TT and A3, Volkswagen Golf and Seat Leon feature most often.
Next to the other disc ranges here, DBA is the one built around slot patterns and internal vane design rather than plain, drilled or dimpled faces.
Talk to a real motorsport specialist.
EU-based, motorsport-experienced. We'll walk through your application before you buy.
Description
DBA53940BLKS – 5000 Series T3 Brake Rotor; Front Level up your driving experience with DBA’s 5000 Series T3 Brake Rotors, featuring the revolutionary T3 bi-slotted design. Unleashing all the cutting-edge performance technology that DBA has to offer, these two-piece direct replacement brake rotors boast CBN machine-turned finishes and are crafted from high carbon alloys.
With DBA’s Kangaroo Paw ventilation system, enjoy a remarkable 30% increase in surface area and a 20% improvement in cooling efficiency compared to conventional straight vane designs. What sets these rotors apart is the T3 bi-slotted design, ensuring a smoother, more responsive, and notably silent braking experience.
Not stopping there, these brake rotors come equipped with Thermographic heat paint markings, transitioning in color at specific temperature thresholds. This provides a valuable visual cue for monitoring braking temperatures and assessing rotor fatigue, adding an extra layer of precision to your braking system.
The incorporation of aerospace-grade aluminum hats isn’t just about style; it reduces unsprung weight and facilitates uniform radial disc expansion within the cast iron rings. Moreover, it acts as a heat barrier, mitigating heat transfer from the disc to the hub through the aluminum hats. DBA’s commitment to optimal performance is evident in the meticulous use of top-tier materials.
High carbon cast iron rings are seamlessly integrated with Aluma-lite center hats/bells, securely fastened together using National Aerospace Standards (NAS) bolts and crimp nuts. Choose from complete assemblies for initial replacements (hats and friction rings bolted together) or opt for replacement hats and flat disc rotors.
This flexibility allows drivers to reuse their DBA 5000 Series hats with DBA replacement rings, ensuring both convenience and cost-effectiveness. For drivers seeking the ultimate brake rotor upgrade on their high-performance cars, the 5000 T3 Series rotors stand as the go-to choice.
Additional information
| Manufacturer | DBA |
|---|---|
| Bolt Circle Diameter mm | 120 |
| Bolt Hole Quantity | 00, 5 |
| Disc Diameter (mm) | 390 |
| Disc Finish | Bi-Slotted |
| Disc Height (mm) | 50, 53 |
| Hub Hole Diameter (mm) | 50, 67 |
| Disc Construction | 2-Piece Fixed |
| Disc Side | Left/Right |
| Max Thickness | 36 |
| Min Thickness | 34 |
| Disc Type | Vented |
| Disc Quality | Premium |
| Material | Cast Iron |
| Package Contents | 1x Brake Disc |
| Brake Location | Front |
