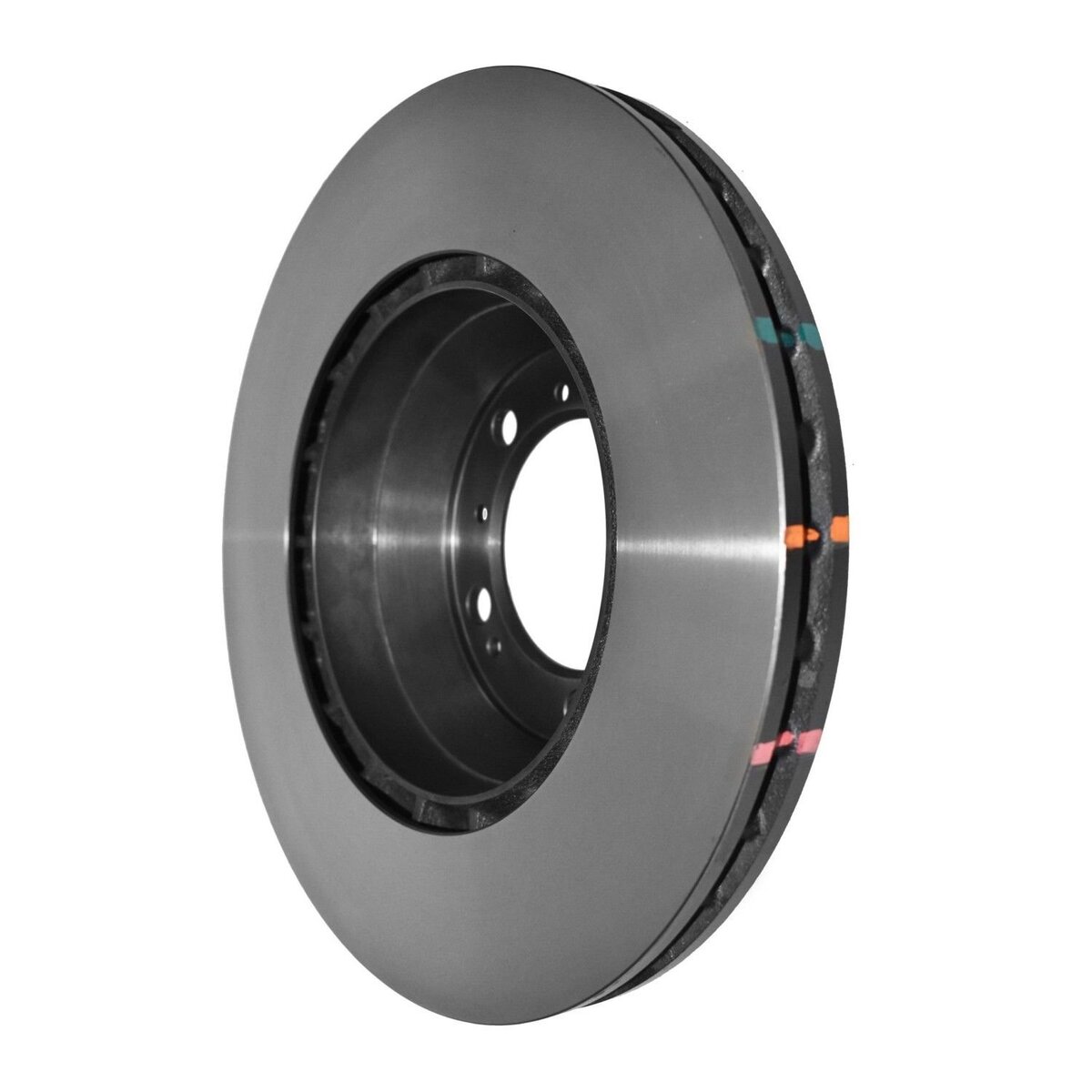

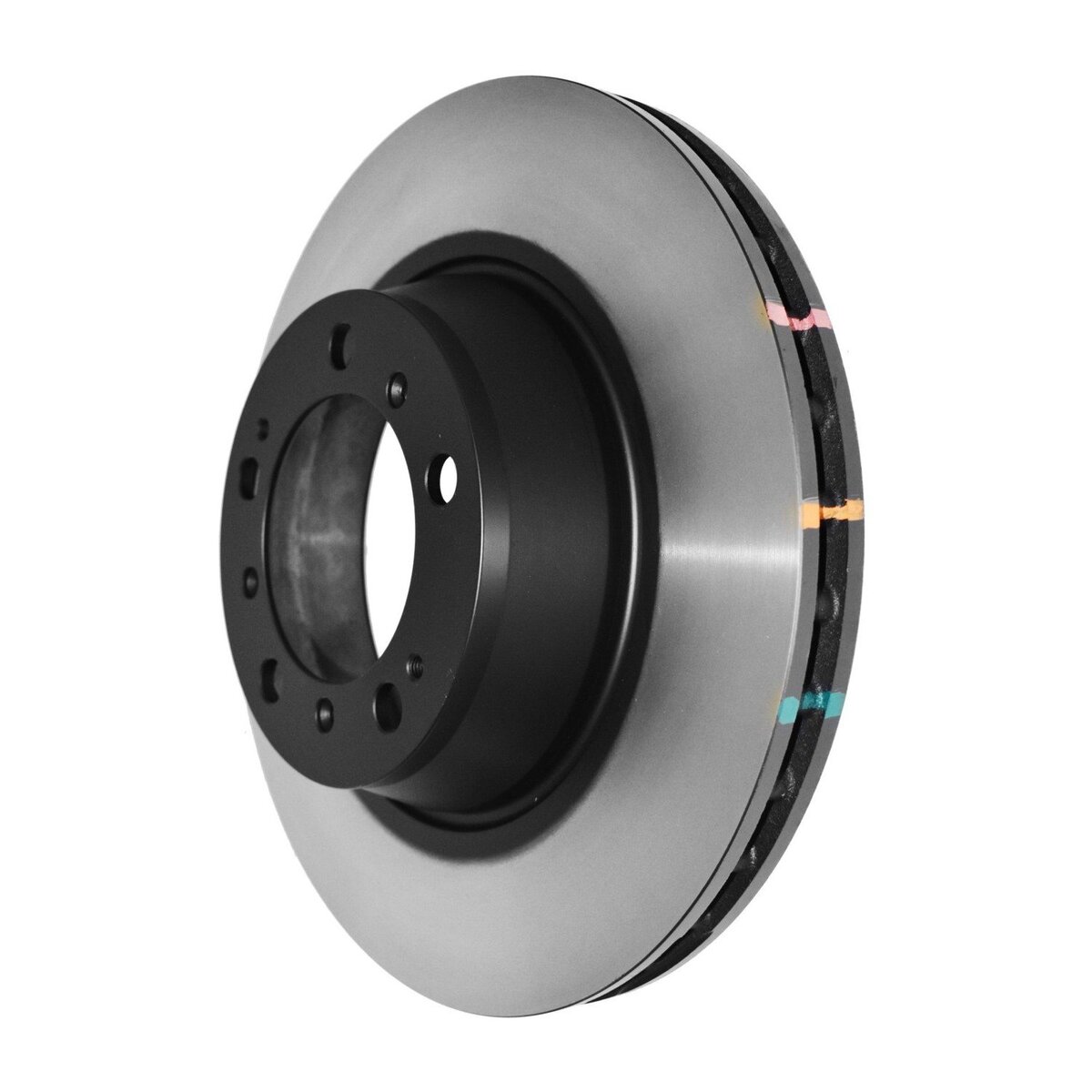

DBA42397 – 4000 Series HD Brake Rotor; Rear
€221.80 Incl. VAT
- DBA 1-Piece Brake Rotors
- Material: Cast Iron
- Package Contents: 1x Brake Disc
Does this part fit your car?
Check your carPorsche
911 (991.1) 2011 - 2019
911 (996) 911 Turbo 1997 - 2005
911 (996) 1997 - 2005
911 (997.1) 2004 - 2012
Ways to pay
- and more
DBA
DBA, Disc Brakes Australia, was founded in Sydney in 1976. Its range here is mostly brake discs, with pads to match and a few Street Series calipers.
The discs are grouped by series and slot pattern. Street Series T2 and 4000 Series T3 discs make up most of the range, and 5000 Series two-piece discs are listed along with their replacement rings. Most DBA discs here have a bi-slotted face, some also cross-drilled and a few plain. Many use the Kangaroo Paw internal vane design, and a large share are listed as ECE R90 approved. The pads step up from Street Series (an OE-type ceramic) and Street Performance to Xtreme Performance (a semi-metallic carbon fibre sport pad) and Racing Performance.
Toyota has the most listings, followed by Audi, Volkswagen, Subaru, Nissan, Ford, BMW and Lexus. The Subaru Impreza, Audi TT and A3, Volkswagen Golf and Seat Leon feature most often.
Next to the other disc ranges here, DBA is the one built around slot patterns and internal vane design rather than plain, drilled or dimpled faces.
Talk to a real motorsport specialist.
EU-based, motorsport-experienced. We'll walk through your application before you buy.
Description
DBA42397 – 4000 Series HD Brake Rotor; Rear DBA 4000 Series HD Brake Rotors are forged from high carbon alloyed iron and subjected to Thermal Stability Profiling, DBA’s metallurgy ensures resilience against the heightened stress and heat generated during intense braking applications, delivering consistent performance and them more suitable for more aggressive driving or high-performance applications than DBA’s Street Series brake rotors.
Additionally, a large range of DBA’s 4000 Series Brake Rotors feature DBA’s Kangaroo Paw ventilation system, incorporating a series of 144 diamond and teardrop-patterned pillars, that achieve an impressive 30% increase in surface area and a 20% improvement in cooling efficiency compared to traditional straight vane designs.
All 4000 Series Brake rotors feature Thermographic heat paint markings that change colour at specific temperature thresholds to assist with the monitoring of braking temperatures and rotor fatigue. DBA 4000 Series HD Brake Rotors showcase a sleek OE-style rotor finish, catering to drivers seeking the advantages of a 4000 Series rotor while desiring an OE-style appearance, including controlled race divisions.
Additional information
| Manufacturer | DBA |
|---|---|
| Bolt Circle Diameter mm | 130 |
| Bolt Hole Quantity | 00, 5 |
| Disc Diameter (mm) | 330 |
| Disc Finish | Plain (Blank) |
| Disc Height (mm) | 30, 75 |
| Hub Hole Diameter (mm) | 98 |
| Disc Construction | 1-Piece |
| Disc Side | Left/Right |
| Max Thickness | 28 |
| Min Thickness | 26 |
| Disc Type | Vented |
| Disc Quality | Premium |
| Material | Cast Iron |
| Package Contents | 1x Brake Disc |
| Approvals | ECE R90 Approved |
| Approval Number | E11*90R02/06*59760*00 |
| Brake Location | Rear |
