360 Thrust Upgrade Rebuild Repair Kit BorgWarner S400 Turbo 96mm/87mm/83mm Turbine
€98.95 Incl. VAT
- Manufacturer: Pulsar Turbo
- 360 Copper Thrust Upgrade for Repair Rebuild Kit Borg Warner Schwitzer S400 Turbonn-Application:nn Stock turbo parts Fitment – No modifications required.nn Fit for Borg Warner S400 Turbo with…
Ways to pay
Also Bancontact (BE), Przelewy24 (PL), EPS (AT) and Multibanco (PT)
Pulsar Turbo
Pulsar Turbo Systems is based in California, and its range here is turbochargers and the parts to build, rebuild or re-specify them. Most of the turbos use dual ball bearings, with journal-bearing and ceramic ball-bearing versions also listed. Models follow the PSR numbering (PSR2860, PSR3071, PSR3584 and so on). Many are offered with a choice of turbine housing, flange and A/R, in forward or reverse rotation, or without a turbine housing at all.
Beyond complete turbos there are separate turbine and compressor housings, billet and cast compressor wheels, and CHRA and bearing kits. There are also external wastegates and wastegate heat blankets, oil feed and drain parts, gaskets and V-band clamps.
The range is not listed by car. Choose by frame size, bearing type, housing flange (T3, T4, T6 or V-band) and A/R, and use the flange details in each title to match your manifold and downpipe.
Most of the rest of the Turbo section is boost control hardware; Pulsar supplies the turbocharger itself and the parts that make it up.
Talk to a real motorsport specialist.
EU-based, motorsport-experienced. We'll walk through your application before you buy.
Description

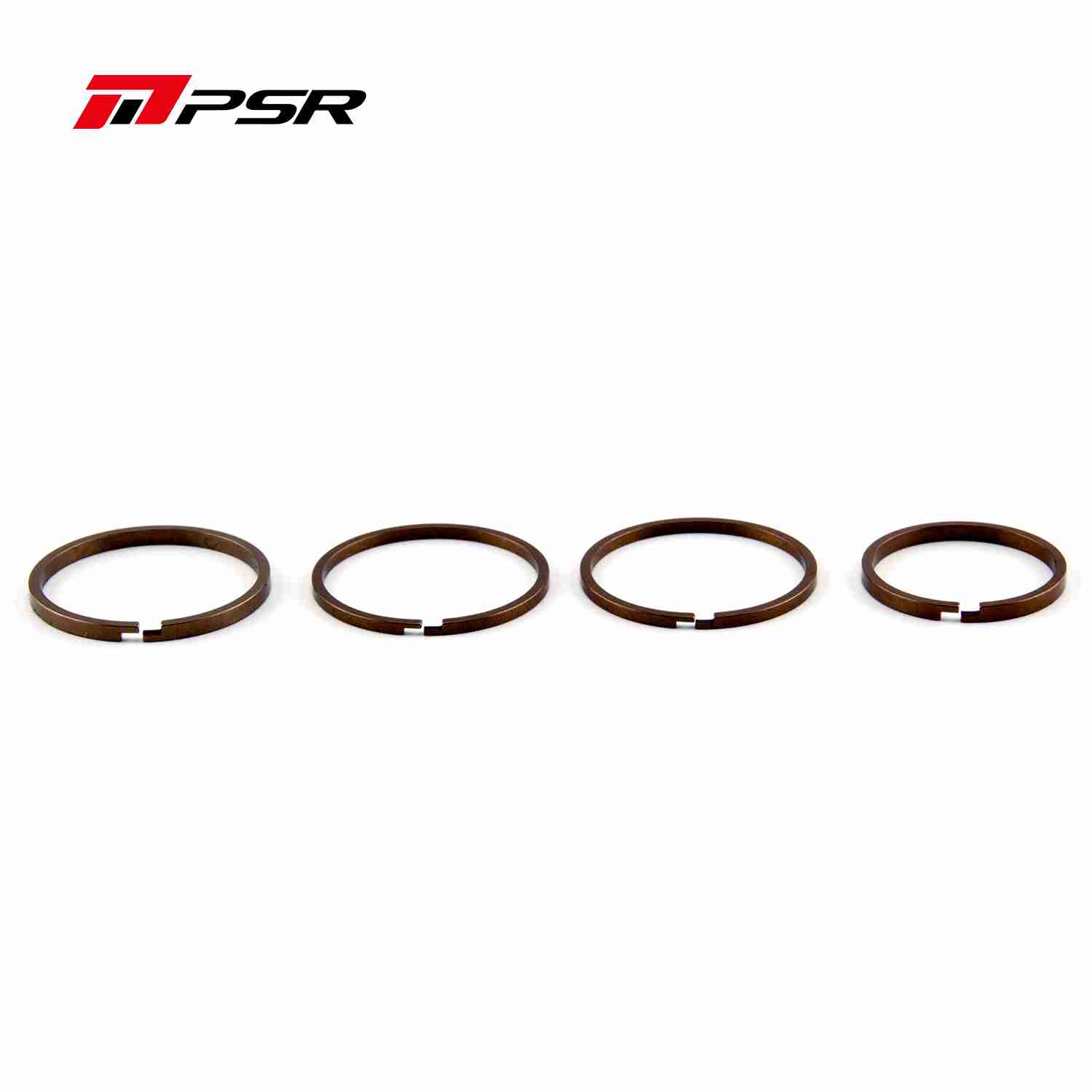

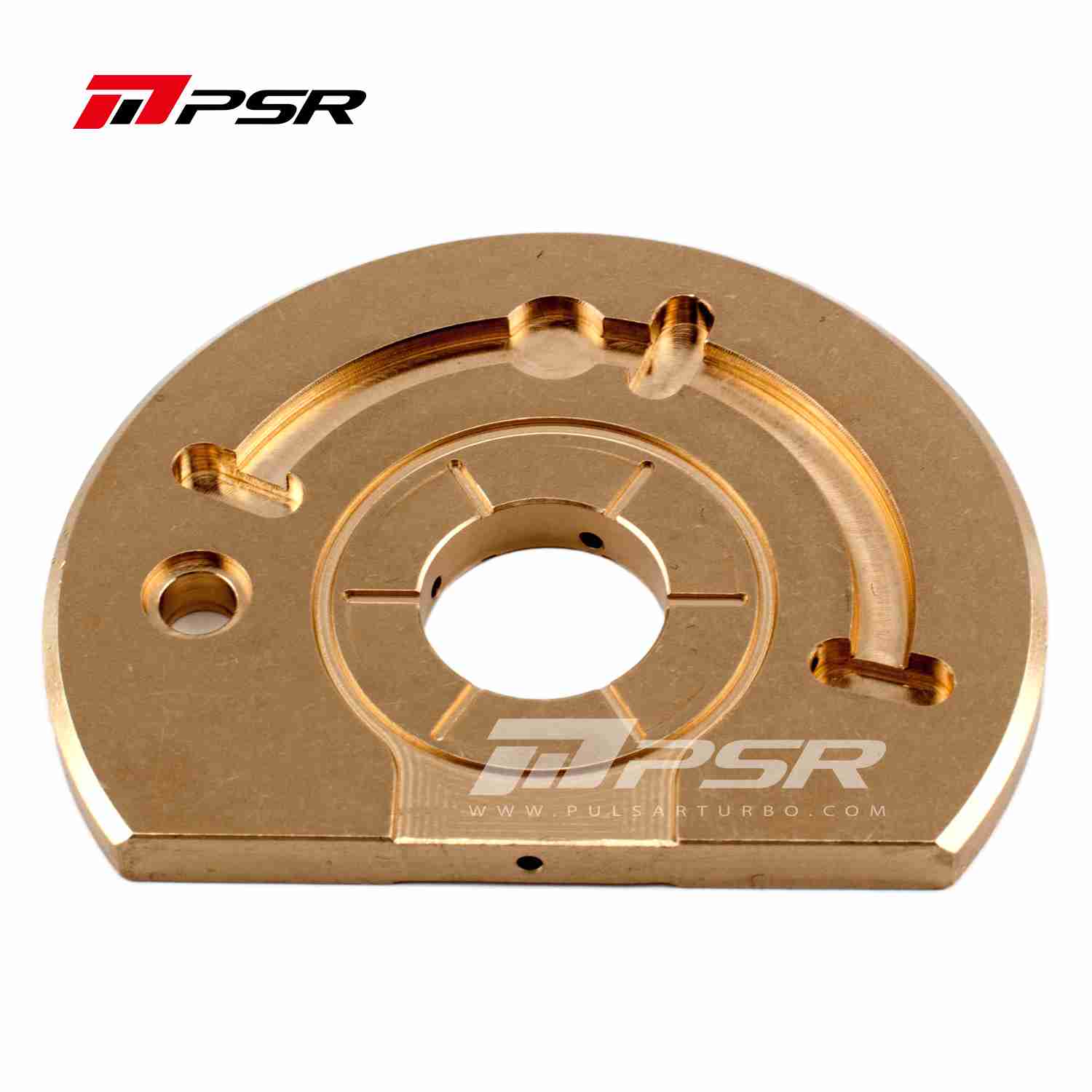

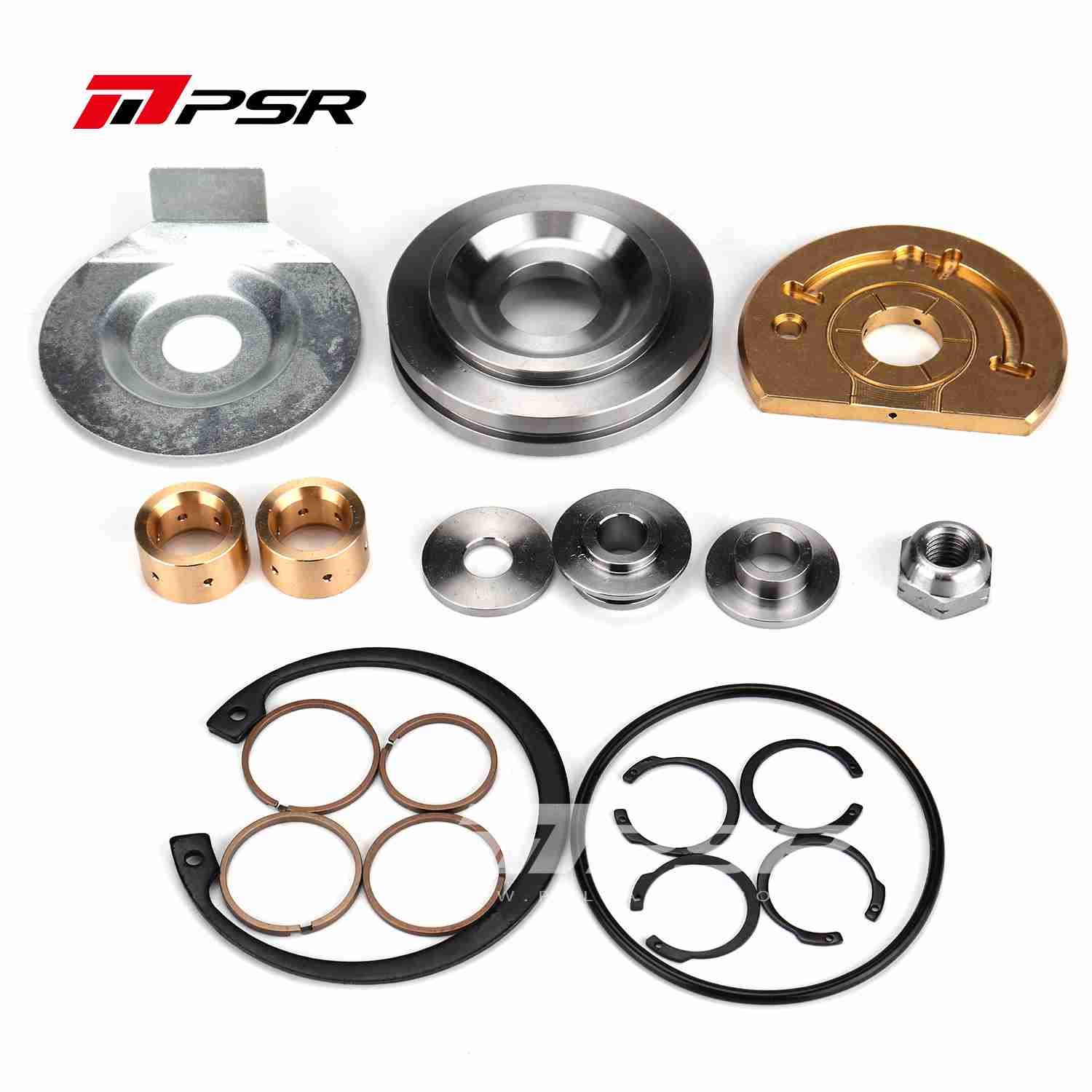

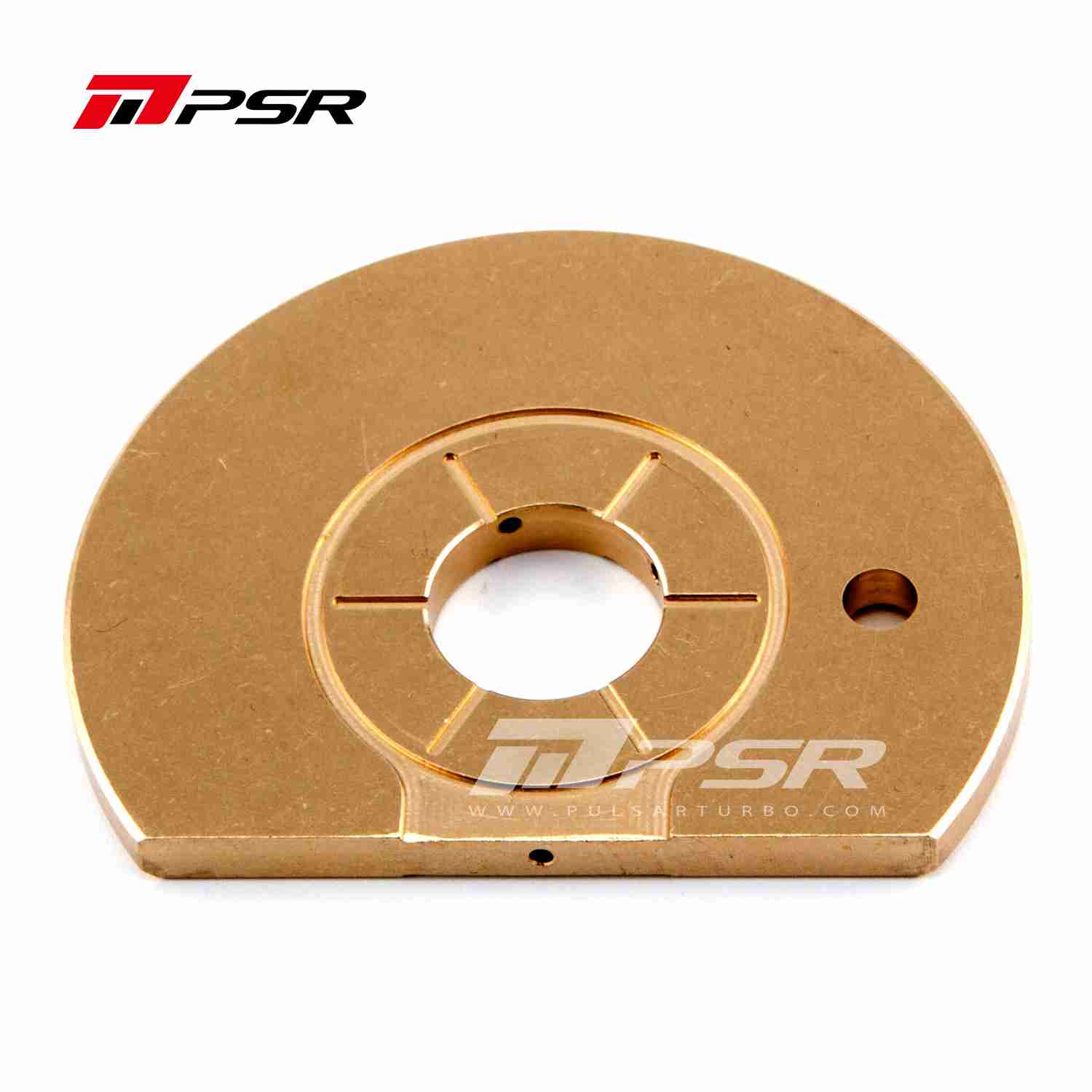

360 Copper Thrust Upgrade for Repair Rebuild Kit BorgWarner Schwitzer S400 Turbo\n\n-Application:\n\nStock turbo parts Fitment – No modifications required.\n\nFit for Borg Warner S400 Turbo with 96mm/88mm Turbine Wheel\n\nBorg Warner S400 Turbo with 87mm/82mm Turbine Wheel\n\nBorg Warner S400 Turbo with 83mm/74mm Turbine Wheel\n\n-Item Details:\n\nStepped gap seal ring on the 96mm/87mm turbine end(2 turbine side piston rings)\n\nStepped gap seal ring on the 83mm turbine end\n\nStepped gap seal ring on the compressor end\n\nTwin hydrodynamic journal bearings\n\n360 Degree Thrust Bearing CNC machined from COOPER BAR\n\nReference borg warner number: 171701 171702 177287 171698 14961016100 177101\n\nThis rebuild kit contains:\n\nOil Baffle*1\n\nSeal Plate*1\n\nThrust Collar*1\n\n2 Piece Thrust Spacer Set*1\n\nSeal O-Ring*1\n\n360-degree COPPER Thrust Bearing*1\n\nJournal Bearing*2\n\nCompressor wheel Locknut*1\n\n96mm Turbine end seal ring*2\n\n83mm Turbine end seal ring*1\n\ncompressor end seal ring*1\n\nRetaining Ring*1\n\nJournal bearing Retaining Ring*4\n\n \n\n-Special Note:\n\n1. Please DOUBLE check your sizing prior to purchase!\n\n2. Professional install is highly recommended! Please ask all questions prior to purchase!\n\n3. Highly recommended to get the CHRA VSR balanced after rebuild (is required for warranty purposes)!\n\n
Specifications
| Part number | PSR-150340001 |
|---|---|
| Manufacturer | Pulsar Turbo Systems |
| Weight | 1 kg |
