DBA2857 - Street Series OE Brake Rotor; Rear

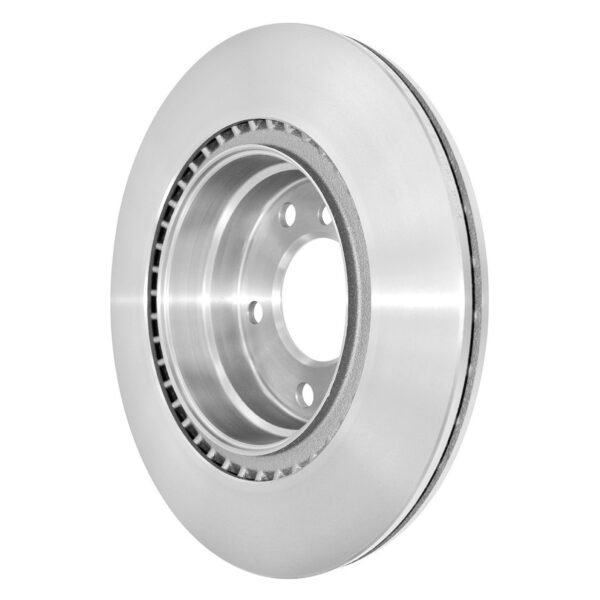

DBA2857 - Street Series OE Brake Rotor; Rear - Image 2
DBA2857 - Street Series OE Brake Rotor; Rear - Image 3
Weight6.3 kg
Manufacturer

DBA

Bolt Circle Diameter mm

120

Bolt Hole Quantity

5,00

Disc Diameter (mm)

300

Disc Finish

Plain (Blank)

Disc Height (mm)

66

Hub Hole Diameter (mm)

75

Disc Construction

1-Piece

Disc Side

Left/Right

Max Thickness

20

Min Thickness

18,40

Disc Vane Style

OE Style

Disc Type

Vented

Disc Quality

Standard

Material

Cast Iron

Package Contents

1x Brake Disc

Approvals

ECE R90 Approved

Approval Number

E11*90R02/06*59751*00

DBA2857 – Street Series OE Brake Rotor; Rear

Authorised EU Dealer DBA
All DBA →
SKU: DBA-DBA2857
In stock

€78.60 Incl. VAT

  • DBA 1-Piece Brake Rotors
  • Package: 1x Brake Disc
  • Disc Diameter: 300mm
  • Disc Type: Vented
  • Material: Cast Iron
  • Fits: BMW 1-Series (1st Gen) 2003-2013
Compatible vehicles
BMW
1 - Series (E81) Hatchback 3DR 2003 - 2013
  • 118D 2.0 TD (143HP / 105KW) 2007 - 2010
  • 118D 2.0 TD (143HP / 105KW) 2010 - 2011
  • 120D 2.0 TD (177HP / 130KW) 2007 - 2010
  • 120D 2.0 TD (177HP / 130KW) 2010 - 2011
1 - Series (E87) Hatchback 5DR 2003 - 2013
  • 118D 2.0 TD (143HP / 105KW) 2007 - 2010
  • 118D 2.0 TD (143HP / 105KW) 2010 - 2011
  • 120D 2.0 TD (163HP / 120KW) 2004 - 2007
  • 120D 2.0 TD (177HP / 130KW) 2007 - 2010
  • 120D 2.0 TD (177HP / 130KW) 2010 - 2011
1 - Series (F20) Hatchback 5DR 2011 - 2019
  • 120 1.6 Turbo 2015 - 2016
  • 120 2.0 Turbo 2016 - 2019
  • 120D 2.0 TD 2012 - 2019
  • 125 2.0 Turbo 2012 - 2019
  • 125D 2.0 TD 2012 - 2019
1 - Series (F21) Hatchback 3DR 2011 - 2019
  • 120 1.6 Turbo 2015 - 2016
  • 120 2.0 TD 2012 - 2019
  • 120 2.0 Turbo 2016 - 2019
  • 125 2.0 TD 2012 - 2019
  • 125 2.0 Turbo 2012 - 2019
2 - Series (F22) Coupe 2013 - 2021
  • 218 1.5 Turbo (136HP / 100KW) 2015 - 2020
  • 218D 2.0 TD (143HP / 105KW) 2014 - 2015
  • 218D 2.0 TD (150HP / 110KW) 2015 - 2020
  • 220 2.0 Turbo (184HP / 135KW) 2013 - 2021
  • 220D 2.0 TD (190HP / 140KW) 2013 - 2020
  • 225D 2.0 TD 2014 - 2029
  • 228 2.0 Turbo (240HP / 180KW) 2014 - 2016
  • 230 2.0 Turbo (252HP / 185KW) 2016 - 2021
2 - Series (F23) Convertible 2013 - 2021
  • 220 2.0 Turbo (184HP / 135KW) 2014 - 2021
  • 220D 2.0 TD (190HP / 140KW) 2014 - 2020
  • 225D 2.0 TD (224HP / 165KW) 2015 - 2019
  • 228 2.0 Turbo (245HP / 180KW) 2014 - 2016
  • 230 2.0 Turbo (252HP / 185KW) 2016 - 2021
3 - Series (E90) Sedan 2004 - 2013
  • 318 2.0 2005 - 2007
  • 318 2.0 2007 - 2010
  • 318 2.0 2010 - 2012
  • 318D 2.0 TD (Sport) 2005 - 2010
  • 318D 2.0 TD 2005 - 2010
  • 318D 2.0 TD 2010 - 2012
  • 320 2.0 (170HP / 125KW) 2006 - 2010
  • 320 2.0 2010 - 2012
  • 320D 2.0 TD 2005 - 2010
  • 320D 2.0 TD 2010 - 2012
  • 325 2.5 2005 - 2010
  • 325 2.5 2010 - 2012
  • 325 3.0 (N53) 2007 - 2010
  • 325 3.0 2010 - 2012
  • 325 xi 2.5 2005 - 2008
3 - Series (E91) Estate 2004 - 2013
  • 318 2.0 (N43) 2010 - 2012
  • 318D 2.0 TD (143HP / 105KW) 2007 - 2010
  • 318D 2.0 TD 2005 - 2010
  • 318D 2.0 TD 2010 - 2012
  • 320 2.0 (150HP / 110KW) 2007 - 2012
  • 320 2.0 (170HP / 125KW) 2007 - 2010
  • 320 2.0 (170HP / 125KW) 2010 - 2012
  • 320D 2.0 TD 2010 - 2012
  • 325 2.5 2010 - 2012
  • 325 3.0 (N53) 2010 - 2012
3 - Series (E92) Coupe 2004 - 2013
  • 318 2.0 2010 - 2013
  • 320 2.0 2007 - 2010
  • 320 2.0 2010 - 2013
  • 320D 2.0 TD 2005 - 2010
  • 320D 2.0 TD 2010 - 2013
  • 325 2.5 2005 - 2010
  • 325 2.5 2010 - 2013
  • 325 3.0 (N52) 2007 - 2010
  • 325 3.0 (N53) 2007 - 2010
  • 325 3.0 2010 - 2013
  • 325 xi 2.5 2006 - 2008
3 - Series (E93) Convertible 2004 - 2013
  • 318 2.0 2007 - 2010
  • 318 2.0 2010 - 2013
  • 320D 2.0 TD 2008 - 2010
  • 320D 2.0 TD 2010 - 2013
3 - Series (F30) Sedan 2011 - 2019
  • 316 1.6 Turbo 2012 - 2015
  • 316D 2.0 TD 2012 - 2019
  • 318D 2.0 TD 2012 - 2019
  • 320 1.6 Turbo 2012 - 2015
  • 320 2.0 Turbo 2012 - 2019
  • 320 xDrive 2.0 Turbo 2011 - 2019 Xdrive
  • 320D 2.0 TD 2011 - 2019
  • 320D xDrive 2.0 TD 2013 - 2019 Xdrive
  • 325D 2.0 TD 2013 - 2018
  • 328 2.0 Turbo 2012 - 2015
  • 330 2.0 Turbo 2015 - 2019
  • Active Hybrid 3.0 Turbo 2012 - 2015
3 - Series (F31) Estate 2011 - 2019
  • 316 Touring 1.6 Turbo 2013 - 2015
  • 316D Touring 2.0 TD 2012 - 2019
  • 318 Touring 1.5 Turbo 2015 - 2019
  • 318D Touring 2.0 TD 2012 - 2019
  • 320 Touring 2.0 Turbo 2012 - 2019
  • 320 Touring xDrive 2.0 Turbo 2013 - 2019 Xdrive
  • 320D Touring 2.0 TD 2011 - 2019
  • 320D Touring xDrive 2.0 TD 2013 - 2019 Xdrive
  • 325D Touring 2.0 TD 2013 - 2018
  • 328 Touring 2.0 Turbo 2012 - 2019
  • 330 Touring 2.0 Turbo 2015 - 2019
3 - Series (F34) Gran Turismo 2011 - 2019
  • 318D Gran Turismo 2.0 TD 2013 - 2019
  • 320 Gran Turismo 2.0 Turbo 2013 - 2019
  • 320 Gran Turismo xDrive 2.0 Turbo 2013 - 2019 Xdrive
  • 320D Gran Turismo 2.0 TD 2013 - 2019
  • 320D Gran Turismo xDrive 2.0 TD 2013 - 2019 Xdrive
  • 325D Gran Turismo 2.0 TD 2013 - 2018
  • 328 Gran Turismo 2.0 Turbo 2013 - 2019
  • 328 Gran Turismo xDrive 2.0 Turbo 2013 - 2015 Xdrive
  • 330 Gran Turismo 2.0 Tubo 2015 - 2019
4 - Series (F32) Coupe 2013 - 2021
  • 418 1.5 Turbo 2015 - 2020
  • 418D 2.0 TD 2014 - 2017
  • 420 2.0 Turbo 2013 - 2021
  • 420D 2.0 TD 2013 - 2020
  • 428 2.0 Turbo 2013 - 2016
  • 430 2.0 Turbo 2016 - 2021
4 - Series (F33) Convertible 2013 - 2021
  • 420 2.0 Turbo 2014 - 2021
  • 420D 2.0 TD 2013 - 2020
  • 425D 2.0 TD 2014 - 2017
  • 428 2.0 Turbo 2013 - 2016
4 - Series (F36) Gran Coupe 2013 - 2021
  • 418 1.5 Turbo 2015 - 2020
  • 418D 2.0 TD 2014 - 2017
  • 420 2.0 Turbo 2014 - 2021
  • 420D 2.0 TD 2014 - 2020
  • 428 2.0 Turbo 2014 - 2016
  • 430 2.0 Turbo 2016 - 2021
  • 430D 3.0 TD 2014 - 2020
Genuine parts
14-day returns
Ships to all EU Countries
Have a Question? Ask a Specialist

(+31) 85 303 7168 Start Live Chat

In stock
Have a Question? Ask a Specialist

(+31) 85 303 7168 Start Live Chat

Ships to all EU Countries
Authorised Dealer

Genuine parts. 70+ brands.

Guaranteed Fitment

Verified fitment data.

In-House Experts

Real specialist advice.

Easy Returns

14 days, no questions.

Category:
Brand:
About the brand

DBA

Disc Brakes Australia (DBA) is a leading manufacturer of high-performance brake rotors, founded in Melbourne in 1976. DBA's patented T2 and T3 slot patterns, along with their 4000 and 5000 series rotors, are trusted by motorsport competitors and performance enthusiasts globally. Every DBA rotor is manufactured and tested in Australia to rigorous quality standards.

See all DBA products →
Not sure this fits your car?

Talk to a real motorsport specialist.

EU-based, motorsport-experienced. We'll walk through your application before you buy.

WhatsApp Us Email Specialist +31 85 303 7168

Description

DBA Street Series OE brake rotors, a reliable and high-quality braking solution designed to meet Original Equipment standards. Engineered with precision, these brake rotors offer a seamless and dependable braking performance for various vehicle applications.

DBA OE brake discs are manufactured using top-tier metallurgy, employing the highest quality casting processes, and maintaining Original Equipment levels of construction. Each component undergoes rigorous testing and approval by DBA engineers, who specialize in developing braking solutions for brake system suppliers and vehicle manufacturers.

The plain rotor design ensures a smooth and consistent brake pedal feel, making them an ideal choice for drivers seeking reliable, budget friendly and straightforward braking solutions.

Additional information

Weight6.3 kg
Manufacturer

DBA

Bolt Circle Diameter mm

120

Bolt Hole Quantity

5,00

Disc Diameter (mm)

300

Disc Finish

Plain (Blank)

Disc Height (mm)

66

Hub Hole Diameter (mm)

75

Disc Construction

1-Piece

Disc Side

Left/Right

Max Thickness

20

Min Thickness

18,40

Disc Vane Style

OE Style

Disc Type

Vented

Disc Quality

Standard

Material

Cast Iron

Package Contents

1x Brake Disc

Approvals

ECE R90 Approved

Approval Number

E11*90R02/06*59751*00
