Description

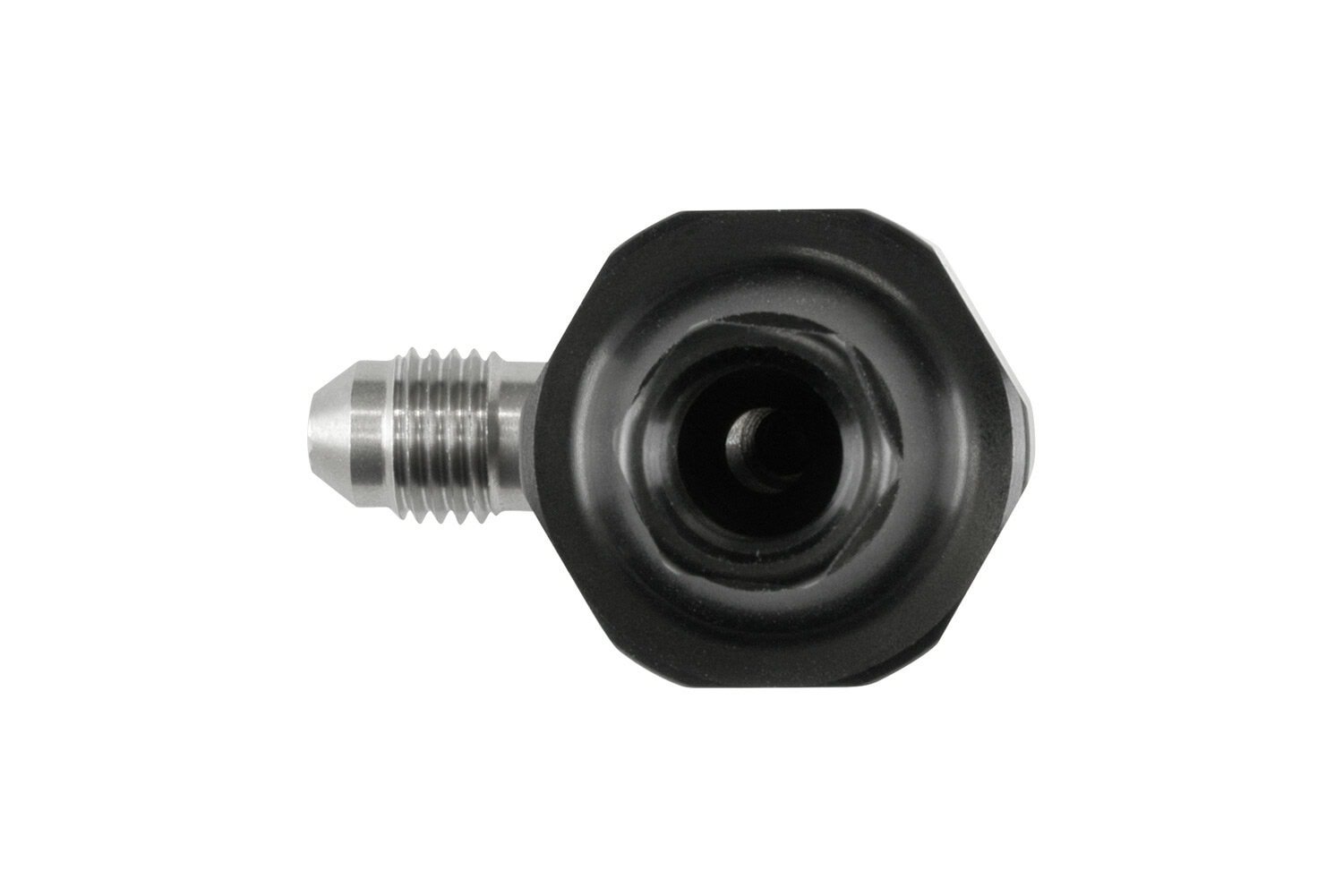

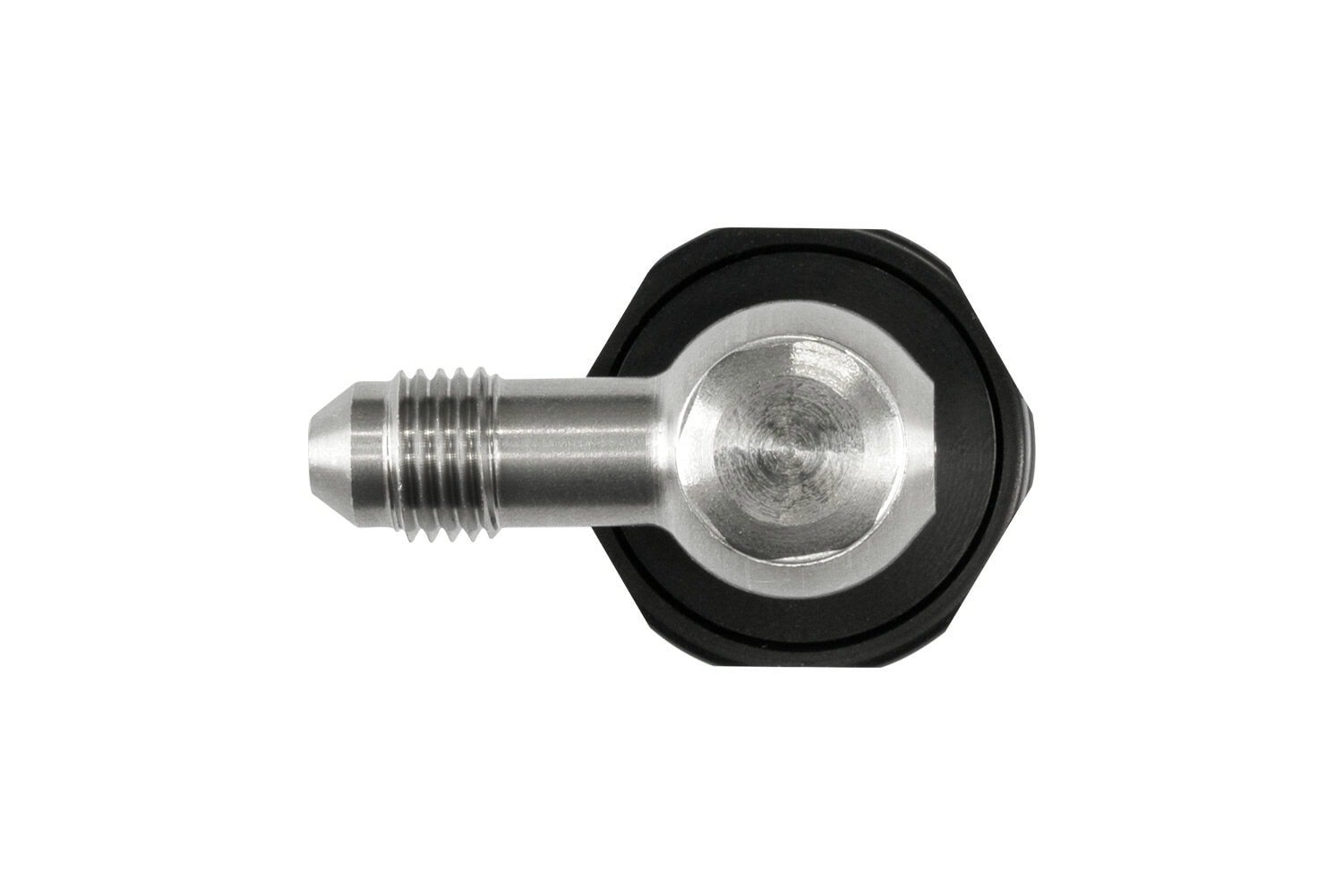

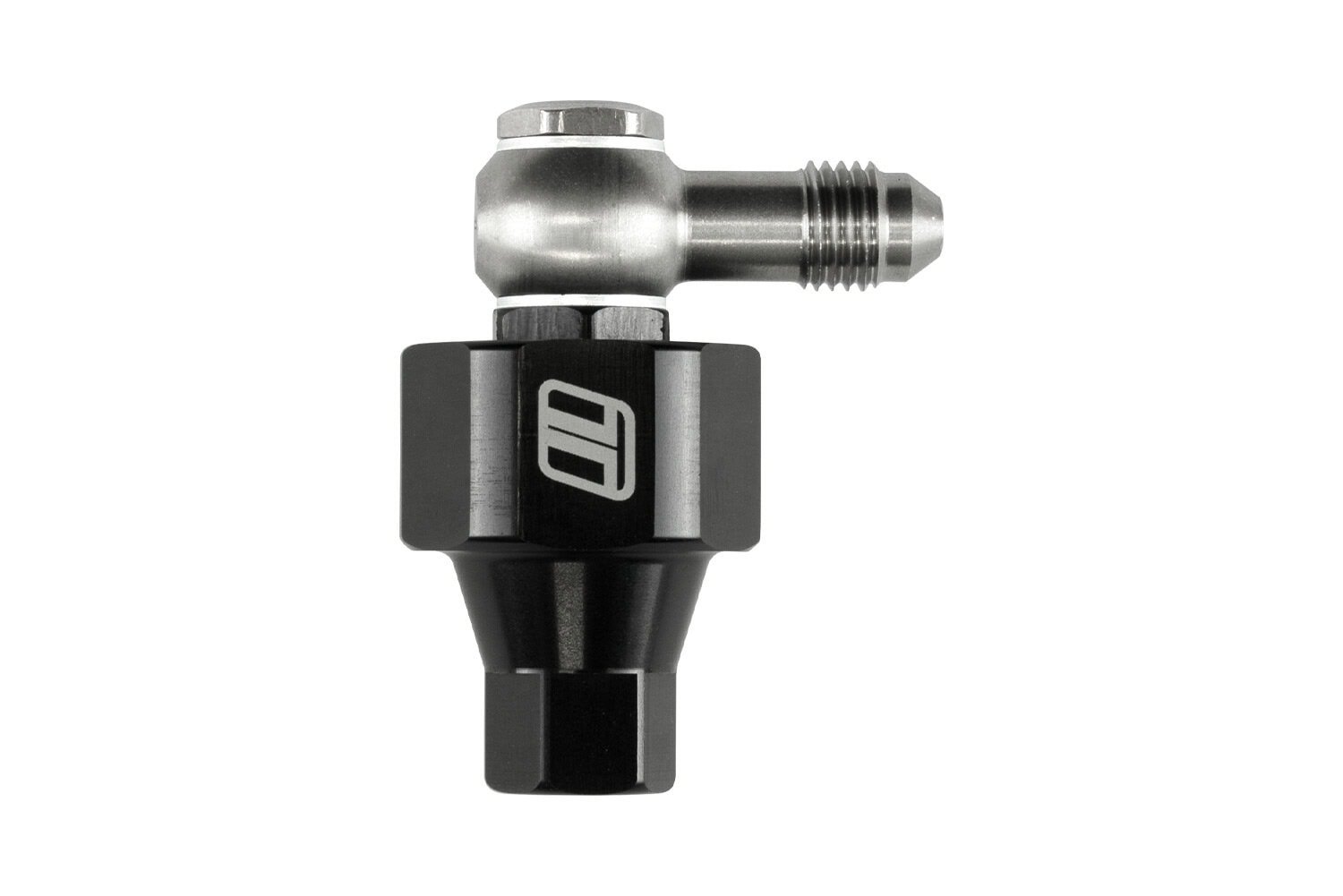

Turbosmart has taken their award winning Billet Turbo Oil Feed Filter and shrunk the body down to a size so compact it can mount directly onto the turbo oil inlet feed fitting. Complete with a 44-micron pleated disk stainless steel washable screen filter, there is no reason to run any turbo unprotected again.
Factory fitted with a -4AN male banjo fitting inlet and -4AN female outlet, this fitting screws right into the oil feed line of your Turbosmart Turbocharger (any many other brands as well). The Turbosmart Turbo Oil Feed Filter provides maximum filtration with minimal restriction, meaning cost-effective insurance for your hi-performance and motorsport turbocharger system.
Features
Australian Made, Motorsport Quality
Billet 6061-T6 Aluminium Hard Anodized
High-Flow 44-micron Stainless Element
Male -4AN Banjo Inlet
Female -4AN Outlet
Specifications
| Part number | TS-0804-1004 |
|---|---|
| EAN | 9329677032116 |
| Manufacturer | Turbosmart |
| Weight | 0.07 kg |
