T1R3-T01 – Triple Disc HD/SI Race Kit
€3,404.86 Incl. VAT
- ACT Clutch Kits
Does this part fit your car?
Check your car
Ways to pay
Also Bancontact (BE), Przelewy24 (PL), EPS (AT) and Multibanco (PT)
Toyota
Supra (A80) Coupe 1993–2001
ACT
ACT, short for Advanced Clutch Technology, is an American clutch maker. Its range here covers the whole clutch assembly: complete kits, clutch discs, pressure plates, flywheels, release bearings and the small parts in between.
The discs show how the range is organised. Street discs come sprung or rigid, and race discs use four-pad or six-pad designs, again sprung or rigid. Pressure plates are listed as Heavy Duty or Xtreme and the XACT flywheels as Streetlite or Prolite, and twin-disc and Mod-Twin kits are listed as well.
The listings favour Japanese cars. Honda leads, followed by Mazda, Ford, Toyota, Nissan, Mitsubishi and Subaru. The Honda Civic and CRX, Mazda RX-7 and Toyota Supra (A80) have especially wide coverage.
Elsewhere in the Transmission & Clutch section, other brands supply shifters and linkages. ACT is the brand for the clutch itself. Discs, pressure plates and flywheels are also sold on their own, so you can replace a single worn part without buying a full kit.
Talk to a real motorsport specialist.
EU-based, motorsport-experienced. We'll walk through your application before you buy.
Description

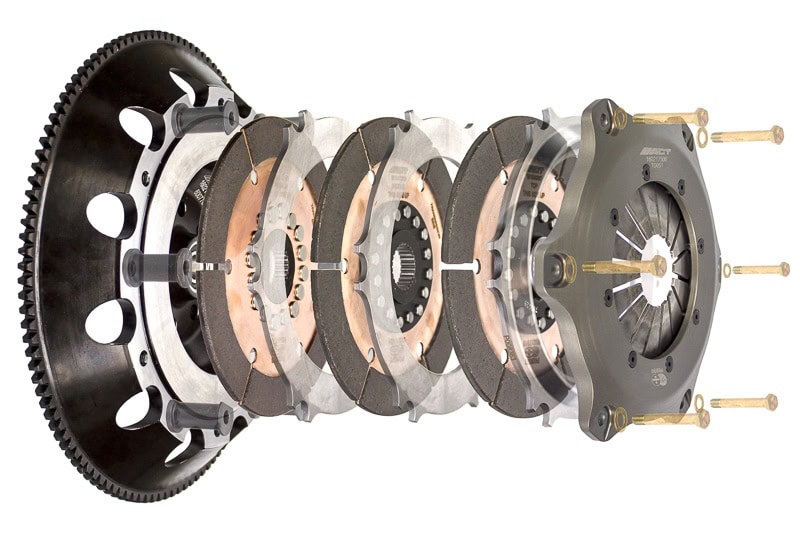

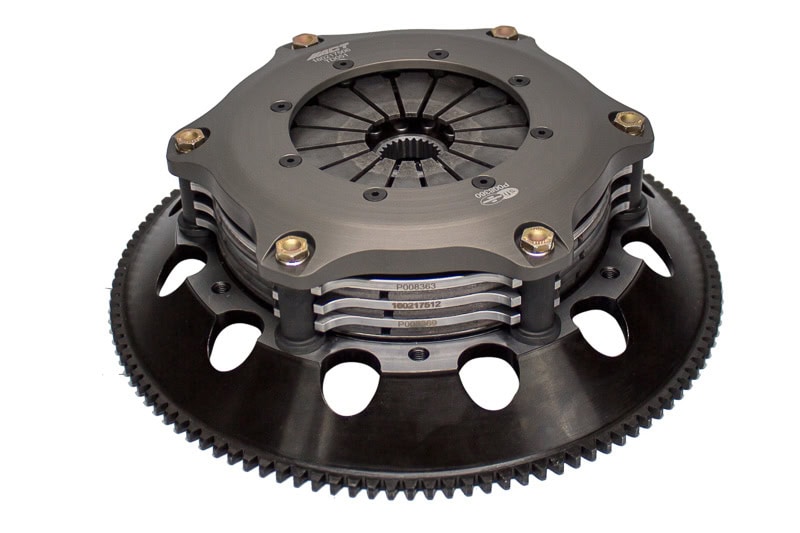

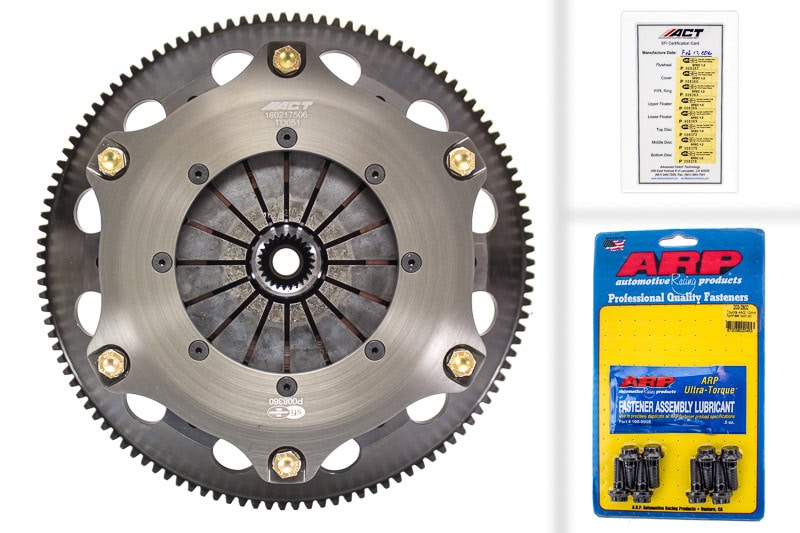

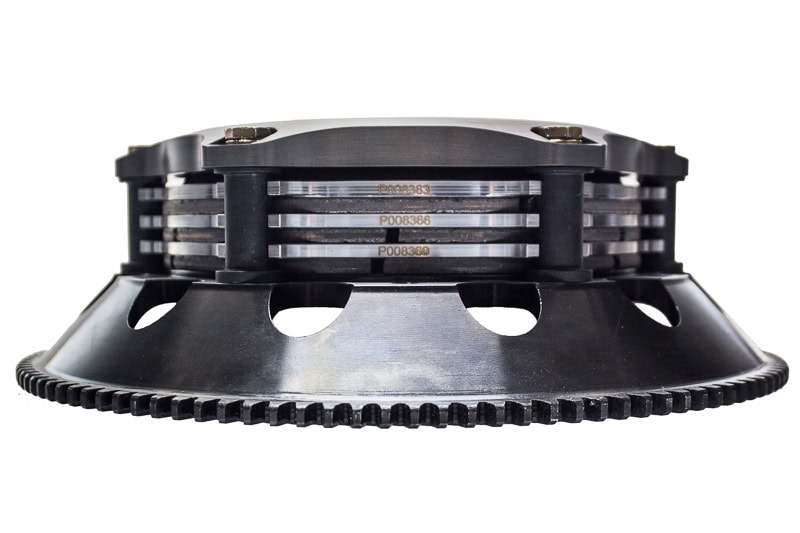

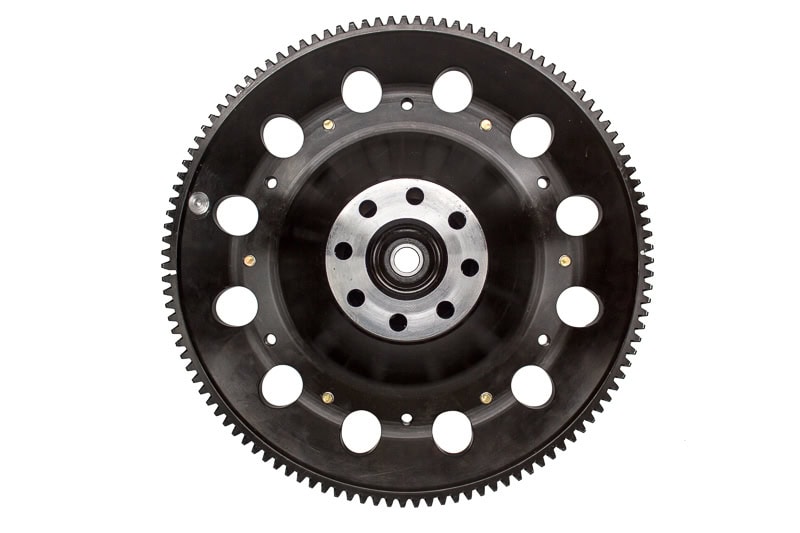

T1R3-T01 race, triple disc kits are race-ready for the serious enthusiast who needs a direct bolt-in kit, requiring no additional modifications. ACT’s sintered iron race discs offer the highest torque capacity of all ACT race discs and have ultra-high heat capacity. All ACT triple disc kits include a CNC-machined and dynamically balanced flywheel for trouble free use. All kits undergo an exclusive four-stage, heat-treating process on all diaphragms. ACT triple disc kits include a pressure plate, three discs, two floaters, and flywheel. Some kits may include a pilot bearing and release bearing. ACT Triple disc kits meet SFI Specification 1.2.
Feel:
Light to moderate pedal effort, predictable, quick engagement, quick throttle response, increased gear rattle
Life:
ACT’s exclusive diaphragm, hardened posts and high heat capacity for long life under severe abuse, rigid design may increase spline wear
Quality:
Carefully engineered, precisely assembled, accurately balanced, chromoly hub is heat-treated for strength and durability
Recommendation:
Recommended for high horsepower race use only, not intended for street
Difference:
100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
Specifications
| Part number | T1R3-T01 |
|---|---|
| Manufacturer | ACT |
| Weight | 11.79 kg |
