SB019X – P/PL-M Xtreme

Description

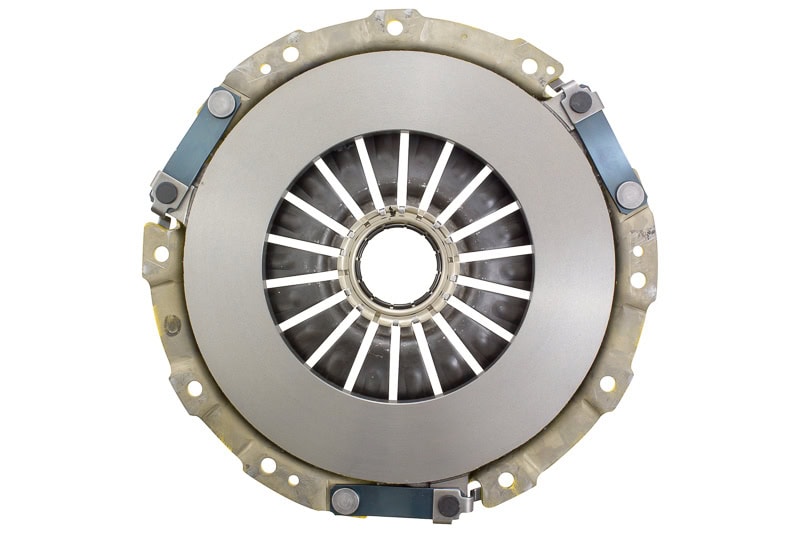

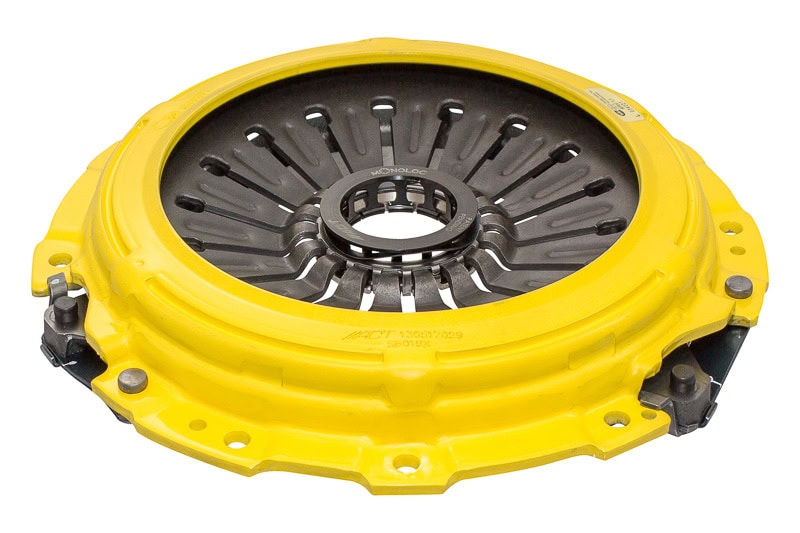

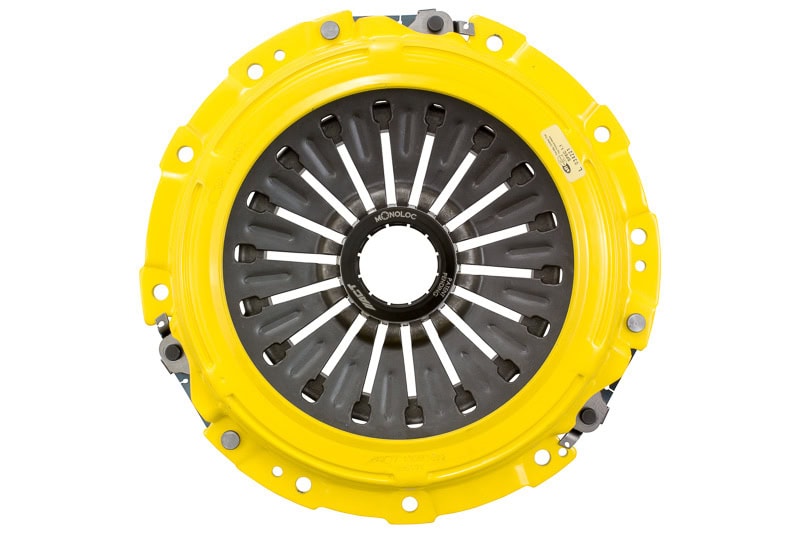

SB019X is an ACT pressure plate that uses exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s Xtreme pressure plates increase clamp load by 50 to 120 percent. Xtreme pressure plates are recommended for use with a street or race disc. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc’s hardened chrome-moly steel construction will provide years of service.

Feel:

Moderate to heavy pedal effort, confidence during hard shifts, positive engagement

Life:

Available life extended by ACT’s exclusive diaphragm design, dramatic improvement in release mechanism life

Quality:

Carefully engineered for improved durability, precisely assembled, accurately balanced, major improvement in release mechanism

Recommendation:

Recommended for street and race use

Difference:

100% clamp load tested and dynamically computer balanced for smooth high RPM reliability, includes ACT’s patented Monoloc
