PSR NEW GENERATION WASTEGATE 38mm Dual Vband External Wastegate – Black
€296.89 Incl. VAT
- Pulsar Turbo Wastegates
- Performance forced-induction hardware for reliable power gains.
Ways to pay
Also Bancontact (BE), Przelewy24 (PL), EPS (AT) and Multibanco (PT)
Pulsar Turbo
Pulsar Turbo Systems is based in California, and its range here is turbochargers and the parts to build, rebuild or re-specify them. Most of the turbos use dual ball bearings, with journal-bearing and ceramic ball-bearing versions also listed. Models follow the PSR numbering (PSR2860, PSR3071, PSR3584 and so on). Many are offered with a choice of turbine housing, flange and A/R, in forward or reverse rotation, or without a turbine housing at all.
Beyond complete turbos there are separate turbine and compressor housings, billet and cast compressor wheels, and CHRA and bearing kits. There are also external wastegates and wastegate heat blankets, oil feed and drain parts, gaskets and V-band clamps.
The range is not listed by car. Choose by frame size, bearing type, housing flange (T3, T4, T6 or V-band) and A/R, and use the flange details in each title to match your manifold and downpipe.
Most of the rest of the Turbo section is boost control hardware; Pulsar supplies the turbocharger itself and the parts that make it up.
Talk to a real motorsport specialist.
EU-based, motorsport-experienced. We'll walk through your application before you buy.
Description

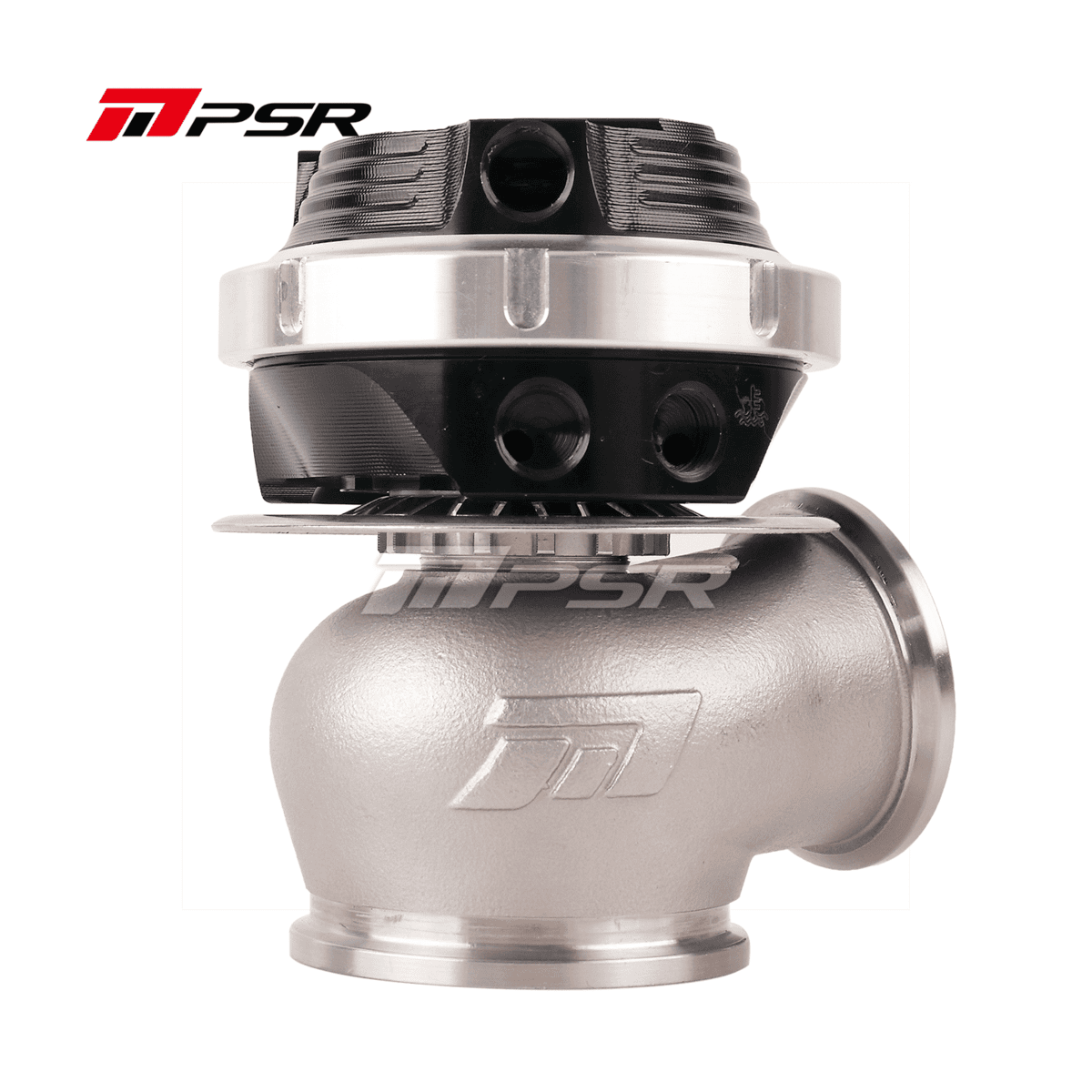

The PSR New Generation 38 mm external wastegate from Pulsar Turbo Systems, in the dual V-band version and finished in black. It is an external wastegate for turbocharged engines, with V-band connections on both the inlet and the outlet.
- Size: 38 mm
- Connections: V-band inlet and outlet
- Actuator: user-adjustable position; high-temperature silicone diaphragm, Nomex reinforced
- Materials: stainless steel seat, valve bushing, housing and flanges
- Actuator ports: 1/8-27 NPT, for air nozzle or plug
- Dimensions (Pulsar drawing): height 96.54 mm; lower flange Ø 55 mm; side flange Ø 49 mm; actuator housing Ø 74 mm
- Colour: black
What’s in the box: wastegate with V-band inlet and outlet flange and clamp kits.
Specifications
| Part number | PSR-744323801 |
|---|---|
| Manufacturer | Pulsar Turbo Systems |
| Weight | 2 kg |
Pulsar Turbo
Pulsar Turbo Systems is based in California, and its range here is turbochargers and the parts to build, rebuild or re-specify them. Most of the turbos use dual ball bearings, with journal-bearing and ceramic ball-bearing versions also listed. Models follow the PSR numbering (PSR2860, PSR3071, PSR3584 and so on). Many are offered with a choice of turbine housing, flange and A/R, in forward or reverse rotation, or without a turbine housing at all.
Beyond complete turbos there are separate turbine and compressor housings, billet and cast compressor wheels, and CHRA and bearing kits. There are also external wastegates and wastegate heat blankets, oil feed and drain parts, gaskets and V-band clamps.
The range is not listed by car. Choose by frame size, bearing type, housing flange (T3, T4, T6 or V-band) and A/R, and use the flange details in each title to match your manifold and downpipe.
Most of the rest of the Turbo section is boost control hardware; Pulsar supplies the turbocharger itself and the parts that make it up.
Talk to a real motorsport specialist.
EU-based, motorsport-experienced. We'll walk through your application before you buy.
