BlackBox Electronic Wastegate Controller
€762.44 Incl. VAT
- Turbosmart Wastegates
- Performance forced-induction hardware for reliable power gains.
Ways to pay
Also Bancontact (BE), Przelewy24 (PL), EPS (AT) and Multibanco (PT)
Turbosmart
Turbosmart has been making turbo management products in Sydney, Australia, since 1997, and its range here is about controlling boost and fuel pressure. It covers blow-off valves (Kompact, Kompact EM, Dual Port, Plumb Back and RacePort among them), internal wastegate actuators (IWG) and external wastegates in several sizes. It also has electronic BoostGate units, manual and electronic boost controllers, and fuel pressure regulators. TS-1 turbochargers, V-band flanges, oil lines, fittings and gaskets complete the list.
A good share of the range is service parts: replacement diaphragms, springs in different pressure ratings, O-ring kits, solenoids and weld flanges. These let you rebuild or re-spring a valve rather than replace it.
Turbosmart parts are sorted by model and specification, not by car. For valves made for a particular car, the title gives the application; otherwise choose by flange size, spring pressure and fitting.
The other large range in the Turbo section is turbochargers and housings. Turbosmart is where to look for the valves, actuators and controllers that manage the boost those turbos make.
Talk to a real motorsport specialist.
EU-based, motorsport-experienced. We'll walk through your application before you buy.
Description

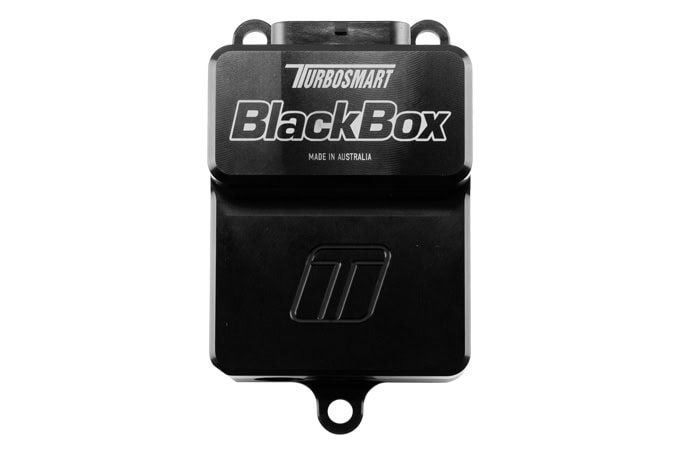

BlackBox by Turbosmart is a dedicated electronic wastegate controller with various factory, aftermarket, and Motorsport ECUs. The BlackBox protects from the current demands and translation of basic and more advanced boost control strategies into a gate position and can be used on single or twin electronic wastegate systems for the ultimate boost control.
The BlackBox is a Dual Channel, current Capable H-Bridge Driver for use with the Turbosmart range of Electronic External Wastegates, including the StraightGate50, as well as our Electronic poppet style gates, including CompGate40, HyperGate45, ProGate50 and PowerGate60 electronic Wastegates. The BlackBox is capable of multiple strategies and will accept PWM (Pulse Width Modulation) inputs as used for traditional boost control solenoids, 0-5v position target, CAN position target and CAN bus override for more advanced ECUs where control strategy can be developed natively.
The Blackbox provides for auto-calibration of Electronic External Wastegates via a full sweep and includes over-temperature safety features using the temperature sensor inputs. The BlackBox is pre-configured with the flow vs. lifts calibration data of all Electronic Actuatuated Wastegates from Turbosmart for simple setup and accurate boost control. Settings can be adjusted via a simple USB connection and PC-based application, and unlimited control strategies can be implemented with the CAN-based override system, where your strategy is limited only by your ECU’s capability.
Features
Dual Channel High Current H-Bridge Outputs
2 x Wastegate Valve Position Inputs (0-5v)
2 x Wastegate Temperature Inputs (0-5v)
2 x Frequency Inputs (Advanced Wastegate Position Encoder)
PWM Target Position Input
Analog 0-5v Position Target
CAN Bus Position Demand Target
CAN Bus Valve Area Target
CAN Bus Programmable PID Mode Option
Factory Loaded PID Calibration for all Turbosmart eGates
Internal Over-Current Protection
Internal Over-Temp Protection
Auto Position Calibration
Anodized Aluminium Housing
34 Pin Superseal Connector
Specifications
| Part number | TS-0305-1001 |
|---|---|
| EAN | 9329677024692 |
| Manufacturer | Turbosmart |
| Weight | 0.3 kg |
