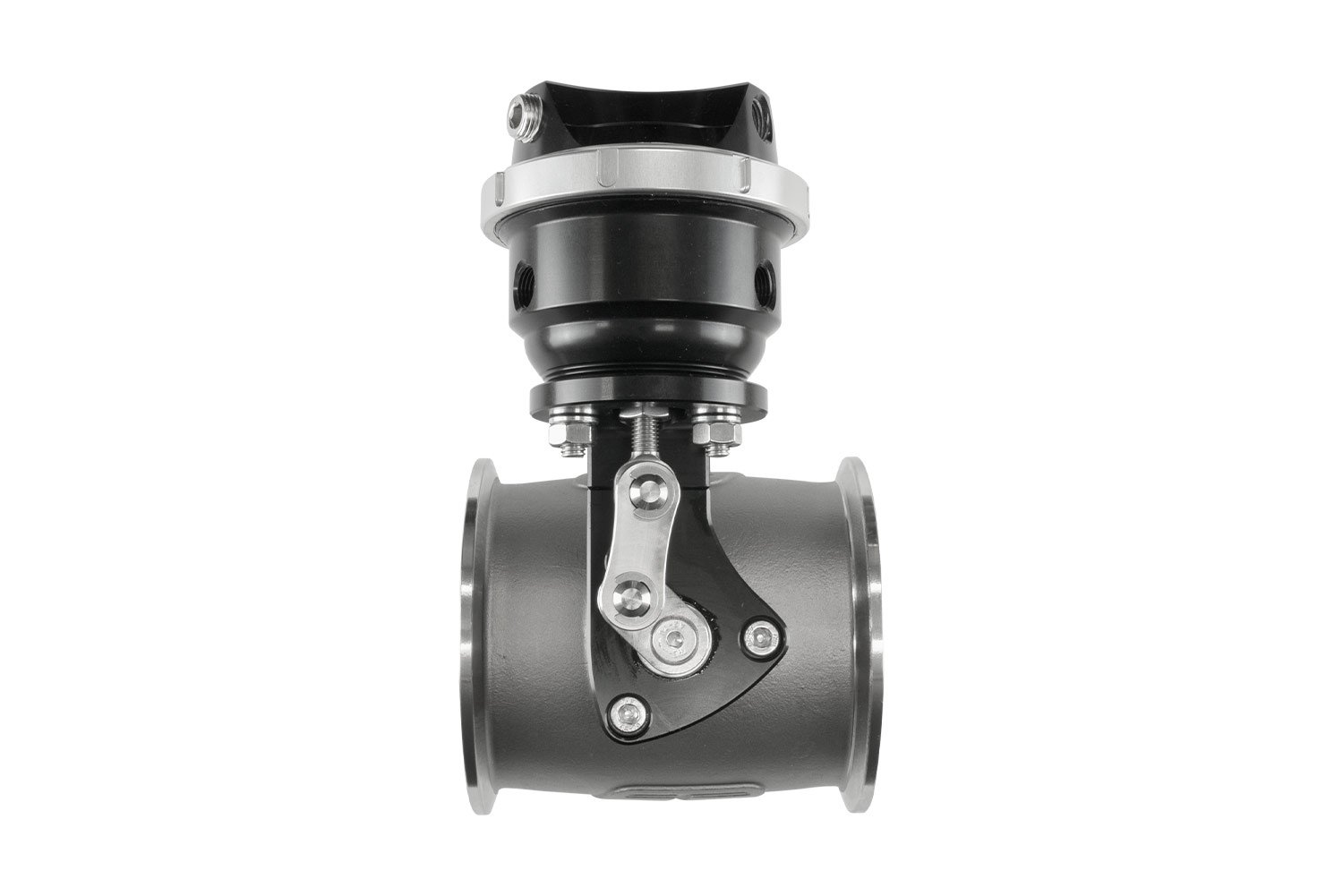

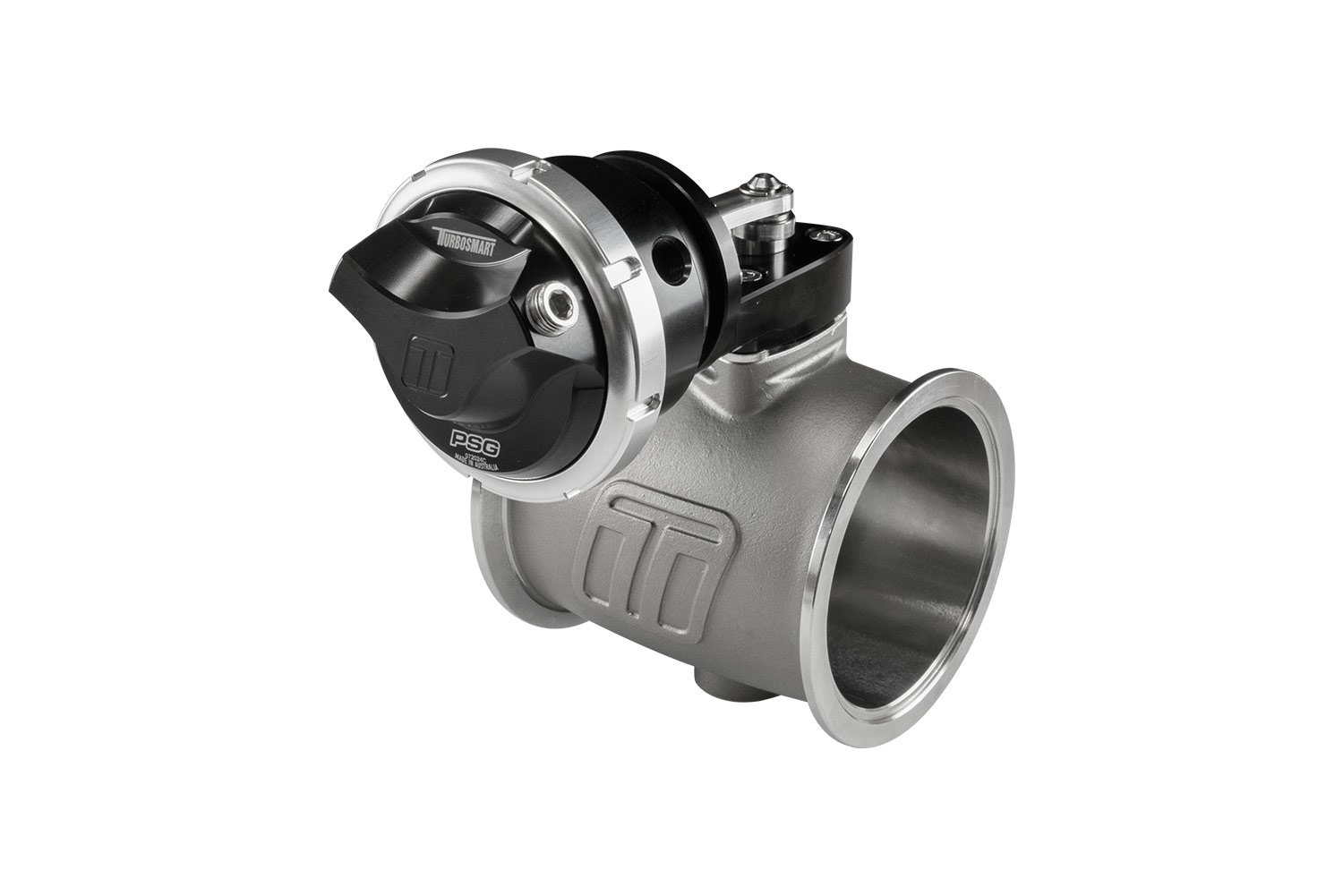

PSG76 Pneumatic Straight Gate 6psi Black
€957.64 Incl. VAT
- Turbosmart Wastegates
- Performance forced-induction hardware for reliable power gains.
Ways to pay
Also Bancontact (BE), Przelewy24 (PL), EPS (AT) and Multibanco (PT)
Turbosmart
Turbosmart has been making turbo management products in Sydney, Australia, since 1997, and its range here is about controlling boost and fuel pressure. It covers blow-off valves (Kompact, Kompact EM, Dual Port, Plumb Back and RacePort among them), internal wastegate actuators (IWG) and external wastegates in several sizes. It also has electronic BoostGate units, manual and electronic boost controllers, and fuel pressure regulators. TS-1 turbochargers, V-band flanges, oil lines, fittings and gaskets complete the list.
A good share of the range is service parts: replacement diaphragms, springs in different pressure ratings, O-ring kits, solenoids and weld flanges. These let you rebuild or re-spring a valve rather than replace it.
Turbosmart parts are sorted by model and specification, not by car. For valves made for a particular car, the title gives the application; otherwise choose by flange size, spring pressure and fitting.
The other large range in the Turbo section is turbochargers and housings. Turbosmart is where to look for the valves, actuators and controllers that manage the boost those turbos make.
Talk to a real motorsport specialist.
EU-based, motorsport-experienced. We'll walk through your application before you buy.
Description
The Straight Gate76 from Turbosmart is the world’s highest flowing external wastegate! Lets not sugar coat things, this wastegate is one bad bitch. The Straight Gate76 is a zero-offset butterfly style wastegate which allows enormous flow and almost linear control with unparalleled boost control throughout the entire operating range.

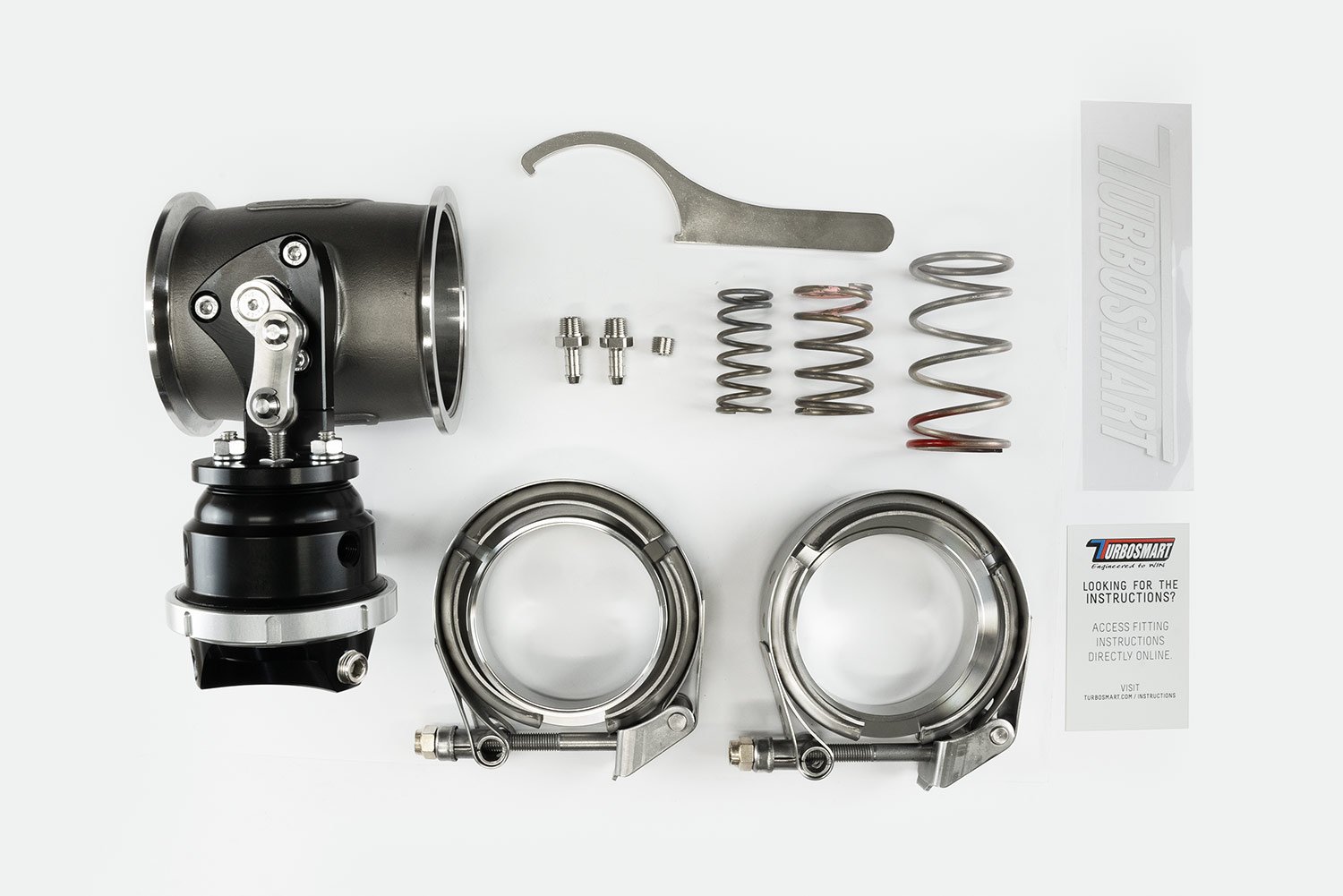

The Boost-Based Pneumatic Straight Gate76 takes the Multiple Award Winning eSG50, simplifies control via a traditional boost-based actuator and more that doubles the flow through a 76mm valve body. The Self-Balancing nature of the Straight Gate76 means a huge tuning window of over 5 times base spring pressure can be obtained! Pre-fitted with 6 psi springs to the GenV actuator featuring both single and twin port control, the Straight Gate76 is simple to use, and packed with performance, flow and features!

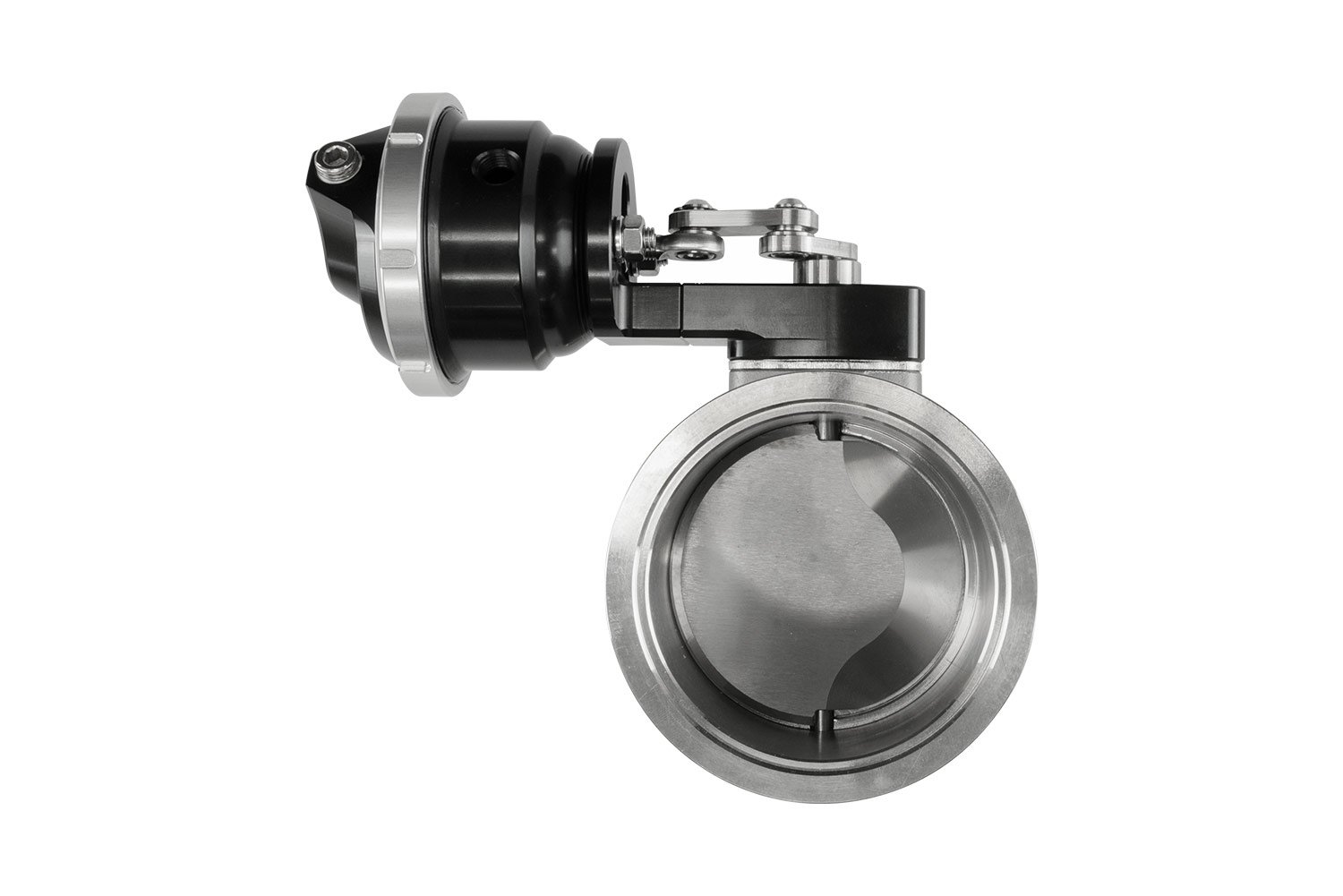

The Turbosmart Straight Gate76 has been designed from the ground up and validated in-house to create a new level of control and flow, never seen in any wastegate before it. The zero-offset butterfly valve is subjected to exhaust drive pressure equally on both halves of the valve which pivots centrally, resulting in a valve that is self-balanced against any drive pressure. This self-balancing means less work is required to actuate against even the highest of drive pressures and a wider tuning window is possible, no matter how the valve is actuated. The increased flow is achieved through the efficiency of a straight through valve versus a traditional poppet style valve where the exhaust gas must be turned 90 degrees by the valve.
Available in
Electronic Straight Gate76
Pneumatic (Boost-Based) pSG76 Straight Gate50
Features
76mm (2.99in) Butterfly Style Zero-Offset Valve
723.7 CFM / 20.49m3 per minute flow
Stainless Steel (630) Butterfly and shaft
Stainless Steel (347) Main Body
Stainless Steel (Heat Treated 431) V-Band Clamps
360 Degree Mounting options on V-Band
Aluminium (6262 T6 Anodised) Bracket and Actuator
Turbosmart unique Locking Collar Ring
Base Spring Options from 6psi to 42psi
Suitable for Single or Twin Port Boost-Based Control
Stainless Steel (N60) Linkages and Control Arm
Specifications
| Part number | TS-0567-1762 |
|---|---|
| EAN | 9329677030839 |
| Manufacturer | Turbosmart |
| Weight | 3.02 kg |
