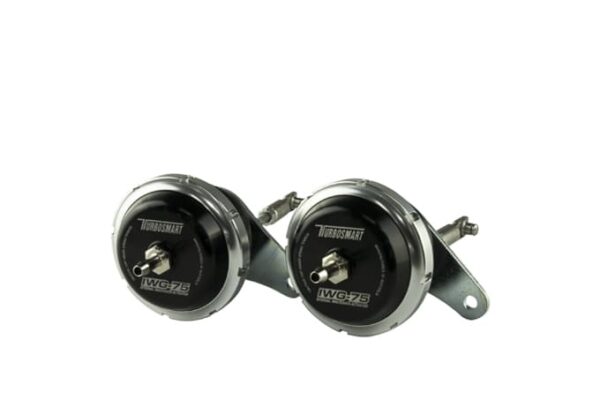

IWG75 Nissan R35 Twin Port 7psi
€691.68 Incl. VAT
- Turbosmart Wastegates
- Performance forced-induction hardware for reliable power gains.
Ways to pay
Also Bancontact (BE), Przelewy24 (PL), EPS (AT) and Multibanco (PT)
Turbosmart
Turbosmart has been making turbo management products in Sydney, Australia, since 1997, and its range here is about controlling boost and fuel pressure. It covers blow-off valves (Kompact, Kompact EM, Dual Port, Plumb Back and RacePort among them), internal wastegate actuators (IWG) and external wastegates in several sizes. It also has electronic BoostGate units, manual and electronic boost controllers, and fuel pressure regulators. TS-1 turbochargers, V-band flanges, oil lines, fittings and gaskets complete the list.
A good share of the range is service parts: replacement diaphragms, springs in different pressure ratings, O-ring kits, solenoids and weld flanges. These let you rebuild or re-spring a valve rather than replace it.
Turbosmart parts are sorted by model and specification, not by car. For valves made for a particular car, the title gives the application; otherwise choose by flange size, spring pressure and fitting.
The other large range in the Turbo section is turbochargers and housings. Turbosmart is where to look for the valves, actuators and controllers that manage the boost those turbos make.
Talk to a real motorsport specialist.
EU-based, motorsport-experienced. We'll walk through your application before you buy.
Description

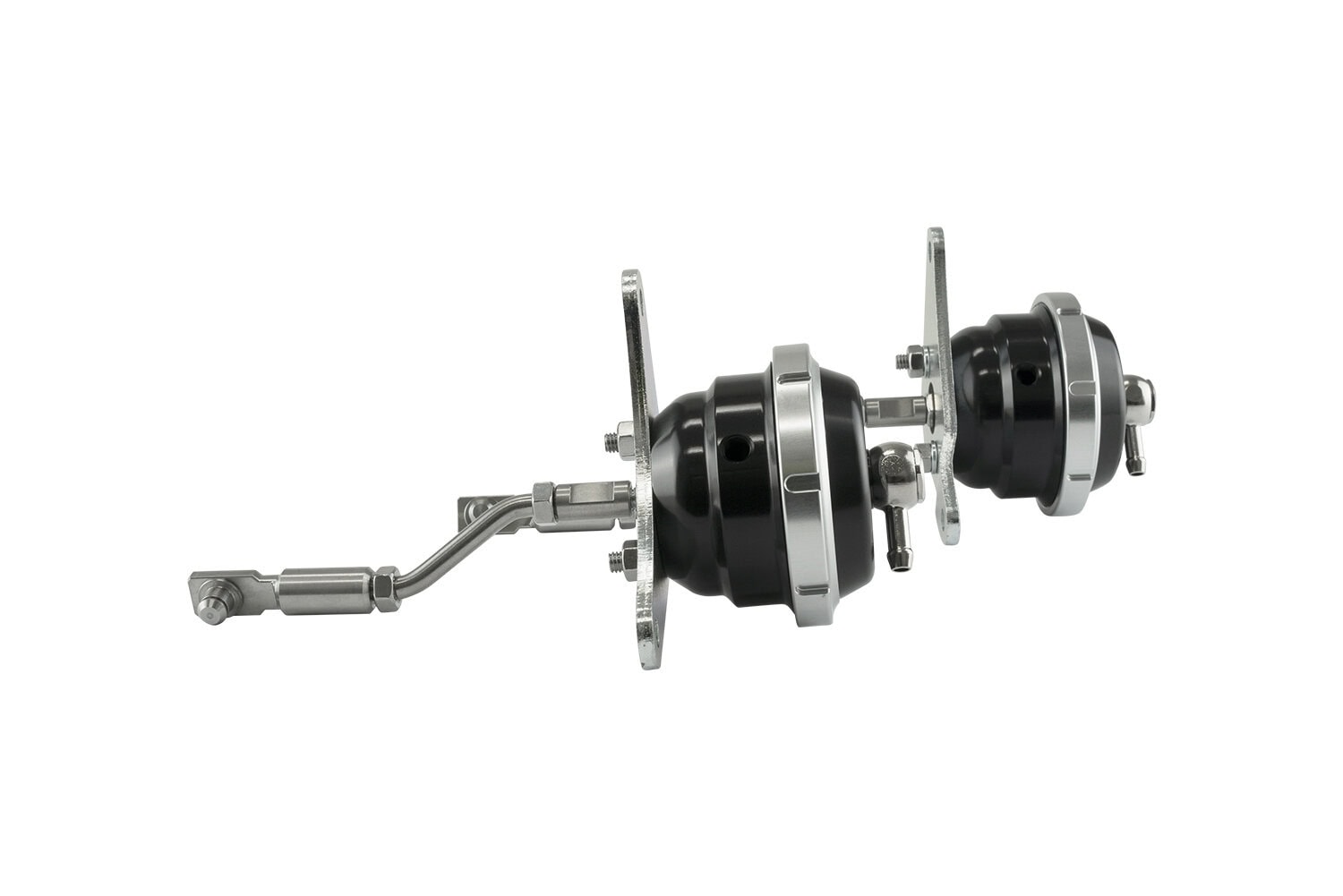

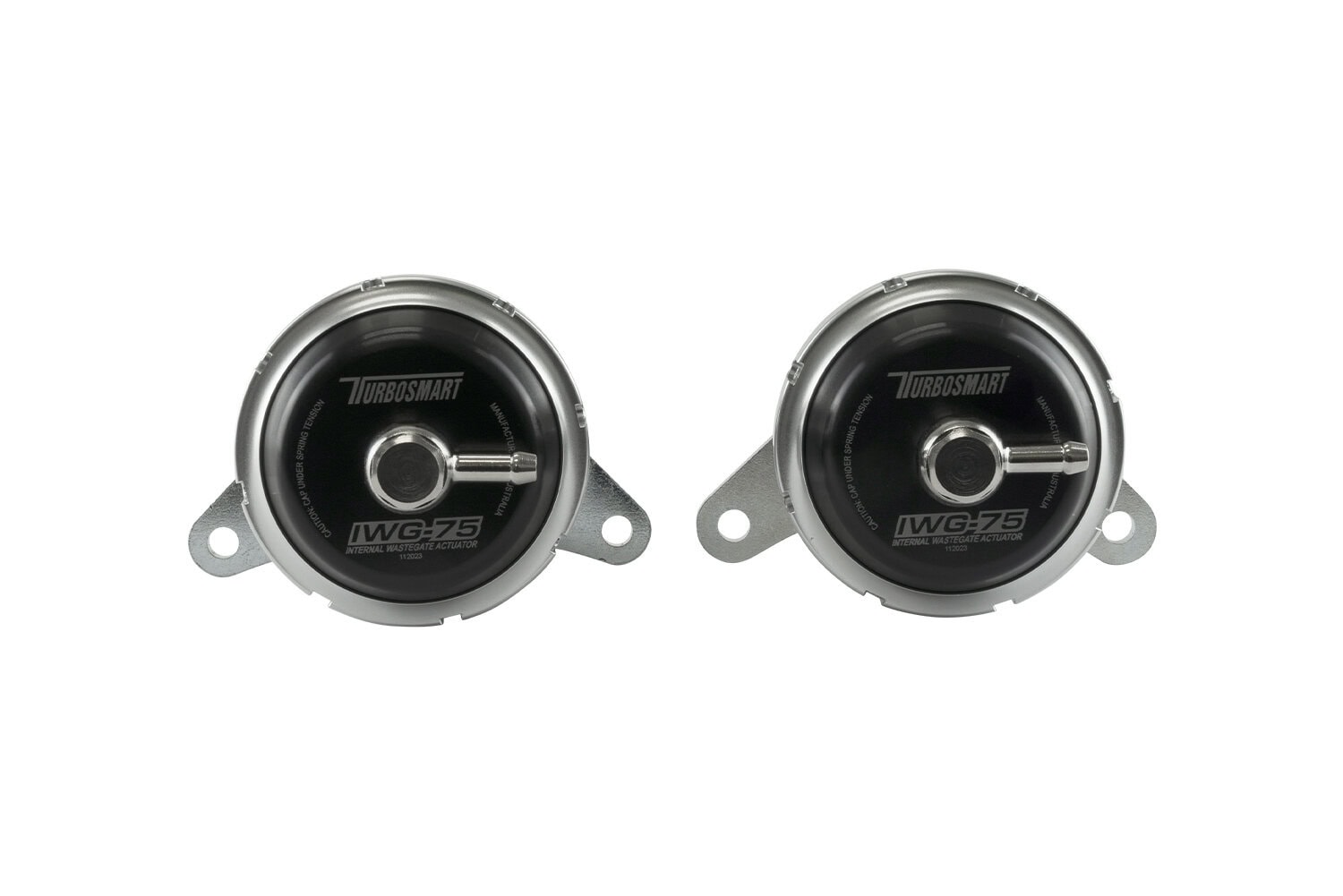

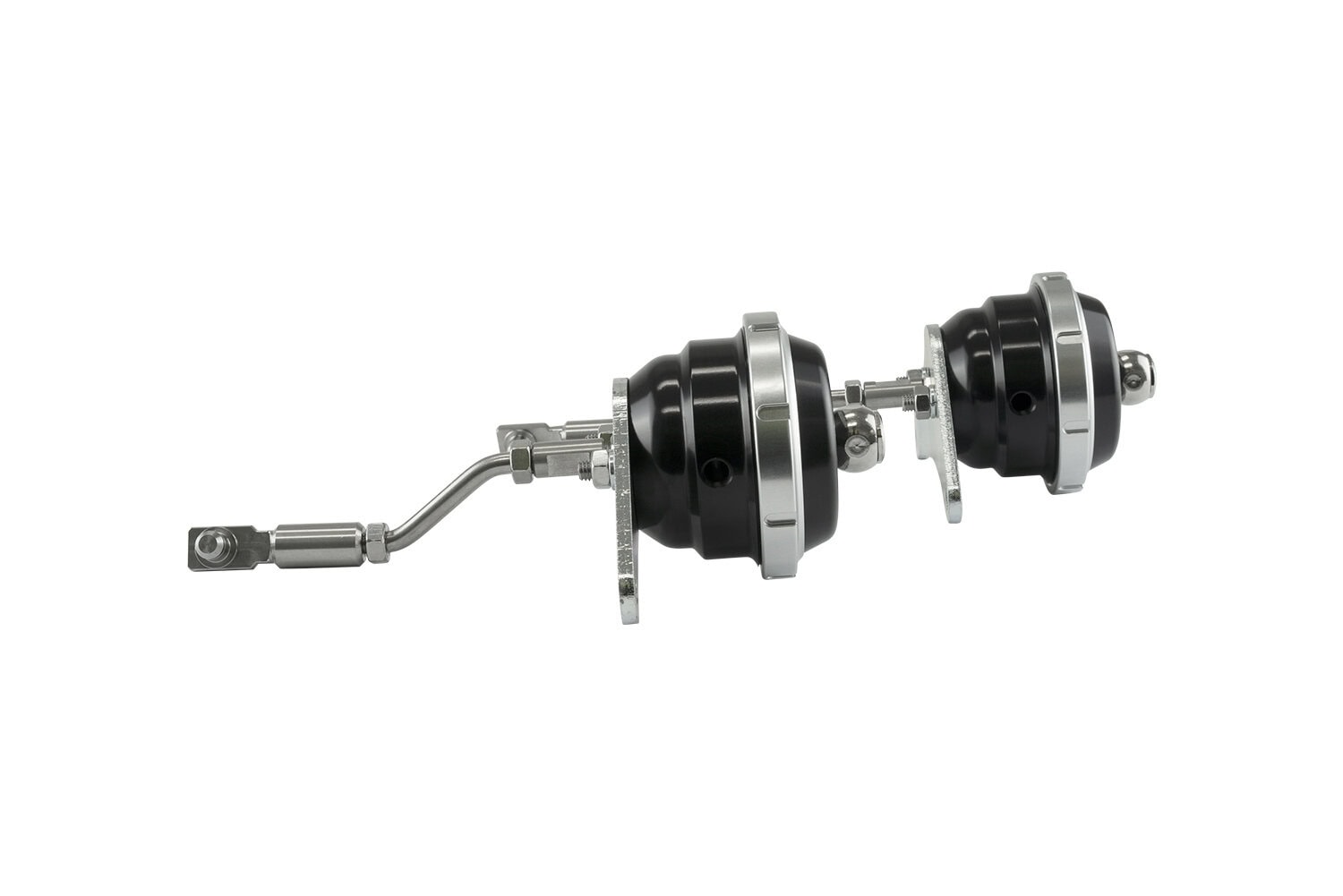

Turbosmart’s new Twin Port Internal Wastegate Actuators bring a new dimension of control to the R35’s twin-turbo setup. Whereas traditional internal wastegate actuators utilise a single pressure port to operate the actuator, Turbosmart’s Twin Port actuators feature a second pressure port to a separate chamber.
The pressure differential between the two sealed champers creates a dynamic force that overcomes the spring force inside the actuator. The result is a new level of boost control that can rival an external wastegate, with a smoother and more responsive boost curve under all operating conditions and a greater range between maximum and minimum boost than a conventional single port actuator.
The Twin Port for the R35 GTR is a direct fit replacement for the standard wastegate actuators.

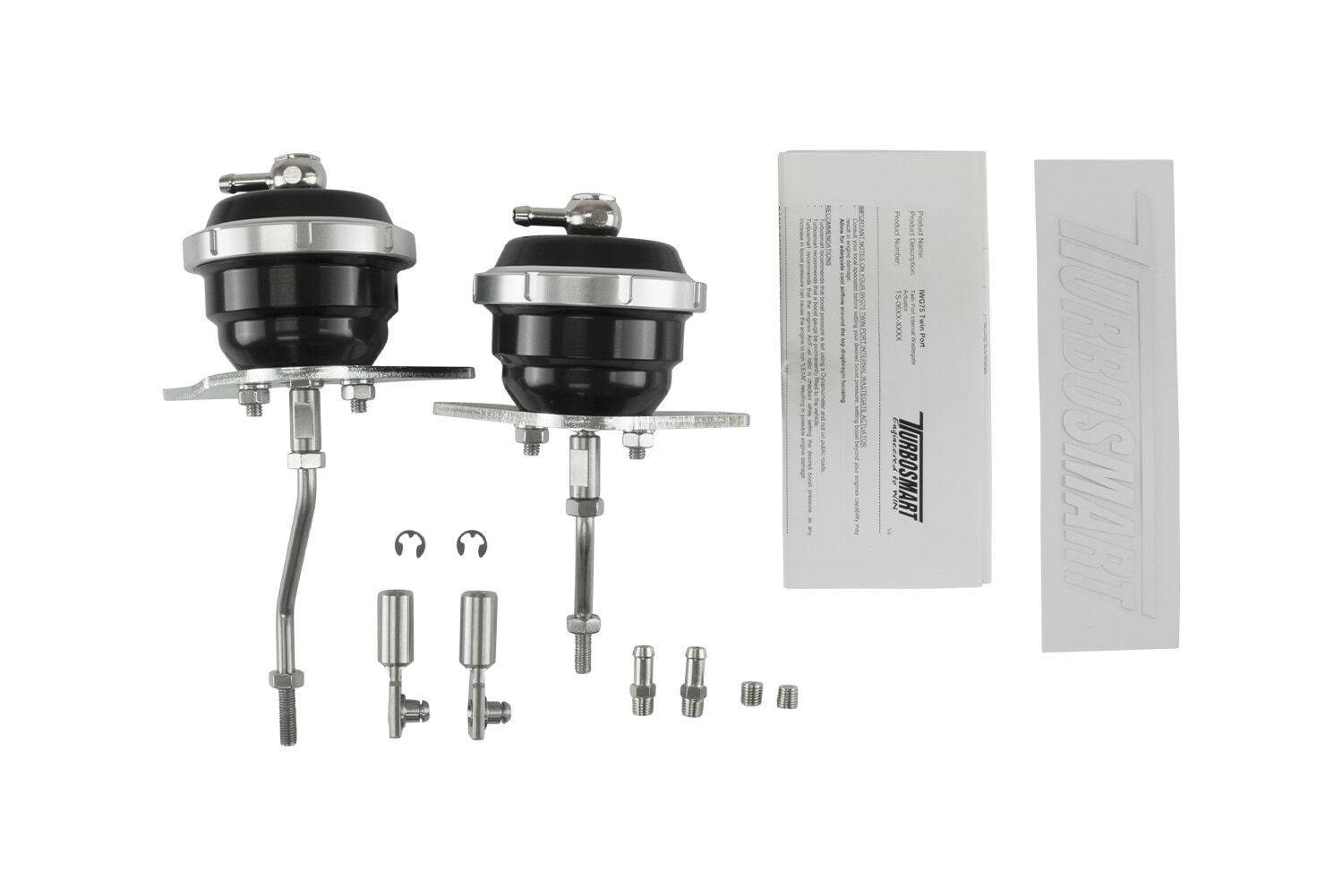

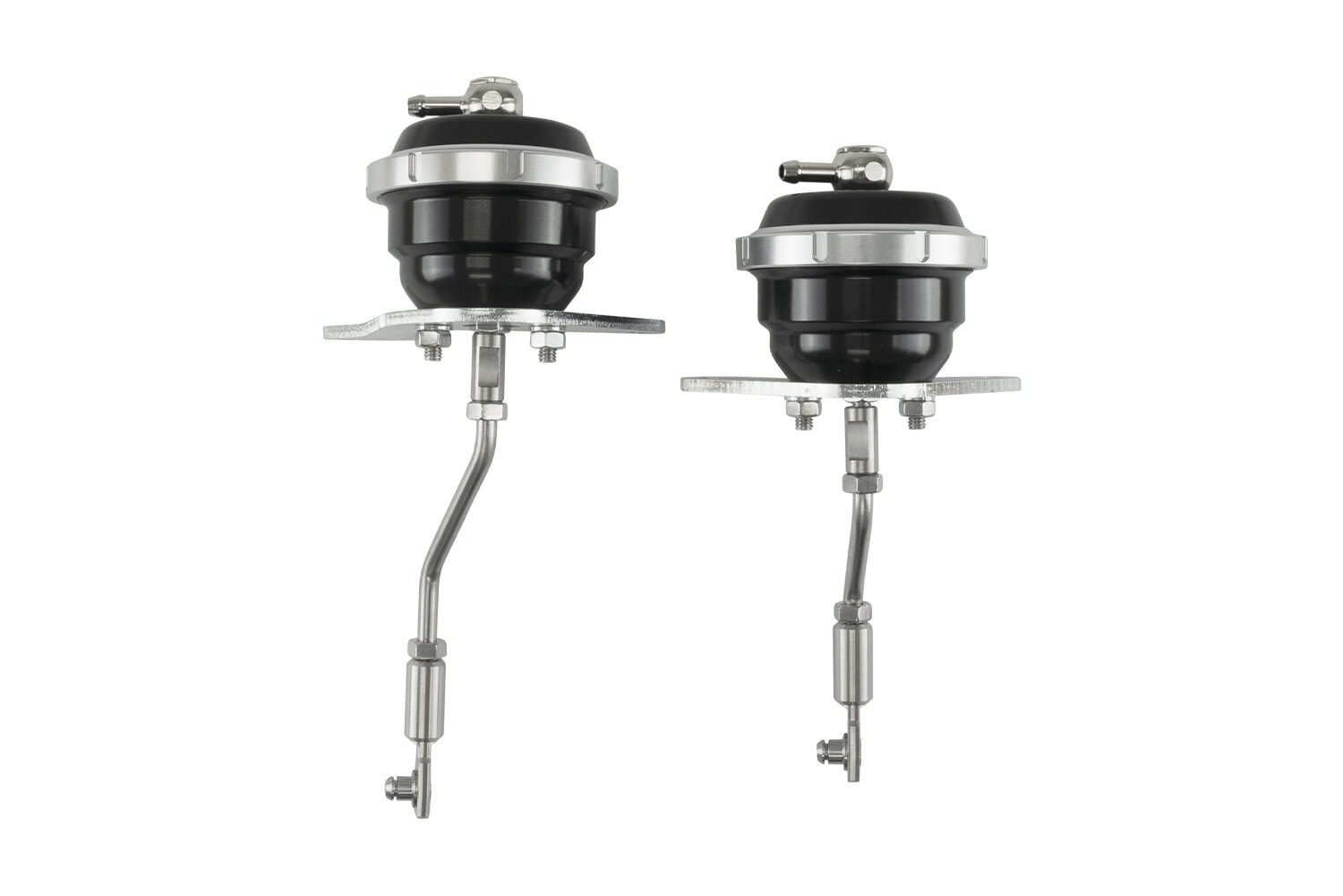

The kit includes two Twin Port IWGs for the R35’s two turbos and a custom-designed bracket and rod, meaning all the benefits of superior boost control are available without any custom fabrication or special tools.
Specifications
| Part number | TS-0615-2073 |
|---|---|
| EAN | 9329677015270 |
| Manufacturer | Turbosmart |
| Weight | 1 kg |
