Description

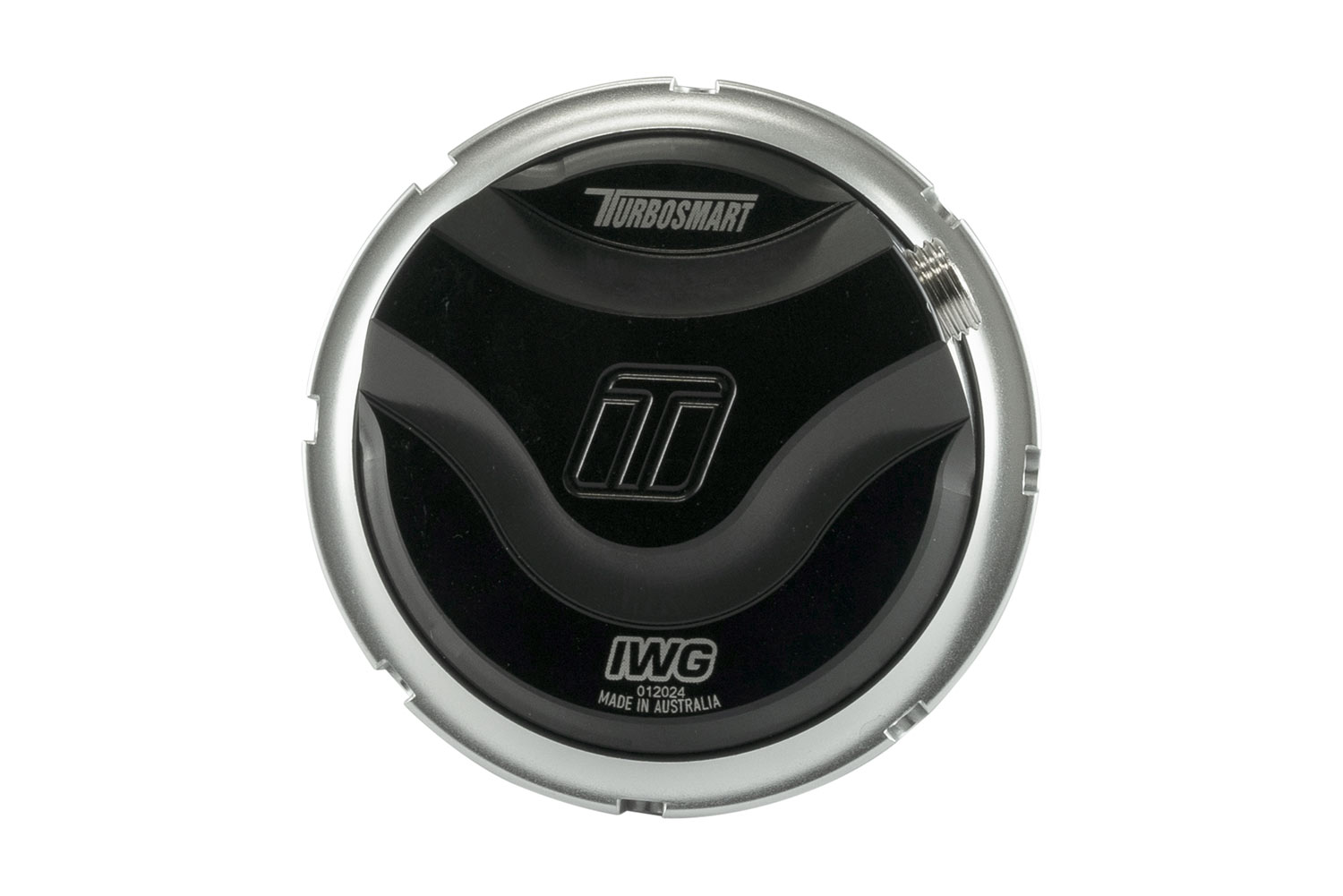

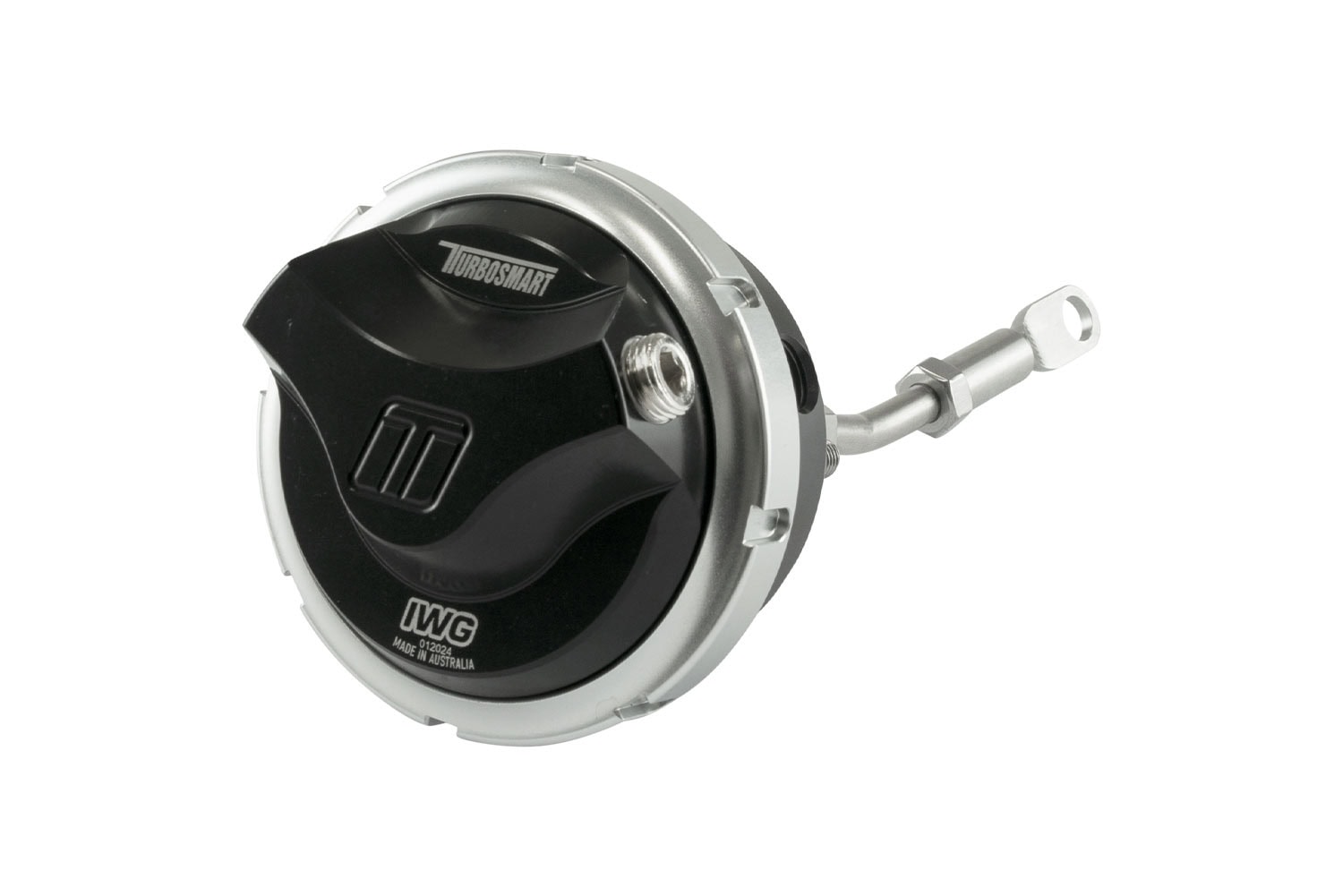

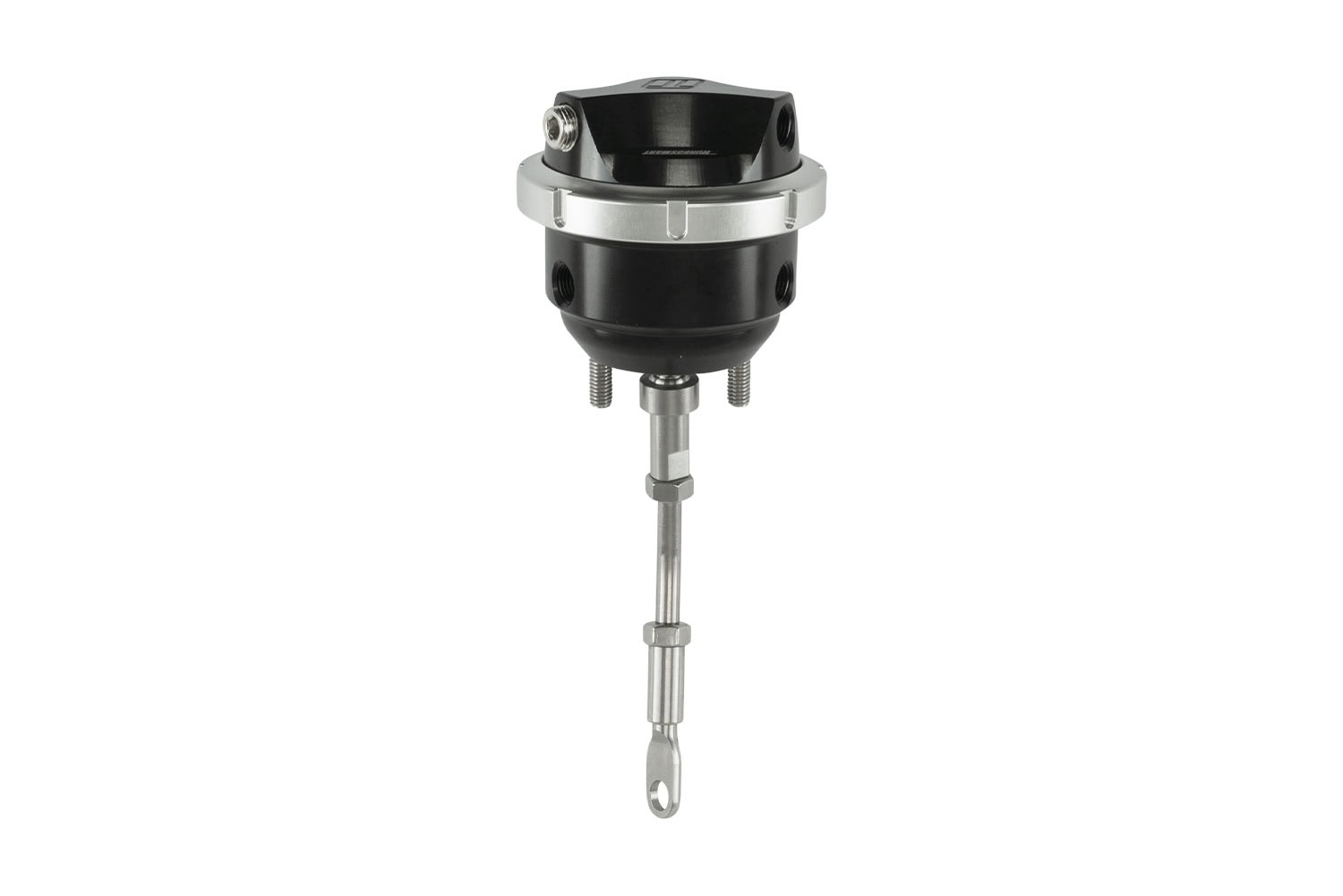

Turbosmart GenV Twin Port Internal Wastegate Actuator to suit Garrett G25 Series Turbochargers. This IWG actuator has it all, taking technology from the Award-winning GenV range of External Wastegates and providing unparalleled actuator performance.
Turbosmart GenV IWG (Internal Wastegate Actuator) Range provides improvements in boost control over your factory actuator. Our unique diaphragm system’s large working surface area ensures increased boost response and power at any performance or boost level.
Using Turbosmart’s locking collar system, you can quickly change your base spring selection from 5psi to 26psi. The Nitronic guide and Hard Chromed Intermediate Rod, mated with the swivel joint system, ensure the best possible lower chamber seal for actual twin port control strategies and unequal actuation range and control.
Available in
GenV Twin Port (Standard Cap): TS-0625-3143
GenV Twin Port (Position Sensor Cap): TS-0600-2010
Features
GenV cap including 1/8NPT reference ports
Accurate Twin Port Control for a wide boost control window
Hard chromed Intermediate rod and nitride guide for cycle tested and proven reliability
Proprietary Swivel Joint for complete linear actuation
Turbo-specific rod to ensure perfect fitment on all G25 series turbos.

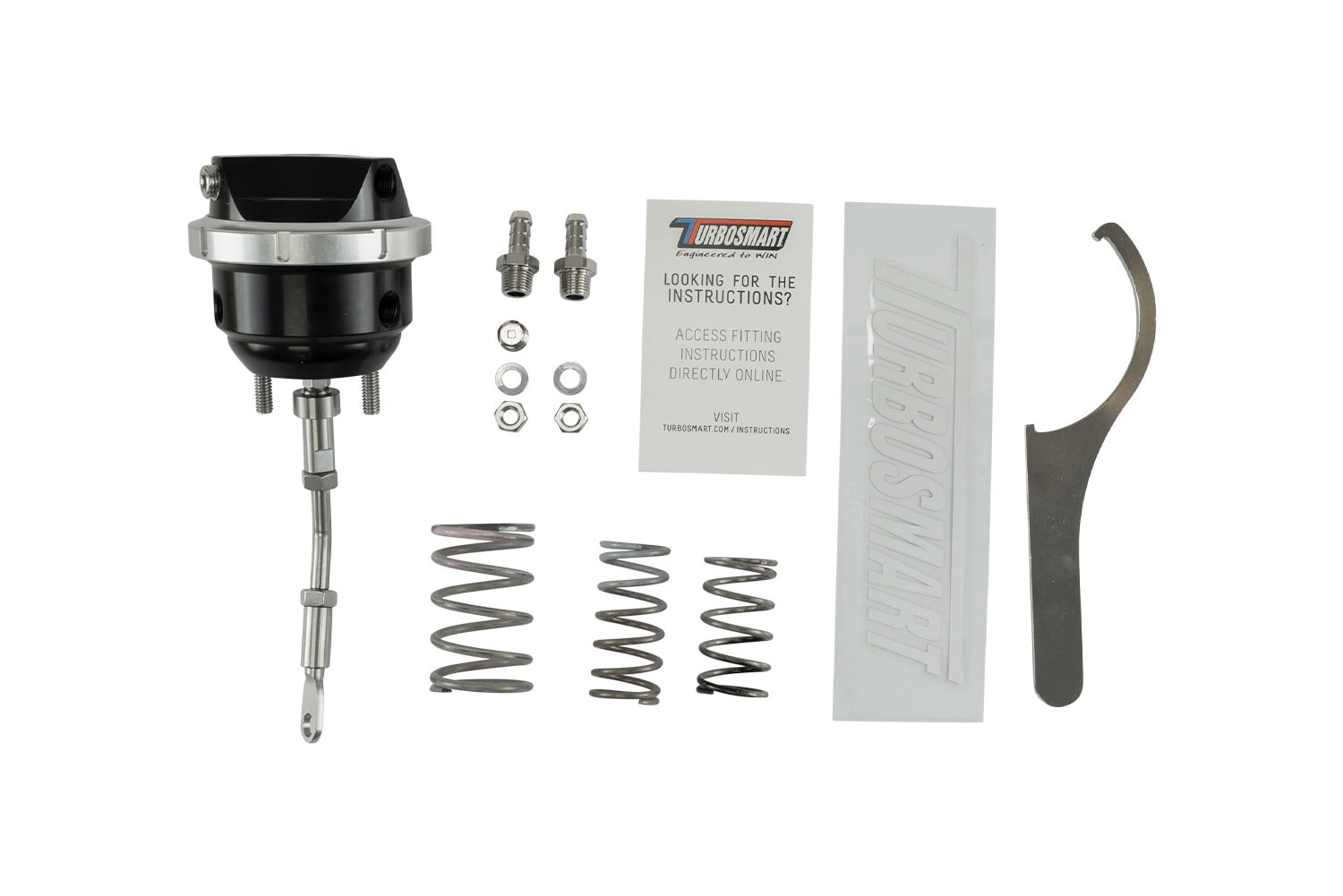

This is a bolt-on fitment for the Garrett G25 Series turbochargers. Accessories are supplied to adapt to all internally actuated variants, including all spring options.
Specifications
| Part number | TS-0625-3143 |
|---|---|
| EAN | 9329677023237 |
| Manufacturer | Turbosmart |
| Weight | 0.55 kg |
