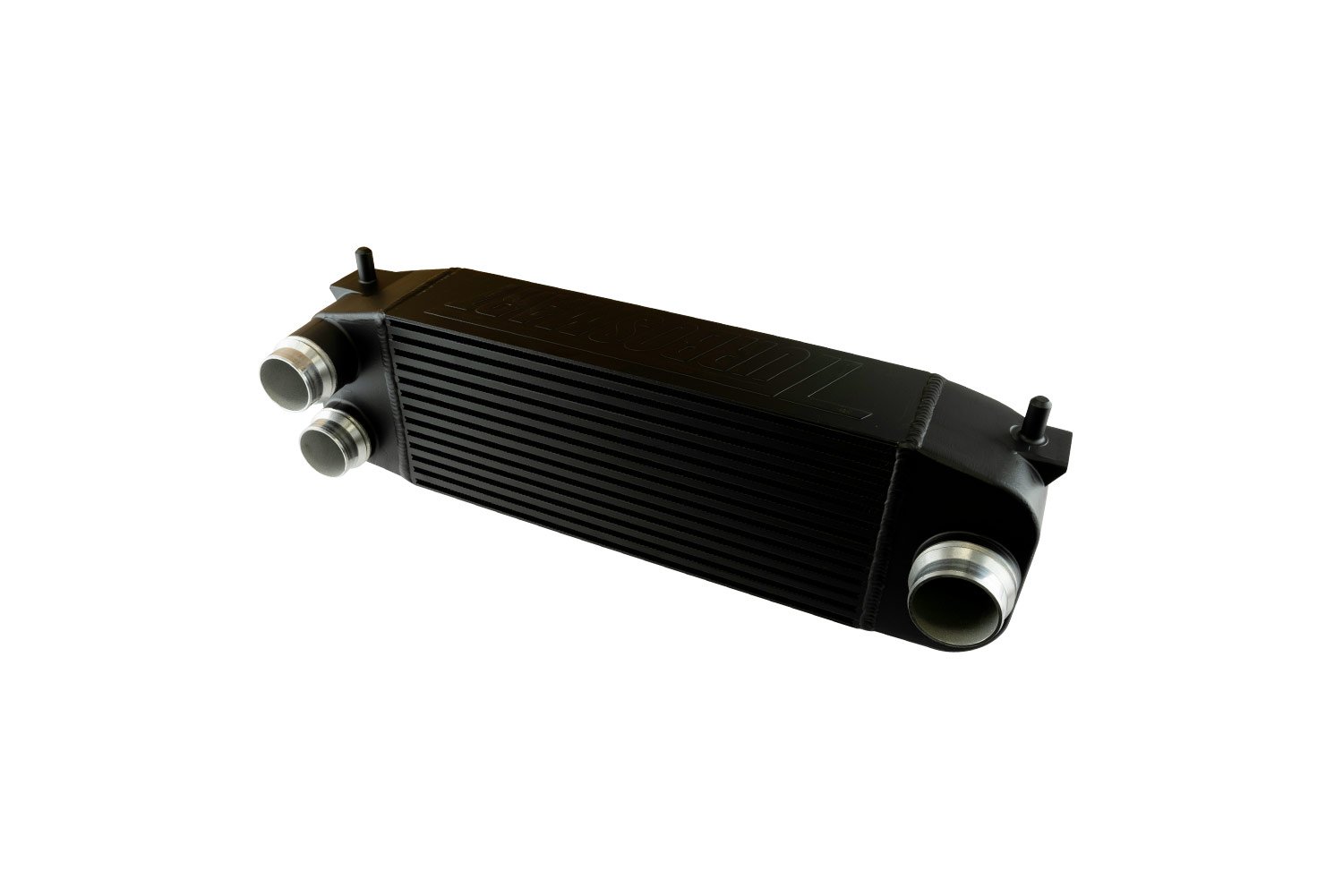

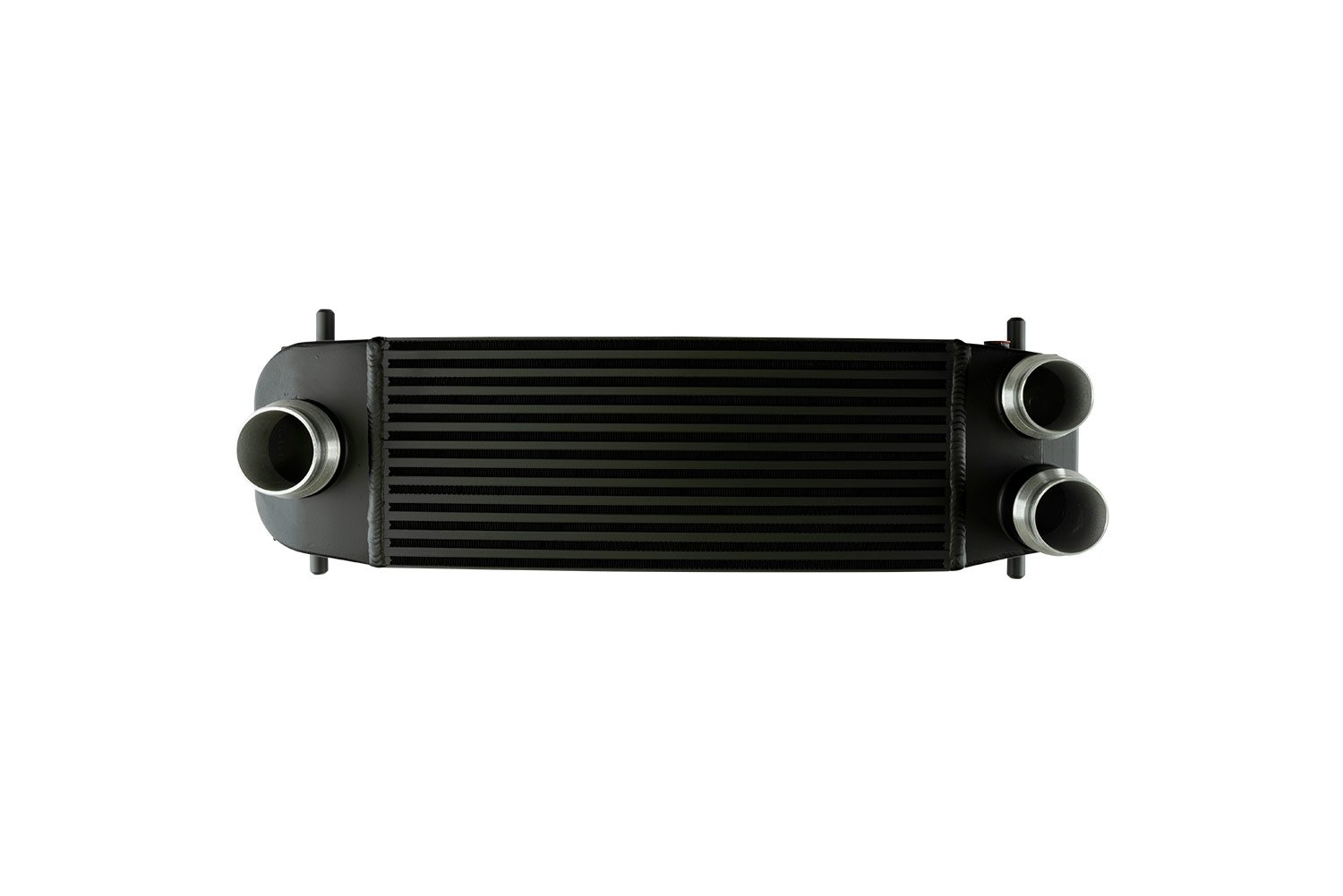

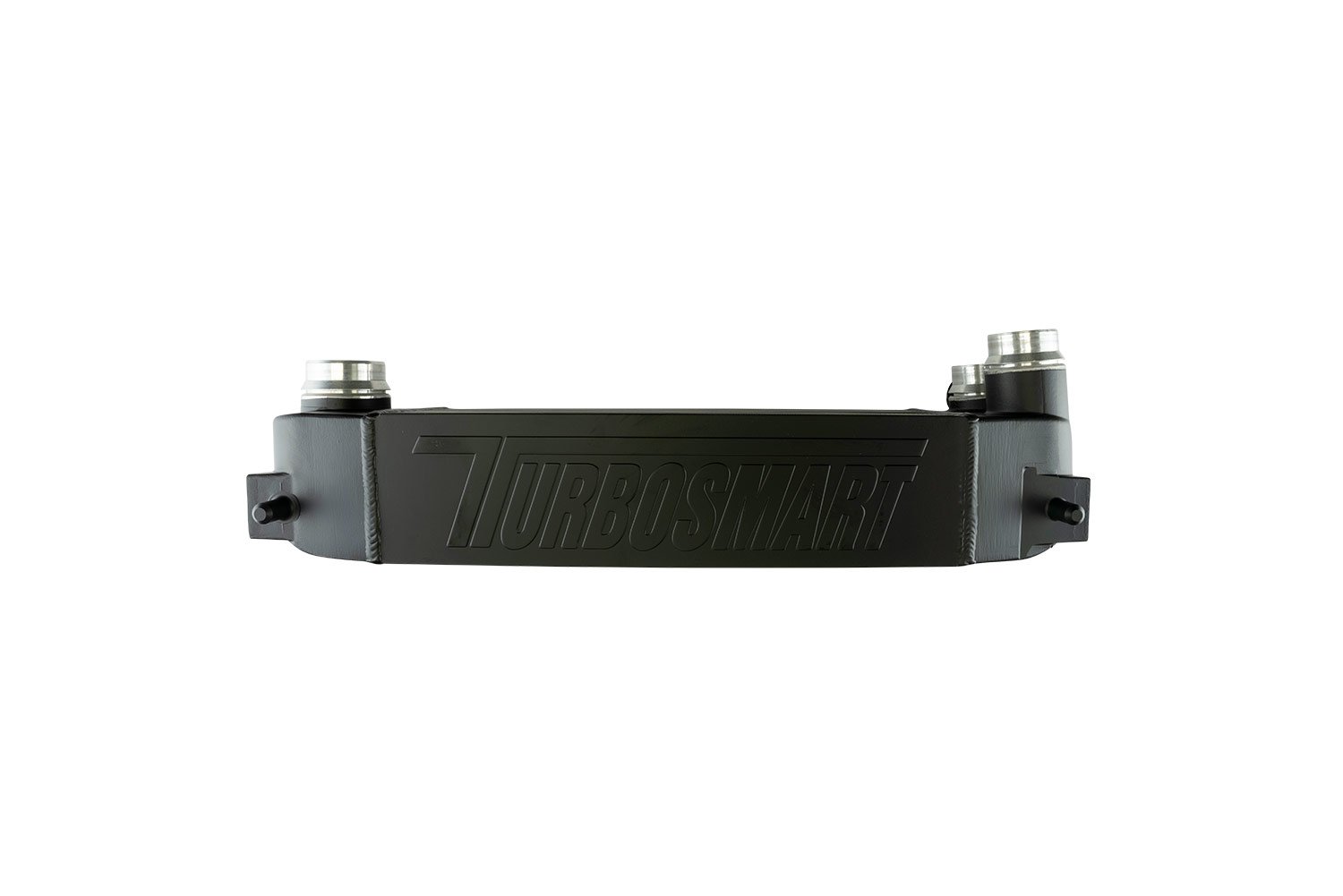

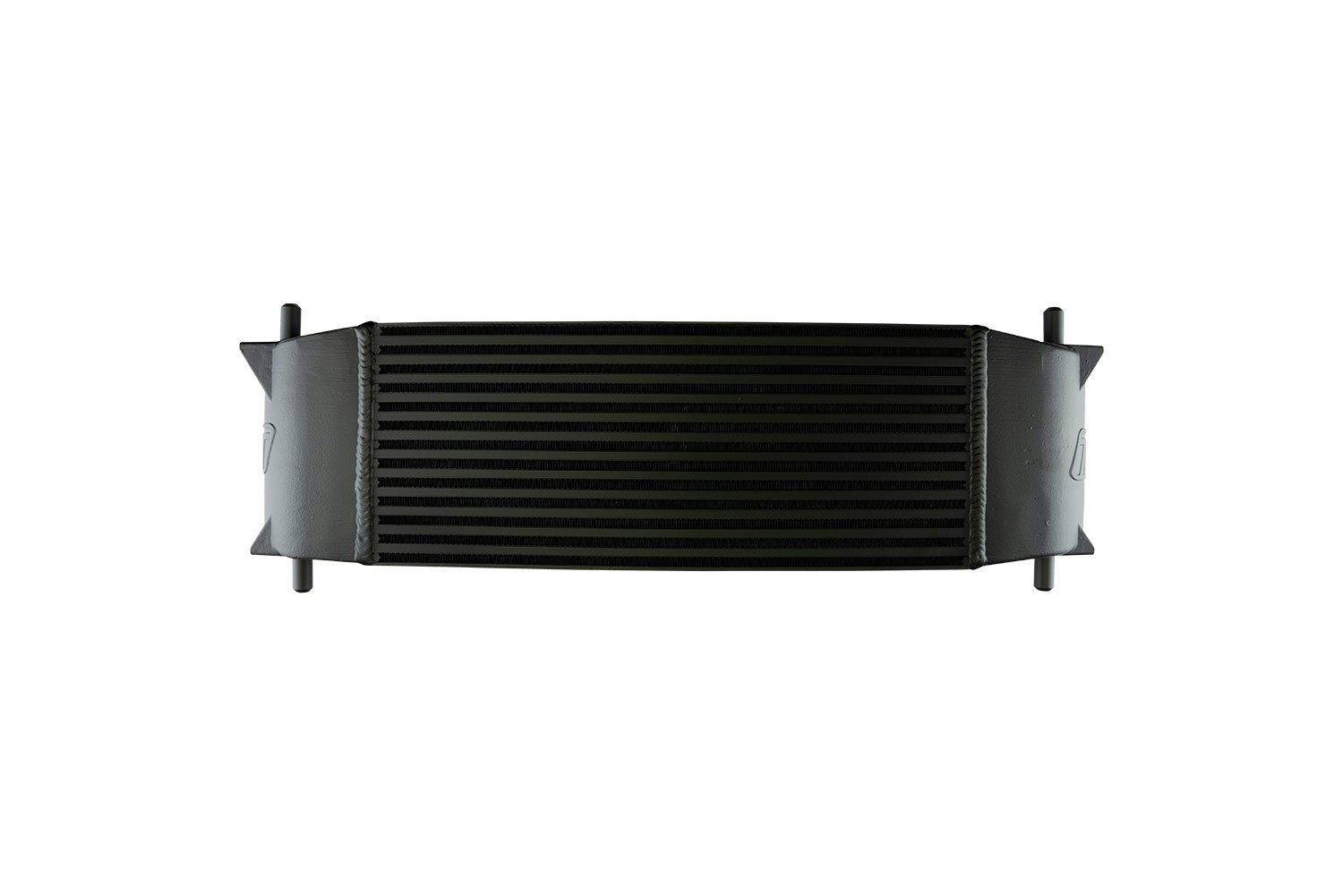

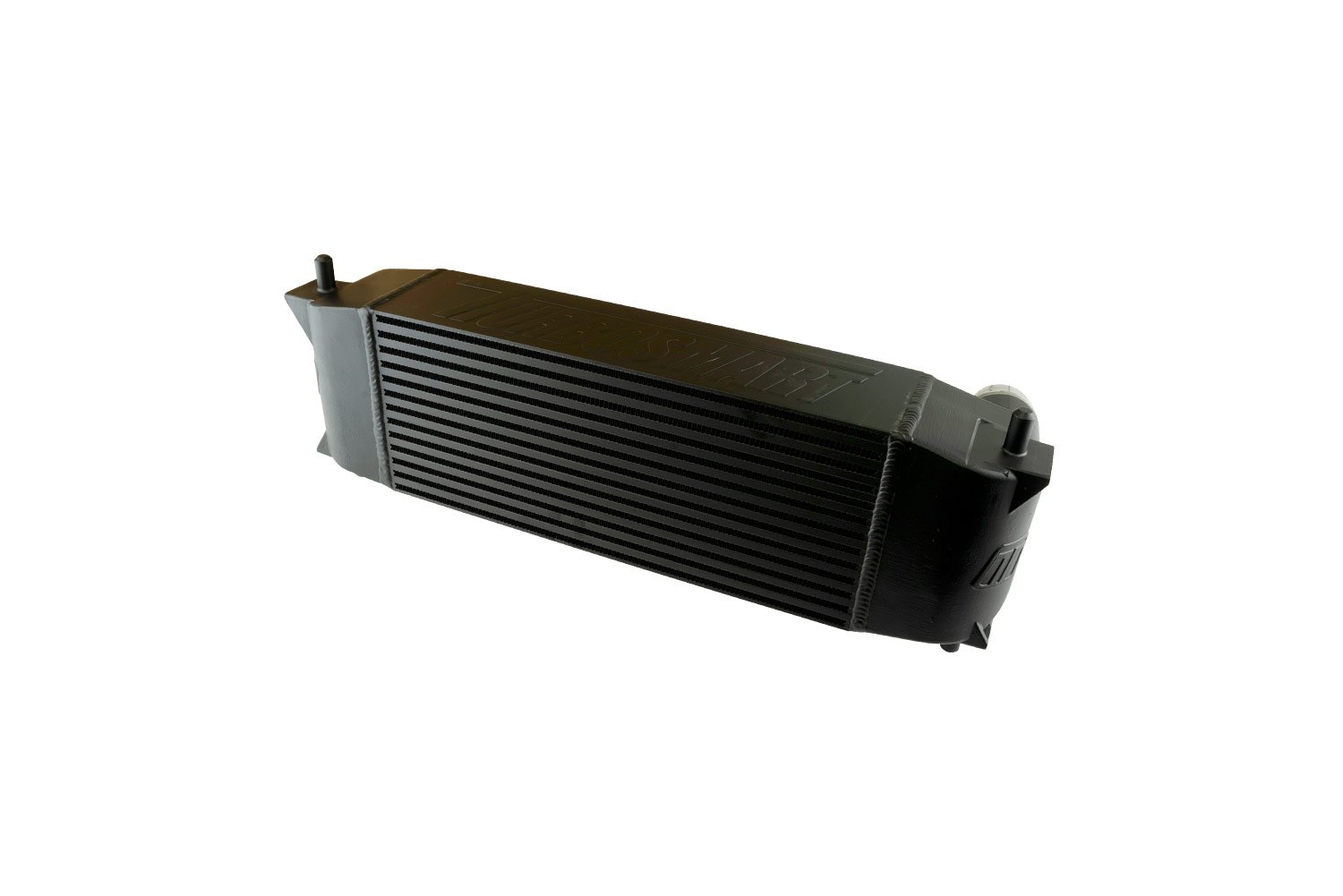

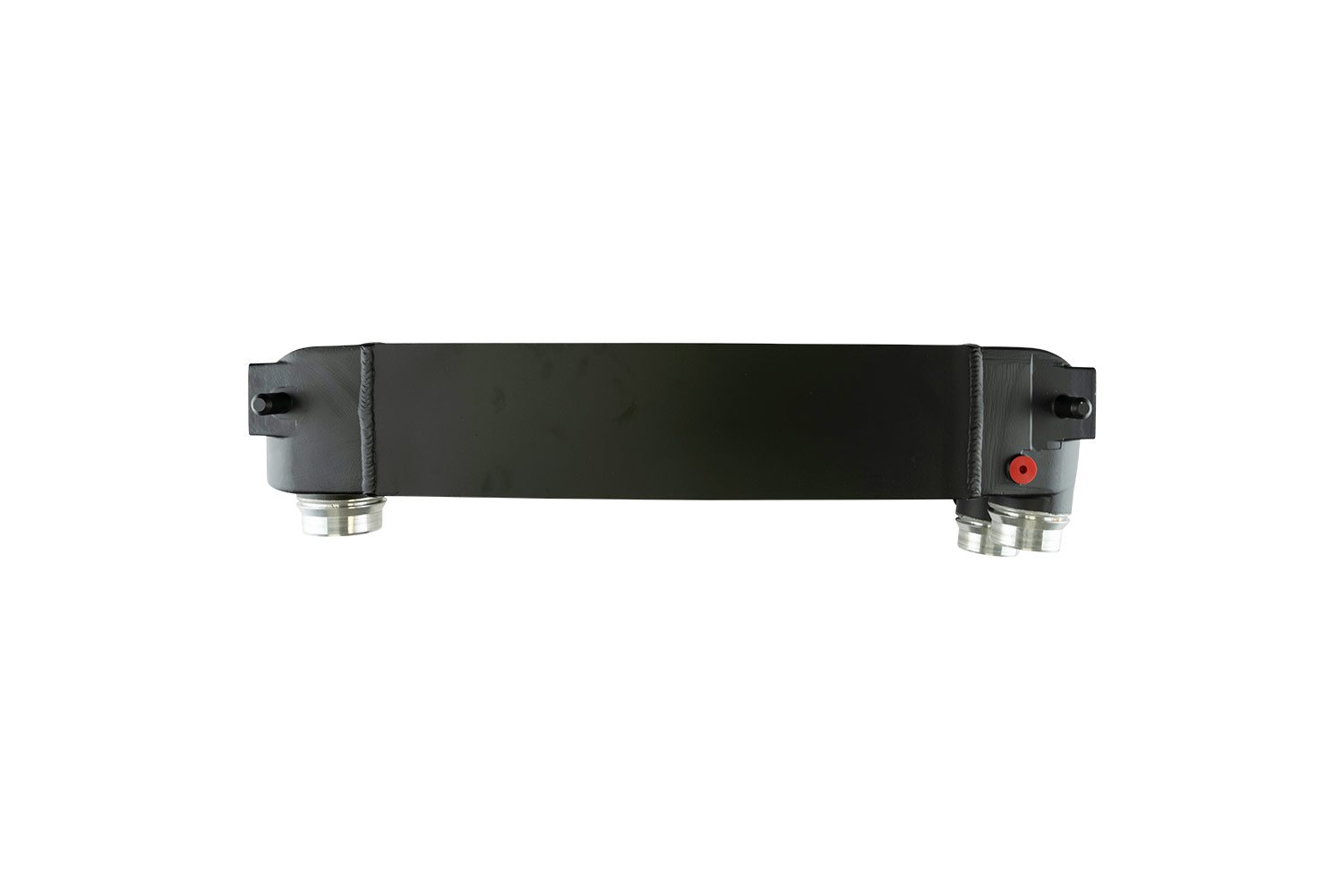

Ford Ranger Raptor Intercooler V6 Ecoboost Black
€1,049.14 Incl. VAT
- Turbosmart Intercoolers
Ways to pay
Also Bancontact (BE), Przelewy24 (PL), EPS (AT) and Multibanco (PT)
Turbosmart
Turbosmart has been making turbo management products in Sydney, Australia, since 1997, and its range here is about controlling boost and fuel pressure. It covers blow-off valves (Kompact, Kompact EM, Dual Port, Plumb Back and RacePort among them), internal wastegate actuators (IWG) and external wastegates in several sizes. It also has electronic BoostGate units, manual and electronic boost controllers, and fuel pressure regulators. TS-1 turbochargers, V-band flanges, oil lines, fittings and gaskets complete the list.
A good share of the range is service parts: replacement diaphragms, springs in different pressure ratings, O-ring kits, solenoids and weld flanges. These let you rebuild or re-spring a valve rather than replace it.
Turbosmart parts are sorted by model and specification, not by car. For valves made for a particular car, the title gives the application; otherwise choose by flange size, spring pressure and fitting.
The other large range in the Turbo section is turbochargers and housings. Turbosmart is where to look for the valves, actuators and controllers that manage the boost those turbos make.
Talk to a real motorsport specialist.
EU-based, motorsport-experienced. We'll walk through your application before you buy.
Description
The Ranger Raptor intercooler upgrade from Turbosmart is a direct bolt on upgrade for the factory intercooler. Massive increases in surface area and thermal mass, designed to increase mass-air flow even on standard and mildly modified engines while also providing maximum flow and efficiency for highly tuned vehicles. Includes a built a maintenance drain for blow by and condensation.
The CFD design driven and real world validated Ranger Raptor intercooler upgrade has been developed to ensure a direct replacement for the factory unit, including factory locating pin / mount positions and integration with the factory / factory style charge pipes while providing an enormous 75% increase in internal core volume with the same quality, performance and support you’ve come to expect from Turbsomart.
Features
Bar and plate charge cooler design
TIG welded, no cutting, no trimming, no fabrication
75% increase in internal core volume
Maintenance drain for condensation and blow-by
CFD modeled end-tanks for maximally balanced flow
End tanks design optimized to support OE mounts
Cast Aluminium, CFD driven design end tanks
Compatible with OEM shutter shroud
Compatible with OEM ECU calibration
Compatible with OEM and OEM style charge pipes
Note: Suitable for all Ford Ranger Raptor 3.0L Eco Boost gasoline powered V6 turbocharged vehicles
Specifications
| Part number | TS-CCA-VSFD002B |
|---|---|
| EAN | 9329677032598 |
| Manufacturer | Turbosmart |
| Weight | 10.7 kg |
