120-13405-SI – Wilwood Billet Narrow Dynalite Brake Caliper; Anodized – Radial Left & Right
€371.59 Incl. VAT
- Wilwood Brake Calipers
- Package: 1x Brake Caliper
- Material: Aluminium
Ways to pay
Also Bancontact (BE), Przelewy24 (PL), EPS (AT) and Multibanco (PT)
Wilwood
Wilwood Engineering was founded in 1977 in Camarillo, California, USA. The company designs and manufactures complete brake systems for motorsport, high-performance road use, hot rods, and custom vehicles. Unlike most aftermarket brake brands, Wilwood manufactures both calipers and rotors entirely in-house in the United States.
Their caliper range includes the widely used Dynapro, Dynalite, and Superlite series, available in radial and tangential mount configurations to suit a broad range of vehicle platforms. Wilwood big brake kits are popular for replacing inadequate OEM systems on track cars, offering larger rotor diameters and multi-piston calipers for improved heat capacity and pedal feel.
Wilwood also supplies master cylinders, brake bias bars, and proportioning valves — making them a one-brand solution for building or upgrading an entire brake system. They are extensively used in SCCA road racing, NASA events, oval racing, and purpose-built track cars in North America.
Talk to a real motorsport specialist.
EU-based, motorsport-experienced. We'll walk through your application before you buy.
Description

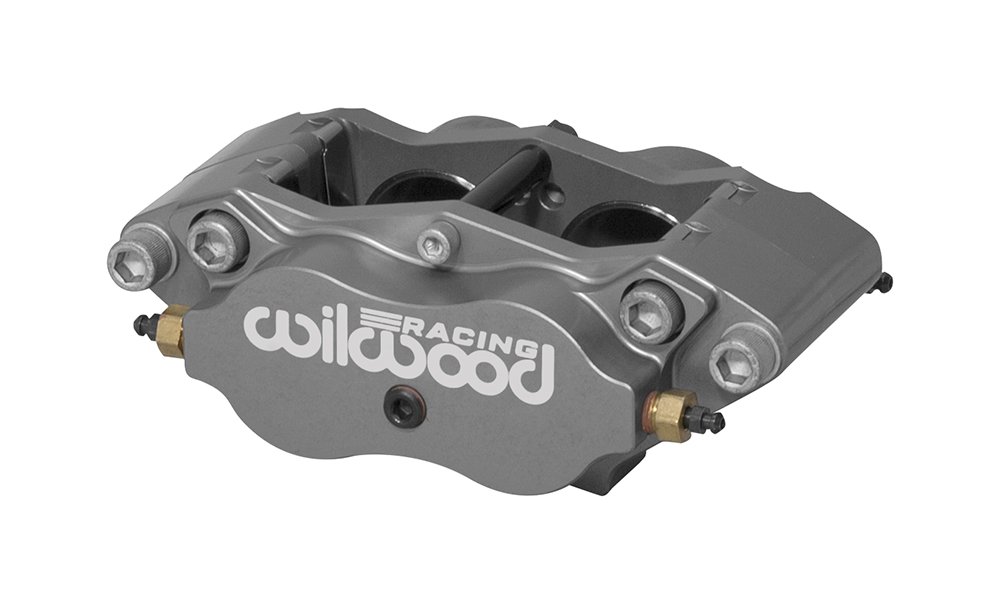

The Wilwood’s Dyna Lite calipers are used in all forms of racing, and the latest Billet Narrow Dynalite Radial Mount (NDLR) series, are better than ever. Starting at just 1.4kg, this compact and lightweight caliper now incorporates a more rigid radial mount design. Engineered with a spacer-less body specifically for 9.6mm, 20.5mm and 25.4mm width rotors and a center bridge bolt adding to overall caliper strength and positive retention of the top-loaded pads. A durable aluminum-oxide ceramic Mil-Spec Type III hard-anodized finish further enhances the durability of the caliper by resisting bore wear and surface abrasion.

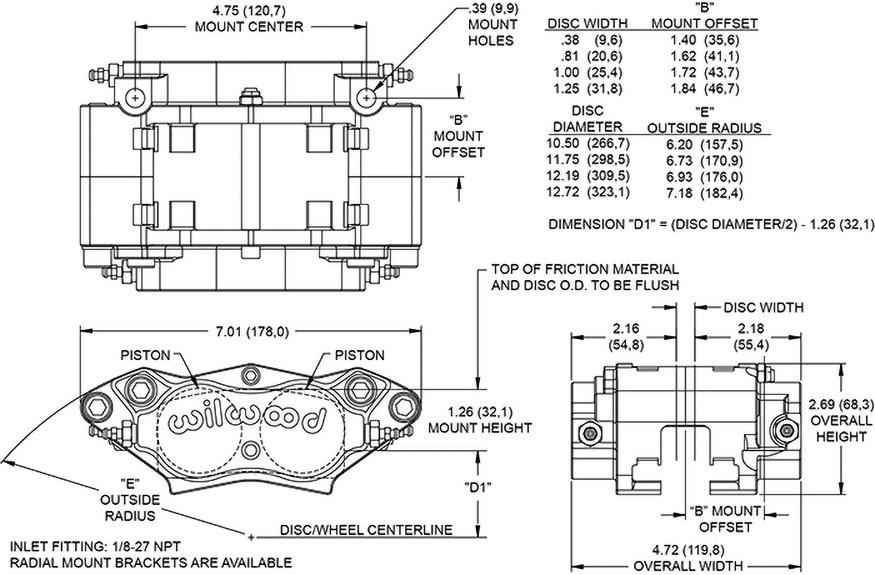

Billet NDLR calipers can be directly mounted over studs on a 120.65mm center, or used with a radial mount bracket kit in place of a tab-mount caliper. Internal damping springs, controlled retraction in-bore seals, internal fluid crossover, and 3/8” cross bolts for added strength and rigidity all adds up to consistent pedal feel from start to finish. Uses type 7816 brake pads with many Wilwood compound options to fine-tune your driving style and track conditions.
The Billet NDLR caliper is a compact, lightweight, and rugged caliper that provides strong clamping force from four stainless cup pistons. The bodies are fully CNC machined from billet with internal fluid ports that eliminate external fluid tubes. Each caliper is equipped with two corner bleeds and outboard inlets in the correct location for a standard Inboard mount. The bridges are equipped with stainless steel anti-rattle wear plates. These plates reduce bridge wear and provide smooth, rattle free operation of the pads. A center bridge bolt adds overall caliper strength and positive retention of the top loaded pads.

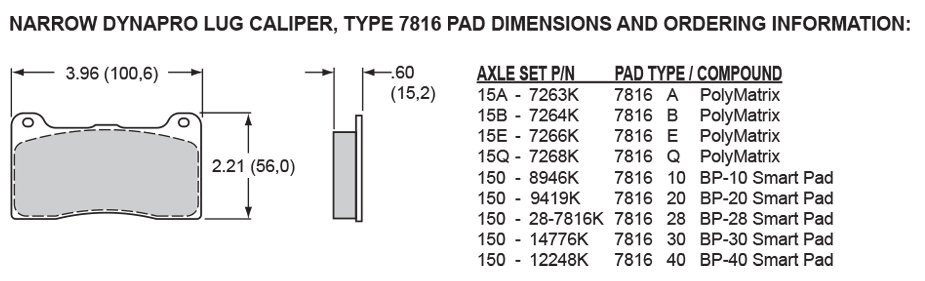

All Billet NDLR calipers are designed for long service using the 16,0 mm thick 7816 style brake pads. These pads are available in many different Poly Matrix compounds to provide the correct brake torque and heat range for any high performance or competition application. Radial mount bracket kits are used to install a radial mount caliper in place of a tab mount caliper. Brackets are available for both Sprint and Midget Inboard and Dirt Late Model applications for various rotor diameters.
Spare Parts
130-2655
200-7531
200-7531
130-10540
230-9982
300-5876
300-5876
220-0627
Specifications
| Part number | 120-13405-SI |
|---|---|
| EAN | 889545080728 |
| Manufacturer | Wilwood |
| Piston Size | 44,5/44,5mm |
| Material | Aluminium |
| Package Contents | 1x Brake Caliper |
| Weight | 1.45 kg |
