120-15736 – Wilwood Powerlite Brake Caliper; Anodized – Radial Left & Right
€486.19 Incl. VAT
- Wilwood Brake Calipers
- Material: Aluminium
- Package Contents: 1x Brake Caliper
- Caliper Color: Black Anodized
- Piston Size: 35,1/35,1mm
Wilwood
Wilwood Engineering was founded in 1977 in Camarillo, California, USA. The company designs and manufactures complete brake systems for motorsport, high-performance road use, hot rods, and custom vehicles. Unlike most aftermarket brake brands, Wilwood manufactures both calipers and rotors entirely in-house in the United States.
Their caliper range includes the widely used Dynapro, Dynalite, and Superlite series, available in radial and tangential mount configurations to suit a broad range of vehicle platforms. Wilwood big brake kits are popular for replacing inadequate OEM systems on track cars, offering larger rotor diameters and multi-piston calipers for improved heat capacity and pedal feel.
Wilwood also supplies master cylinders, brake bias bars, and proportioning valves — making them a one-brand solution for building or upgrading an entire brake system. They are extensively used in SCCA road racing, NASA events, oval racing, and purpose-built track cars in North America.
Talk to a real motorsport specialist.
EU-based, motorsport-experienced. We'll walk through your application before you buy.
Description

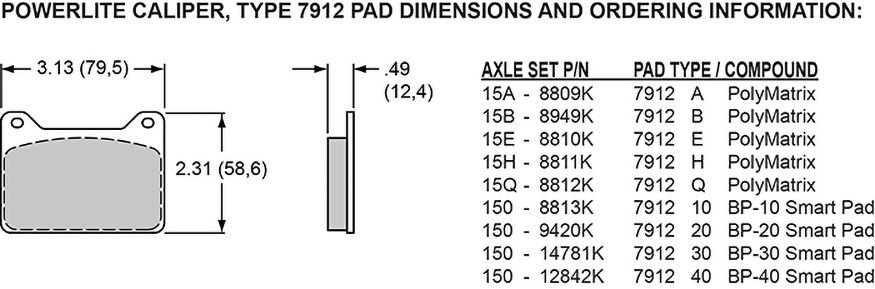

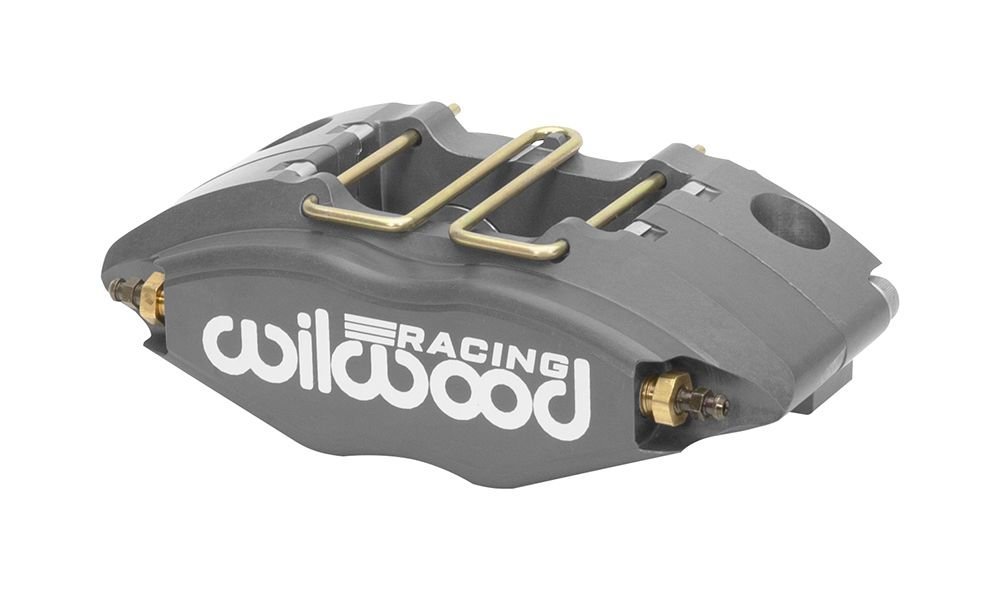

120-15736 – Wilwood Powerlite Brake Caliper; Anodized – Radial Left & Right The Wilwood Powerlite four piston radial mount caliper starts at 1 kg with a compact design with superior strength is lightweight and is reliable in higher temperature situations. This caliper is easily used in many applications like Rally, and off road driving. The process of stress-flow forging re-aligns the metal’s grain structure within the contour of the caliper body. This eliminates the stresses and interruptions to the internal grain structure that occur when machining a straight block billet. Optimizing the internal brake fluid canal flow, makes sure that interruptions are reduced to a minimum the results are a caliper with superior clamping efficiency and ultimate strength against fatigue, stresses, and distortion under load. The Wilwood Powerlite has a new 7912 type brake pad that is supported from the top by Quick-clip pad retainers. This eradicates the need for a pad support step in the bottom of the caliper and adds additional clearance for mounting closer to the hub on small wheel and rotor applications. The pad radius matches to rotor diameters between 240,0 mm and 298,5 mm, and the caliper fits even inside many 330,2mm wheel applications. The Quick-Clips also accommodate easy pad access without caliper removal. Brake pad compounds are available for the full range of sport and competition applications.
Additional information
| Manufacturer | Wilwood |
|---|---|
| Caliper Color | Black Anodized |
| Piston Size | 1/35, 1mm, 35 |
| Material | Aluminium |
| Package Contents | 1x Brake Caliper |
| Caliper Max. Disc Width (mm) | 12.7mm |
| Caliper Max. Disc Diameter (mm) | 279 |
| Caliper Mounting Centres (mm) | 0, 129 |
Wilwood
Wilwood Engineering was founded in 1977 in Camarillo, California, USA. The company designs and manufactures complete brake systems for motorsport, high-performance road use, hot rods, and custom vehicles. Unlike most aftermarket brake brands, Wilwood manufactures both calipers and rotors entirely in-house in the United States.
Their caliper range includes the widely used Dynapro, Dynalite, and Superlite series, available in radial and tangential mount configurations to suit a broad range of vehicle platforms. Wilwood big brake kits are popular for replacing inadequate OEM systems on track cars, offering larger rotor diameters and multi-piston calipers for improved heat capacity and pedal feel.
Wilwood also supplies master cylinders, brake bias bars, and proportioning valves — making them a one-brand solution for building or upgrading an entire brake system. They are extensively used in SCCA road racing, NASA events, oval racing, and purpose-built track cars in North America.
Talk to a real motorsport specialist.
EU-based, motorsport-experienced. We'll walk through your application before you buy.
