Turbosmart Vacuum Distribution Block
€95.22 Incl. VAT
- Turbosmart Turbochargers
- Performance forced-induction hardware for reliable power gains.
Ways to pay
- and more
Turbosmart
Turbosmart has been making turbo management products in Sydney, Australia, since 1997, and its range here is about controlling boost and fuel pressure. It covers blow-off valves (Kompact, Kompact EM, Dual Port, Plumb Back and RacePort among them), internal wastegate actuators (IWG) and external wastegates in several sizes. It also has electronic BoostGate units, manual and electronic boost controllers, and fuel pressure regulators. TS-1 turbochargers, V-band flanges, oil lines, fittings and gaskets complete the list.
A good share of the range is service parts: replacement diaphragms, springs in different pressure ratings, O-ring kits, solenoids and weld flanges. These let you rebuild or re-spring a valve rather than replace it.
Turbosmart parts are sorted by model and specification, not by car. For valves made for a particular car, the title gives the application; otherwise choose by flange size, spring pressure and fitting.
The other large range in the Turbo section is turbochargers and housings. Turbosmart is where to look for the valves, actuators and controllers that manage the boost those turbos make.
Talk to a real motorsport specialist.
EU-based, motorsport-experienced. We'll walk through your application before you buy.
Description

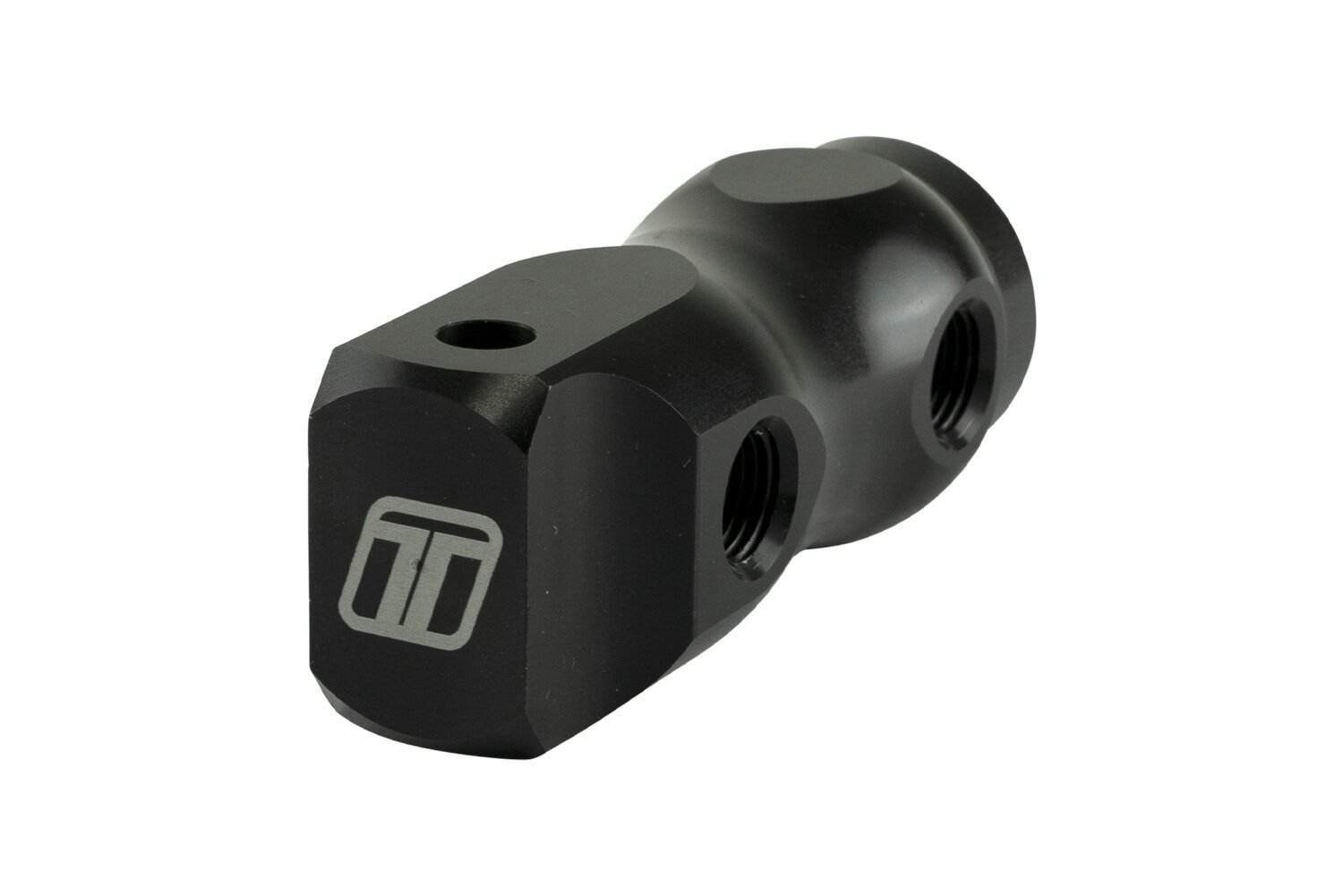

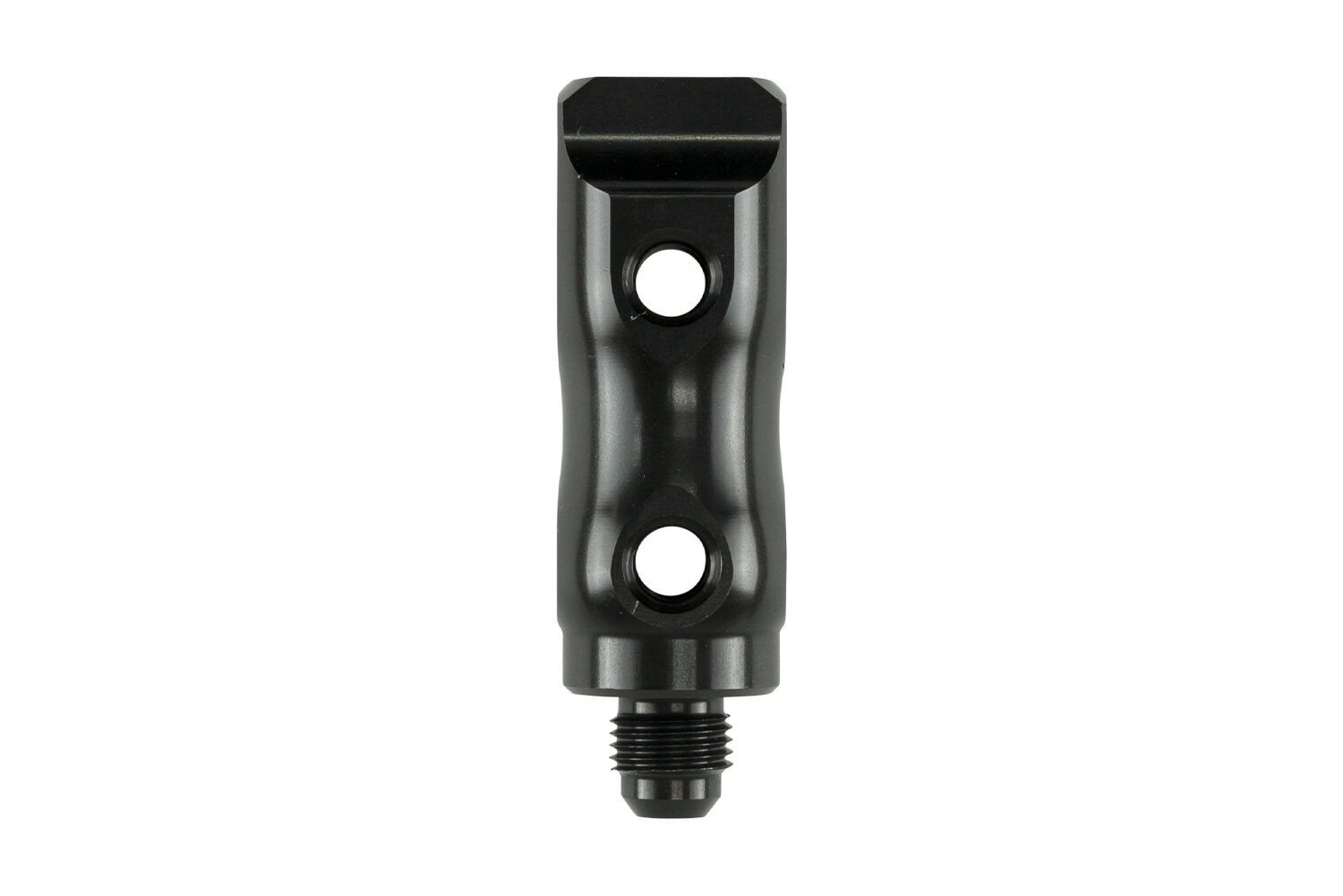

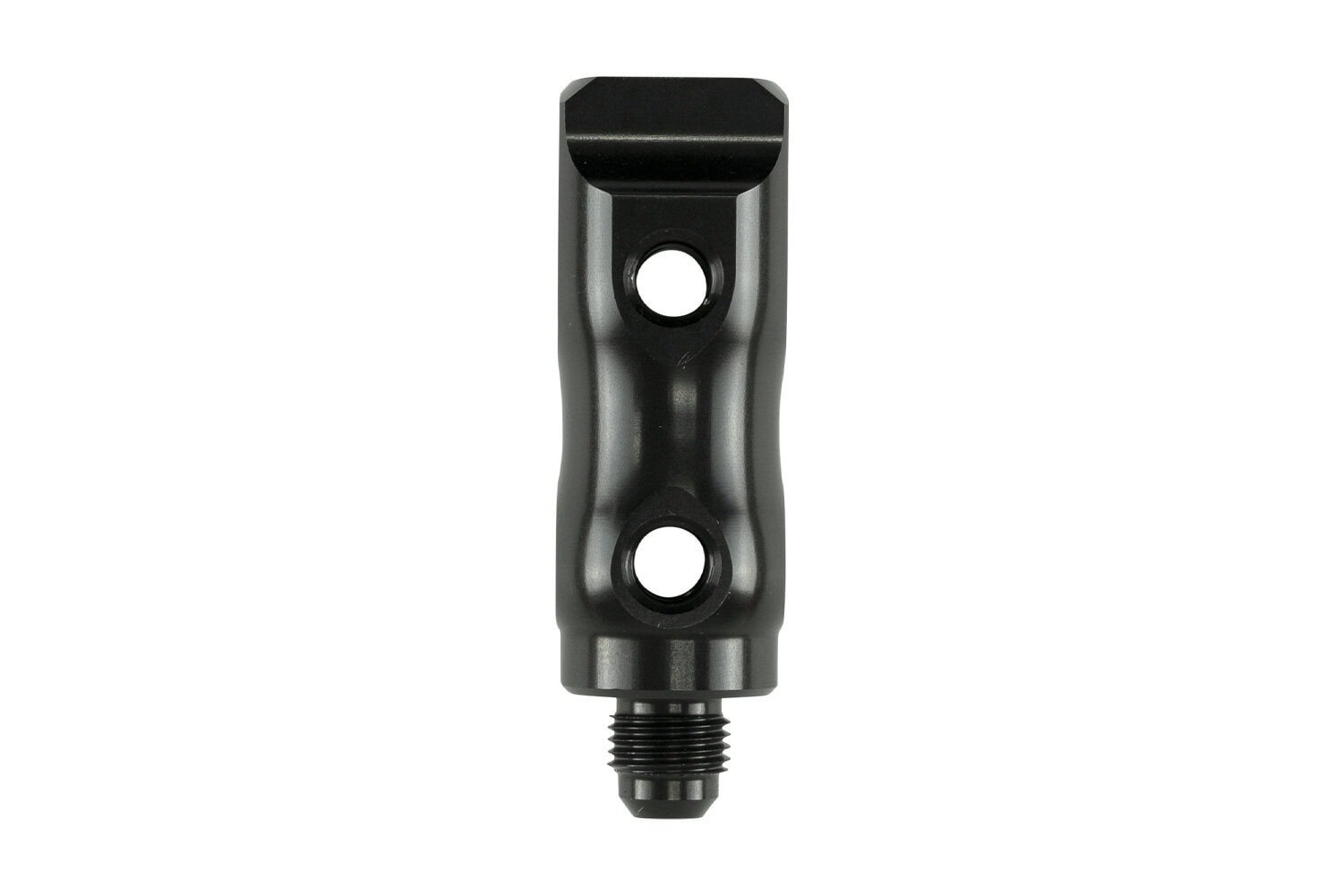

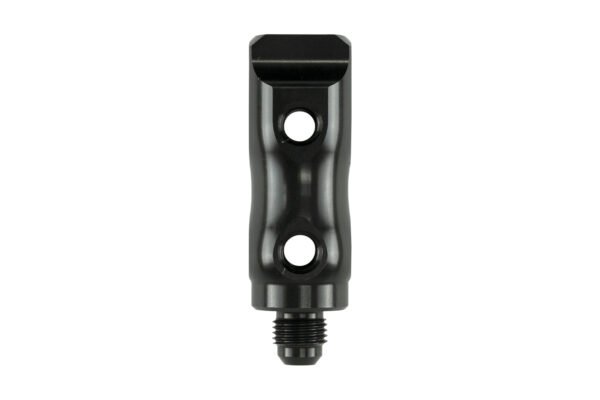

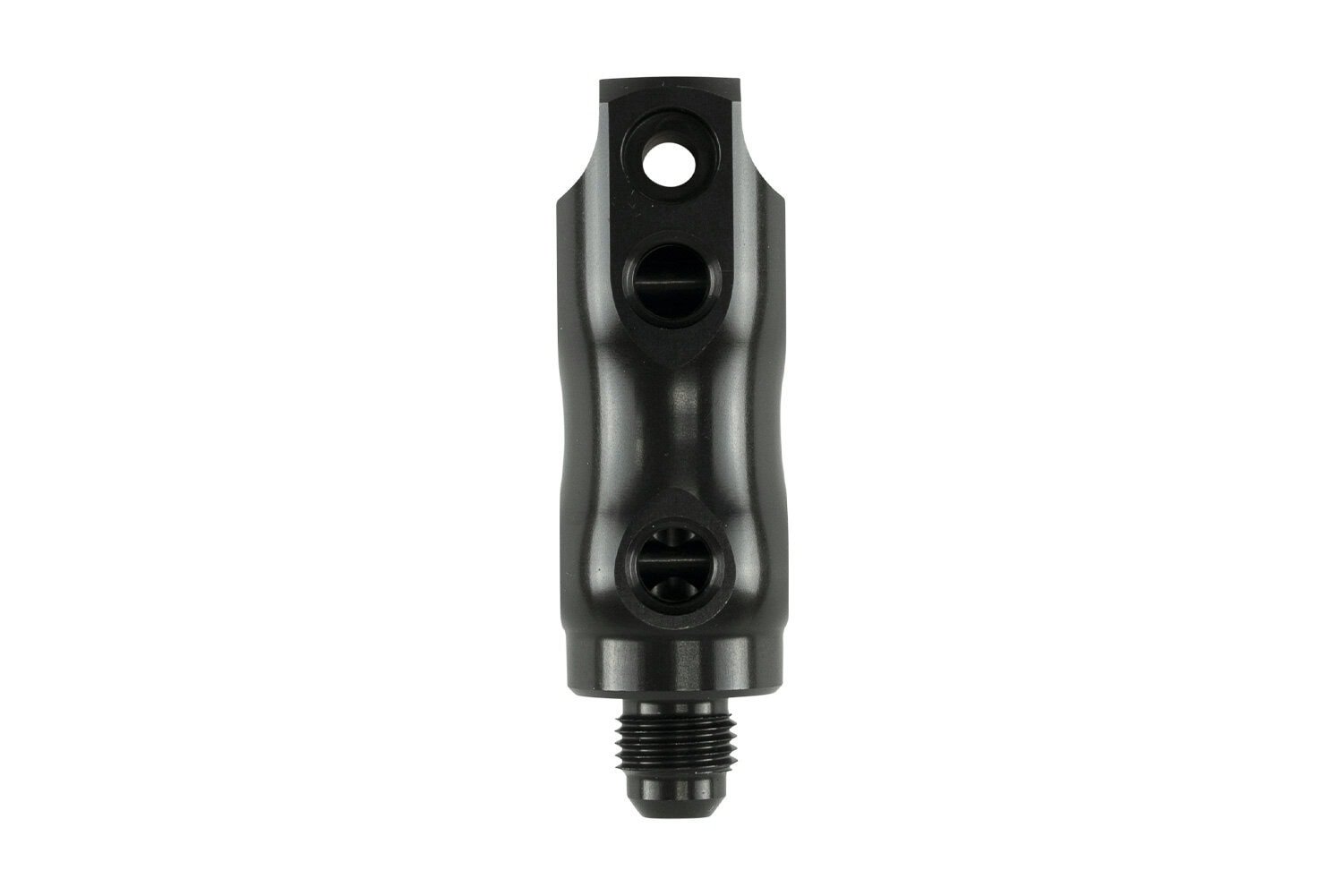

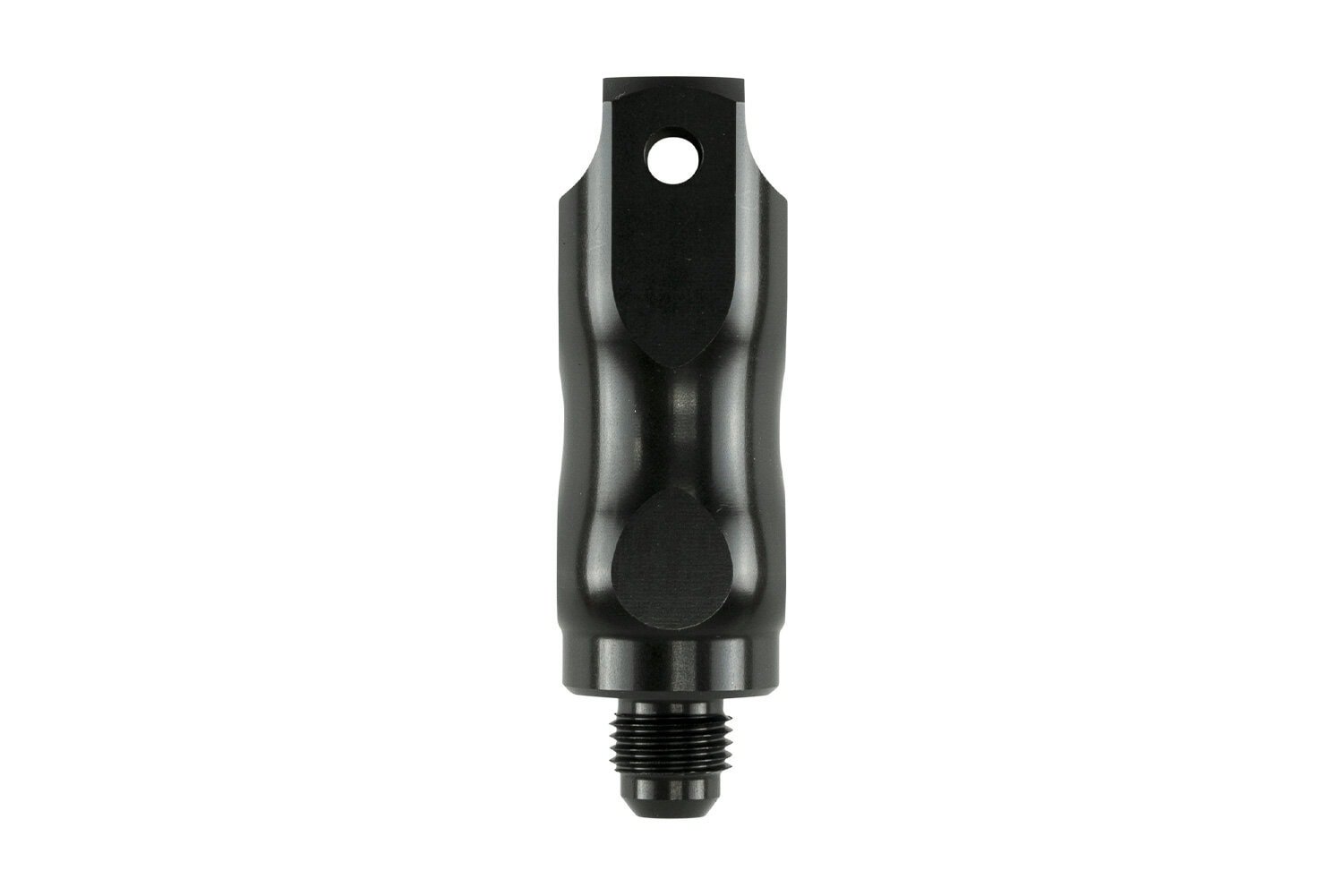

The Turbosmart Simple Reference Manifold Block is a professional solution for remote mounting and sharing of engine (MAP) reference with multiple outputs such as Fuel Pressure Regulators, Maps Sensors, Boost Gauges, Wastegates and Brake Boosters. Manufactured from Billet (6262 T6) Aluminium and Black anodized, with 4 x 1/8 NPT Ports and a simple 1/4 NPT Port, the Simple Reference Distribution Manifold allows 4 1/8 NPT outputs to be shared with the 1/4 NPT Reference and is suitable for both hose tail fittings as well as high-pressure, braided and more exotic fittings and hoses.
Available In
Simple Remote Sensor Manifold
Simple Reference Distribution Manifold
Modular Remote Sensor Manifold
Modular Reference Distribution Manifold
Modular Combo (Sensor & Reference) Manifold
Features
Billet (6262 T6) Aluminium Construction
Mounting Bracket
1/8 NPT Ports
5 Port Shared System, (1 x 1/4 NPT + 4 x 1/8 NPT)

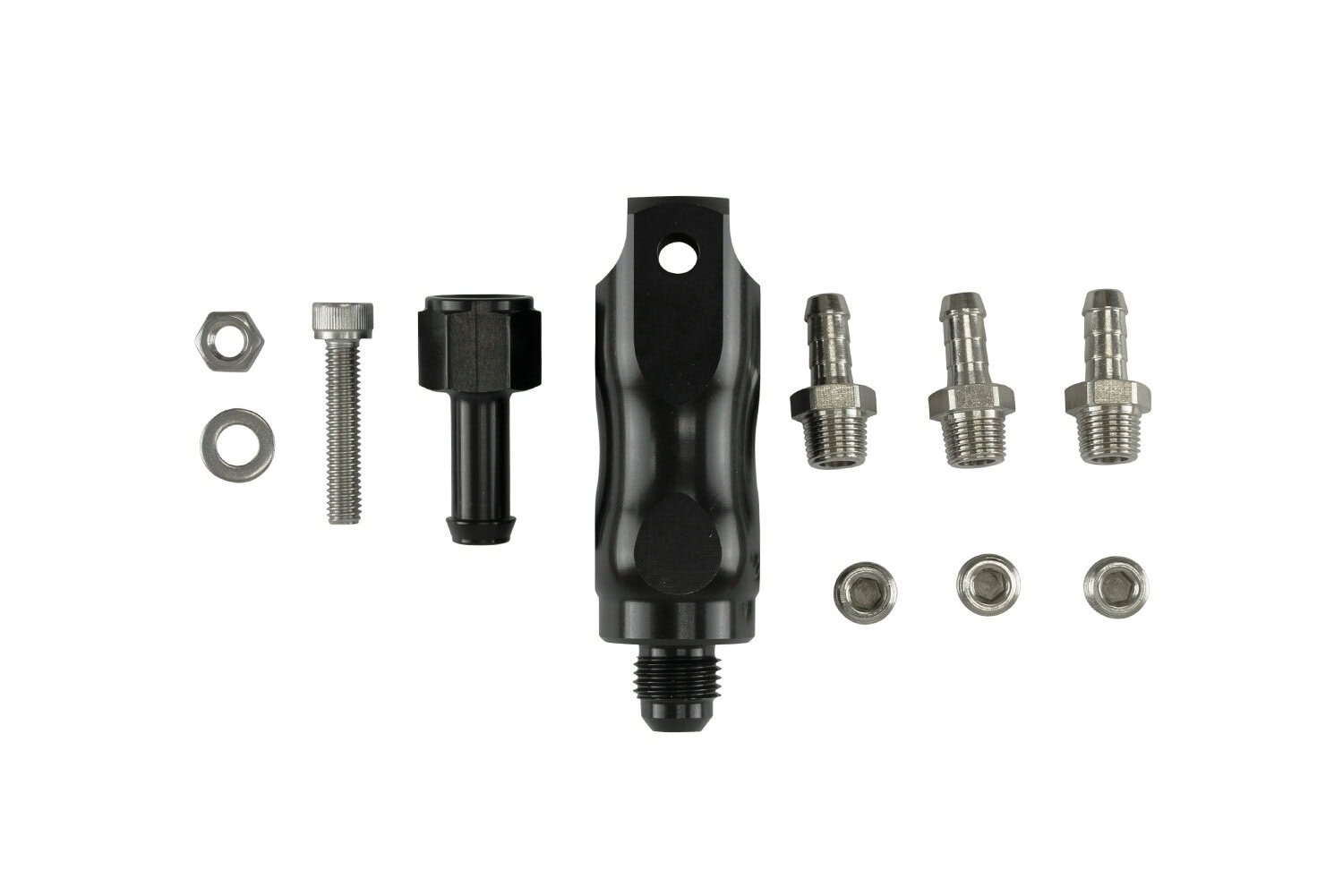

Blanking Plugs and Hose Tail Fittings
Additional information
| Weight | 0.16 kg |
|---|---|
| Manufacturer | Turbosmart |
