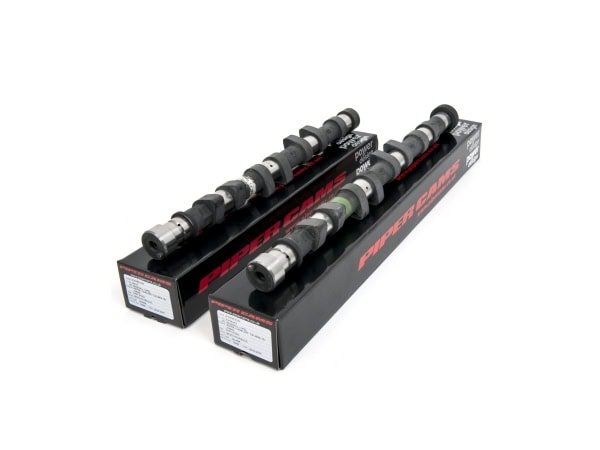

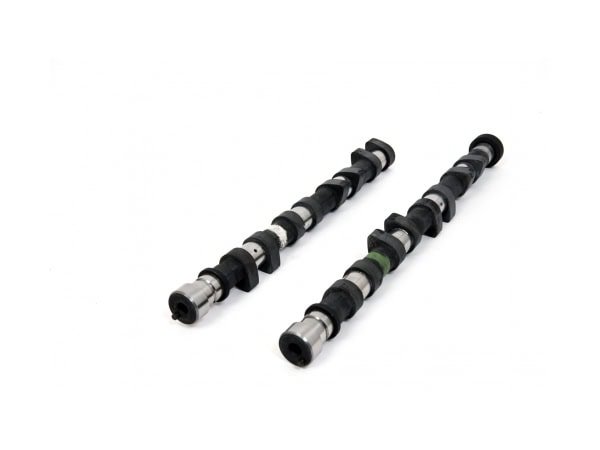

Piper Camshaft Opel C20XE/C20LET Race (Long)
€939.03 Incl. VAT
- Brand: Piper Cams
- Category: Cams & Sprockets
- Power Band: 4000-8500 rpm
- TDC Exhaust Lift: 3.71 mm
- TDC Intake Lift: 4.75 mm
- Timing Exhaust: 74 – 46 deg
- Timing Intake: 48 – 72 deg
- Fits: Opel 2.0L 16v – C20XE
Piper Cams
Piper Cams was founded in 1966 in the United Kingdom and has spent more than five decades designing and grinding performance camshafts for road, race and historic applications. The headline Piper RS Race profiles cover everything from fast-road bias to full competition lift, machined on the same equipment used to develop cams for top-level motorsport programmes. Alongside camshafts, the range includes uprated double valve springs, vernier pulleys, followers and timing components engineered to work as a matched valvetrain set. Coverage is strongest on classic British engines such as the Ford Pinto, Crossflow, BMC A-series and Vauxhall XE, with modern profiles for hot hatch and rally builds.
Talk to a real motorsport specialist.
EU-based, motorsport-experienced. We'll walk through your application before you buy.
Description
Piper Camshaft Opel C20XE/C20LET Race (Long)
Specifications
| Power Band | 4000-8500 rpm |
|---|---|
| TDC Exhaust Lift | 3.71 mm |
| TDC Intake Lift | 4.75 mm |
| Timing Exhaust | 74 – 46 deg |
| Timing Intake | 48 – 72 deg |
| Valve Exhaust Lift | 11.05 mm |
| Valve Intake Lift | 11.73 mm |
Compatible vehicles
- Opel C20XE
- Opel C20LET
Additional information
| Duration Exhaust | 300 deg |
|---|---|
| Duration Intake | 300 deg |
| Full Exhaust Lift | 104 deg |
| Full Intake Lift | 102 deg |
| Material | Race |
| Valve Exhaust Clearance | 0.30 mm |
| Valve Intake Clearance | 0.30 mm |
