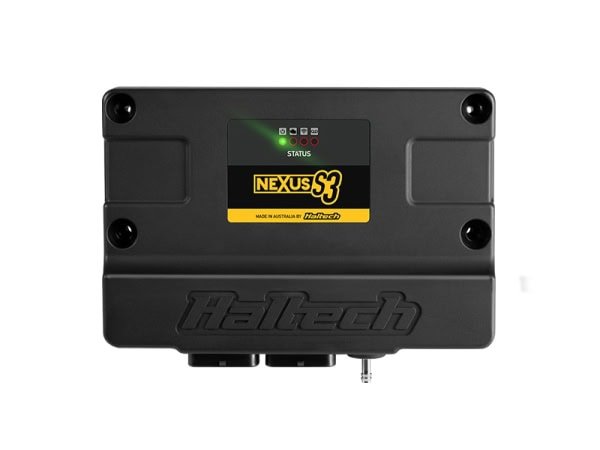

Haltech Nexus S3 ECU Only
€1,813.92 Incl. VAT
- Brand: Haltech
- Category: ECUs
Ways to pay
Also Bancontact (BE), Przelewy24 (PL), EPS (AT) and Multibanco (PT)
Haltech
Haltech was founded in Sydney in 1986 and makes standalone engine management. Its range here is built around two ECU families. Elite runs from the 550 to the 2500, and Nexus includes the S2, S3, R3 and R5 and the Rebel LS and JZ versions. The Nexus R5 combines the ECU with power distribution and CAN keypad control.
Around the ECUs sits everything needed to install and wire one: plug-and-play adapter harnesses, universal and terminated main harnesses, and sensors for pressure, temperature, oxygen and position. The list continues with CAN cables and modules, thermocouple amplifiers, fuse boxes, ignition coils, injectors, and plugs and pins for the common connector types.
Most parts are chosen by ECU model and connector type. Where a Haltech part is tied to a car, it is usually a Nissan Silvia or Skyline, a Subaru Impreza, or a Honda S2000, CRX or Civic.
Elsewhere in Engine Management you will find wideband controllers and gauges. Haltech is the range that covers the full installation, from the ECU and harness down to individual connector pins.
Talk to a real motorsport specialist.
EU-based, motorsport-experienced. We'll walk through your application before you buy.
Description
ECU OVERVIEW
Haltech’s Nexus S3 is the successor to the acclaimed Elite 2500, offering a serious upgrade in performance and functionality. The S3 combines all the classic functionality of the Elite 2500 with new features and the superior processing power of the successful Nexus platform.
- 8 x peak/hold injector drivers (can be used as low side drive outputs)
- 8 x low current ignition outputs (can be used as low side drive outputs)
- 6 x low side drive outputs, PWM capable (DPOs)
- 4 x push-pull / half bridge outputs (8A, PWM capable), eg for electronic throttle
- 1 x ECR output
- 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
- Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
- 6 x synchronous pulsed inputs, zero crossing or adjustable thresholds – cam sensor inputs, frequency inputs or 0-5V analog inputs
- 1 x on-board wideband controller, supporting NTK and LSU4.9
- 1 x on-board 4 bar MAP sensor
- 2 x CAN ports with switchable termination
ECU FEATURES
- Controlled via NSP (Nexus Software Programmer)
- Long Term Learning
- Stepper Motor Control
- 4D Closed Loop Boost Control
- Closed Loop CO2 Control
- Rotational Idle
- Launch Control
- Traction Control
- Anti-Lag
- Dual Knock Control
- Trans Brake Control
- Race Timer
- Multi Stage Fuel Injection
- Multi-level Engine Protection
- 6 Stage Nitrous Control
- 4-sensor variable cam control
- Intake Air Bleed Control
- Flat Shift Control
- Shock Travel & Ride Height Control
- Advanced Torque Management
- On-board Wi-Fi
- On-board datalogging (128MB)
AUTOMATIC TRANSMISSION CONTROL
- Ford AODE/4R70W
- GM 4L60E
- GM 4L80E
- Toyota A340E
- Lenco
- Liberty
Suits: Engines with up to 8 cylinders or up to 4 rotors. Racing applications where advanced race features and data logging is required.
Includes: Nexus S3 ECU, 4 x mounting bolts, USB-C Cable, USB-C dust cap, Quick Start Guide, Wiring Diagram.
Specifications
| Part number | HT-213000 |
|---|---|
| Series | Nexus S3 |
