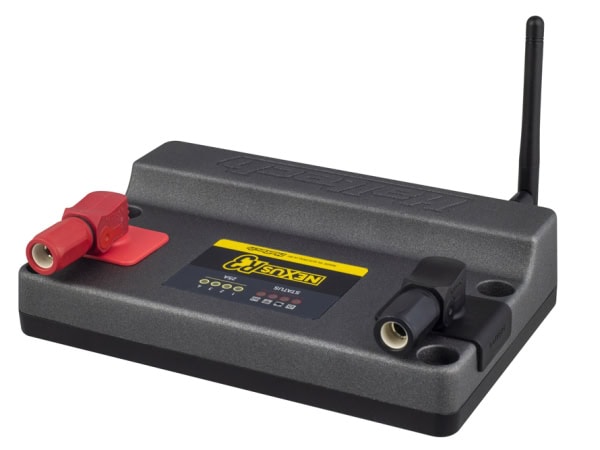

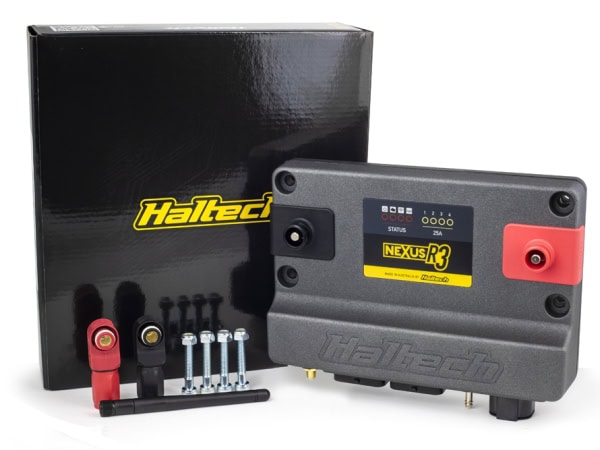

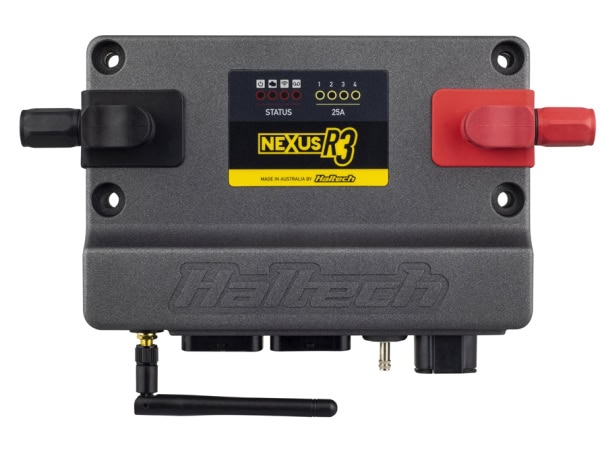

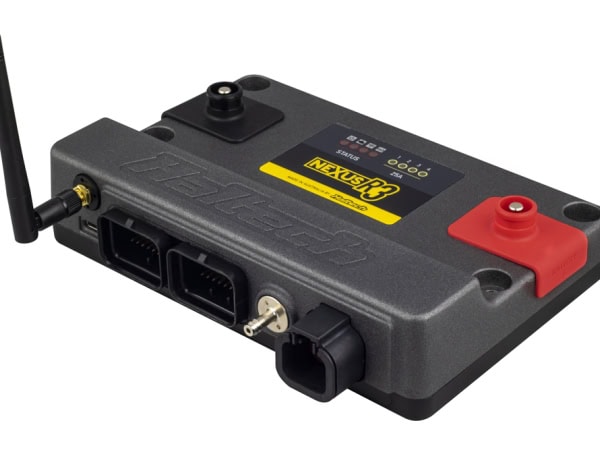

Haltech Nexus R3 – VCU
€2,279.87 Incl. VAT
- Brand: Haltech
- Category: ECUs
Haltech
Founded in 1986 by Steve Mitchell in a Sydney workshop, Haltech engineered the first real-time PC-programmable engine management system and continues to design and manufacture every ECU at its Australian headquarters. The Elite series spans the 550, 750, 1500 and 2500 standalone units for four through twelve-cylinder and rotary applications, while the flagship Nexus R5 VCU integrates ECU, power distribution and CAN keypad control on a single platform and is approved for NHRA Pro Mod, Alcohol and Factory Stock Showdown classes. Paired with the IC-7 colour dash, Haltech systems run drift, drag, time-attack and circuit cars worldwide, with calibration support for popular Japanese, American and European engine swaps.
Talk to a real motorsport specialist.
EU-based, motorsport-experienced. We'll walk through your application before you buy.
Description
Nexus R3 combines the functionality of a power distribution module, a data logger, a wideband controller and a state-of-the art engine management system in one powerful device we call a VCU (Vehicle Control Unit).
- 4 x 25A (continuous) push-pull PWM capable (5 kHz) outputs (for power to injectors / coils, transbrake, thermofan, fuel pump)
- 8 x peak/hold injector drivers (can be used as low side drive outputs)
- 8 x low current ignition outputs (can be used as low side drive outputs)
- 6 x low side drive outputs, PWM capable (DPOs)
- 6 x push-pull / h-bridge outputs (8A, PWM capable), eg for electronic throttle
- 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
- Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
- 6 x synchronous pulsed inputs, zero crossing or adjustable thresholds – cam sensor inputs, frequency inputs or 0-5V analog inputs
- 1 x on-board wideband controller, supporting NTK and LSU4.9
- 1 x on-board 4 bar MAP sensor
- 2 x CAN ports with switchable termination
Haltech Nexus R3 – VCU
Additional information
| Series | Nexus R3 |
|---|
