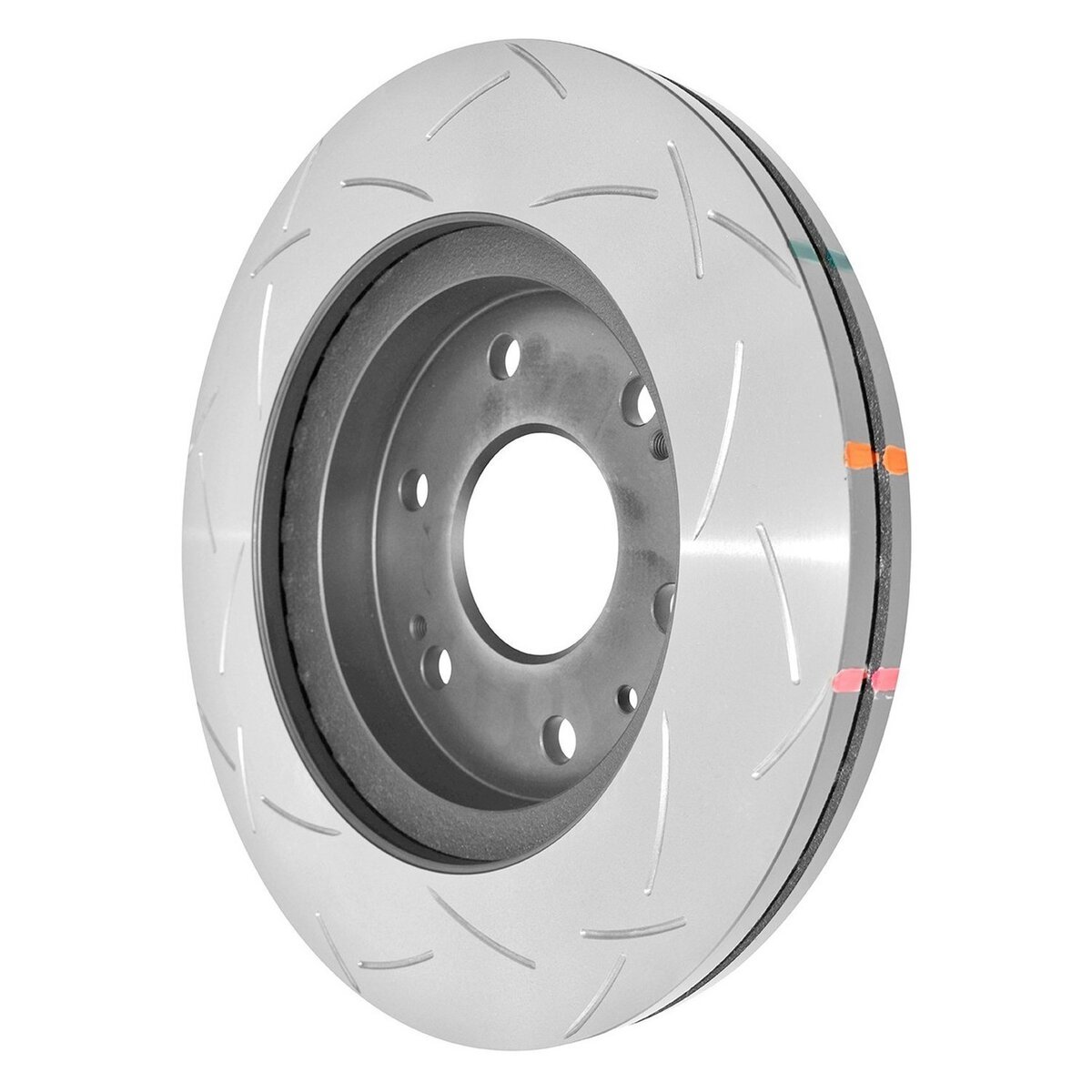

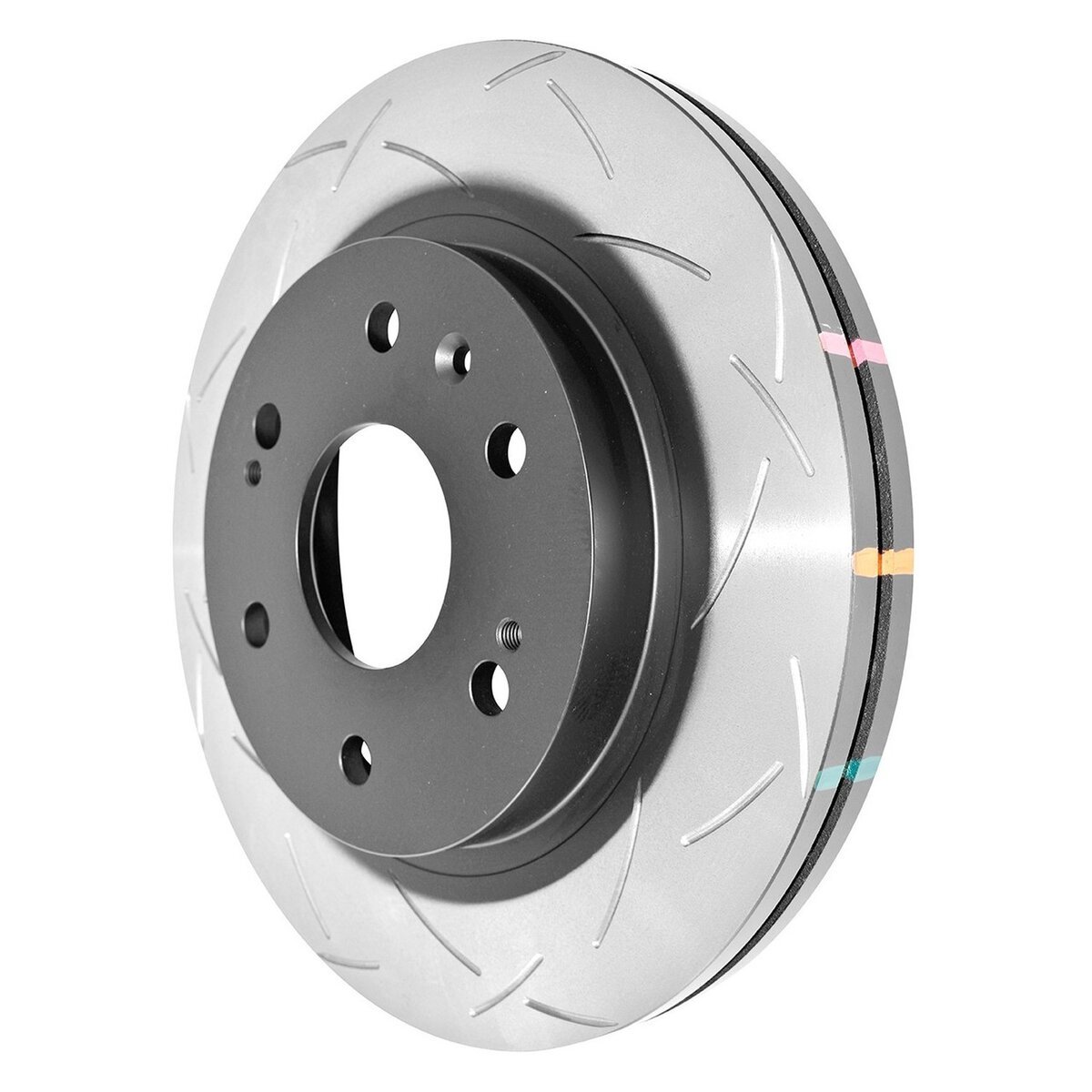

DBA42010S – 4000 Series T3 Brake Rotor; Front
€251.64 Incl. VAT
- DBA 1-Piece Brake Rotors
- Package: 1x Brake Disc
- Disc Diameter: 330mm
- Disc Type: Vented
- Material: Cast Iron
- Fits: Cadillac Escalade (3rd Gen) 2006-2014
Cadillac
Escalade (GMT926 / GMT936 / GMT946) Suv 2006 - 2014
- 6.2 2006 - 2008
- 6.2 2008 - 2014
- Hybrid 6.0 2008 - 2014
Escalade (GMTK2XL) Suv 2014 - Present
- Escalade 6.2 2014-2020
Chevrolet
Avalanche (GMT941) Suv 2007 - 2013
- 5.3 2007 - 2008
- 5.3 2008 - 2013
- 6.0 2007 - 2008
- 6.0 2008 - 2013
Tahoe (GMT2UC) Suv 2014 - 2020
- 5.3 2014 - 2020
- 6.2 2014 - 2020
Tahoe (GMT921) Suv 2005 - 2014
- 4.8 (2WD) 2005 - 2014
- 5.3 (2WD) 2005 - 2007
- 5.3 (2WD) 2008 - 2014
- 5.3 (4WD) 2005 - 2007 4Wd
- 5.3 (4WD) 2008 - 2014 4Wd
- 6.2 2008 - 2014
DBA
Disc Brakes Australia (DBA) is a leading manufacturer of high-performance brake rotors, founded in Melbourne in 1976. DBA's patented T2 and T3 slot patterns, along with their 4000 and 5000 series rotors, are trusted by motorsport competitors and performance enthusiasts globally. Every DBA rotor is manufactured and tested in Australia to rigorous quality standards.
Talk to a real motorsport specialist.
EU-based, motorsport-experienced. We'll walk through your application before you buy.
Description
The 4000 Series T3 stands as the pinnacle in direct replacement single-piece performance brake rotors, encompassing all the metallurgy advantages of the 4000 Series with the addition of DBA’s renowned T3 bi-directional slot design.
Evolved from the T2 slot foundation, the T3 slot design introduces precise CNC machined tri-symmetrical slots, resulting in a notably quieter, more responsive, and smoother brake pedal feel. The T3 slot enhances the braking experience by increasing the number of exit points for brake pad friction dust and gases, ensuring a consistent and effective performance with every brake stop.

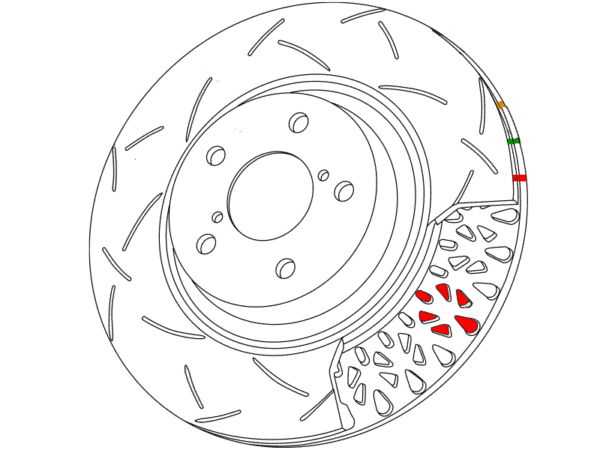

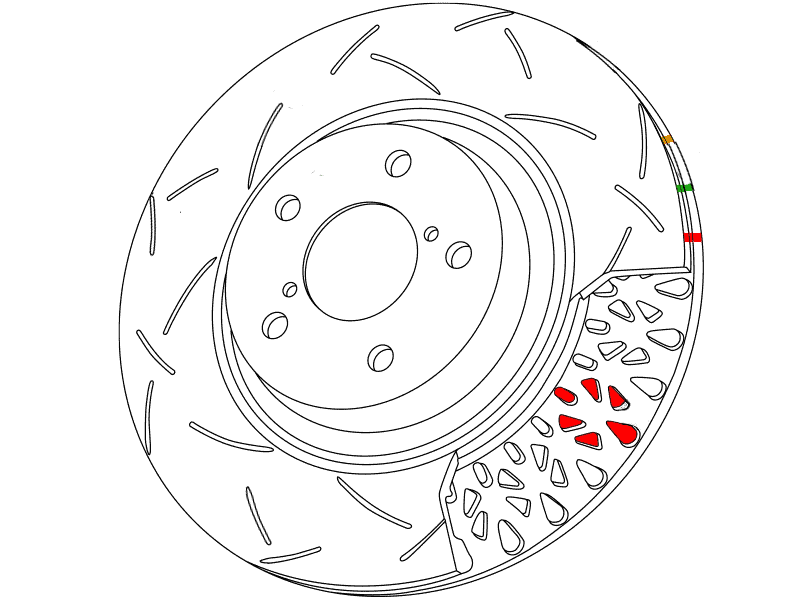

The majority of DBA’s 4000 Series Brake Rotors showcase the innovative Kangaroo Paw ventilation system. This system integrates a pattern of 144 diamond and teardrop-shaped pillars, delivering an outstanding 30% increase in surface area and a remarkable 20% enhancement in cooling efficiency when compared to conventional straight vane designs.

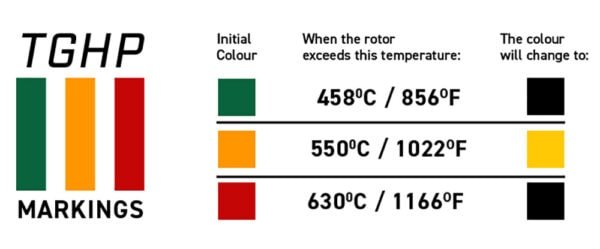

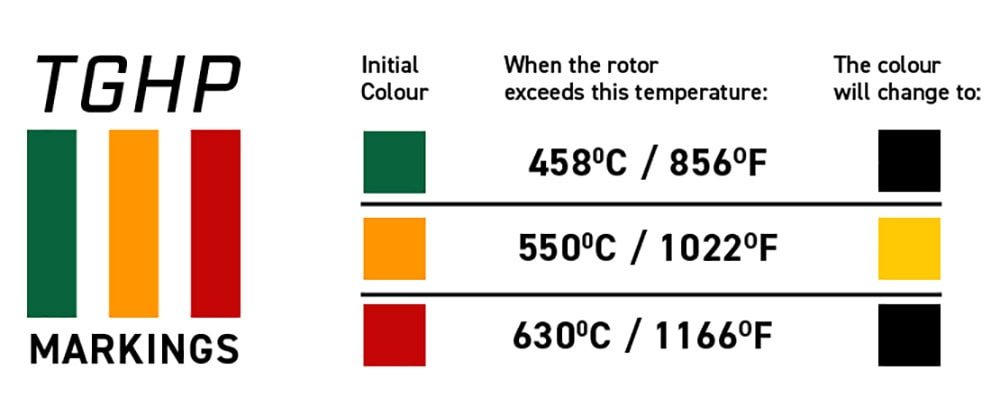

Additionally, all 4000 Series Brake Rotors are equipped with Thermographic heat paint markings. These markings undergo colour changes at specific temperature thresholds, providing a valuable visual aid for monitoring braking temperatures and rotor fatigue.
Ideal for high-performance applications, we highly recommend the 4000 Series T3 brake rotors for drivers seeking the utmost in braking excellence. Elevate your driving experience with the superior performance and innovation of the DBA 4000 Series T3 brake rotors.
Additional information
| Weight | 11.6 kg |
|---|---|
| Manufacturer | DBA |
| Bolt Circle Diameter mm | 139,70 |
| Bolt Hole Quantity | 6,00 |
| Disc Diameter (mm) | 330 |
| Disc Finish | Bi-Slotted |
| Disc Height (mm) | 55,70 |
| Hub Hole Diameter (mm) | 78,60 |
| Disc Construction | 1-Piece |
| Disc Side | Left/Right |
| Max Thickness | 30 |
| Min Thickness | 28 |
| Disc Vane Style | Kangaroo Paw |
| Disc Type | Vented |
| Disc Quality | Premium |
| Material | Cast Iron |
| Package Contents | 1x Brake Disc |
| Approvals | ECE R90 Approved |
| Approval Number | E11*90R02/06*60533*00 |
