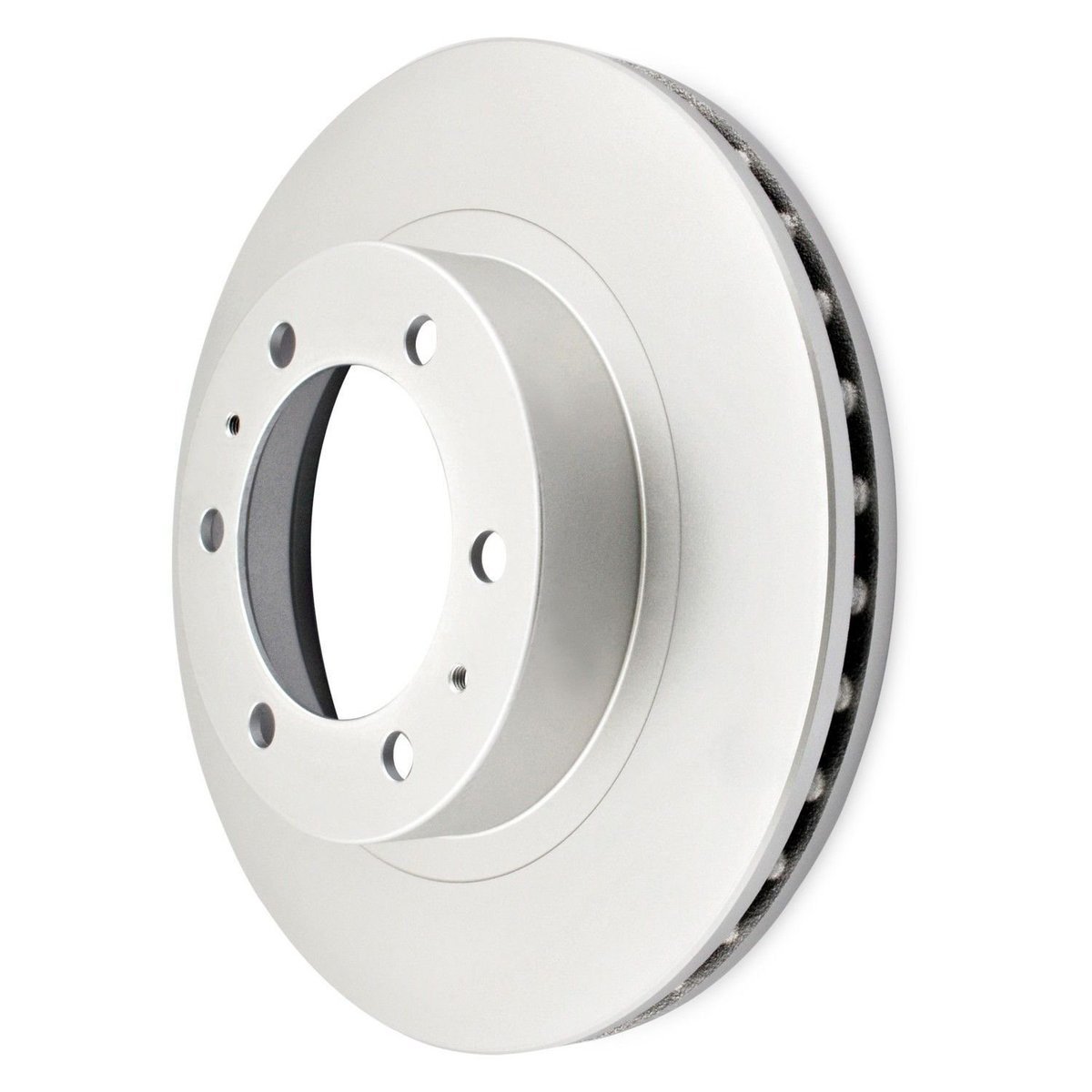

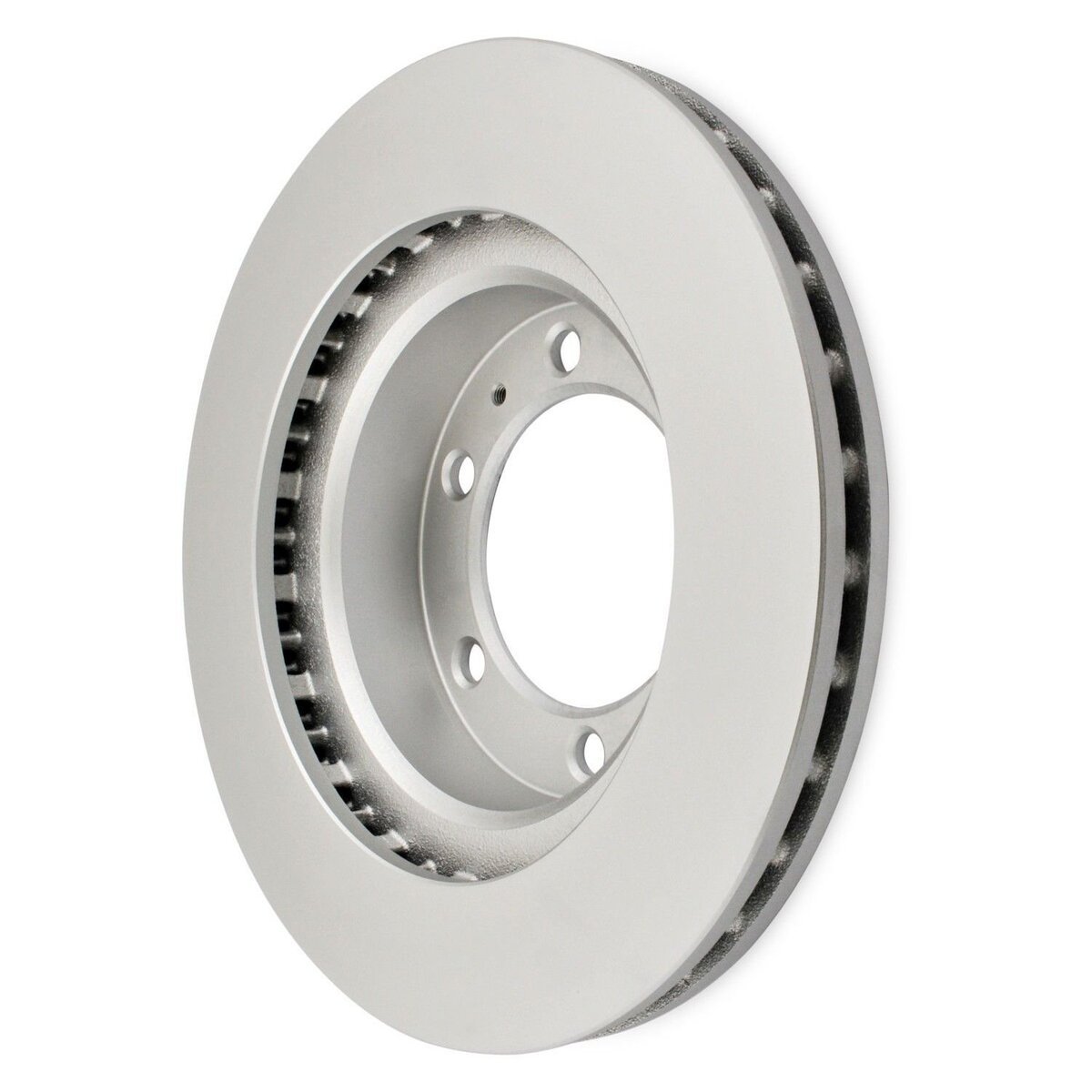

DBA2716E – Street Series En-Shield Brake Rotor; Front
€111.59 Incl. VAT
- DBA 1-Piece Brake Rotors
- Material: Cast Iron
- Package Contents: 1x Brake Disc
Does this part fit your car?
Check your carToyota
FJ Cruiser (XJ10) Suv 2006 - 2022
Hilux (1N) Truck 2015 - Present
Land Cruiser (J120) Suv 2002 - 2009
Ways to pay
- and more
DBA
DBA, Disc Brakes Australia, was founded in Sydney in 1976. Its range here is mostly brake discs, with pads to match and a few Street Series calipers.

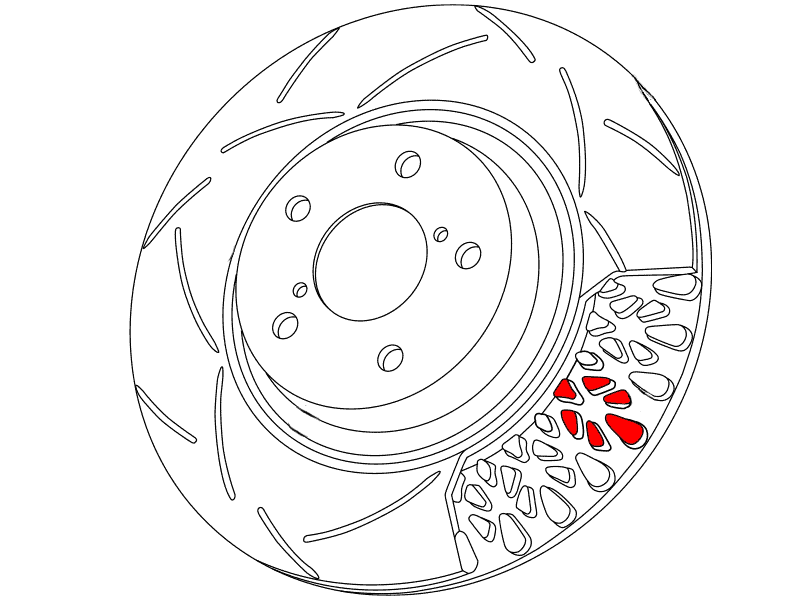

The discs are grouped by series and slot pattern. Street Series T2 and 4000 Series T3 discs make up most of the range, and 5000 Series two-piece discs are listed along with their replacement rings. Most DBA discs here have a bi-slotted face, some also cross-drilled and a few plain. Many use the Kangaroo Paw internal vane design, and a large share are listed as ECE R90 approved. The pads step up from Street Series (an OE-type ceramic) and Street Performance to Xtreme Performance (a semi-metallic carbon fibre sport pad) and Racing Performance.
Toyota has the most listings, followed by Audi, Volkswagen, Subaru, Nissan, Ford, BMW and Lexus. The Subaru Impreza, Audi TT and A3, Volkswagen Golf and Seat Leon feature most often.
Next to the other disc ranges here, DBA is the one built around slot patterns and internal vane design rather than plain, drilled or dimpled faces.
Talk to a real motorsport specialist.
EU-based, motorsport-experienced. We'll walk through your application before you buy.
Description
DBA2716E – Street Series En-Shield Brake Rotor; Front En Shield technology enhances the Street Series lineup by incorporating corrosion-resistant rotors, ensuring a durable and aesthetically pleasing appearance throughout their operational lifespan. Initiating with a water-based zinc/aluminium coating, the En Shield process covers the entire rotor surface and undergoes a baking procedure.
All DBA Street Series rotors serve as an excellent choice for drivers aiming to elevate their vehicle’s performance to OE levels, feature enhanced heat transfer and thermal efficiency which are achieved through center-split core castings and utilize a Cubic Boron Nitride (CBN) machine-turned finish minimizing disc thickness variation, reducing the risk of pad “knock” and preventing premature wear.
Designed as a direct OE replacement disc rotor, Street Series rotors stand out for their top-tier manufacturing processes, high-quality materials, and proven safety features, backed by DBA’s over 40 years of braking expertise. DBA’s Street Series rotors are the recommended choice for daily drivers, light commercial vehicles, and SUV applications.
Additional information
| Manufacturer | DBA |
|---|---|
| Bolt Circle Diameter mm | 139, 70 |
| Bolt Hole Quantity | 00, 6 |
| Disc Diameter (mm) | 319 |
| Disc Finish | Plain (Blank) |
| Disc Height (mm) | 50, 67 |
| Hub Hole Diameter (mm) | 108 |
| Disc Construction | 1-Piece |
| Disc Side | Left/Right |
| Max Thickness | 28 |
| Min Thickness | 26 |
| Disc Type | Vented |
| Disc Quality | Premium |
| Material | Cast Iron |
| Package Contents | 1x Brake Disc |
| Approvals | ECE R90 Approved |
| Approval Number | E11*90R02/06*59747*00 |
| Brake Location | Front |
DBA
DBA, Disc Brakes Australia, was founded in Sydney in 1976. Its range here is mostly brake discs, with pads to match and a few Street Series calipers.
The discs are grouped by series and slot pattern. Street Series T2 and 4000 Series T3 discs make up most of the range, and 5000 Series two-piece discs are listed along with their replacement rings. Most DBA discs here have a bi-slotted face, some also cross-drilled and a few plain. Many use the Kangaroo Paw internal vane design, and a large share are listed as ECE R90 approved. The pads step up from Street Series (an OE-type ceramic) and Street Performance to Xtreme Performance (a semi-metallic carbon fibre sport pad) and Racing Performance.
Toyota has the most listings, followed by Audi, Volkswagen, Subaru, Nissan, Ford, BMW and Lexus. The Subaru Impreza, Audi TT and A3, Volkswagen Golf and Seat Leon feature most often.
Next to the other disc ranges here, DBA is the one built around slot patterns and internal vane design rather than plain, drilled or dimpled faces.
Talk to a real motorsport specialist.
EU-based, motorsport-experienced. We'll walk through your application before you buy.
