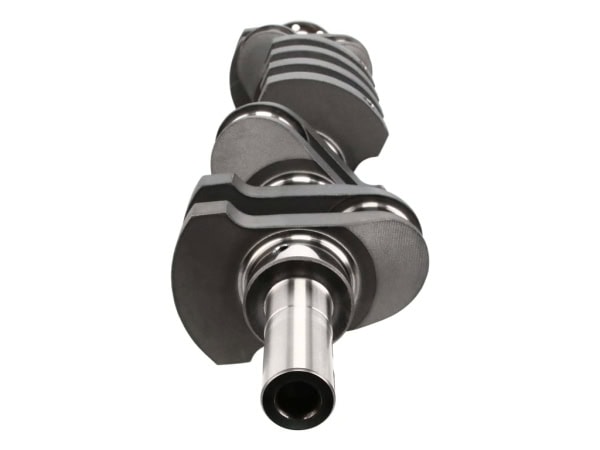

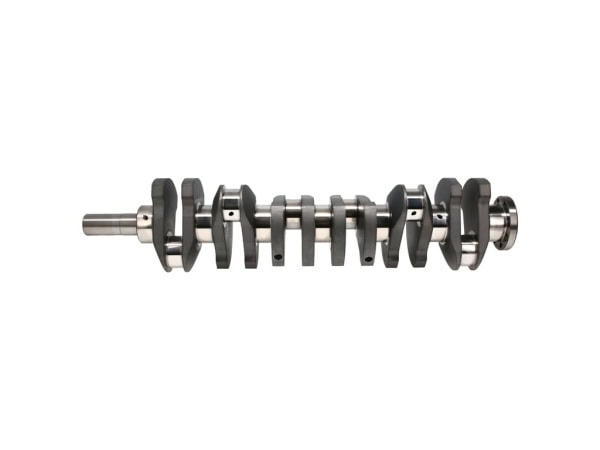

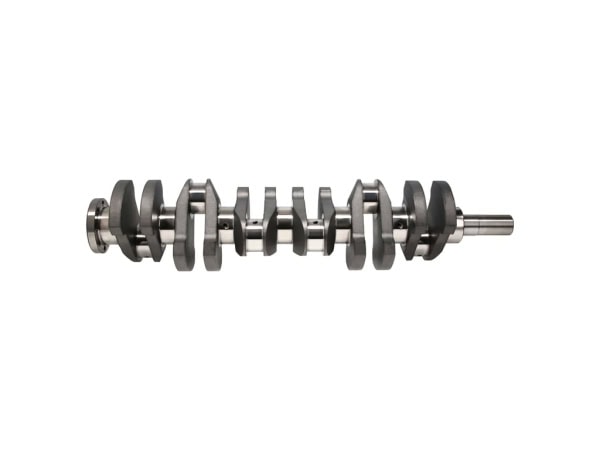

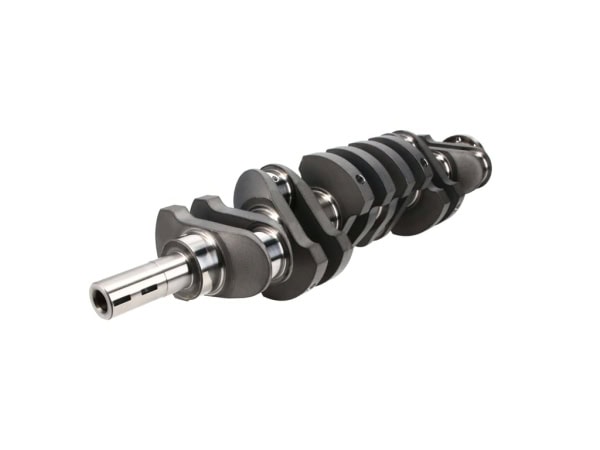

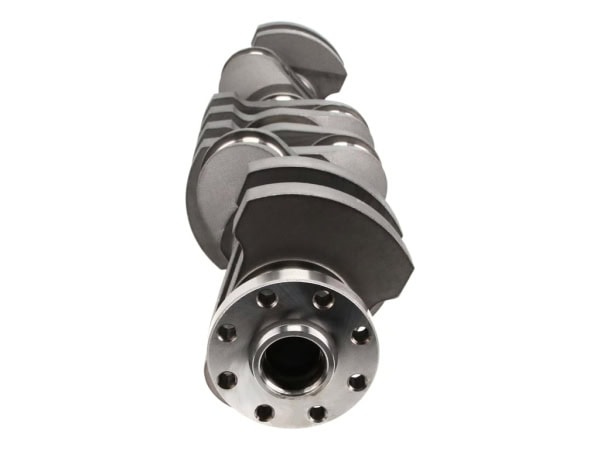

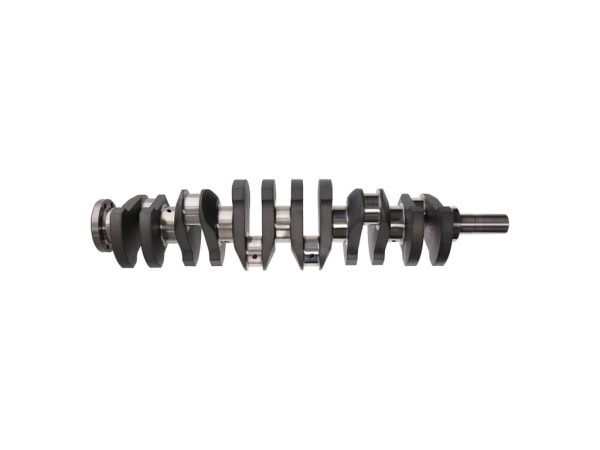

Dart Billet Crankshaft Toyota 2JZ Stroke 86mm
€5,737.88 Incl. VAT
- Brand: Dart Machinery
- Category: Pistons & Rods
- Material Type: Billet 4340 Steel
- Center Counter Weighted: Yes
- Crankshaft Flange Type: 8 Bolt
- Crankshaft Snout Style: Standard
- Engine Family: 2JZ
- Flange Type: 8 Bolt
- Fits: Toyota 3.0L 24v – 2JZ-GTE

Dart Machinery
Founded by Richard Maskin in 1981 in Oak Park, Michigan, Dart Machinery has grown into the leading American manufacturer of aftermarket cylinder heads, intake manifolds and engine blocks. Now headquartered at its Technology Center in Troy with CNC production in Warren, Michigan, Dart built its reputation on the aluminum Hemi heads that helped break drag racing's 300 mph barrier before expanding into affordable Iron Eagle and PRO 1 cylinder heads for small and big block Chevy V8s. Cast SHP iron blocks and the recent Iron Eagle 2JZ extend that range to street and race Ford and Toyota platforms. Dart hardware underpins drag, circle track, road racing and high-horsepower street builds across V8 and inline-six engines.
Talk to a real motorsport specialist.
EU-based, motorsport-experienced. We'll walk through your application before you buy.
Description
Dart Billet Crankshaft Toyota 2JZ Stroke 86mm
Specifications
| Center Counter Weighted | Yes |
|---|---|
| Crankshaft Flange Type | 8 Bolt |
| Crankshaft Snout Style | Standard |
| Engine Family | 2JZ |
| Flange Type | 8 Bolt |
| Lightened | No |
| Main Bearings Included | No |
| Main Journal Diameter | 62.00 mm |
| Make | Toyota |
| Rear Main Seal | 1-Piece |
| Rear Main Seal Type | 1-Piece |
| Reluctor Ring Included | No |
| Rod Bearings Included | No |
| Rod Journal Diameter | 52.00 mm |
| Woodruff Key Included | No |
Compatible vehicles
- Toyota 2JZ-GTE
Additional information
| Engine Type | 2JZ |
|---|---|
| EAN | 00807051008135 |
| Material | Billet 4340 Steel |
| Stroke | 86.00 mm |
