BOV Controller RacePort Blue
€731.94 Incl. VAT
- Turbosmart Blow Off Valves
- Performance forced-induction hardware for reliable power gains.
Ways to pay
Also Bancontact (BE), Przelewy24 (PL), EPS (AT) and Multibanco (PT)
Turbosmart
Turbosmart has been making turbo management products in Sydney, Australia, since 1997, and its range here is about controlling boost and fuel pressure. It covers blow-off valves (Kompact, Kompact EM, Dual Port, Plumb Back and RacePort among them), internal wastegate actuators (IWG) and external wastegates in several sizes. It also has electronic BoostGate units, manual and electronic boost controllers, and fuel pressure regulators. TS-1 turbochargers, V-band flanges, oil lines, fittings and gaskets complete the list.
A good share of the range is service parts: replacement diaphragms, springs in different pressure ratings, O-ring kits, solenoids and weld flanges. These let you rebuild or re-spring a valve rather than replace it.
Turbosmart parts are sorted by model and specification, not by car. For valves made for a particular car, the title gives the application; otherwise choose by flange size, spring pressure and fitting.
The other large range in the Turbo section is turbochargers and housings. Turbosmart is where to look for the valves, actuators and controllers that manage the boost those turbos make.
Talk to a real motorsport specialist.
EU-based, motorsport-experienced. We'll walk through your application before you buy.
Description

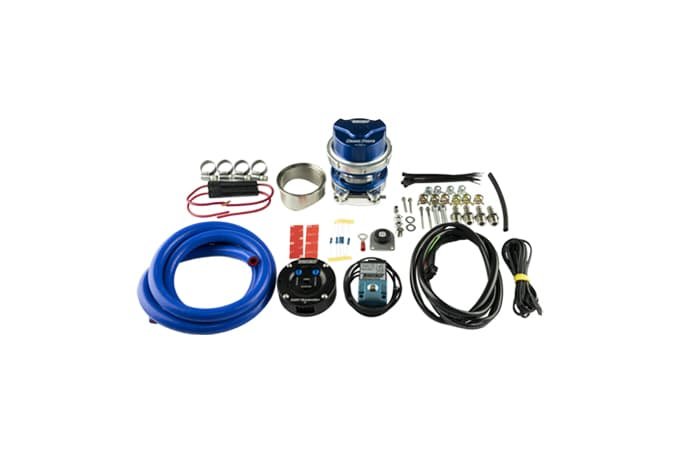

The Race Port BOV Controller Kit is everything you need to get your diesel or low / no vacuum performance engine making all the right noises! This Universal kits includes the Turbosmart BOV Controller, and a Race Port 50mm VTA (Vent to Atmosphere) Blow Off Valve.
The Turbosmart BOV Controller Kit is a kit comprising a controller, solenoid & all cables and hoses required for isntallation. The BOV Controller itself is an electrical device that takes input from your throttle pedal & uses this to energise a solenoid and vent your chosen valve. The Controller is adjustable for sensitivity and activation duration allowing you to customise it to your needs. The BOV Controller is designed to provide engines such as diesel and other ‘low/no’ vacuum signal engines where a dump or Diverter Valves is required.
The Turbosmart Race Port is famous for being an amazingly small and light BOV for torced induction competition-level engines. Featuring our unique collar design and internal flow structures, it is 50% lighter and 25% smaller than the competition while flowing 330 CFM – making it the highest flowing BOV of its type on the market.
Turbosmart’s Boost-Balance System means the more boost you feed this valve, the better it closes and seals – It is literally as simple as that. Billet Alluminium construction with a diaphragm operated valve for the fastest possisble response with V-Band fitment and a range of springs to suit your needs.
Available in
BOV Controller Unit Only: TS-0304-1003
BOV Controller with Kompact Supersonic: TS-0304-1006
BOV Controller with BOV5 Supersonic: TS-0304-1005
BOV Controller with Race Port – Black: TS-0304-1002
BOV Controller with Race Port – Blue: TS-0304-1001
BOV Controller with Bubba Sonic: TS-0304-1009
Features
Adjsutable Sensitivity
Adjustable Duration
Billet 6000 Series Aluminium Construction
CFD-Driven & Optimised Design
2.0″ / 50mm Inlet Flows Over 330CFM
Quick Release V-Band
Unique Locking Collar Design
MILSPEC HArd-Anodized Valve Guide and Stem
Hi-Temp proprietary Silicon Nomex Diaphraghm
Positive Sealing Valve Seat
Twin 1/8 NPT Reference Fittings
5 User Configurable Spring Options Available
Specifications
| Part number | TS-0304-1001 |
|---|---|
| EAN | 9329677010404 |
| Manufacturer | Turbosmart |
| Weight | 1.35 kg |
