99.5-03 Ford 7.3L Powerstroke Diesel PTX38 Turbo Turbine Wheel Shaft Rebuild Kit

Description

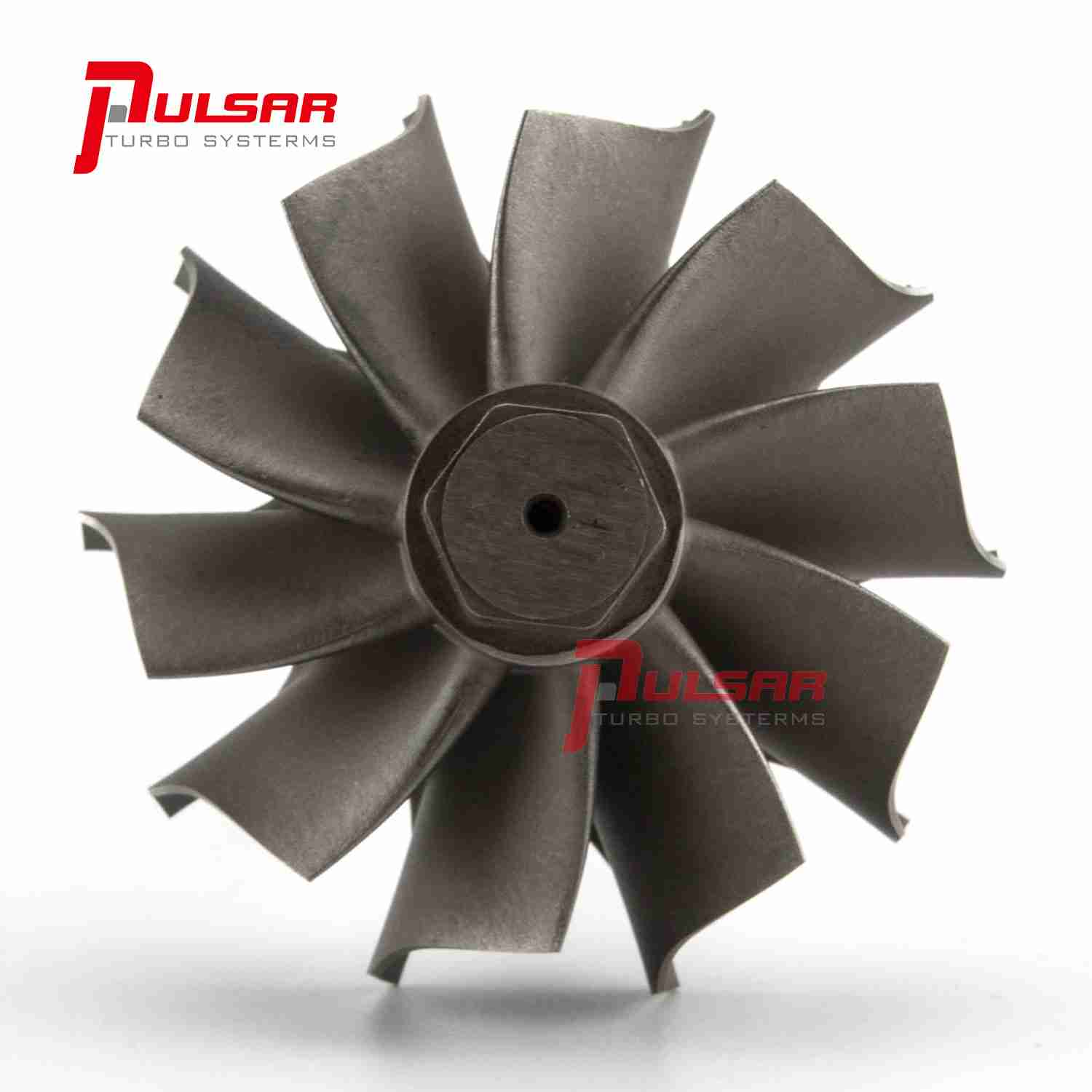

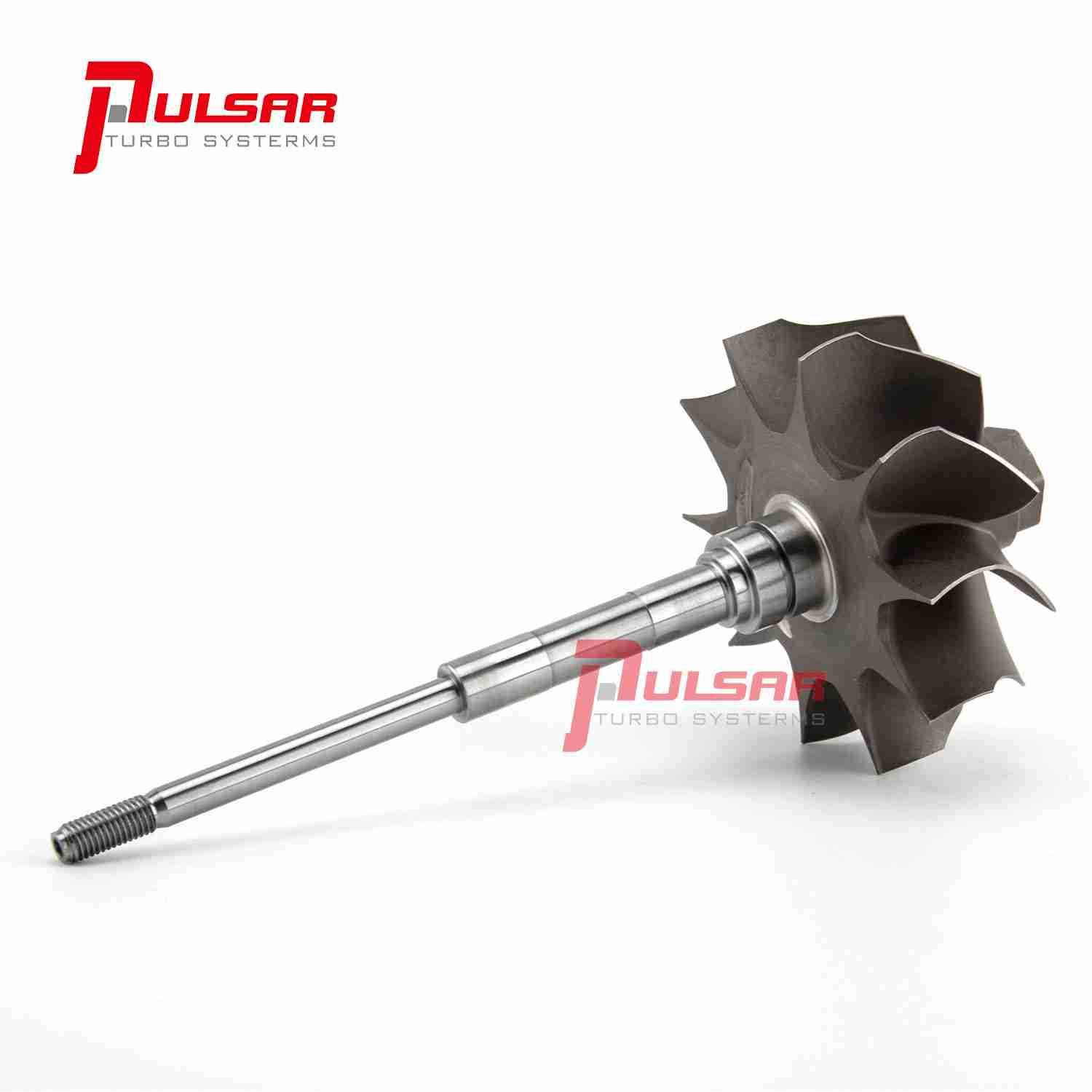

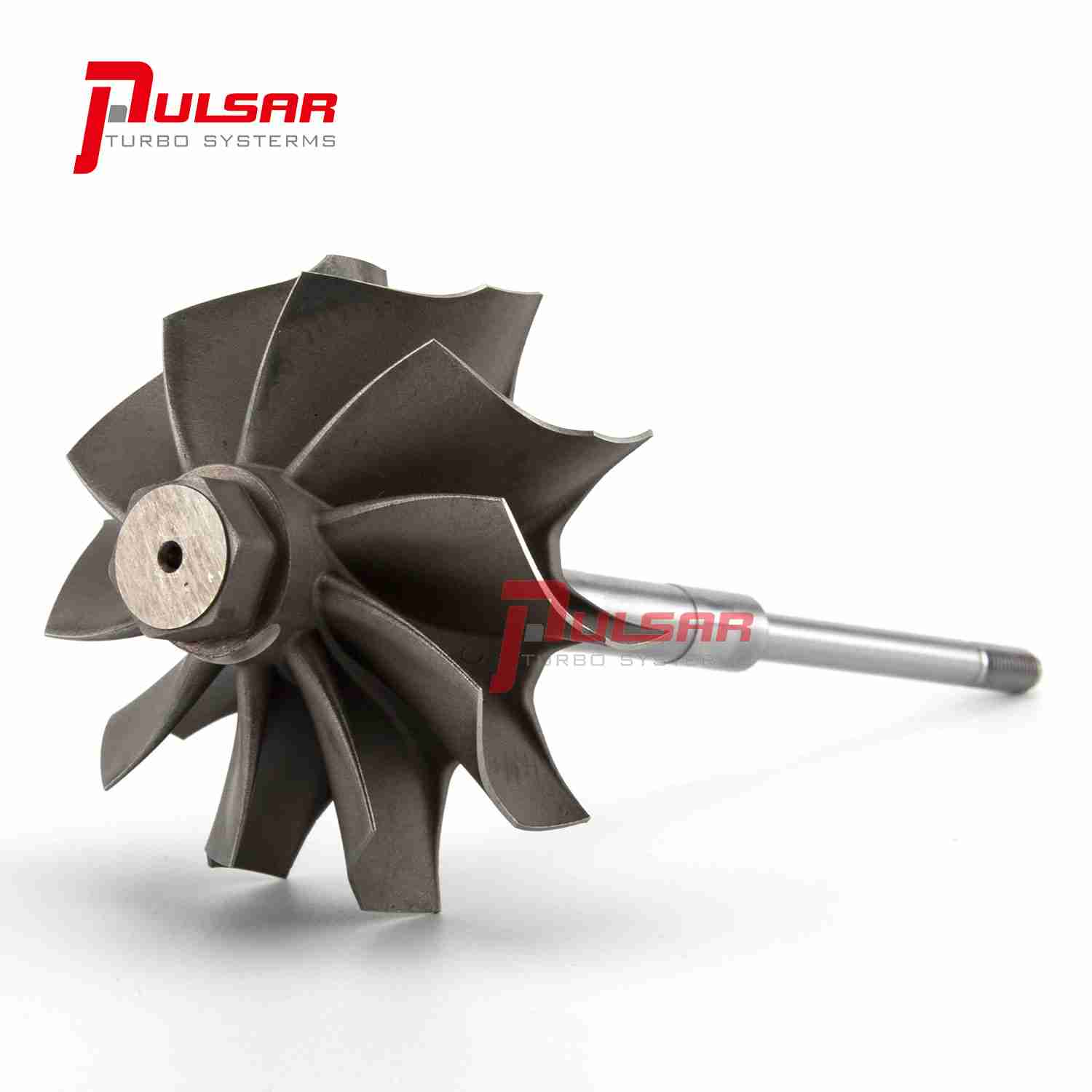

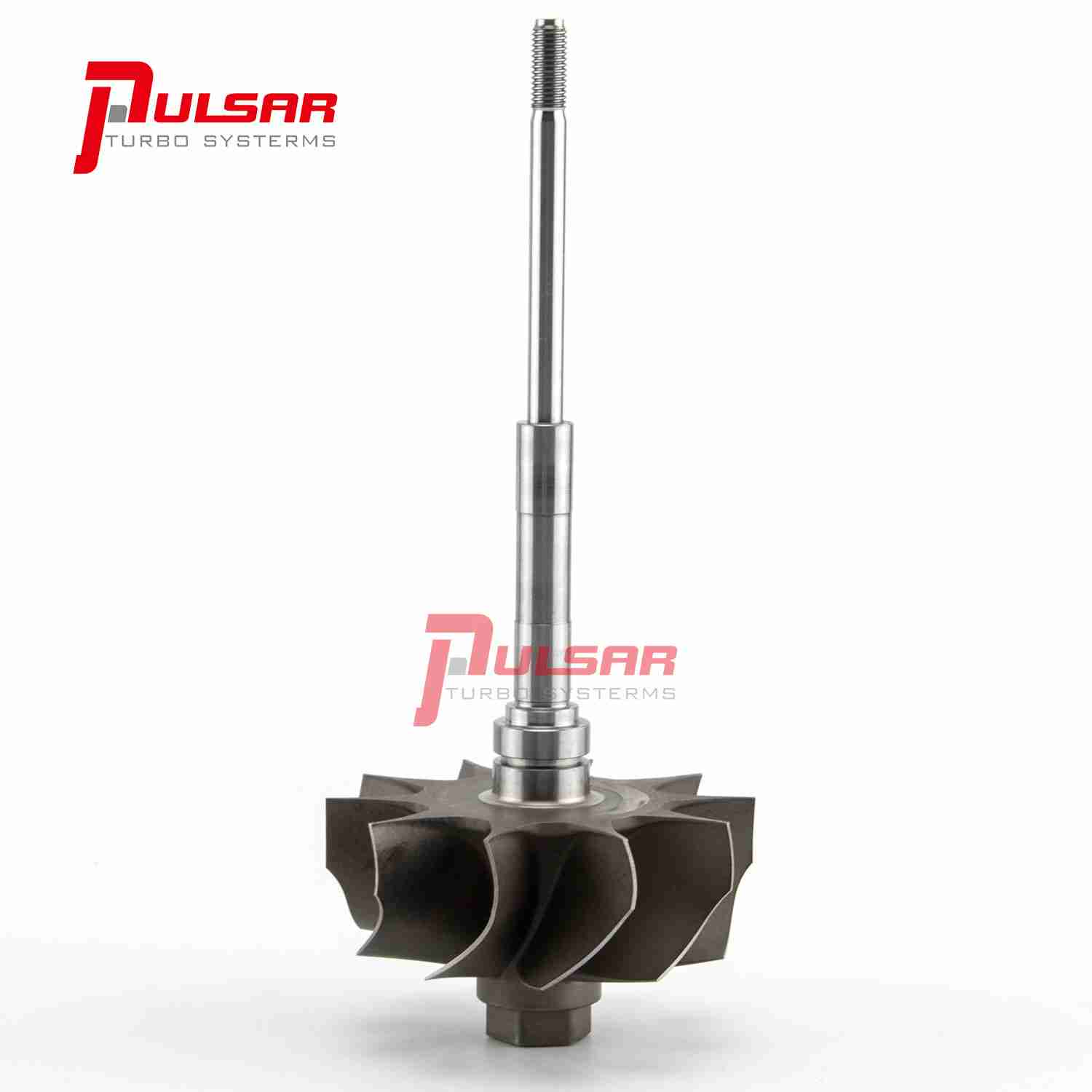

Turbine Wheel + Rebuild Repair Kit for 99.5-03 Ford 7.3L Powerstroke Diesel Stock PTX38 Turbo

\n

-Application:

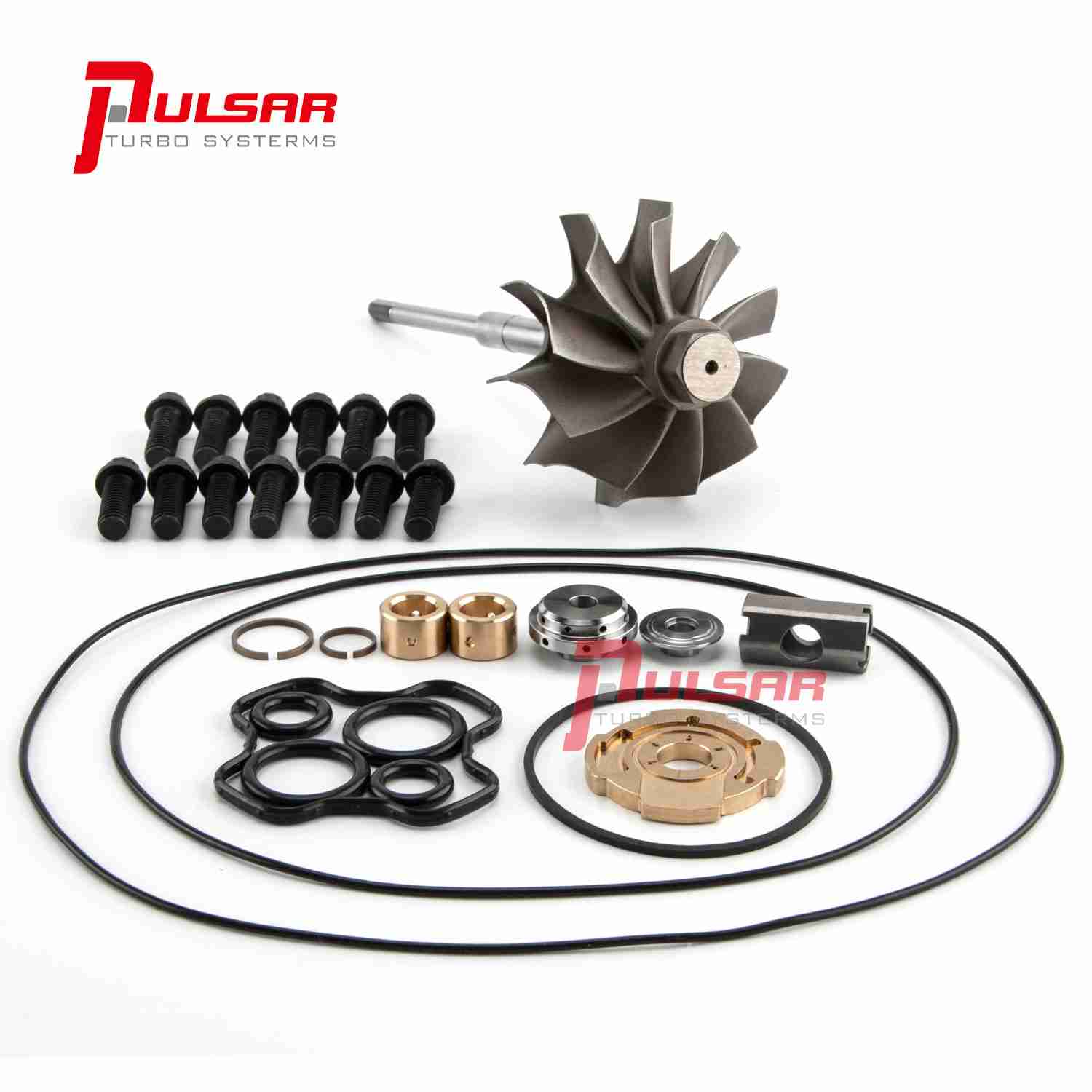

\n-Stock turbo parts Fitment – No modifications required.\n\n-1999.5-2003 Ford 7.3L Powerstroke Stock Size Genuine PTX38 Turbo ONLY\n\n-Reference P/N:\n\nTurbine Wheel: 445604-0601\n\nRepair Kit: 447571-0820 740659-0008\n\n-Item Details:\n\nTurbine Wheel&Shaft Material: Inconel\n\nTurbine Wheel Inducer: 76.50 mm\n\nTurbine Wheel Exducer: 67.78 mm\n\nTurbine Wheel Tip Height: 11.90 mm\n\nJournal: 10.16 mm\n\nStem: 6.35 mm\n\nTurbine Wheel Blades: 10\n\nStepped gap seal ring on the turbine end\n\nStepped gap seal ring on the compressor end\n\nTwin hydrodynamic journal bearings\n\n360 Degree Thrust Bearing CNC machined from COOPER BAR\n\nThis rebuild kit contains:\n\n1* PTX38 TURBINE WHEEL&SHAFT\n\n1*PTX38 COMPRESSOR HOUSING SEAL O-RING\n\n1*TX38 COMPRESSOR HOUSING SEAL O-RING\n\n1*PTX38 BACK PLATE SEAL O-RING\n\n1*TX38 BACK PLATE SEAL O-RING\n\n2*PEDESTAL SEAL O-RING\n\n2*PEDESTAL SEAL O-RING\n\n1*360 DEGREE COPPER THRUST BEARING\n\n1*THRUST COLLAR\n\n1*THRUST SPACER\n\n2*JOURNAL BEARING\n\n1*BEARING SPACER\n\n13*HOUSING BOLT\n\n1*COMPRESSOR END SEAL RING(STEPPED GAP)\n\n1*TURBINE END SEAL RING(STEPPED GAP)\n\n-Special Note:\n\n
