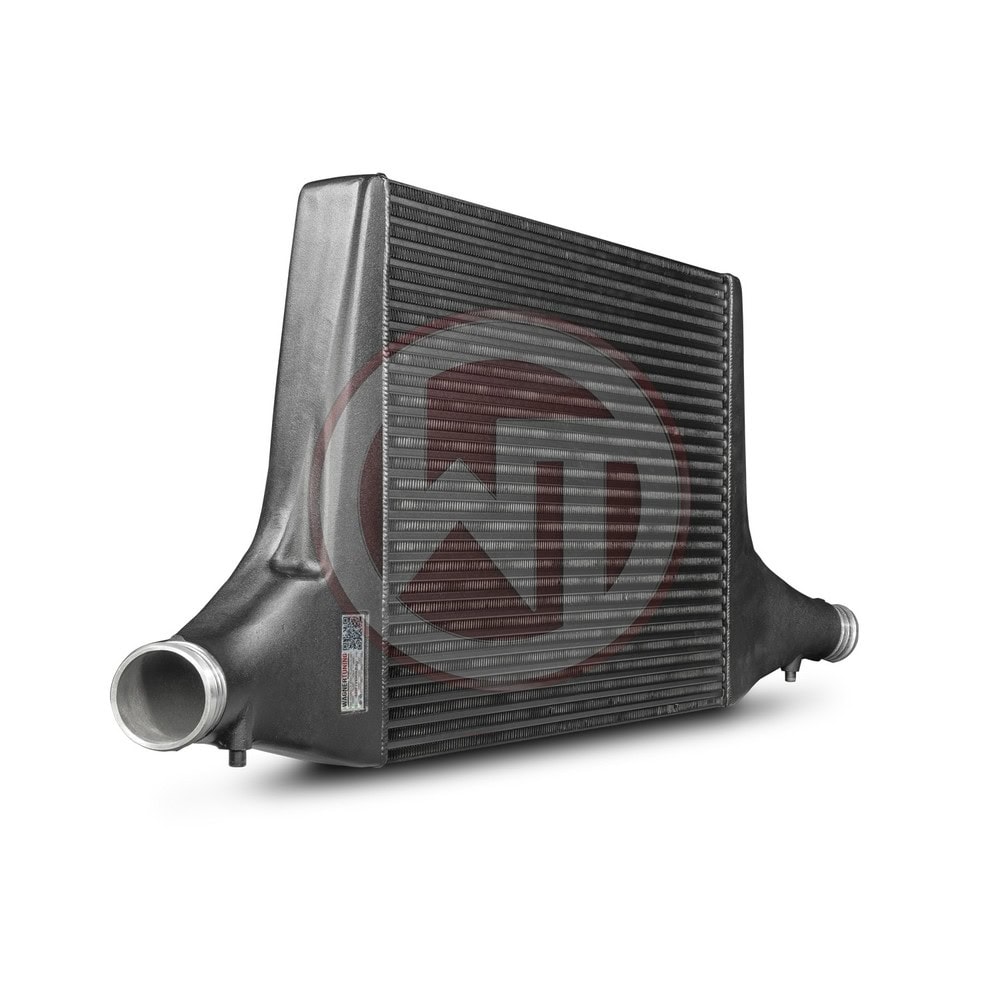

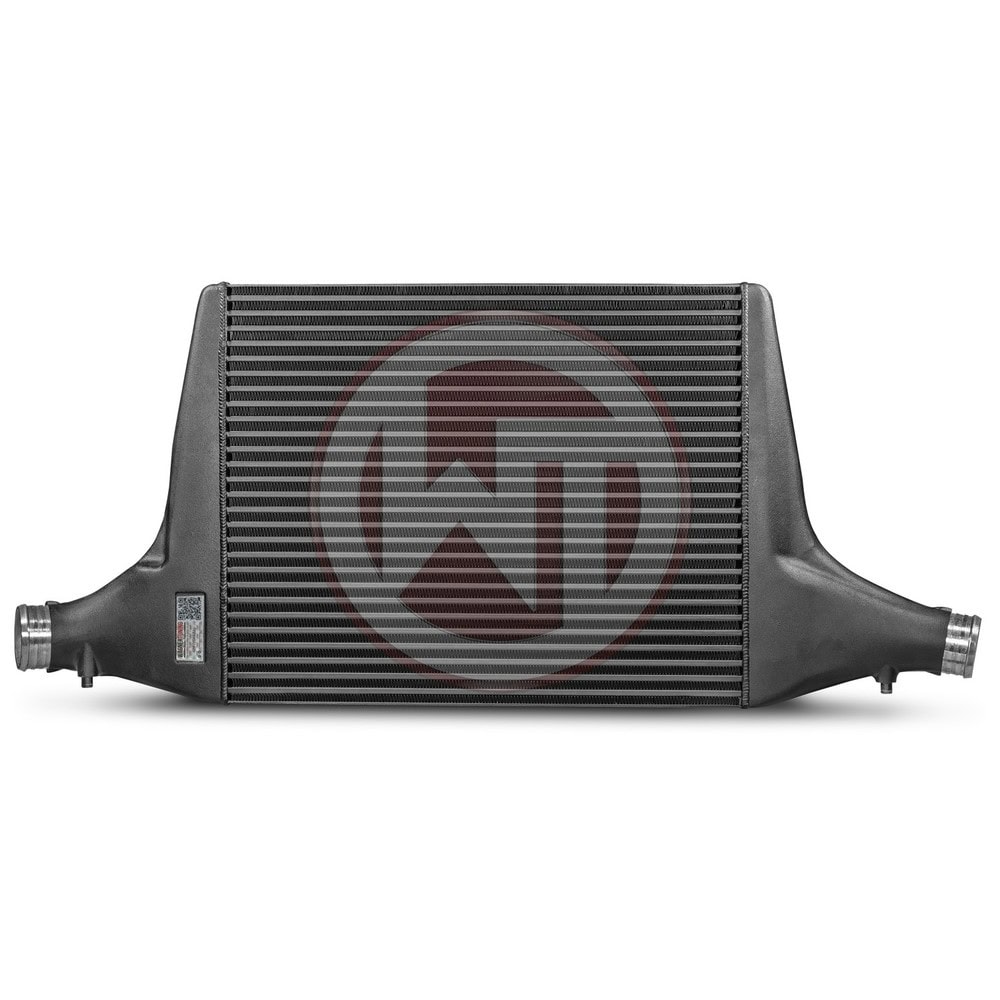

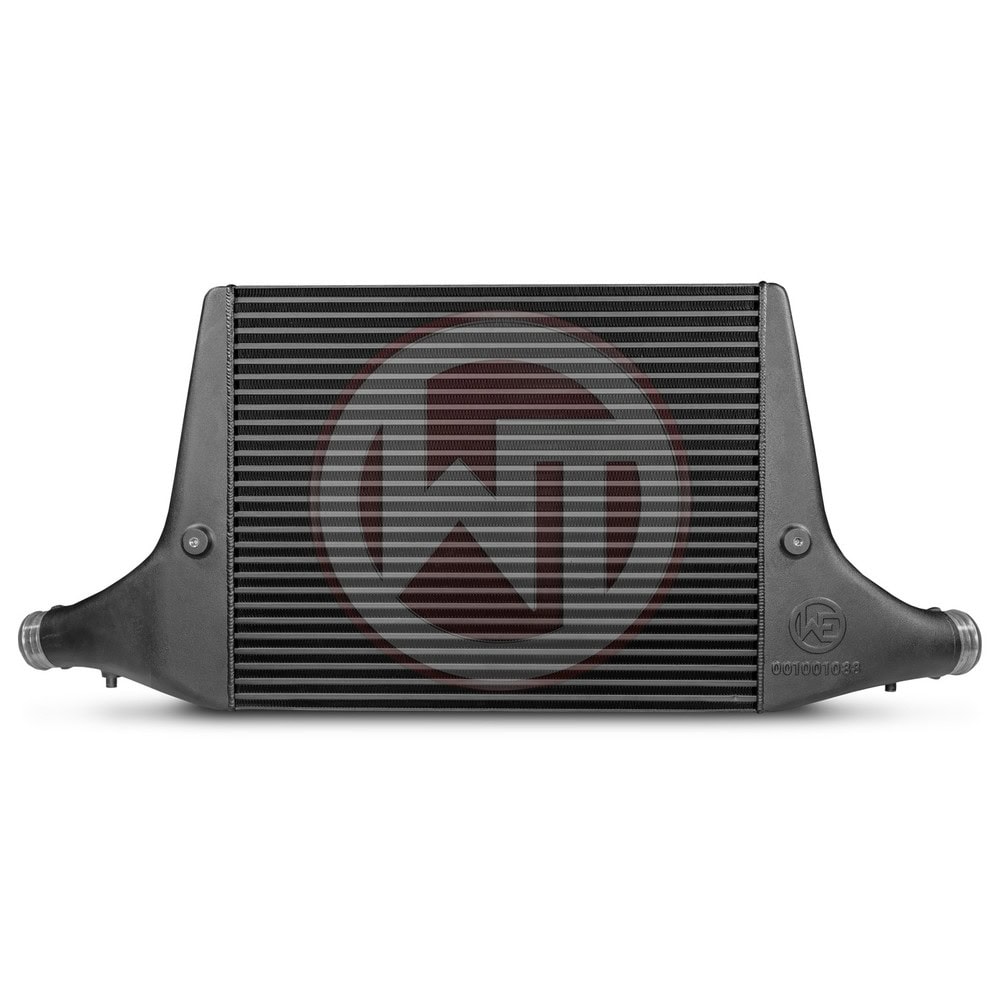

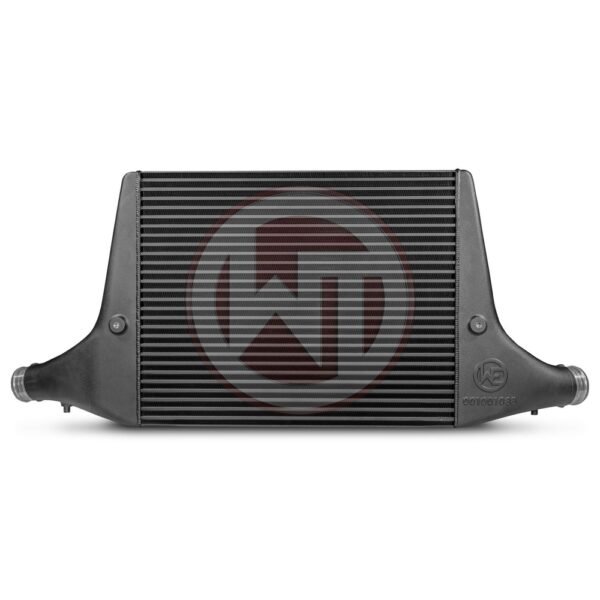

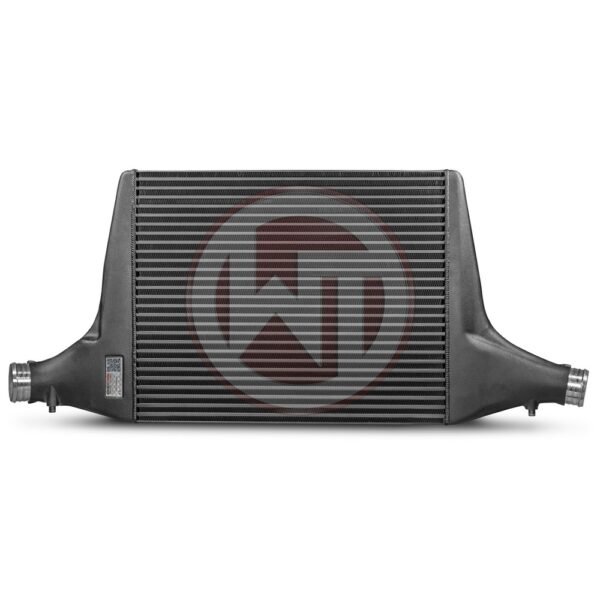

Intercooler Audi A4 B9 2015- 2.0 TFSI, 35TFSI, 40TFSI, 45TFSI Wagner Competition kit

Description

Competition Intercooler Kit for Audi A4 B9 / A5 F5 – Fits:

Audi A4 B9 2.0 TFSI ultra 140 kW / 190 HP (2015–2018)
Audi A4 B9 2.0 TFSI 185 kW / 252 HP (2015–2018)
Audi A4 B9 35 TFSI 110 kW / 150 HP (2018+)
Audi A4 B9 40 TFSI 140 kW / 190 HP (2018+)
Audi A4 B9 45 TFSI 180 kW / 245 HP (2019+)
Audi A5 F5 2.0 TFSI ultra 140 kW / 190 HP (2016–2018)
Audi A5 F5 2.0 TFSI 185 kW / 252 HP (2016–2018)
Audi A5 F5 35 TFSI 110 kW / 150 HP (2018+)
Audi A5 F5 40 TFSI 140 kW / 190 HP (2018+)
Audi A5 F5 45 TFSI 180 kW / 245 HP (2019+)

Core dimensions: 550 mm x 445 mm x 70 mm = 17,130 cm³, providing 134% more frontal area and 105% more charge air volume.
Tube-Fin core design. Weight: 9.5 kg.

Connection diameters: Ø62 mm at the intercooler inlet and Ø67 mm at the intercooler outlet.

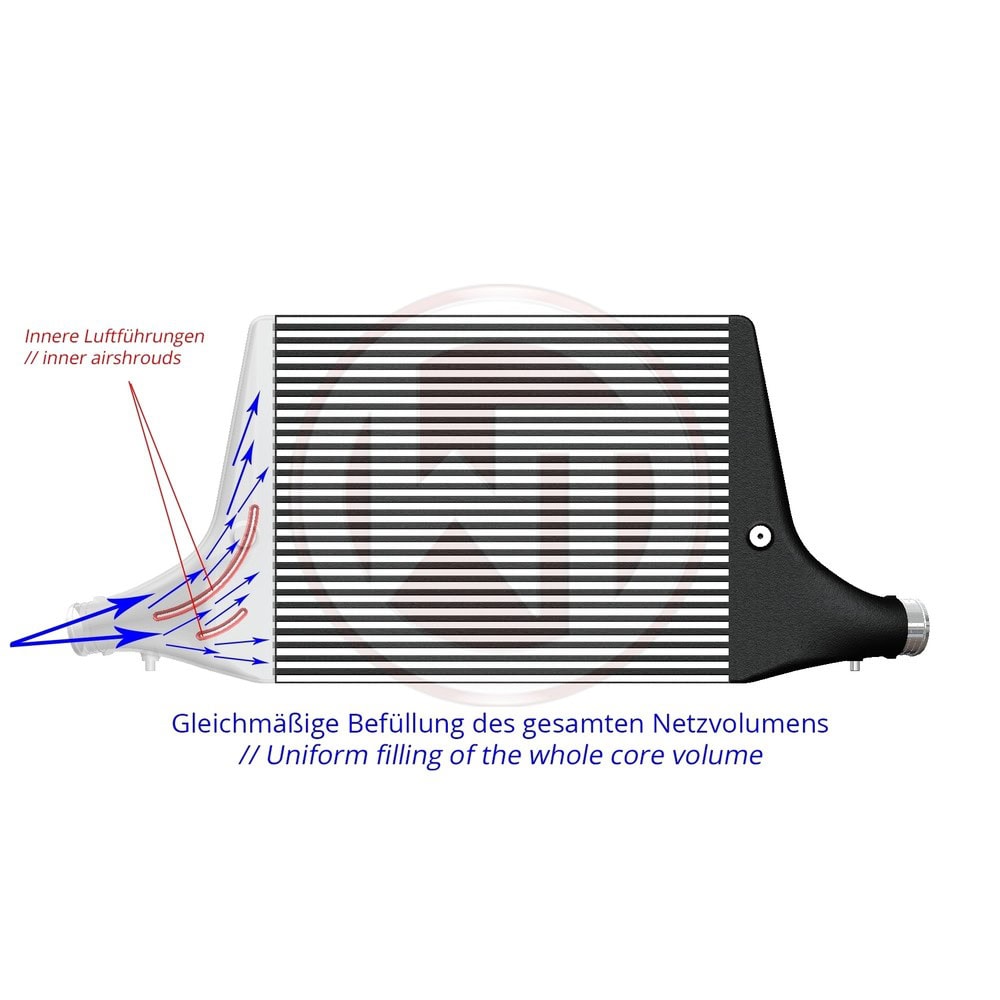

Excellent cooling performance with minimal back pressure. Complete installation-ready kit that directly replaces the original intercooler – plug and play. Pressure tested and stable up to 6 bar. Suitable for motorsport use.

Original intercooler:
720 mm x 145 mm x 80 mm
Volume: 8.35 L
Frontal area: 1044 cm²

WAGNER TUNING intercooler:
550 mm x 445 mm x 70 mm
Volume: 17.13 L
Frontal area: 2447 cm²

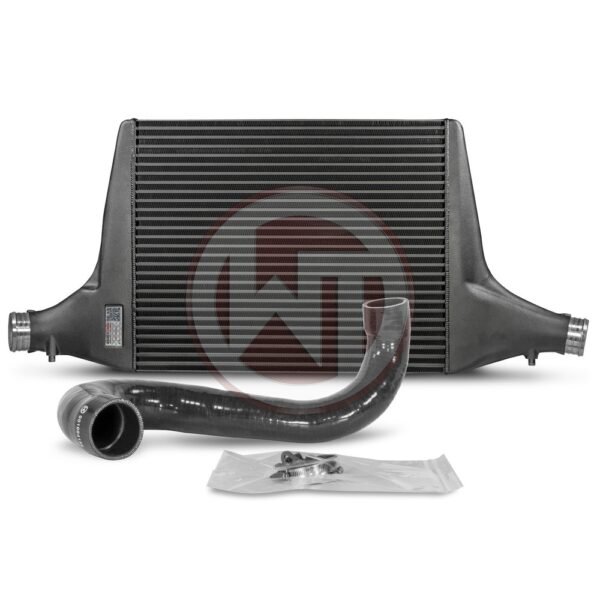

Package contents:

• 1 intercooler (black coating)

• 1 silicone hose (black)

• Mounting hardware

• Installation manual
