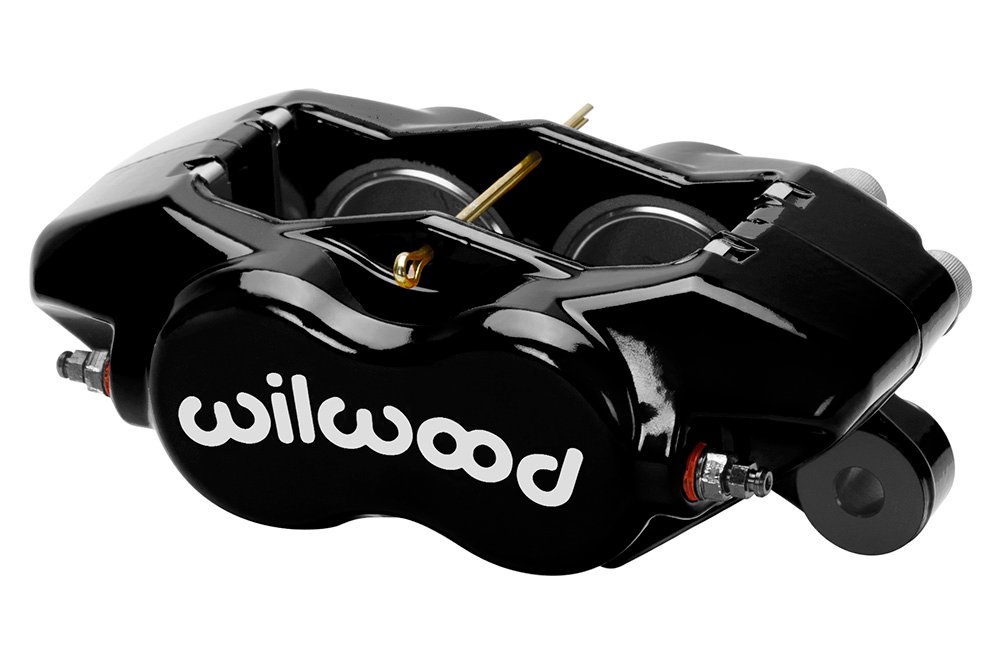

120-13846-BK – Wilwood Forged Dynalite Internal Brake Caliper; Black – Axial Left & Right
€342.16 Incl. VAT
- Wilwood Brake Calipers
- Material: Aluminium
- Package Contents: 1x Brake Caliper
- Caliper Color: Black
- Piston Size: 44,5/44,5mm
Wilwood
Wilwood Engineering was founded in 1977 in Camarillo, California, USA. The company designs and manufactures complete brake systems for motorsport, high-performance road use, hot rods, and custom vehicles. Unlike most aftermarket brake brands, Wilwood manufactures both calipers and rotors entirely in-house in the United States.
Their caliper range includes the widely used Dynapro, Dynalite, and Superlite series, available in radial and tangential mount configurations to suit a broad range of vehicle platforms. Wilwood big brake kits are popular for replacing inadequate OEM systems on track cars, offering larger rotor diameters and multi-piston calipers for improved heat capacity and pedal feel.
Wilwood also supplies master cylinders, brake bias bars, and proportioning valves — making them a one-brand solution for building or upgrading an entire brake system. They are extensively used in SCCA road racing, NASA events, oval racing, and purpose-built track cars in North America.
Talk to a real motorsport specialist.
EU-based, motorsport-experienced. We'll walk through your application before you buy.
Description
120-13846-BK – Wilwood Forged Dynalite Internal Brake Caliper; Black – Axial Left & Right The Wilwood Forged Billet Dynalite Internal is the new generation enhancement of the venerable Forged Dynalite series calipers. Produced with a spacer less and single split bridge design to improve appearance and strength.
These latest added improvements and novelties in caliper design and manufacturing processes have resulted in extensive improvements in strength and performance over all similar models. This new spacer-less design of the Forged Dynalite series of calipers, makes this the stiffest and most visual pleasing design so far.
The Forged Billet Dynalite Internal is the strongest caliper in the class, with weights starting at 1,3kg. Incorporating a radius in this transition area makes it extensively more resistant to deflection and caliper separation under load. Structural deflection and volume displacement tests have proven the Forged Dynalite will outperform all existing styles of this popular caliper size.
Additional information
| Manufacturer | Wilwood |
|---|---|
| Caliper Color | Black |
| Piston Size | 44, 5/44, 5mm |
| Material | Aluminium |
| Package Contents | 1x Brake Caliper |

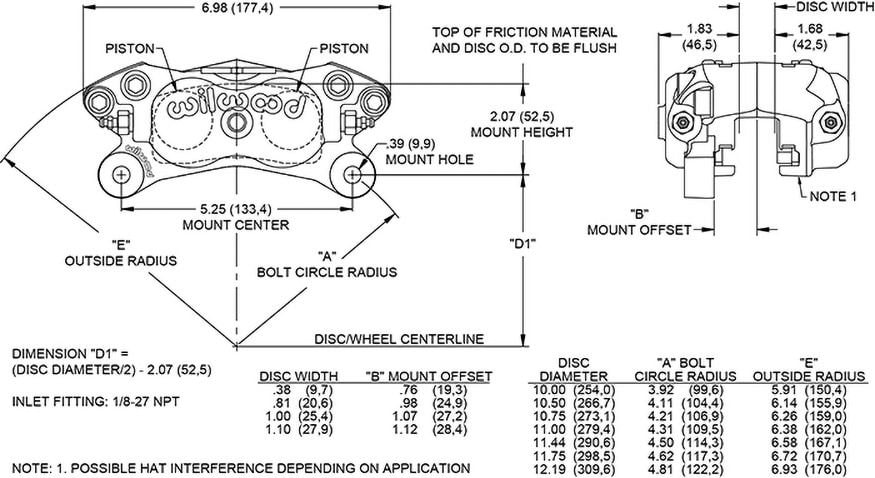

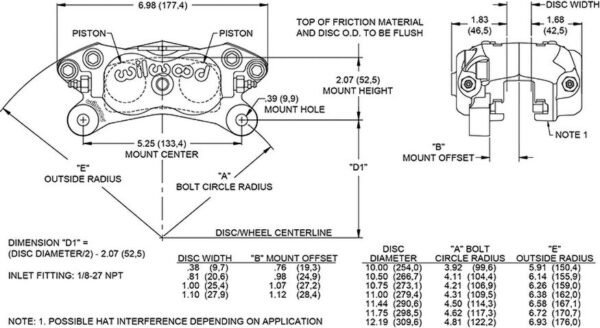

| Caliper Max. Disc Width (mm) | 27.9mm |
| Caliper Max. Disc Diameter (mm) | 332 |
| Caliper Mounting Centres (mm) | 133, 4 |
