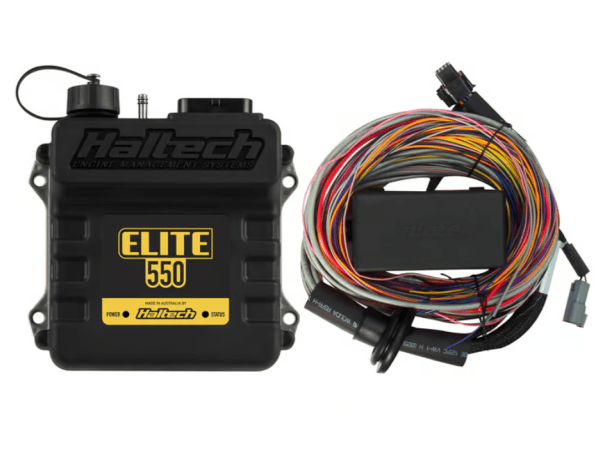

Elite 550 + Premium Uni Wire-in Harness Kit L: 5.0m (16′)
€1,213.38 Incl. VAT
- Brand: Haltech
- Category: ECUs
Haltech
Founded in 1986 by Steve Mitchell in a Sydney workshop, Haltech engineered the first real-time PC-programmable engine management system and continues to design and manufacture every ECU at its Australian headquarters. The Elite series spans the 550, 750, 1500 and 2500 standalone units for four through twelve-cylinder and rotary applications, while the flagship Nexus R5 VCU integrates ECU, power distribution and CAN keypad control on a single platform and is approved for NHRA Pro Mod, Alcohol and Factory Stock Showdown classes. Paired with the IC-7 colour dash, Haltech systems run drift, drag, time-attack and circuit cars worldwide, with calibration support for popular Japanese, American and European engine swaps.
Talk to a real motorsport specialist.
EU-based, motorsport-experienced. We'll walk through your application before you buy.
Description
ECU OVERVIEW
The Elite 550 is a simple yet powerful ECU ideal for basic 4 to 8-cylinder or 1-2-rotor engine applications. Suitable for either naturally aspirated or forced induction engines the Elite 550 gives you full control over fuel delivery, ignition timing and boost levels. This robust, competitively priced ECU features an environmentally sealed, waterproof case, 4 fuel and 4 ignition channels and a 4 BAR internal MAP sensor. The Elite 550 ECU is now paired with the new Nexus Software Programmer (NSP) that brings levels of functionality and user-friendliness never seen before in an engine control package. Together they offer true cutting-edge technology to tuners and performance enthusiasts worldwide.
- Supports 1 to 8 Cylinder engines
- 1 to 2 Rotor engines
- Normally aspirated or forced induction
- Load sensing by Throttle Position (TPS), Manifold Absolute Pressure (MAP) or Mass Air Flow (MAF)
- Sequential, semi-sequential, batch or multipoint injection patterns
- Ignition modes include Direct fire multi-coil, Distributor ignition, or Haltech CDI systems
- Connect to a wide range of Dashes, displays and expansion devices via CAN.
- Waterproof case (IP67) (with USB cover fitted)
- 34 position AMP connector
- 4 x Fuel Injection Outputs (peak and hold (0-8A peak / 0-2A hold)
- 4 x Ignition Outputs
- 2 x Dedicated Engine Position inputs with extensive trigger type support
- 1 x Digital Pulsed Input
- 5 x Digital Pulsed Outputs
- 1 x Analogue Voltage Input
- 3 x Dedicated Inputs (Throttle Position, Coolant Temperature & Air Temperature)
- Internal 4 Bar MAP sensor measuring up to 300kPa/3Bar/45psi of boost pressure.
- Up to 33 channels of Input & Output (I/O) expansion (via CAN)
- USB Laptop Communication (Windows)
- Now using the new NSP Calibration Software
Elite 550 + Premium Uni Wire-in Harness Kit L: 5.0m (16')
Additional information
| Series | Elite 550 |
|---|
