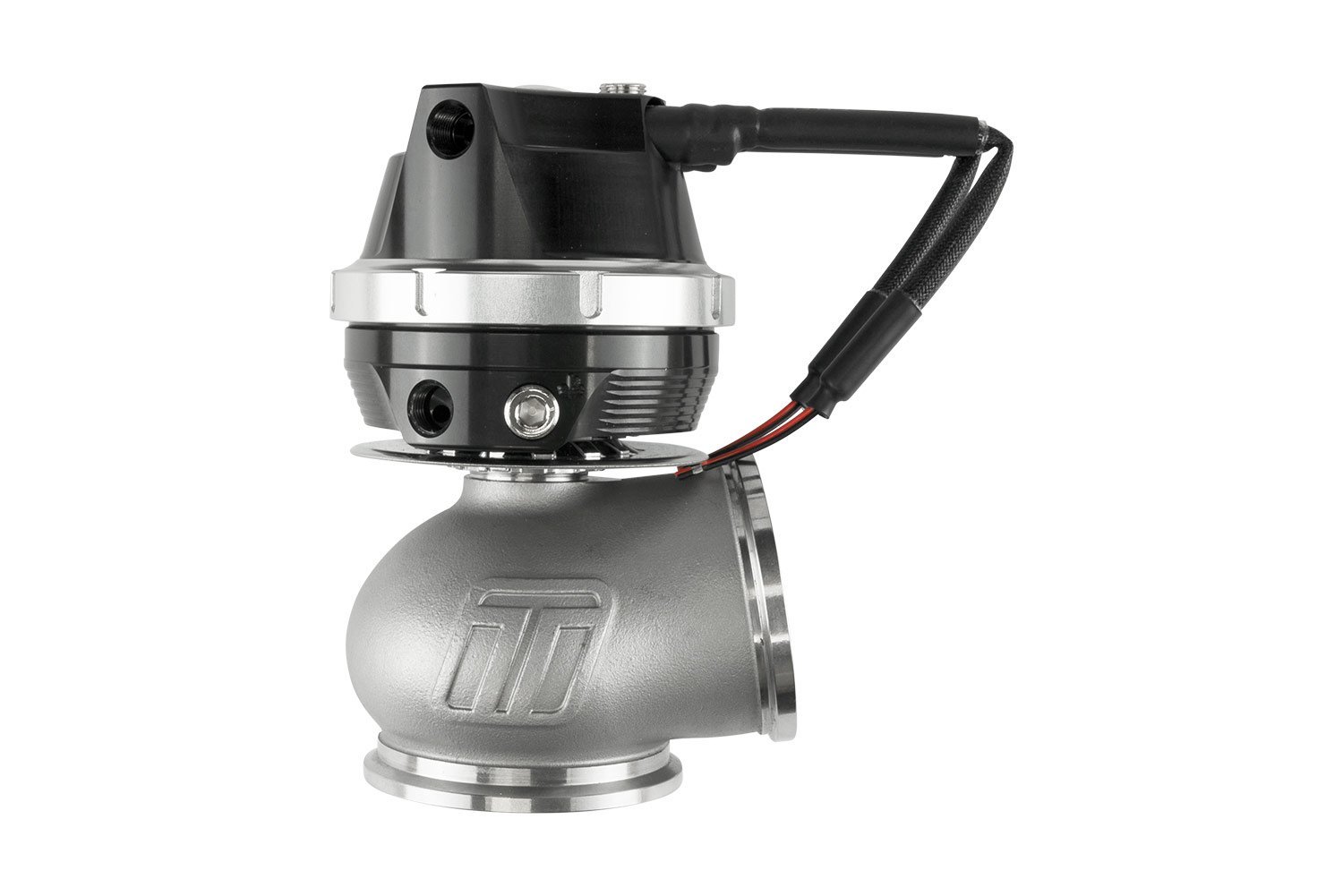

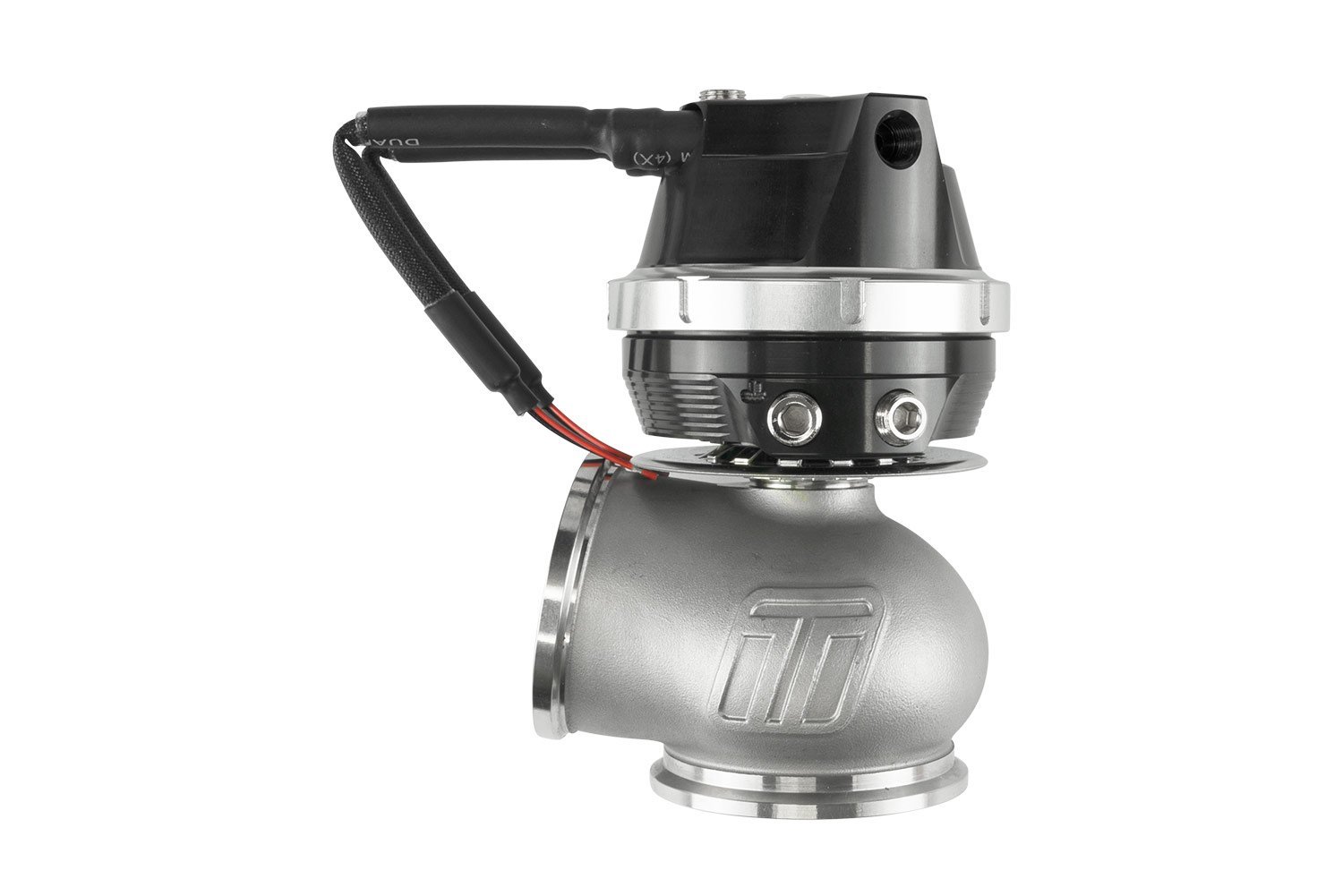

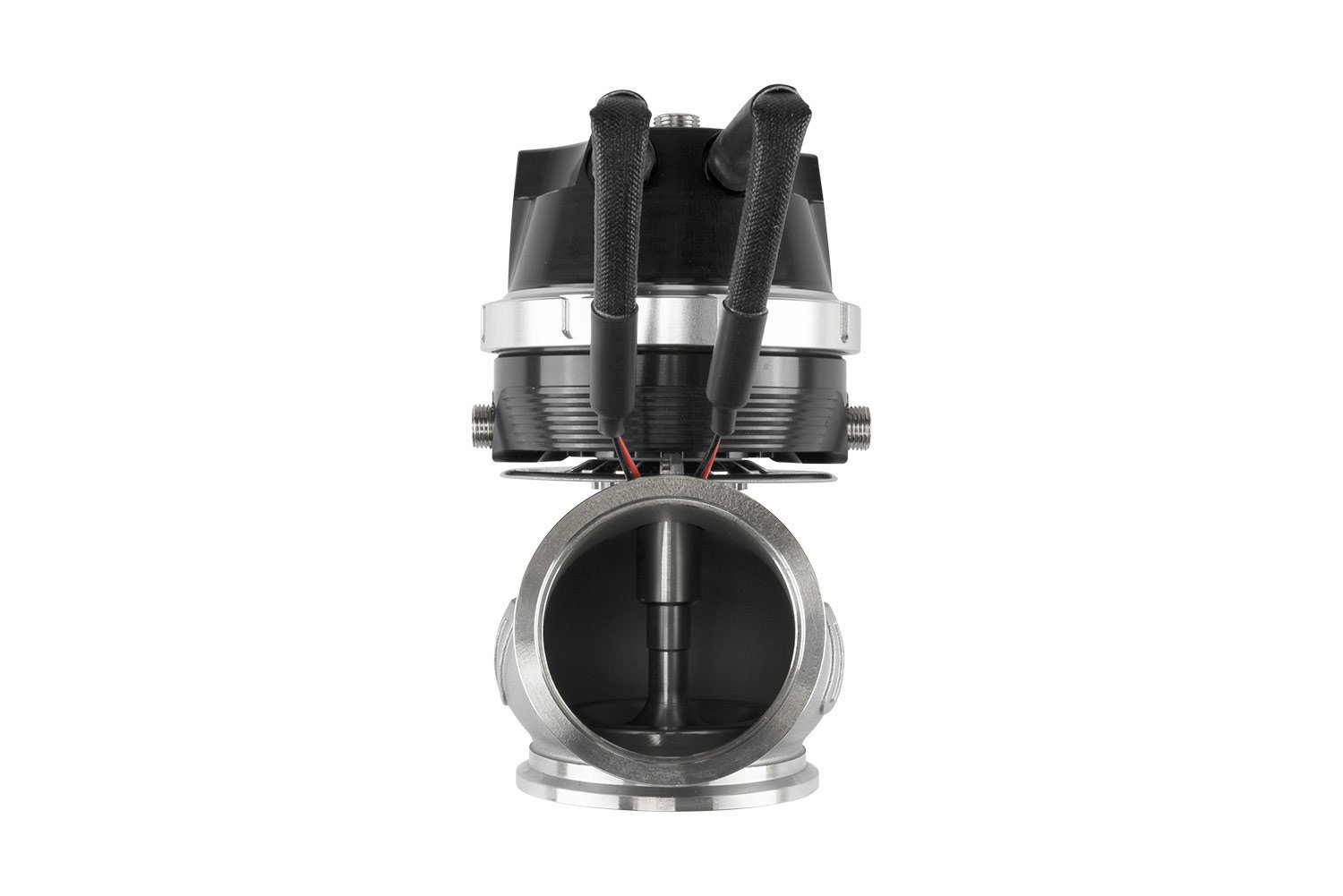

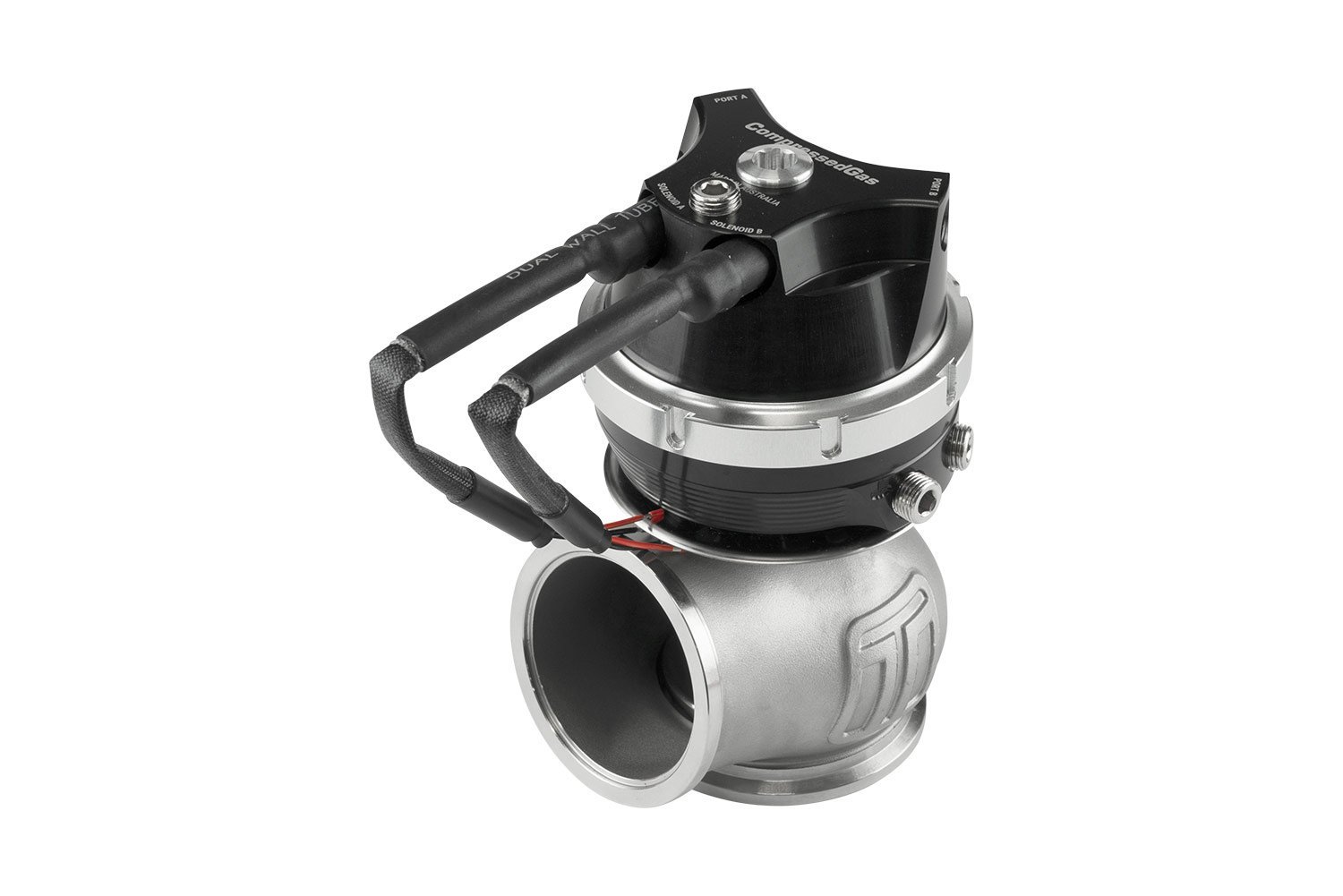

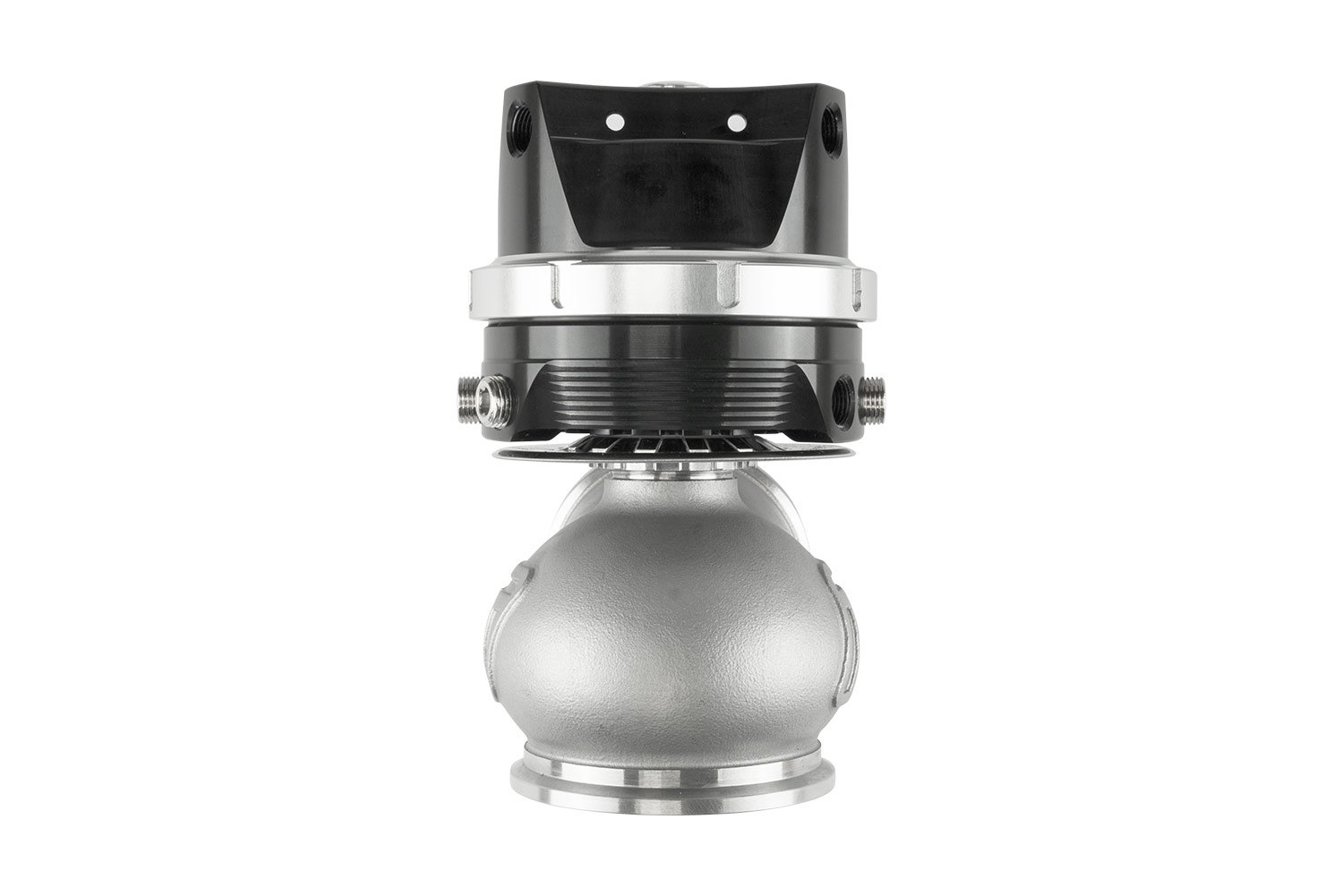

GenV WG50CG ProGate50 Compressed Gas (Solenoid) 7psi Black

Description

The GenV Pro Gate WG50CG Compressed Gas external wastegate with integrated boost control. Turbosmart has taken the complexity of out of CO2 boost control by taking the “spill” and “fill” control solenoids as well as the dome pressure sensor required for CO2 boost control and integrating them directly into the wastegate cap. The Compressed Gas / C02 external wastegate range from Turbosmart features an inverted diaphragm suitable for high-pressure C02 or compressed air systems and large pressure differentials.
The GenV provides extensive user configurability, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.

The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimised and validated in-house for maximum flow and thermal management. The GenV range has more features, options and performance than any other gate.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.

Features
Integrated Control In Cap Technology
Base Spring Pressure 7 PSI
Class Leading Thermal Performance
Class Leading CFD Driven and Bench Validated Flow Performance
Class Leading Fatigue Resistance
Optional Liquid Actuator Cooling
Optional Position Sensor Available Separately
Rotatable / Clock-able Actuator Housing
50mm V-Band Fitment
Nitronic 60 Valve Guide and High Temp 347 SS Body
17-7 PH Stainless Steel Springs
Strap Type V-band clamps
