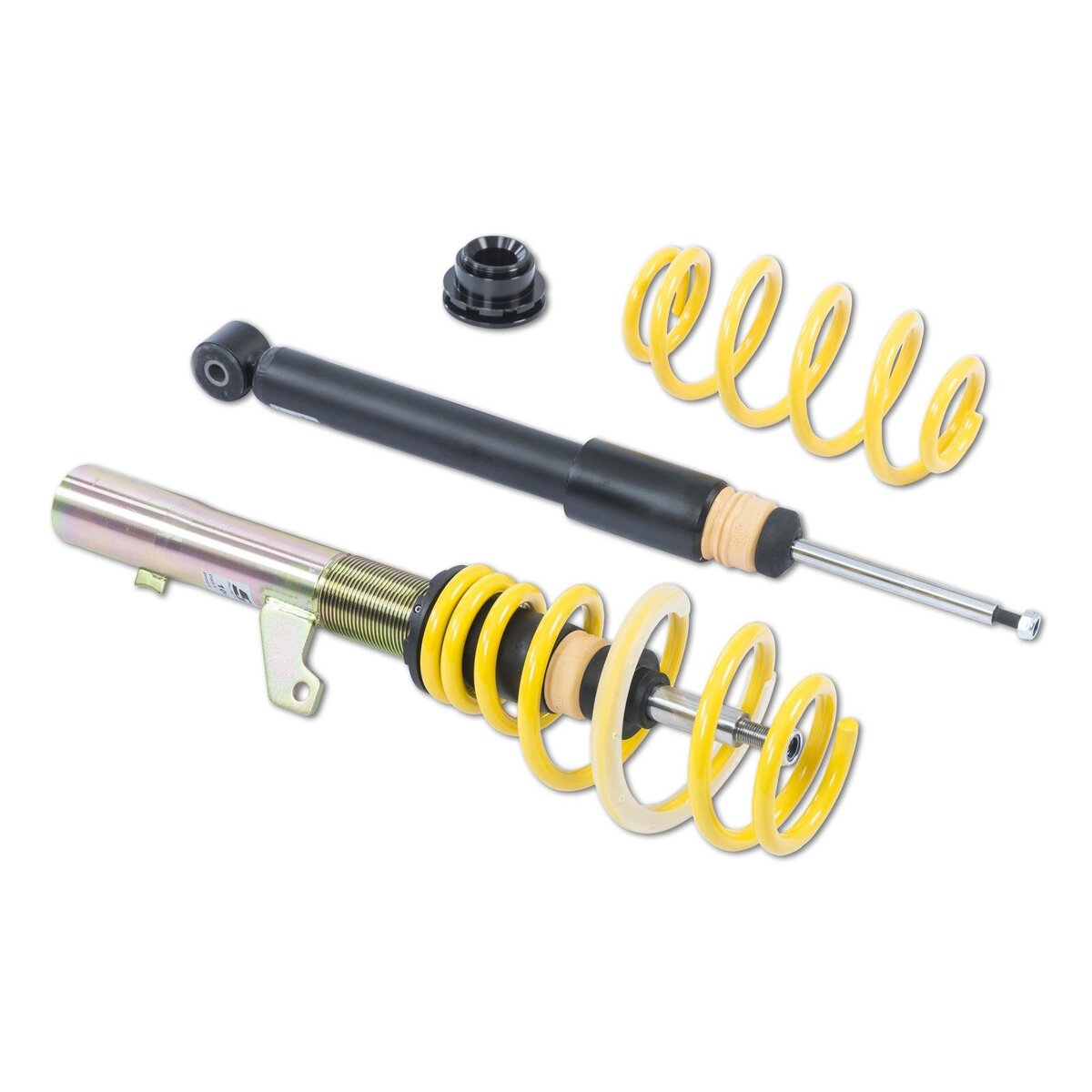

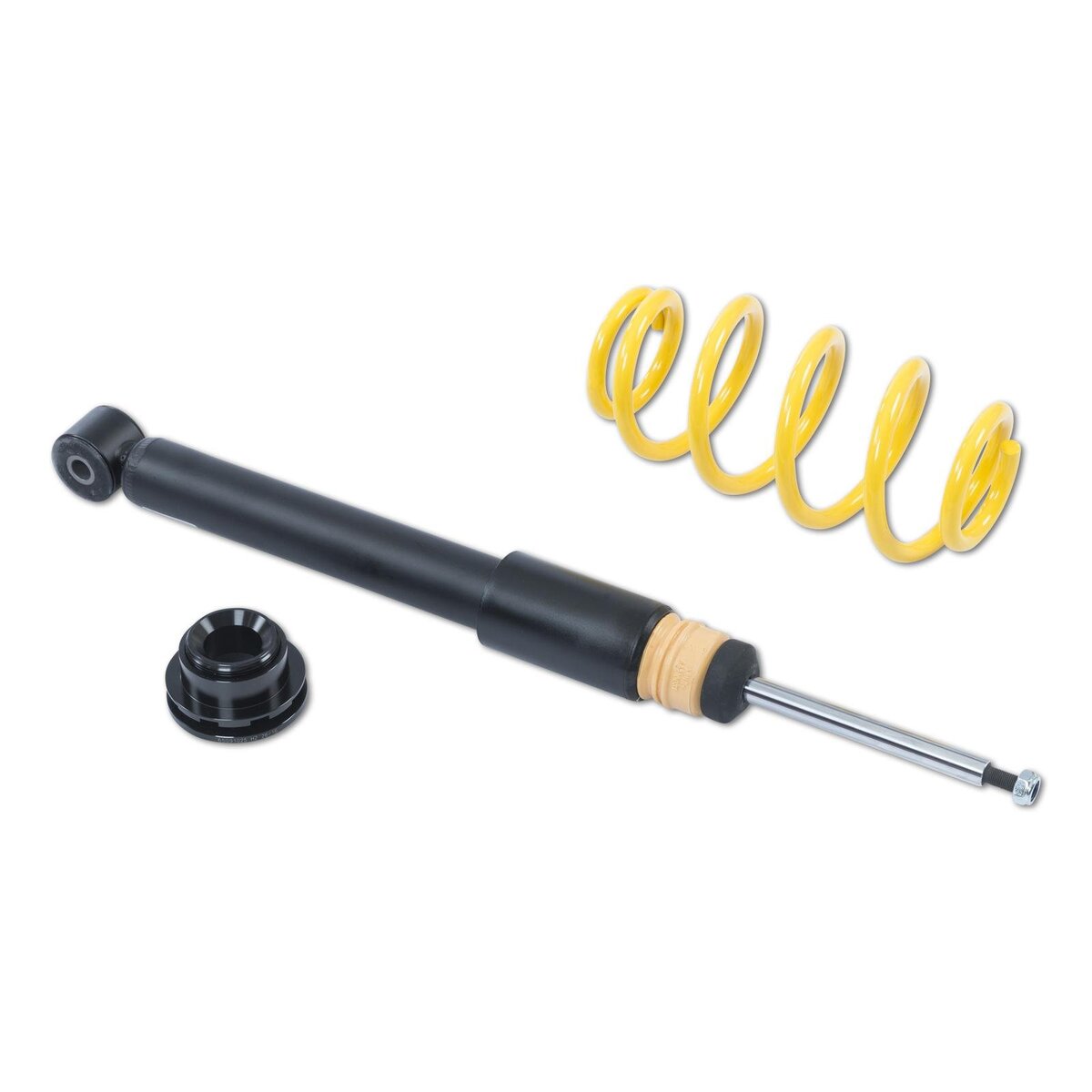

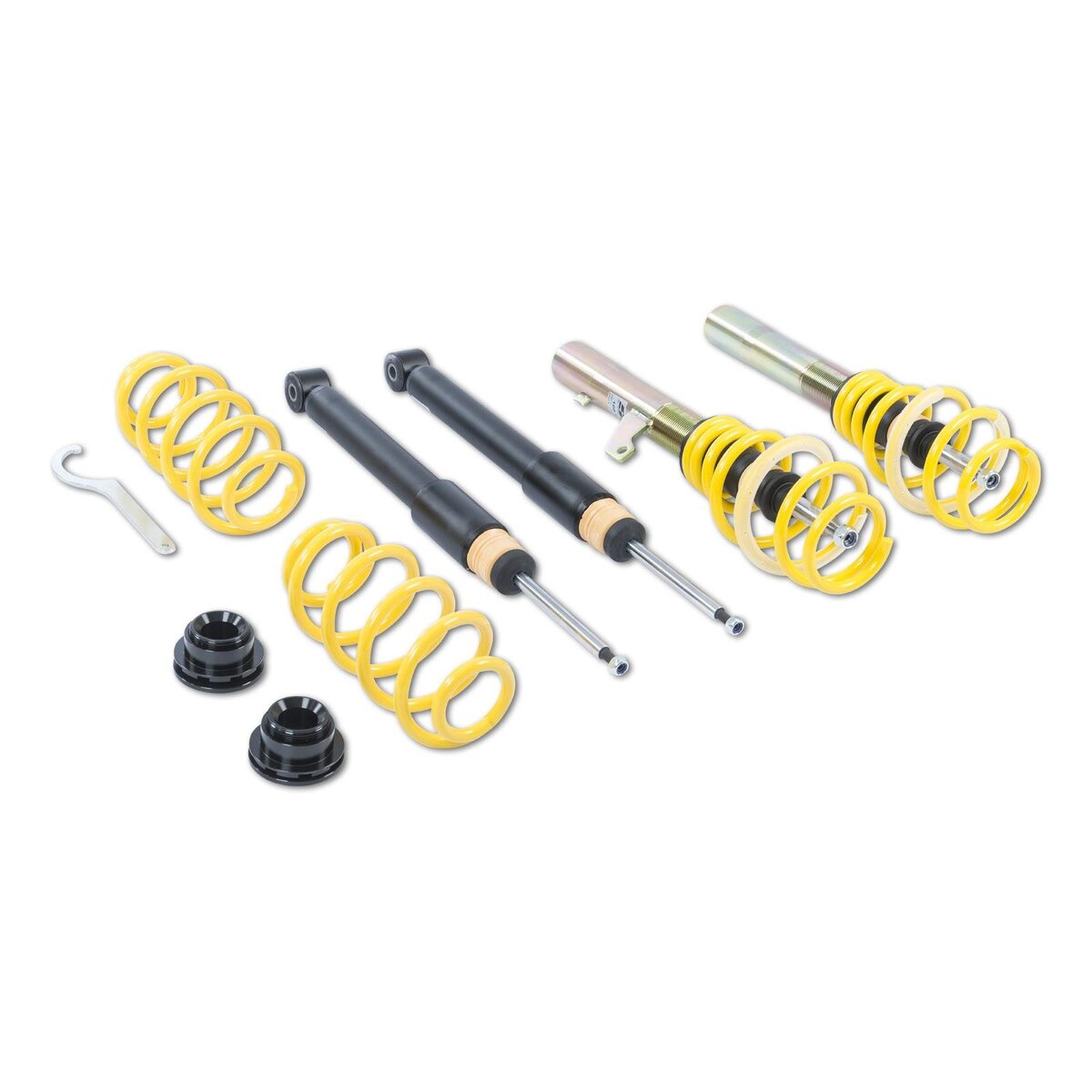

ST X Coilover Audi VW 13280077
Audi
Q3 (8U) 8UB, 8UG 06 / 2011 - 03 / 2020 SUV
- 1.4 TFSI - 92 KW
- 1.4 TSI - 110 KW
- 2.0 TDI - 88 KW
- 2.0 TDI - 100 KW
- 2.0 TDI - 103 KW
- 2.0 TDI - 110 KW
- 2.0 TDI - 130 KW
- 2.0 TDI - 135 KW
- 2.0 TDI quattro - 103 KW
- 2.0 TDI quattro - 110 KW
- 2.0 TDI quattro - 120 KW
- 2.0 TDI quattro - 130 KW
- 2.0 TDI quattro - 135 KW
- 2.0 TFSI - 132 KW
- 2.0 TFSI - 147 KW
- 2.0 TFSI quattro - 125 KW
- 2.0 TFSI quattro - 132 KW
- 2.0 TFSI quattro - 147 KW
- 2.0 TFSI quattro - 155 KW
- 2.0 TFSI quattro - 162 KW
- RS 2.5 quattro - 228 KW
- RS 2.5 quattro - 250 KW
- RS performance 2.5 quattro - 270 KW
VW
TIGUAN I (5N_) 09 / 2007 - 07 / 2018 SUV
- 1.4 TSI - 90 KW
- 1.4 TSI - 92 KW
- 1.4 TSI - 110 KW
- 1.4 TSI - 118 KW
- 1.4 TSI 4motion - 110 KW
- 1.4 TSI 4motion - 118 KW
- 2.0 TDI - 81 KW
- 2.0 TDI - 103 KW
- 2.0 TDI - 110 KW
- 2.0 TDI 4motion - 100 KW
- 2.0 TDI 4motion - 103 KW
- 2.0 TDI 4motion - 110 KW
- 2.0 TDI 4motion - 120 KW
- 2.0 TDI 4motion - 125 KW
- 2.0 TDI 4motion - 130 KW
- 2.0 TDI 4motion - 135 KW
- 2.0 TFSI - 147 KW
- 2.0 TFSI 4motion - 125 KW
- 2.0 TFSI 4motion - 147 KW
- 2.0 TSI 4motion - 132 KW
- 2.0 TSI 4motion - 155 KW
€864.23 Incl. VAT
Product Line: Street Performance
Version: X
Damping adjustment: no
Material: Galvanized steel
Adjustment FA/RA: Thread/Thread
strut diameter front axle (mm): 55
Approval: Teilegutachten (§19.3)
Content of delivery: Set FA coilover struts, RA springs with height adjustment + dampers
(+31) 85 303 71680 Start Live Chat
Description
ST X COILOVERS AUDI VW
ST X COILOVERS Audi VW
Need to get low? ST coilovers feature a continuous thread construction for height adjustment from moderate to eXtreme! Each coilover is manufactured by KW Automotive and their expertise and know how ensures maximum quality and fantastic driving dynamics.
Once installed, the ST X coilover can be easily adjusted using a polyamide ring on the galvanized, multiple-sealed strut. Adjustment is different for each car, but typically you can expect between 35 and 65mm of lowering on both the front and rear axles. For lowered cars as standard (such as the BMW E9x 3-series) the ST X coilover features a range of 30 to 60mm (front axle) and 25-55mm (rear axle).
Improved driving dynamics and handling
Designed in conjunction with KW Germany, ST X coilovers deliver a sporty handling by reducing the car’s bodyroll during compression as well as improving agility when driving fast. The high-quality production of each ST X coilover includes a low-friction and pressure resistant housing alongside a chrome-plated piston rod for maximum longevity. A mono block guide and ST seal package ensures the twin-tube dampers remain free of dirt particles in all weather conditions.
Lowering with StTyle: the ST X coilovers
– Individual lowering within the tested adjustment range
– Front and rear axle thread adjustment (when possible)
– Galvanized coilover struts with additional coating for optimized corrosion protection
– Complete solution with adjustable spring plate, spring system and bumpers with dust protection
– Powerful twin-tube dampers with high-quality components for maximum longevity
Additional information
| Weight | 21.88 kg |
|---|---|
| Dimensions | 76 × 46 × 15 cm |
| Body Type | SUV |
| Part Number | 13280077 |
