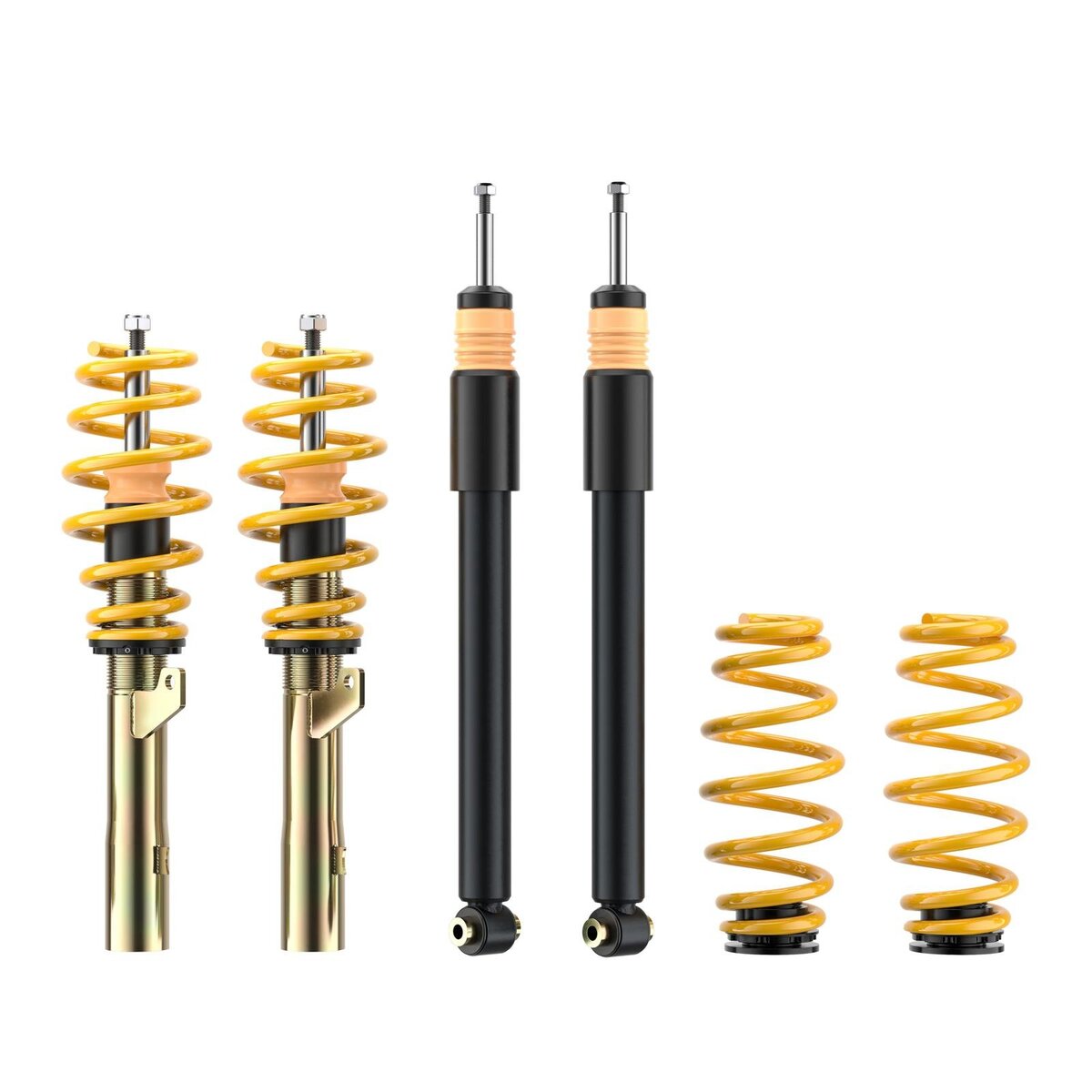

ST X Coilover Audi VW 13210069
Audi
A3 (8P) 8P1 05 / 2003 - 12 / 2013 Hatchback
- 1.4 TFSI - 92 KW
- 1.6 TDI - 77 KW
- 1.8 TFSI - 118 KW
- 1.9 TDI - 77 KW
- 2.0 FSI - 110 KW
- 2.0 TDI - 100 KW
- 2.0 TDI - 103 KW
- 2.0 TDI - 120 KW
- 2.0 TDI - 125 KW
- 2.0 TDI 16V - 103 KW
- 2.0 TFSI - 147 KW
A3 Sportback (8P) 8PA 09 / 2004 - 12 / 2015 Hatchback
- 1.4 TFSI - 92 KW
- 1.6 TDI - 77 KW
- 1.8 TFSI - 118 KW
- 1.9 TDI - 77 KW
- 2.0 FSI - 110 KW
- 2.0 TDI - 100 KW
- 2.0 TDI - 103 KW
- 2.0 TDI - 104 KW
- 2.0 TDI - 120 KW
- 2.0 TDI - 125 KW
- 2.0 TDI 16V - 103 KW
- 2.0 TFSI - 147 KW
VW
GOLF PLUS (1KP, 5M1, 521) 12 / 2004 - 12 / 2013 Hatchback
- 1.2 TSI - 63 KW
- 1.2 TSI - 77 KW
- 1.4 TSI - 90 KW
- 1.4 TSI - 103 KW
- 1.4 TSI - 118 KW
- 1.4 TSI - 125 KW
- 1.6 FSI - 85 KW
- 1.6 TDI - 66 KW
- 1.6 TDI - 77 KW
- 1.9 TDI - 66 KW
- 1.9 TDI - 77 KW
- 2.0 FSI - 110 KW
- 2.0 TDI - 81 KW
GOLF V (1K_) 01 / 2007 - 07 / 2009 Touring
- 1.4 TSI - 125 KW
- 1.9 TDI - 77 KW
- 2.0 TDI - 100 KW
- 2.0 TDI - 103 KW
- 2.0 TDI 16V - 103 KW
- 2.5 - 125 KW
GOLF V (1K_) 10 / 2003 - 07 / 2010 Hatchback
- 1.4 TSI - 103 KW
- 1.9 TDI - 66 KW
- 1.9 TDI - 77 KW
- 2.0 - 85 KW
- 2.0 FSI - 110 KW
- 2.0 TDI - 100 KW
- 2.0 TDI - 103 KW
- 2.0 TDI 16V - 103 KW
- 2.5 - 125 KW
- 2.5 Rabbit - 112 KW
GOLF VI (AJ5, 1KM) 07 / 2009 - 07 / 2014 Touring
- 1.4 TSI - 90 KW
- 1.4 TSI - 118 KW
- 1.6 TDI - 66 KW
- 1.6 TDI - 77 KW
- 2.0 - 85 KW
- 2.0 TDI - 81 KW
- 2.0 TDI - 100 KW
- 2.0 TDI - 103 KW
- 2.0 TFSI - 147 KW
- 2.5 - 125 KW
€864.23 Incl. VAT
Product Line: Street Performance
Version: X
Damping adjustment: no
Material: Galvanized steel
Adjustment FA/RA: Thread/Thread
strut diameter front axle (mm): 50
Approval: Teilegutachten (§19.3)
Content of delivery: Set FA coilover struts, RA springs with height adjustment + dampers
(+31) 85 303 71680 Start Live Chat
Description
ST X COILOVERS AUDI VW
ST X COILOVERS Audi VW
Need to get low? ST coilovers feature a continuous thread construction for height adjustment from moderate to eXtreme! Each coilover is manufactured by KW Automotive and their expertise and know how ensures maximum quality and fantastic driving dynamics.
Once installed, the ST X coilover can be easily adjusted using a polyamide ring on the galvanized, multiple-sealed strut. Adjustment is different for each car, but typically you can expect between 35 and 65mm of lowering on both the front and rear axles. For lowered cars as standard (such as the BMW E9x 3-series) the ST X coilover features a range of 30 to 60mm (front axle) and 25-55mm (rear axle).
Improved driving dynamics and handling
Designed in conjunction with KW Germany, ST X coilovers deliver a sporty handling by reducing the car’s bodyroll during compression as well as improving agility when driving fast. The high-quality production of each ST X coilover includes a low-friction and pressure resistant housing alongside a chrome-plated piston rod for maximum longevity. A mono block guide and ST seal package ensures the twin-tube dampers remain free of dirt particles in all weather conditions.
Lowering with StTyle: the ST X coilovers
– Individual lowering within the tested adjustment range
– Front and rear axle thread adjustment (when possible)
– Galvanized coilover struts with additional coating for optimized corrosion protection
– Complete solution with adjustable spring plate, spring system and bumpers with dust protection
– Powerful twin-tube dampers with high-quality components for maximum longevity
Additional information
| Weight | 20.3 kg |
|---|---|
| Dimensions | 76 × 46 × 15 cm |
| Body Type | Touring | Hatchback |
| Part Number | 13210069 |
