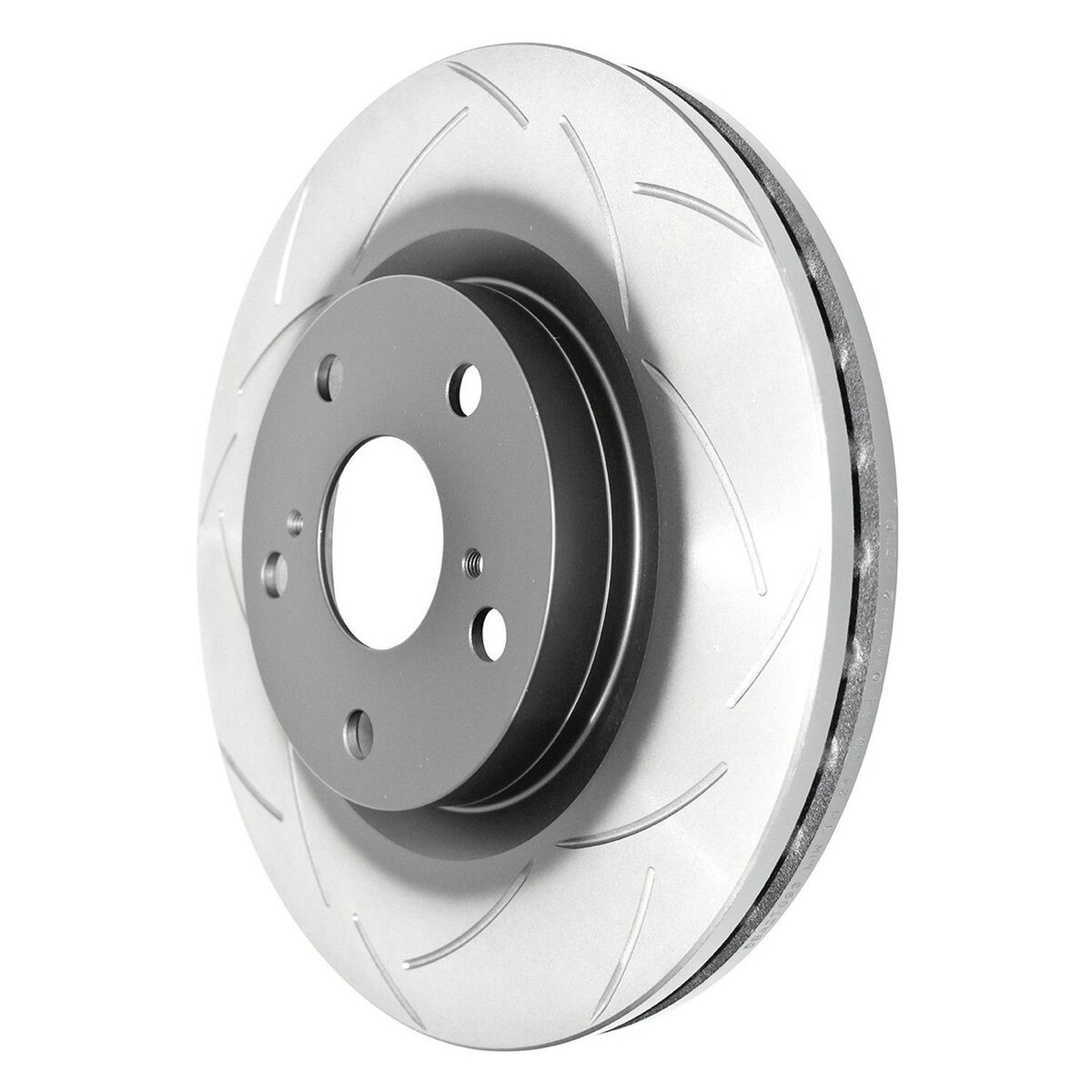

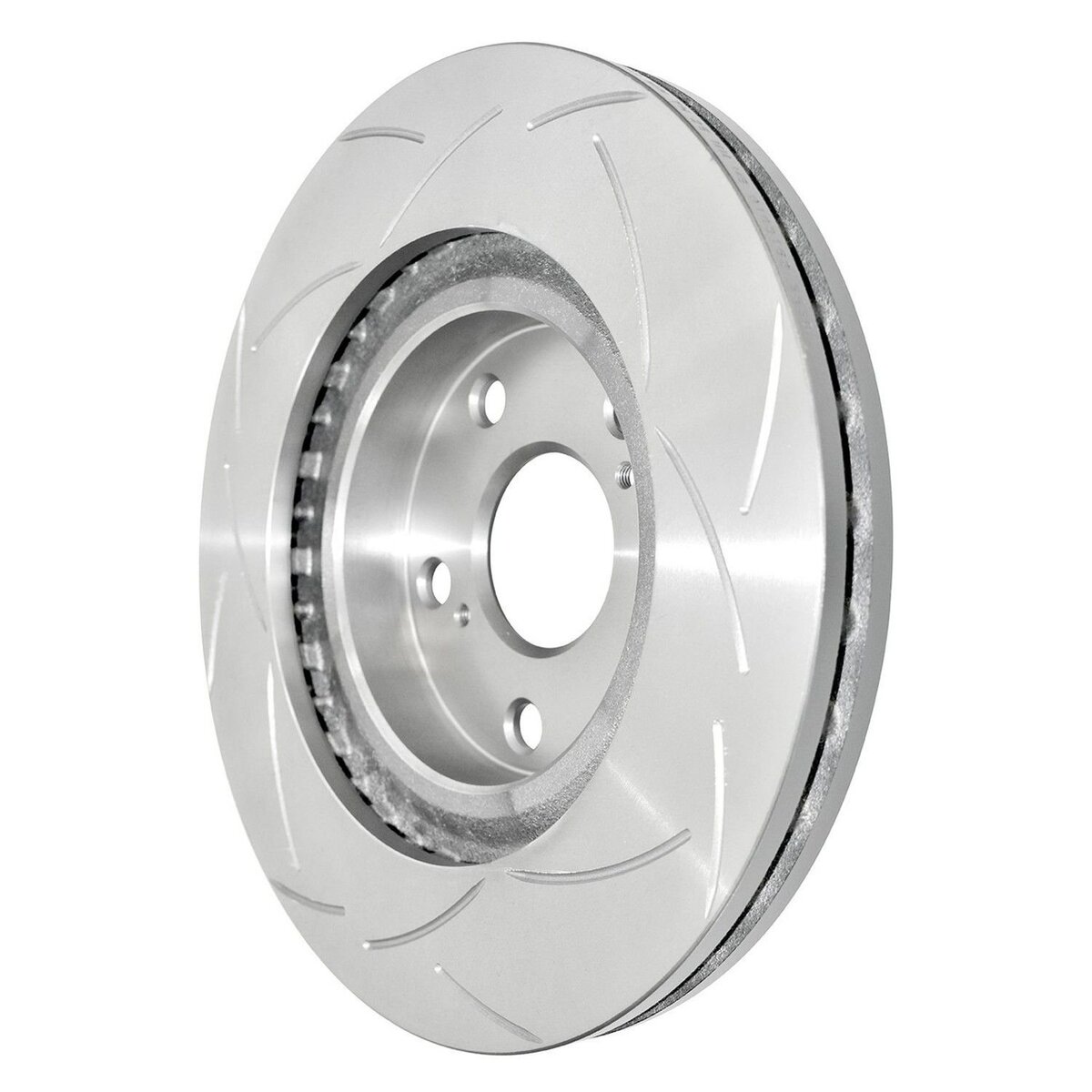

DBA2709S – Street Series T2 Brake Rotor; Front
Lexus
RX (XU10) Suv 1998 - 2003
- RX300 3.0 (AWD) (MCU15) 2000 - 2003 Awd
Toyota
Auris (E150) Hatchback 2006 - 2012
- Hybrid 1.8 (ZWE150) 2010 - 2012
Auris (E180) Estate 2012 - 2019
- Touring Sports Hybrid 1.8 (ZWE186) 2012 - 2019
Auris (E180) Hatchback 2012 - 2019
- 1.8 (ZRE182) 2012 - 2019
- 2.0 TD (ADE186) 2012 - 2015
- Hybrid 1.8 (ZWE186) 2012 - 2019
Camry (XV30) Sedan 2001 - 2006
- 2.4 (ACV30) 2001 - 2004 (UKDM)
- 3.0 (MCV30) 2001 - 2004 (UKDM)
- 3.0 2001 - 2006 (EUDM)
Camry (XV40) Sedan 2006 - 2011
- 2.4 (4WD) 2006 - 2011 4Wd
- 2.4 2006 - 2011
- 3.5 2006 - 2011
Camry (XV50) Sedan 2011 - 2019
- 2.0 2011 - 2019
- 2.5 2011 - 2019
- 3.5 2011 - 2019
Previa (XR30) Mpv 2000 - 2006
- 2.0 TD (CLR30) 2003 - 2006
- 2.4 (ACR30) 2003 - 2006
Previa (XR50) Mpv 2006 - Present
- 2.4 (ACR50) 2006 - Present
- 3.5 (GSR50) 2006 - Present
Prius (XW30) Hatchback 2009 - 2016
- Hybrid 1.8 (ZVW40) 2012 - 2016
Prius + (XV40) Mpv 2011 - Present
- Prius Hybrid 1.8 (ZVW40) 2011 - Present
RAV4 (XA30) Suv 2005 - 2013
- 2.0 2005 - 2013
- 2.2 TD 2005 - 2013
RAV4 (XA40) Suv 2013 - 2018
- 2.0 2013 - 2018
- 2.0 TD 2013 - 2018
- 2.2 TD 2013 - 2016
- Hybrid 2.5 2016 - 2018
€127.89 Incl. VAT
- Manufacturer: DBA
- Material: Cast Iron
- Package Contents: 1x Brake Disc
- DBA2709S – Street Series T2 Brake Rotor; Front DBA Street Series T2 rotors offer the advantages of DBA's direct replacement rotors, enhanced by the introduction of DBA's patented T2 slot design.
- This design incorporates precisely CNC machined bi-symmetrical slots, leading to a quieter and more responsive brake pedal feel.
- With increased exit points, the T2 design allows for improved dispersal of friction dust and gases, enhancing pad bite.
(+31) 85 303 71680 Start Live Chat
Description
DBA2709S – Street Series T2 Brake Rotor; Front DBA Street Series T2 rotors offer the advantages of DBA’s direct replacement rotors, enhanced by the introduction of DBA’s patented T2 slot design. This design incorporates precisely CNC machined bi-symmetrical slots, leading to a quieter and more responsive brake pedal feel. With increased exit points, the T2 design allows for improved dispersal of friction dust and gases, enhancing pad bite. DBA Street Series rotors are the ideal choice for drivers seeking OE-level performance enhancement. These rotors feature enhanced heat transfer and thermal efficiency achieved through center-split core castings, and they utilize a Cubic Boron Nitride (CBN) machine-turned finish, minimizing disc thickness variation and preventing pad “knock” for prolonged durability. Crafted as direct OE replacement disc rotors, Street Series stands out with top-tier manufacturing processes, high-quality materials, and proven safety features, backed by DBA’s over 40 years of braking expertise. These rotors are recommended for daily drivers, light commercial vehicles, and SUV applications.
Additional information
| Manufacturer | DBA |
|---|---|
| Bolt Circle Diameter mm | 114, 30 |
| Bolt Hole Quantity | 00, 5 |
| Disc Diameter (mm) | 296 |
| Disc Finish | Bi-Slotted |
| Disc Height (mm) | 20, 49 |
| Hub Hole Diameter (mm) | 62 |
| Disc Construction | 1-Piece |
| Disc Side | Left/Right |
| Max Thickness | 28 |
| Min Thickness | 25 |
| Disc Type | Vented |
| Disc Quality | Premium |
| Material | Cast Iron |
| Package Contents | 1x Brake Disc |
| Approvals | ECE R90 Approved |
| Approval Number | E11*90R02/06*60536*00 |
| Brake Location | Front |
